Features
Floating channel designed for bootstrap operation, fully operational to +500V or +600VTolerant to negative transient voltagedV/dt immune
Gate drive supply range from 10 to 20V
Undervoltage lockout for both channels
3.3V logic compatible separate logic supply range from 3.3V to 20VLogic and power ground ±5V offset
CMOS Schmitt-triggered inputs with pull-down
Cycle by cycle edge-triggered shutdown logic
Matched propagation delay for both channels
Outputs in phase with inputs

Description:

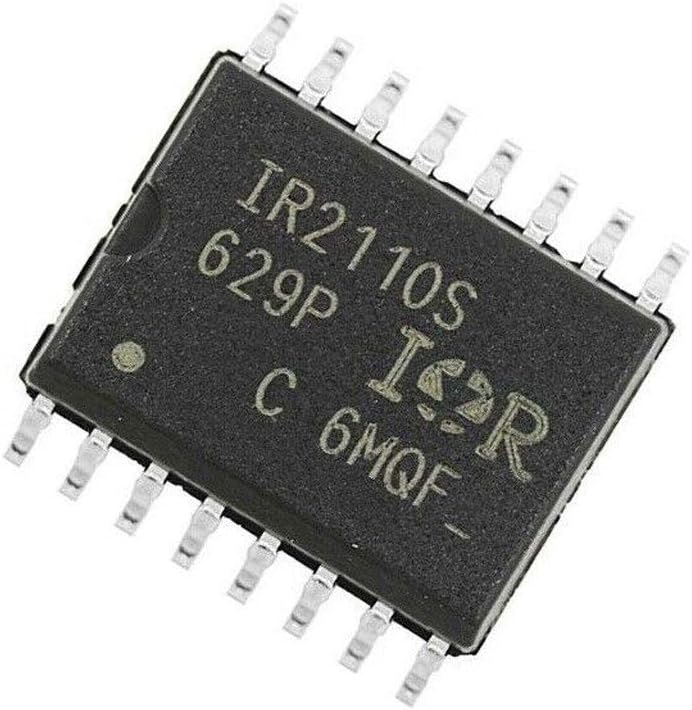

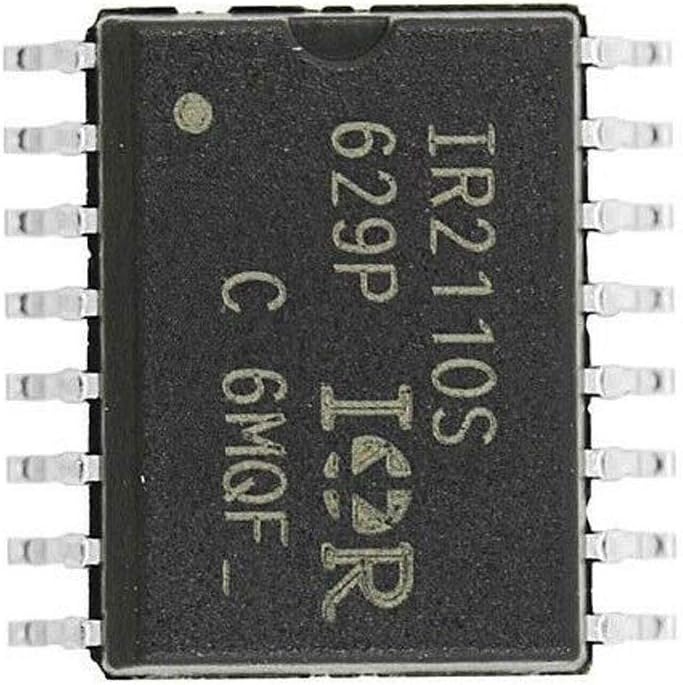

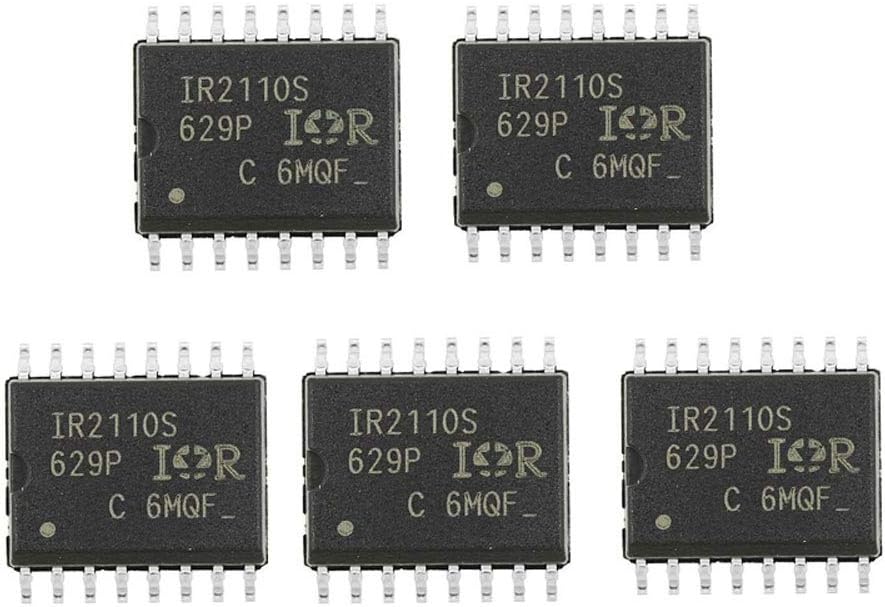

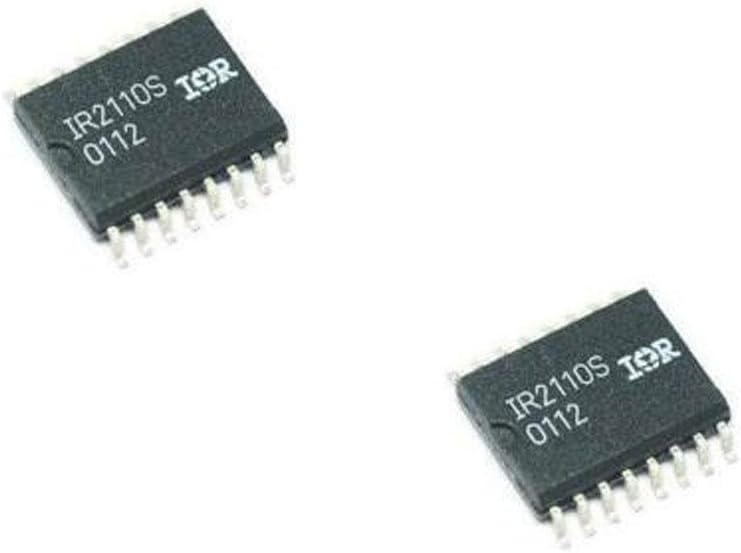

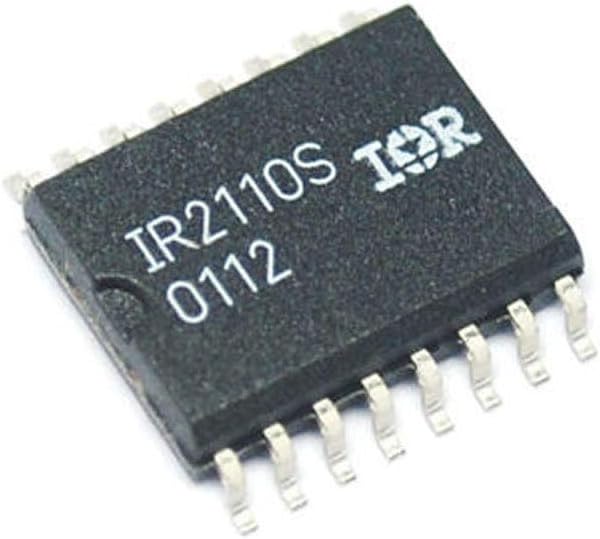

The IR2110/IR2113 are high voltage, high speed power MOSFET andIGBT drivers with independent high and low side referenced output chan-nels. Proprietary HVIC and latch immune CMOS technologies enableruggedized monolithic construction. Logic inputs are compatible withstandard CMOS or LSTTL output, down to 3.3V logic. The outputdrivers feature a high pulse current buffer stage designed for minimumdriver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. Thefloating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration whichoperates up to 500 or 600 volts
