مميزات خاصة

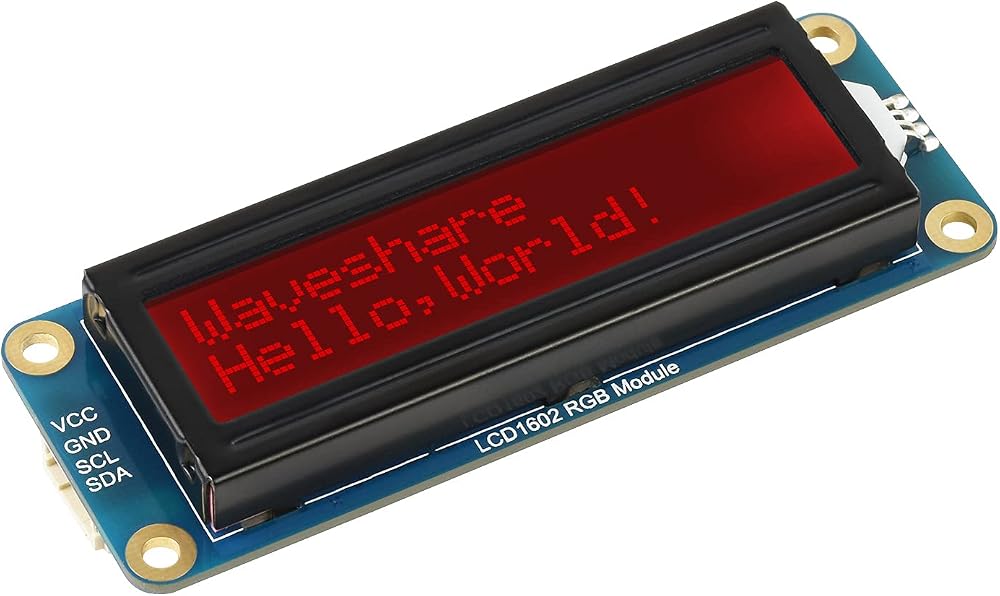

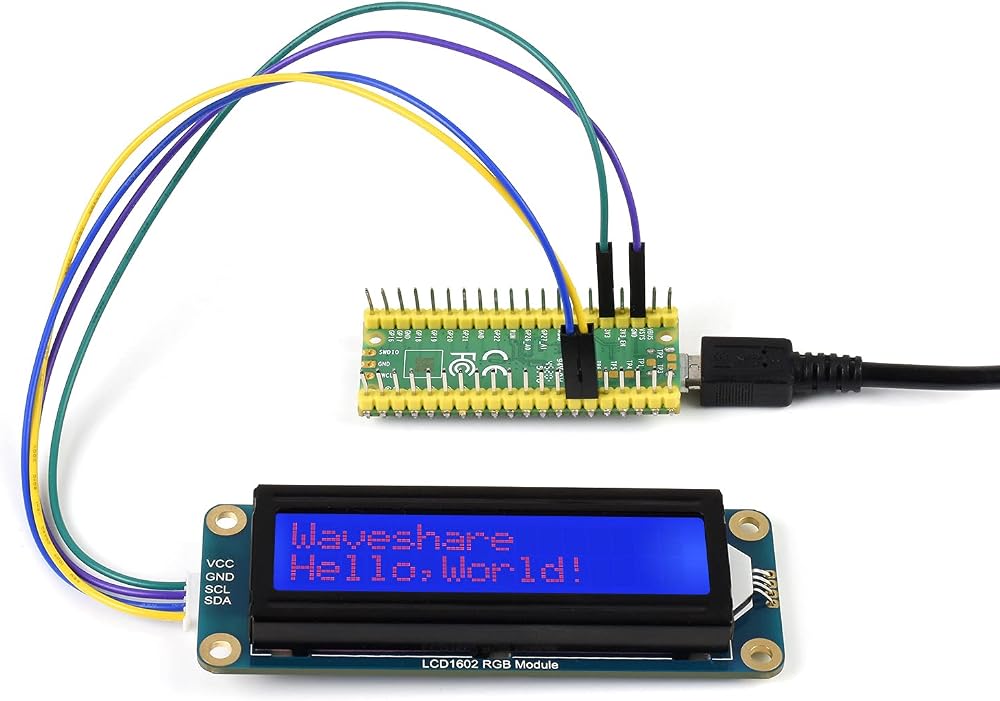

【LCD1602 RGB Module】Incorporates character LCD panel LCD1602, onboard AiP31068L LCD driver chip and PCA9633 RGB control chip, supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino
【16x2 Characters 1602 LCD】Incorporates character LCD panel LCD1602, can display up to 16 X 2 characters, support screen scrolling, cursor movement and other functions

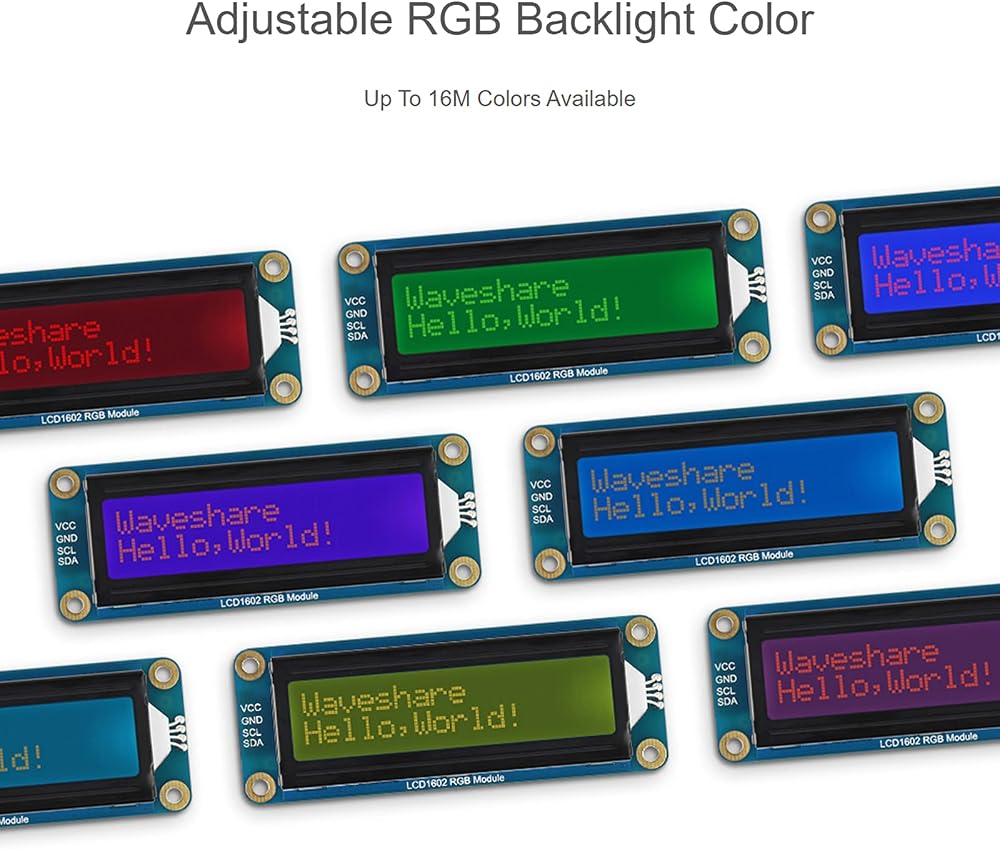

【Adjustable RGB Backlight Color】Up to 16M (2563) backlight colors available

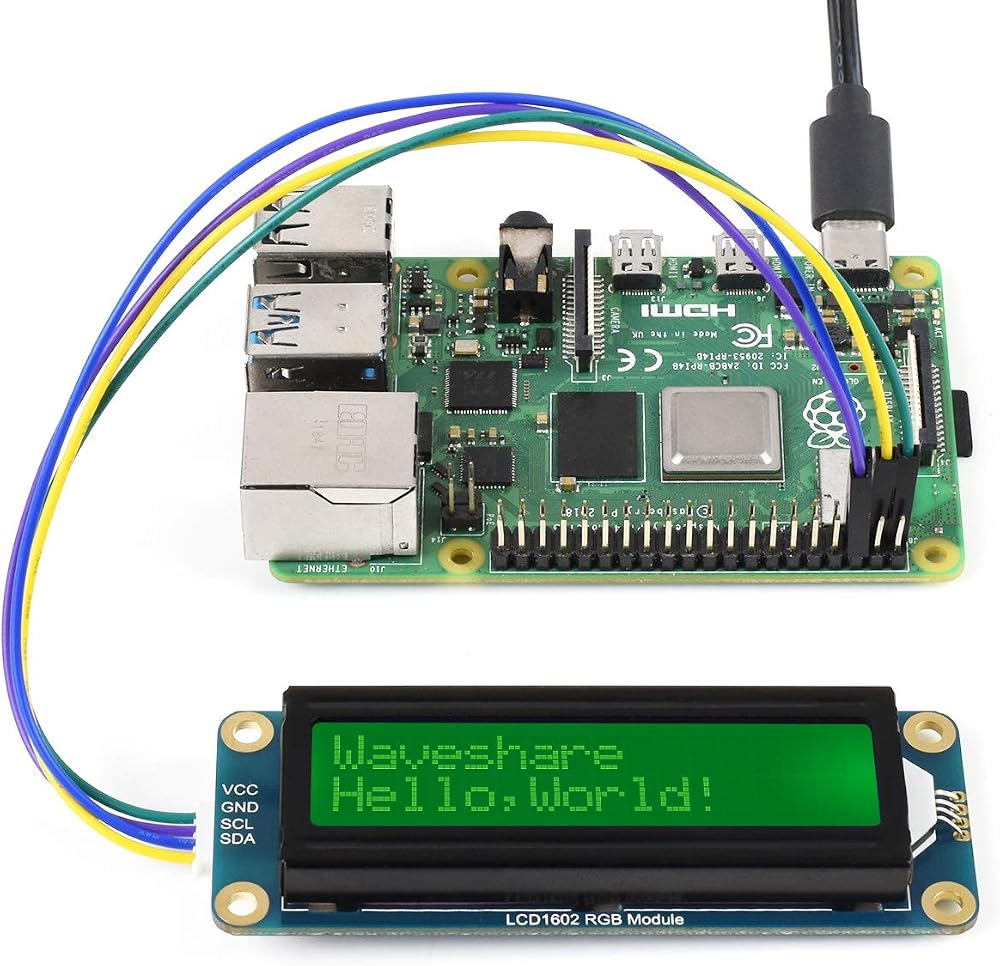

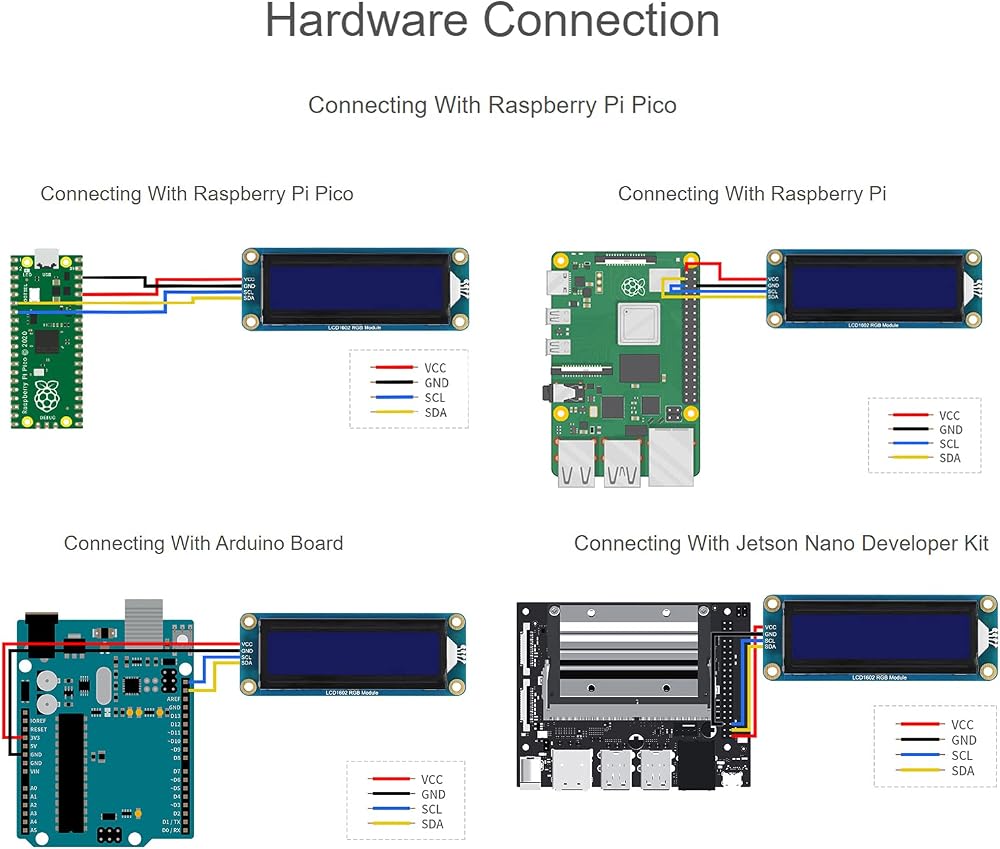

【I2C Control Interface】Only two signal pins are required, saving the IO resource, for connecting with host boards like Raspberry Pi / Arduino
【3.3V/5V Compatible】Compatible with 3.3V/5V operating voltage, Dimension: 87.0 × 32.0 × 13.0mm

وصف

Overview

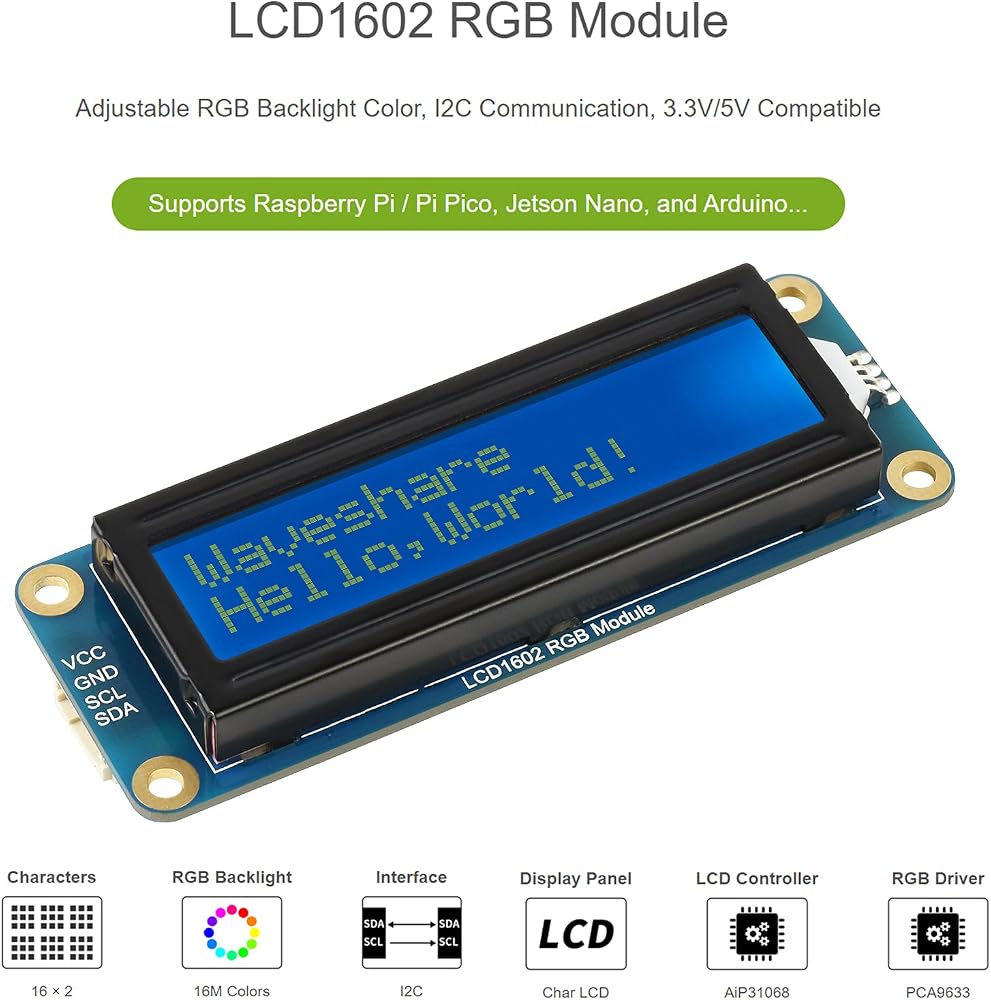

LCD1602 RGB Module, 16x2 Characters LCD, Adjustable RGB Backlight Color, I2C Communication, 3.3V/5V Compatible, Supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino

Features
1. Incorporates character LCD panel LCD1602
2. Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory
3. Can display up to 16 X 2 characters, support screen scrolling, cursor movement and other functions
4. Onboard AiP31068L LCD driver chip, PCA9633 RGB control chip

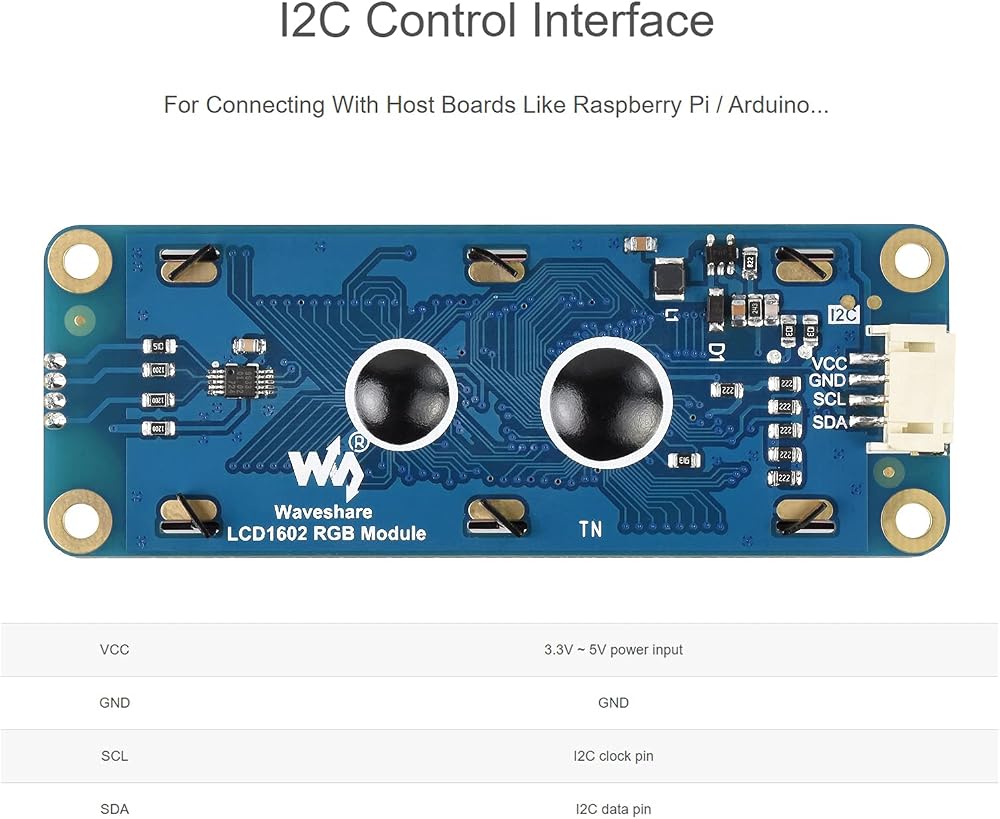

5. I2C control interface, only two signal pins are required, saving the IO resource
6. Compatible with 3.3V/5V operating voltage
7. Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)

Specification
Operating voltage: 3.3V/5V
Interface: I2C
LCD type: character LCD
Controller: AiP31068L PCA9633DP2

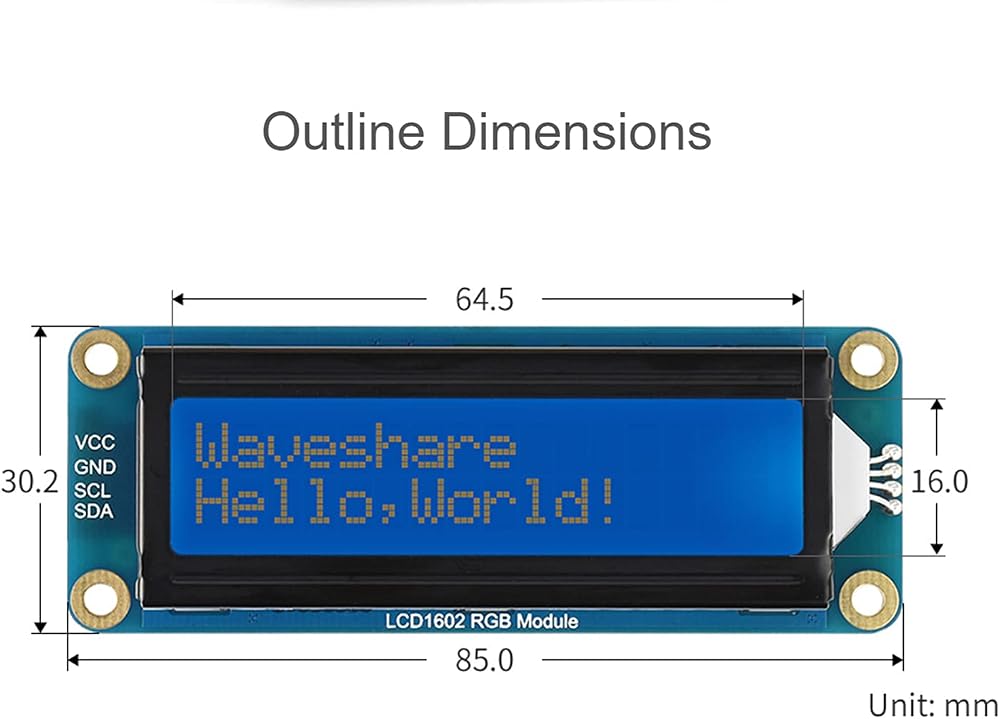

Display 64.5 x 16.0 mm
Dimension: 87.0 × 32.0 × 13.0mm
Operating current: 26mA (5V), 13mA (3.3V)

Package Content
LCD1602 RGB Module x1
PH2.0 4PIN wire x1

Note
Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

مرحبًا،

بحث

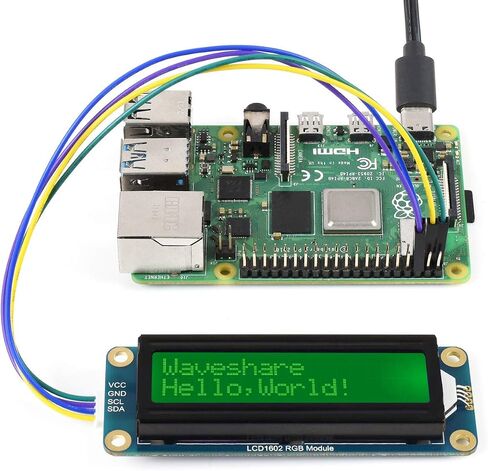

Waveshare 1602 شاشة LCD RGB وحدة 16 × 2 حرف 16 مليون لون RGB وحدة LCD بإضاءة خلفية، 3.3 فولت/5 فولت متوافق، حافلة I2C، لراسبيري بي/بي بيكو، جيتسون نانو اردوينو
