Product Description
Description:
1, the automatic sensor: to enter the sensor output range is high, people leave the sensor range of the automatic delay off high, output low.
2, the photosensitive control (optional, factory is not set) may set the photosensitive control during the day or light intensity without induction.
3, the temperature compensation (optional, factory is not set): In the summer when the ambient temperature rises to 30 ~ 32? Slightly shorter detection range, temperature compensation can be used as a performance compensation.

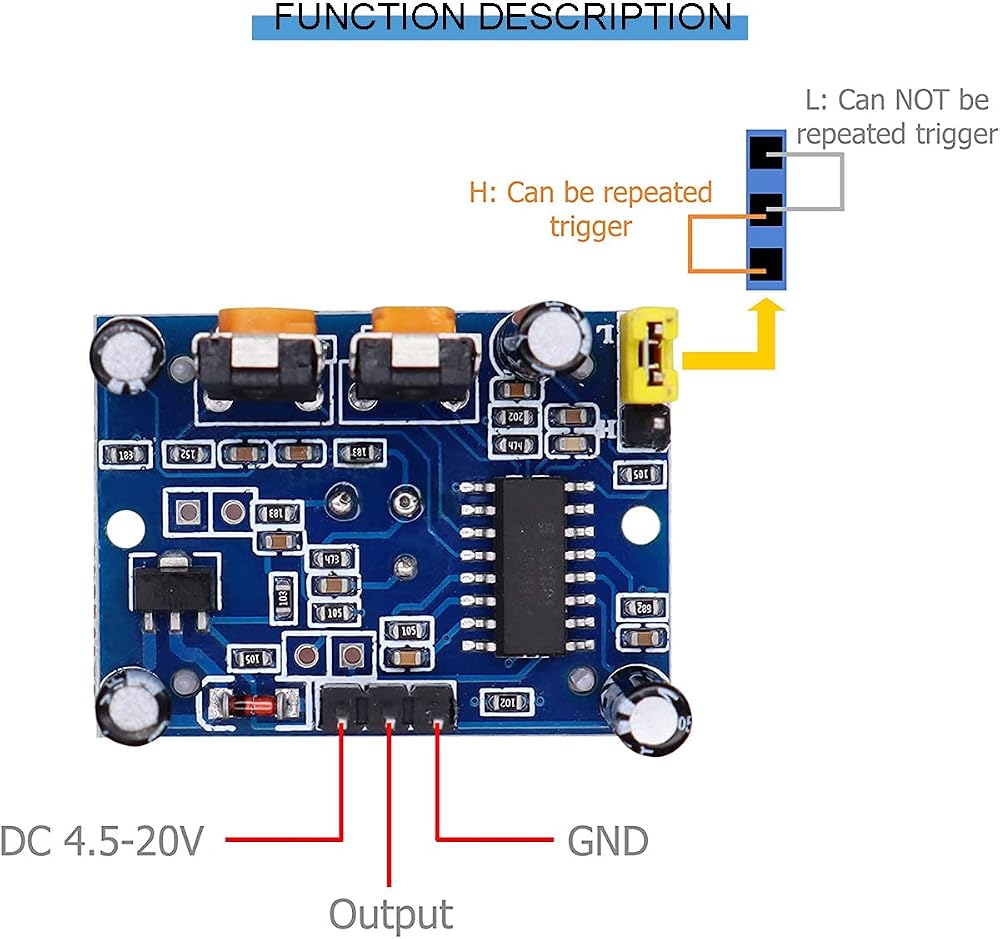

4, two trigger mode: (be selected by jumpers)
a, cannot repeat the trigger: the sensor output high, the delay time is over, the output will automatically become low from high;
b, repeatable trigger: the sensor output high after the delay period, if the human body in its sensing range activities, its output will remain high until after the delay will be left high to low (sensor module review Measured activities of each body will be automatically extended after a delay time, and the final event of the delay time Starting point of time).

Features:
Operating voltage range: DC 4.5-20V
Quiescent Current: less than 50uA
Level output: High 3.3 V /Low 0V
Trigger: L cannot be repeated trigger/H can be repeated trigger (Default repeated trigger)

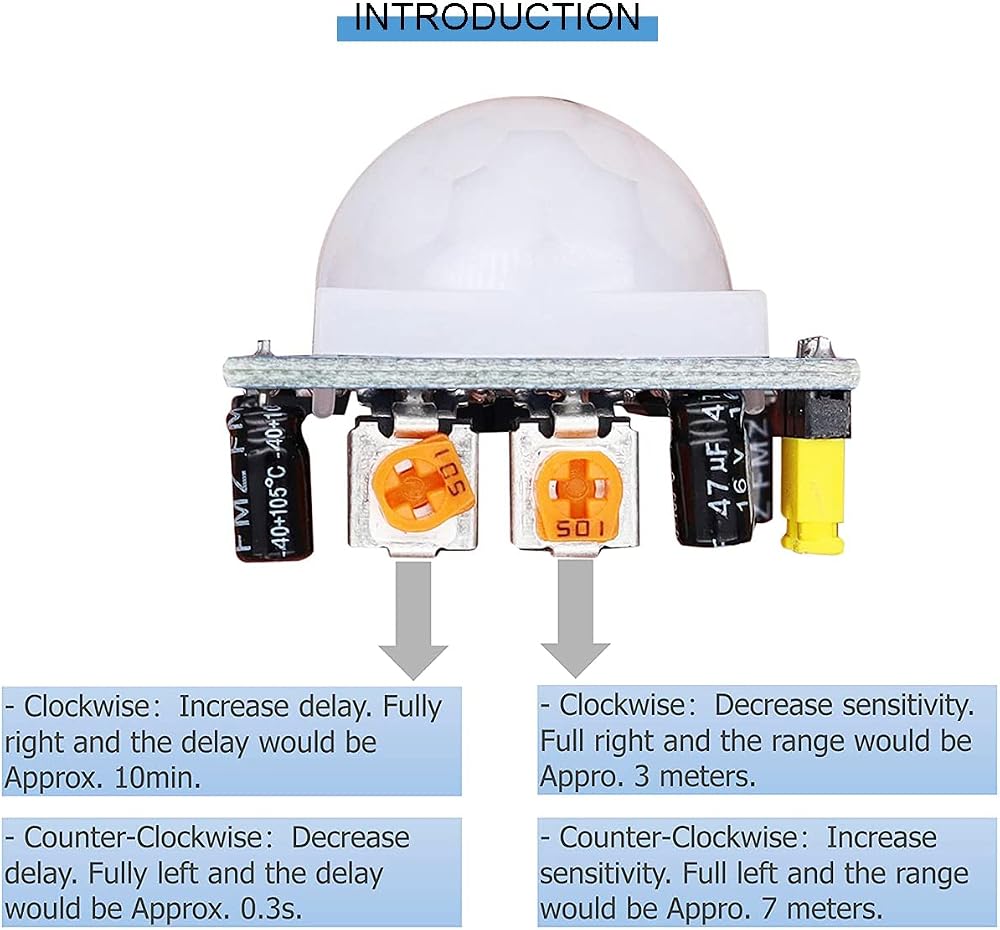

Delay time: 5-200S (adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S (default) Can be made a range (0.xx to tens of seconds

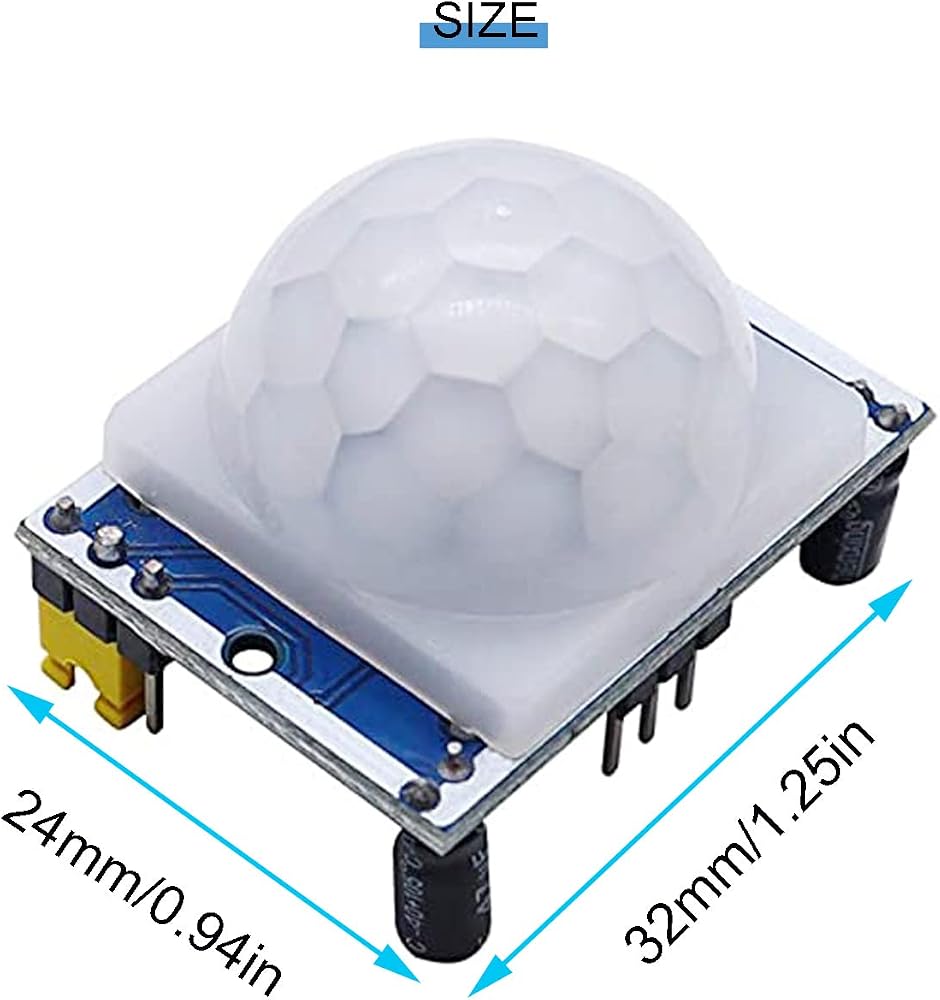

Board Dimensions: 32mm x 24mm/1.3 x 0.9inch
Angle Sensor: less than 100 cone angle
Operation Temp: -15-+70 degrees
Lens size sensor: Diameter: 23mm (Default)

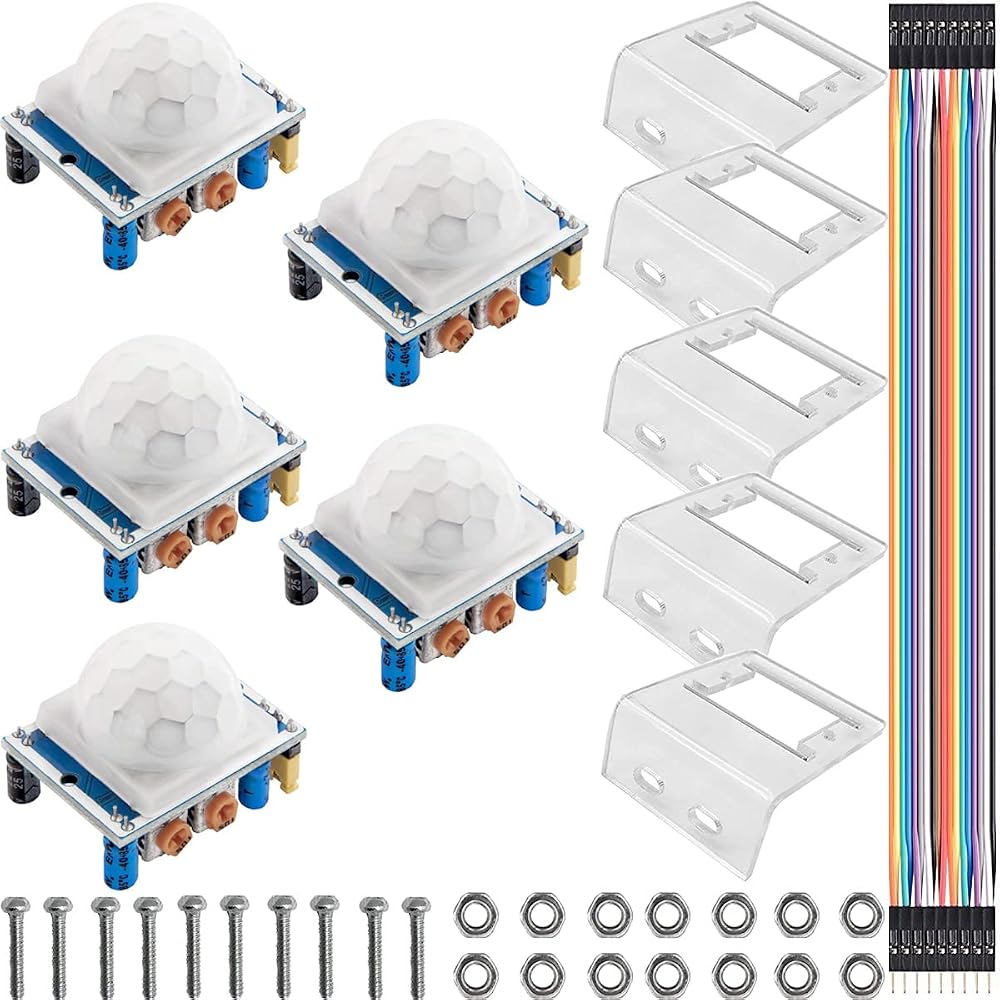

Package Includes:
5 x HC-SR501 Human Sensor Module

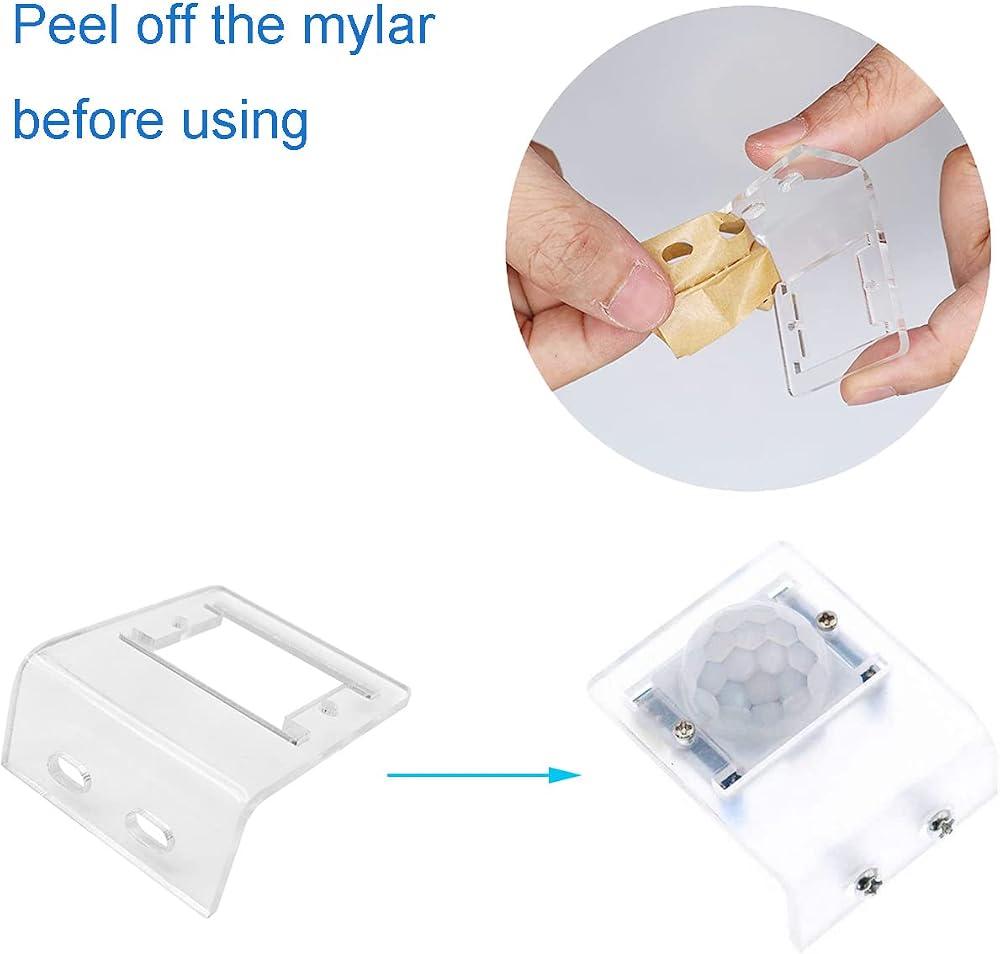

5 x Mounting Bracket
1 x 15-pin male and female DuPont cable
