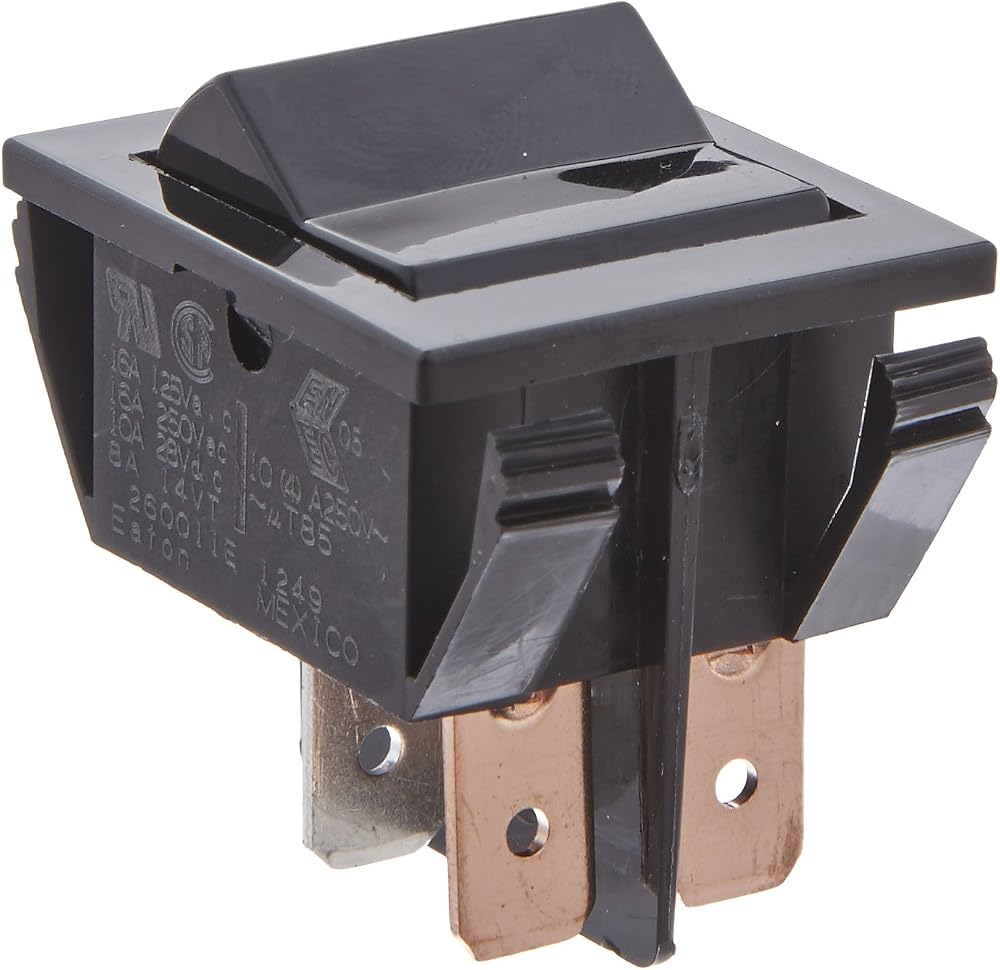

This Eaton 260011E rocker switch is rated for 16 amp at 125 VAC and 16 amp at 250 VAC, and has three switching positions (on, none, and off) with maintained switching action for sustained operation of the circuit. It is a double-pole, single-throw (DPST) switch with a glossy black plastic base and bezel and a glossy black rocker. This switch is Restriction of Hazardous Substances (RoHS) compliant for hazardous substances, Underwriters Laboratories (UL) Listed, Canadian Standards Association (CSA) certified, and Verband der Elektrotechnik (VDE) certified for quality assurance. This rocker switch is suitable for use in appliances, electronic instrumentation, data processing, communications, medical equipment, office equipment, and other applications.
SpecificationsSwitch typeNon-illuminated rockerContactsDPSTPositionsOn-none-offSwitching actionMaintainedPower rating16 amp at 125 VAC, 16 amp at 250 VACContact materialSilver inlay over copperContact resistance10 megohm maximum at 1 amp, 4 VDCMechanical life50,000 cycles minimumDielectric withstanding voltage1,000 VAC root mean square (RMS) minimumTerminal type6.3 mm tab/0.25" quick connectTerminal materialCopperOperating temperature range32 to 185 degrees F (0 to 85 degrees C)Dimensions*1.197 x 1.027 inches/30.4 x 26.1 mm (L x W)Standards metRoHS compliant, UL Listed, CSA certified, and VDE approved
* L is length, the horizontal distance from front to back; W is width, the horizontal distance from left to right.
Eaton manufactures electrical, hydraulic, and mechanical power equipment. The company, founded in 1911, is headquartered in Dublin, Ireland.
