مميزات خاصة

Rating: Ui: 380V Ith:10A. And the contact type is SPDT NO+NC
Applicable to AC DC control circuits.Reliable for years
High precision design, use easily.Designed to control the movement of a mechanical part.
IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...

وصف

Features:
Excellent accessibility, stable performance, practical and convenient
Multi-place use of gasket design
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and equipment.
Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.

Specification
Product Name: Micro Switch;
Model No.: AZ-7310;
OF max.: 600g
RF min.: 100g
PT max.: 2.0mm
OT min.: 6.0mm
MD max.: 0.8mm
OP: 21.8+/-1.2mm
Contact Form: SPDT NO+NC
Termination Style: Screw Terminal;
Terminal Number: 3

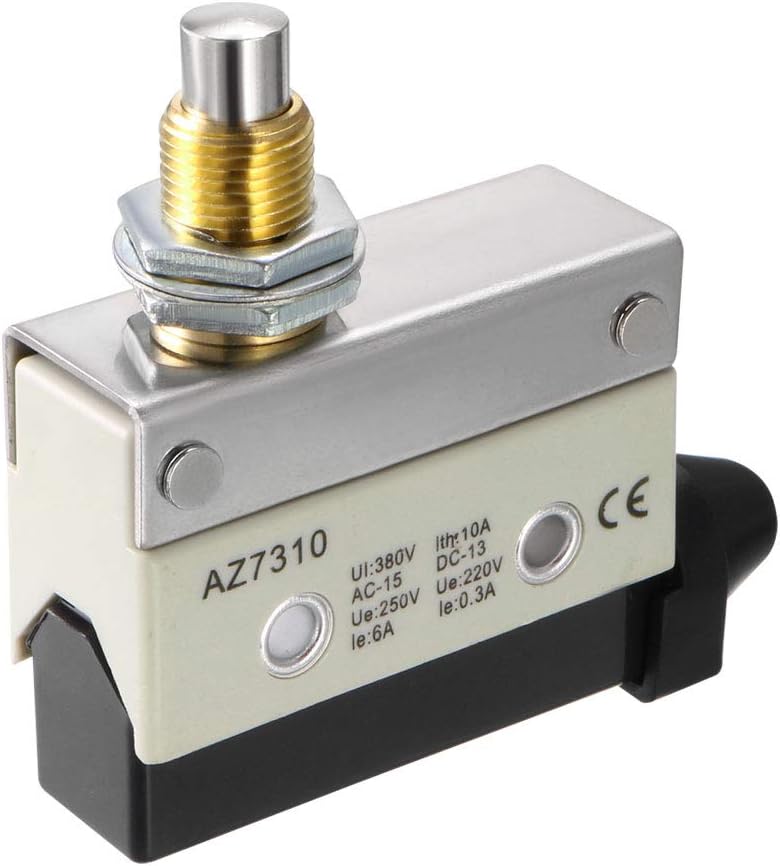

Rating: Ui: 380V Ith:10A; AC-15 Ue: 250V Ie: 6A; DC-13 Ue: 220V Ie: 0.3A;
Protection degree: IP62

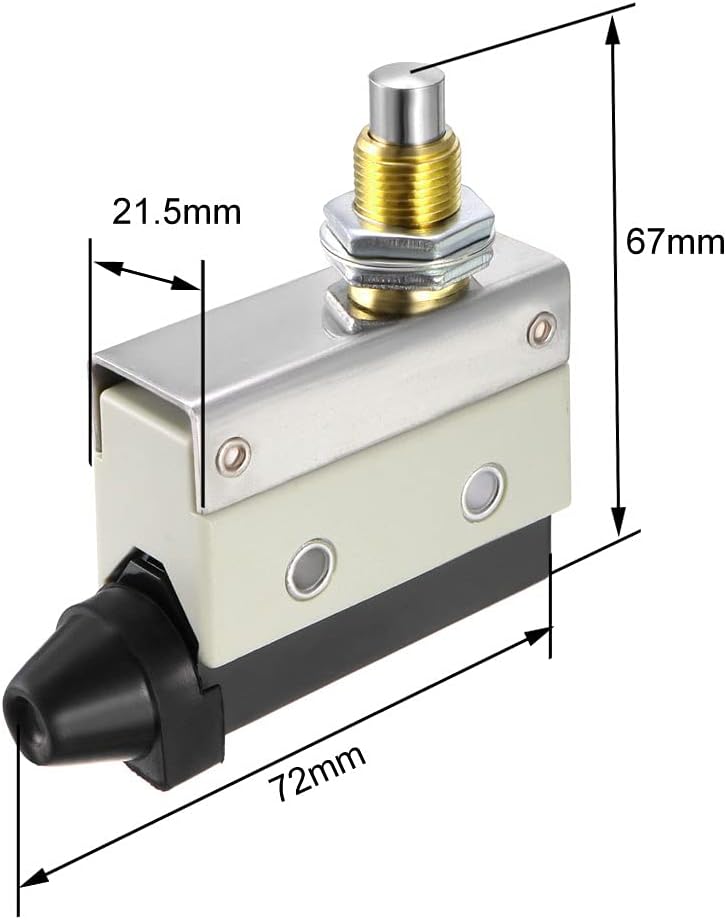

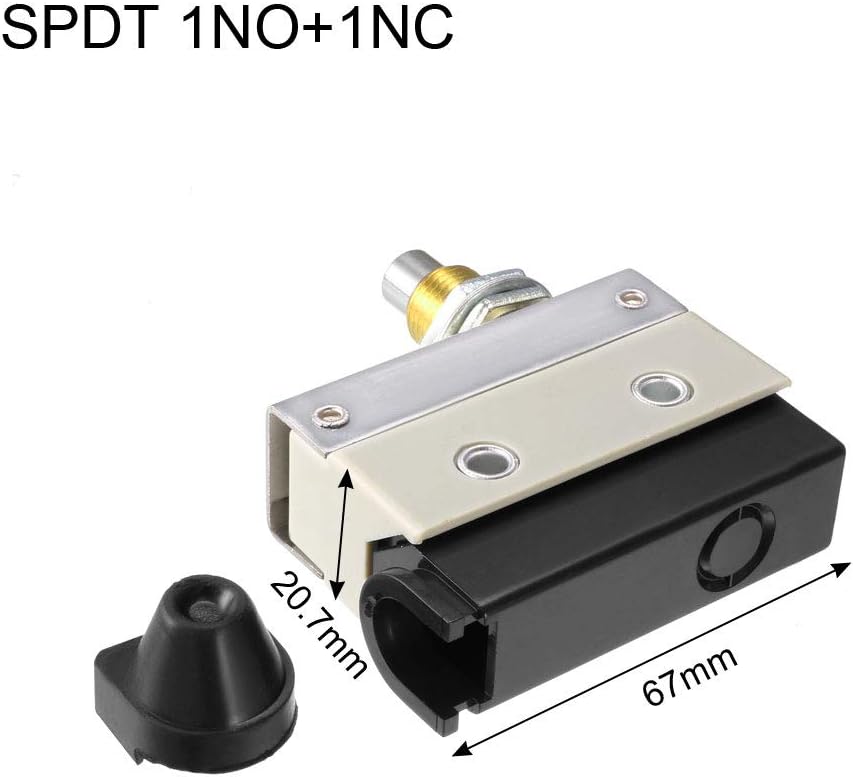

Overall Size: 72x67x20.7mm/2.83x2.63x0.81inch(L*W*H)
Thread Diameter: 12mm/0.47inch
Fixing Holes Dia.: 4mm/0.16inch;
Net Weight : 75g;

Package Content
1 x Microswitch
