3 screw terminal.Applicable to both AC control circuits and DC control circuits.

Specification:

◆Product Name : Micro Switch
◆Model No. : Z-15GQ22-B
◆Contact Type : 1NO, 1NC, 1 Com
◆Rating : 15A 125 250 or 480VAC

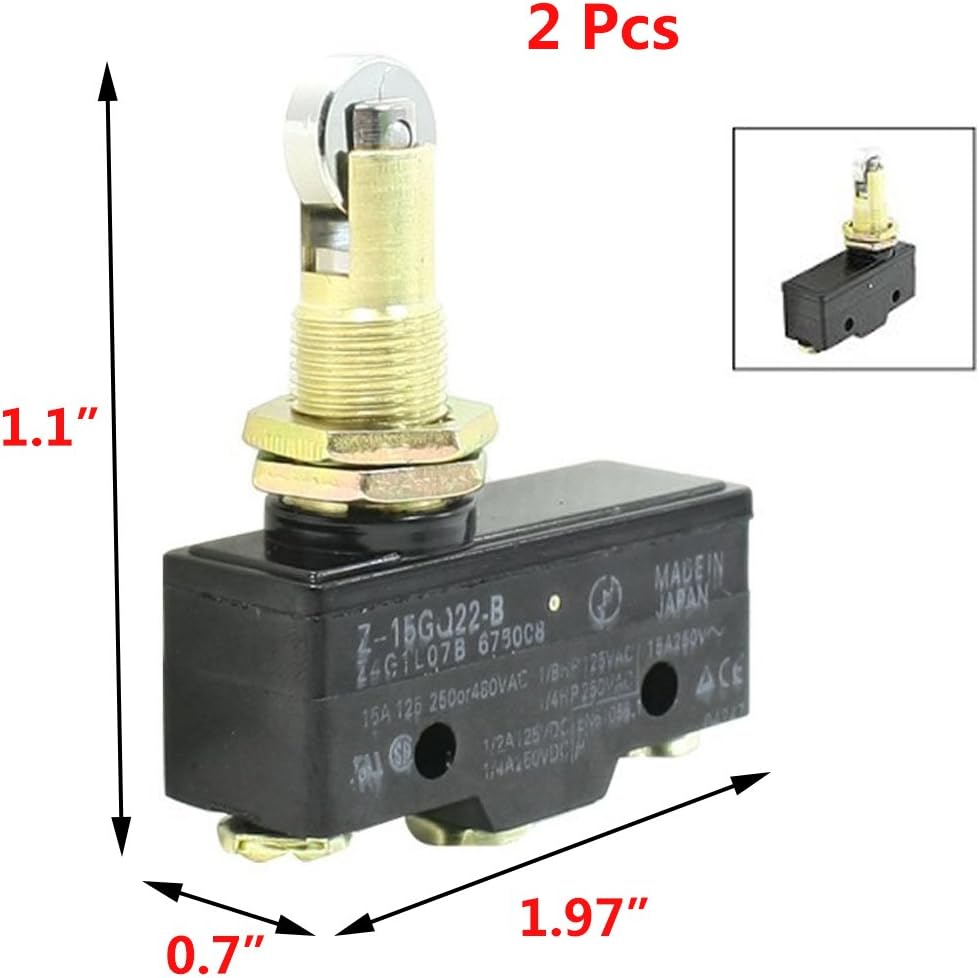

◆Switch Body Size : 50 x 18 x 27mm / 1.97 x 0.7 x 1.1"(L*W*H)
◆Fixing Holes Dia. : 4mm / 0.16“
◆ Distance Between Centers of Fixing Holes : 25mm / 0.98"
◆Roller Mounting Type : Panel Mount
◆Termination Style : Screw Terminal
◆Actuator Type : Parallel Roller Plunger
◆Actuator Size : Height: 36mm/1.42"
◆ Thread Diameter: 12mm/0.47"
◆Roller Diameter : 12mm/0.47"

◆Color : Black, Silver Tone, Copper Tone
◆Net Weight : 86g

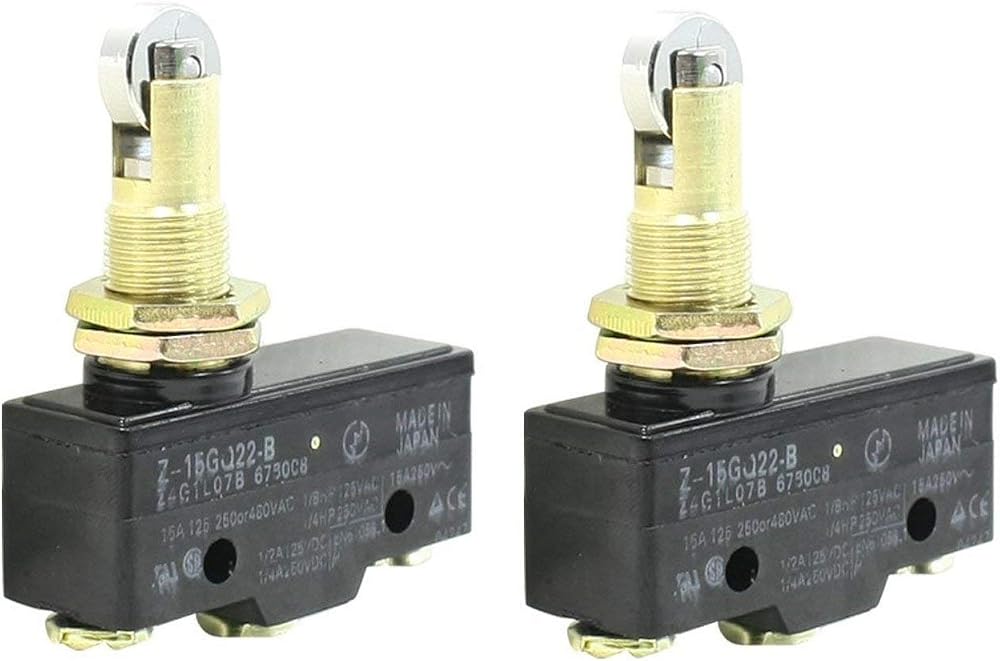

Package Content : 2 x Micro Switch

Designed to control the movement of a mechanical part.Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded.

Note: Please pay attention to the Rating and check it with the voltage of your place to make sure this Micro Switch can successfully work.
