The AMS lay flat printable heat shrink tubing is a military grade identification sleeve that meets Class 1/3 of AMS-DTL-23053/5 specifications. Printing on AMS heat shrink tubing with appropriate continuous feed thermal transfer printers and ribbons provides industry leading mark permanence and clarity meeting SAE-AS81521 and MIL-STD-202F/215J specifications.

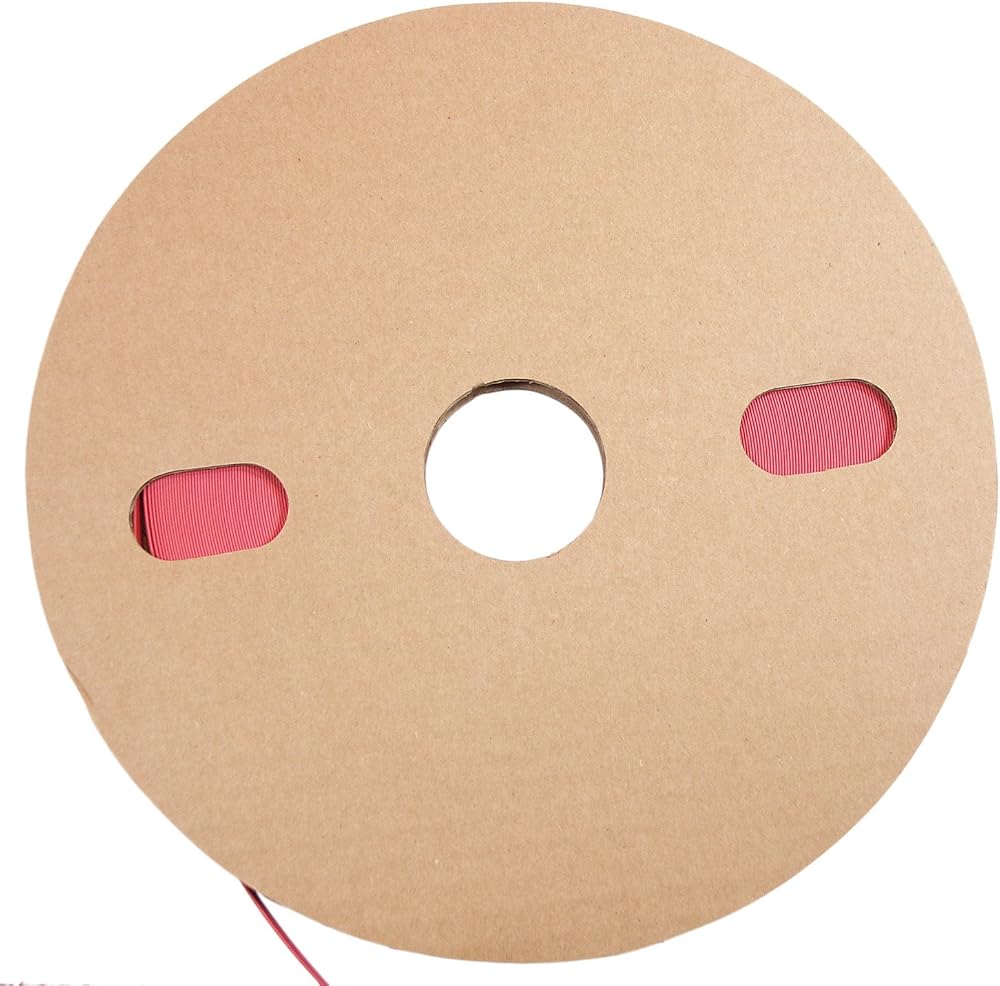

The flat heat shrink is wrapped in a single row on a 8" OD spool with 3.23" core ensuring a clean flat product throughout the spooled length. The spools have windows on the side to monitor heat shrink use. The 1.5" mounting hole can be opened up to 2.9" allowing the spool to mount to most thermal transfer printers.

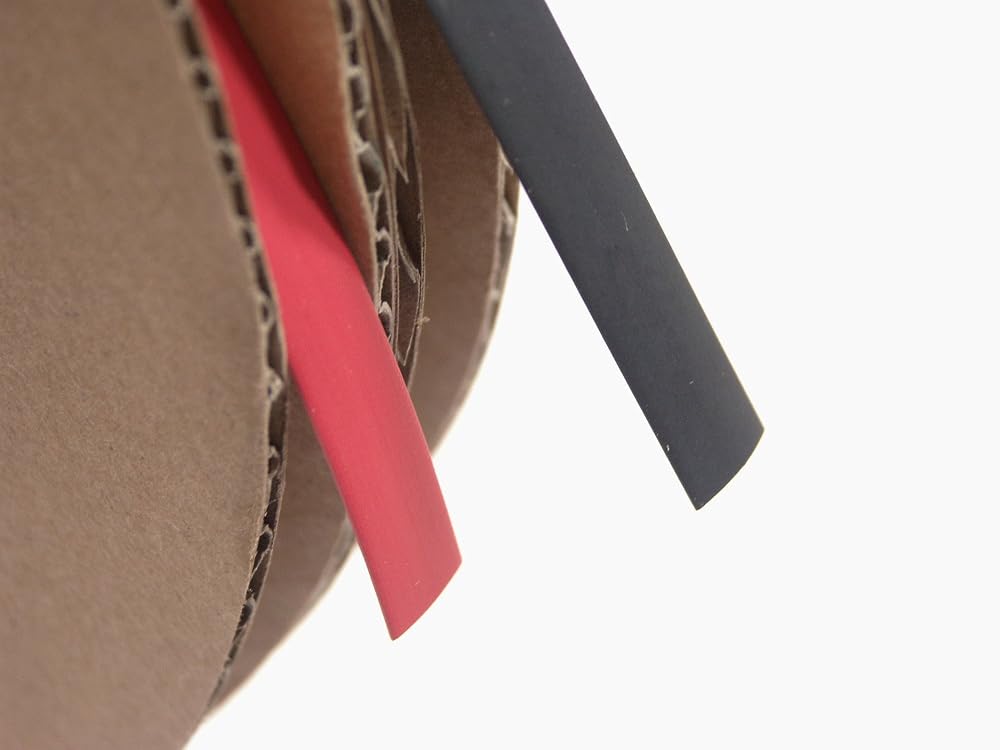

We've had the red color custom formulated be a deeper red color that is more attractive than the often pinkish red found with other heat shrink tube vendors.

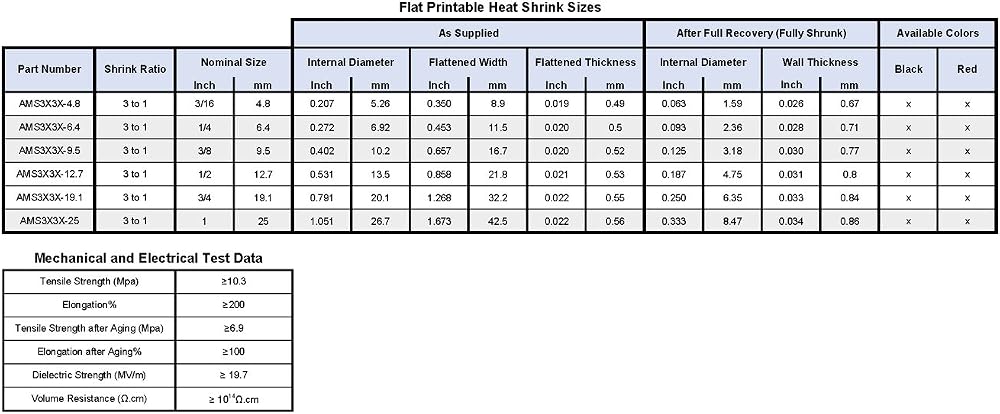

AMS3X-9.5 (3/8") Lay Flat Printable 3:1 Heat Shrink Tube Specifications
- Material: Polyolefin
- Shrink Ratio: 3:1 (Reduces to app 3 times it original size)
- Nominal Size: 9.5mm (3/8")
- Internal Diameter: 10.2mm +/- 0.32 (0.401" +/- 0.012")
- Flattened Width: 16.7mm +/- 0.5 (0.657" +/- 0.019")
- Flattened Thickness: 0.52mm +/- 0.11 (0.020" +/- 0.004")
- Recovered (Shrunk) Internal Diameter: 3.18mm (0.125")
- Recovered (Shrunk) Wall Thickness: 0.77mm (0.030")
- Meets AMS-DTL-23053/5 Spec Class 1 & 3
- Meets SAE-AS 81531
- MIL-STD-202F - Method 215J
- ROHS Compliant
- UL Recognized UL224 VW-1 Flame Retardant
- Operating Temperature: -55C / -67F to 135C / 275F
- Recovery (Shrink) Temperature Range: 85C to 115C (185 F to 239 F)
- Sold in 25 Meter / 82 Foot Spools
