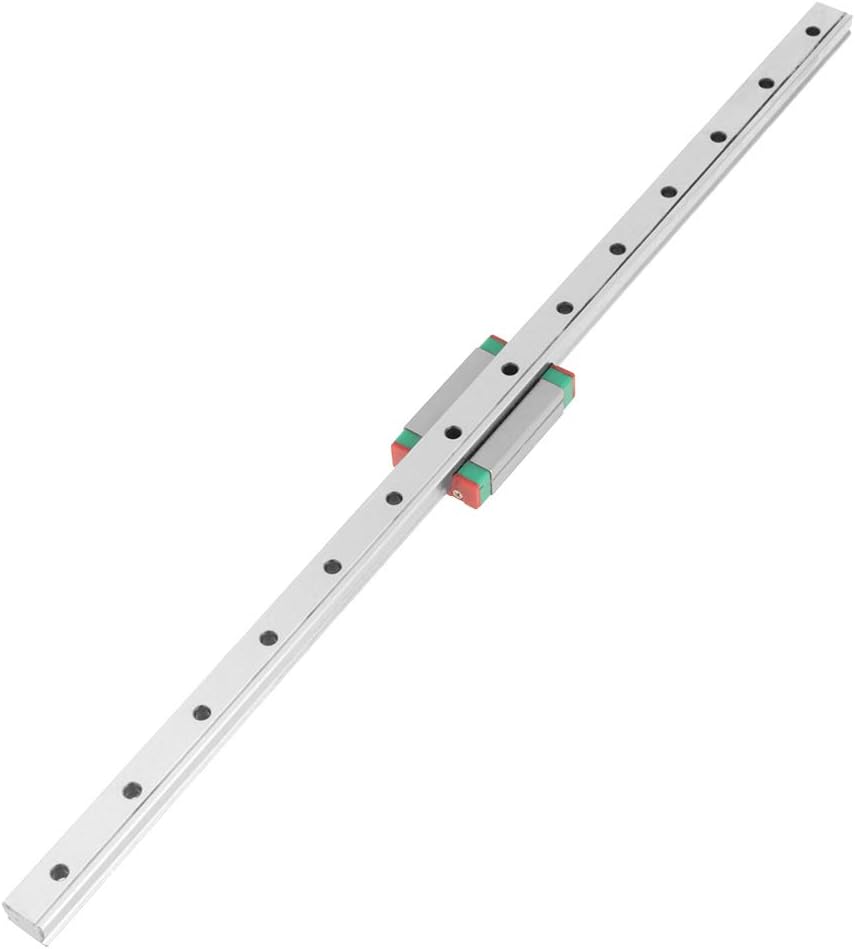

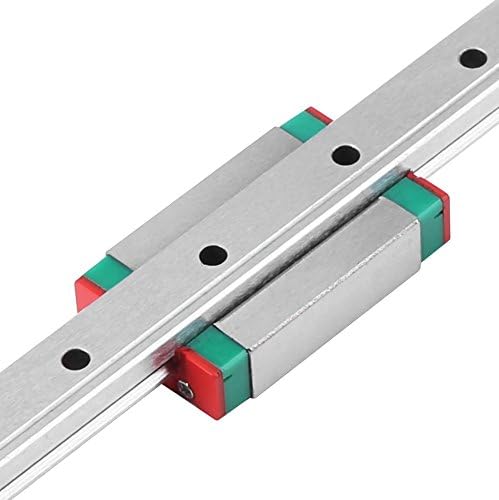

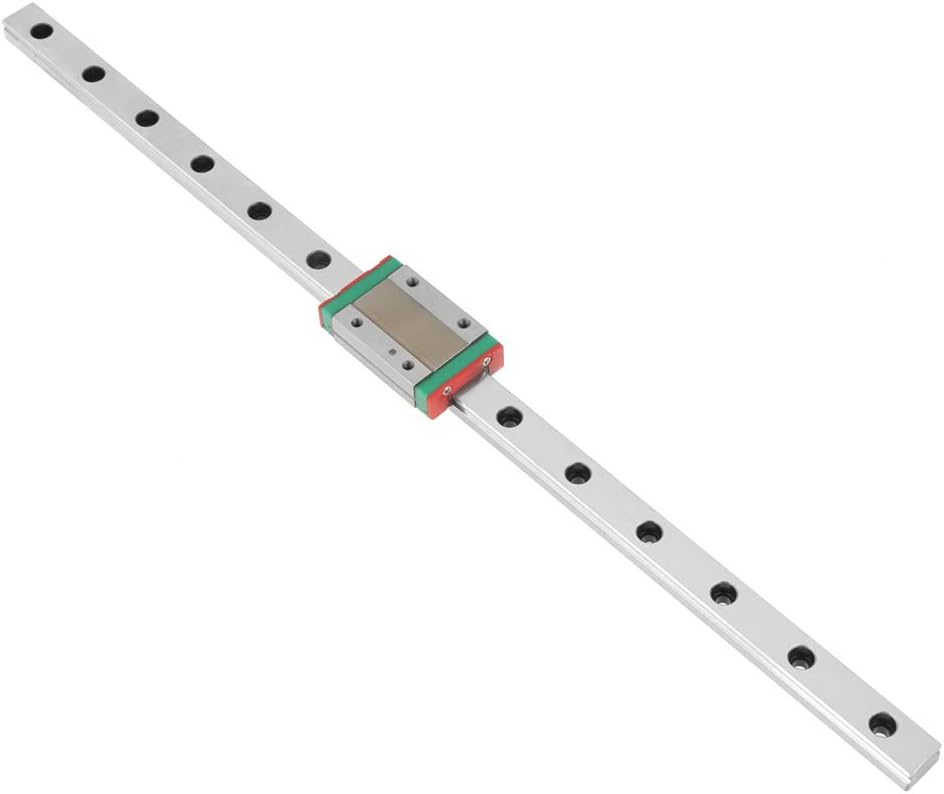

[Linear Guide Rail]: This linear rail and block are small in size and lightweight, especially suitable for small equipments.
[Unique Design]: Adopting 4-point contact design, it can bear load from every direction, and has good strength and high accuracy.

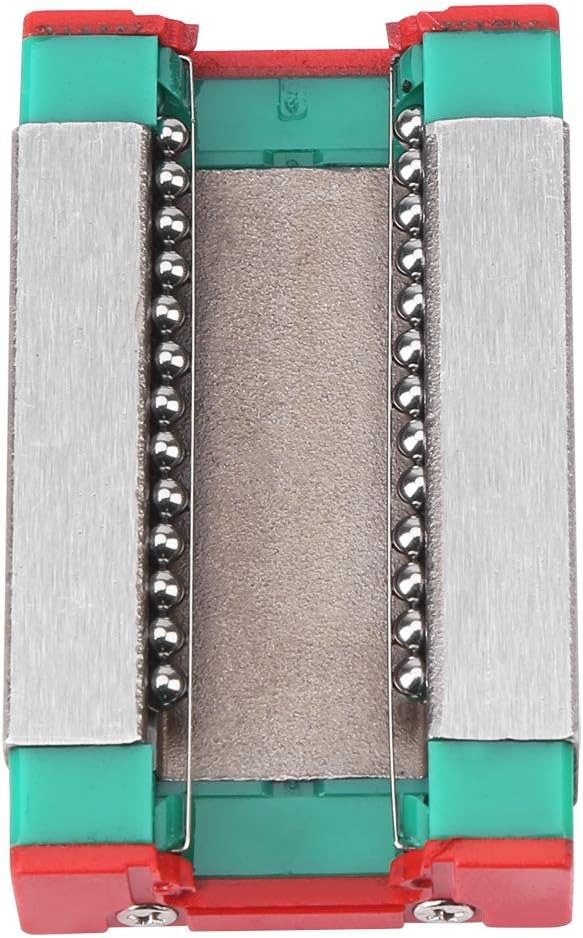

[Humanity]: Designed with ball retainer, which allows interchangeability in the case of small precision

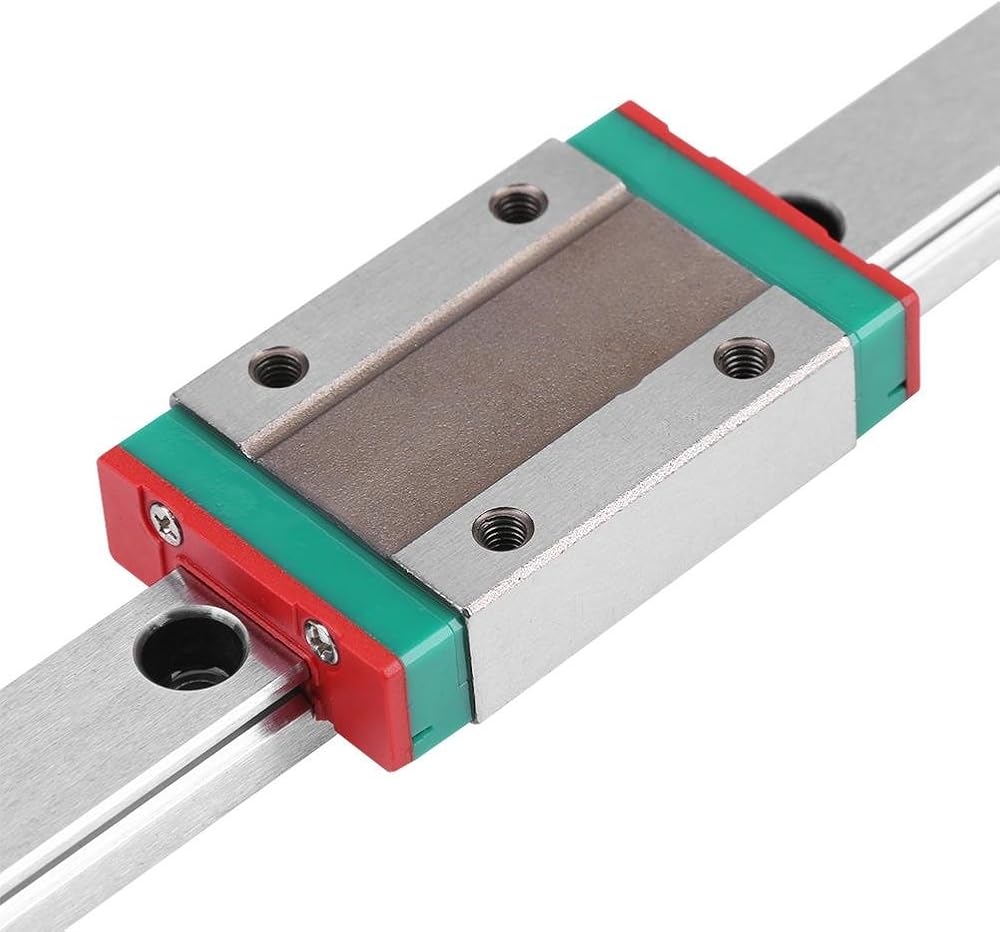

[Lubrication System]: Block has lubrication system; lubrication oil can be easily put into the oil inlet on the side.
[Wide Application]: Widely used for automatic equipment, precision measuring equipment, and many other machines that need precision linear movement.

وصف

Product features:
This linear rail and block are small and lightweight, especially suitable for small appliances. By using a 4-point contact design, it can carry loads from all directions and has good strength and high accuracy. With ball cage, which allows interchangeability with low precision. Block has lubrication system; Lubricating oil can simply be added to the side oil inlet. Widely used for automatic equipment, precision measuring equipment and many other machines which need linear motion of precision.

specifications:
Model: MGN12H
Type: Slide rail
Slide rail: Linear rail

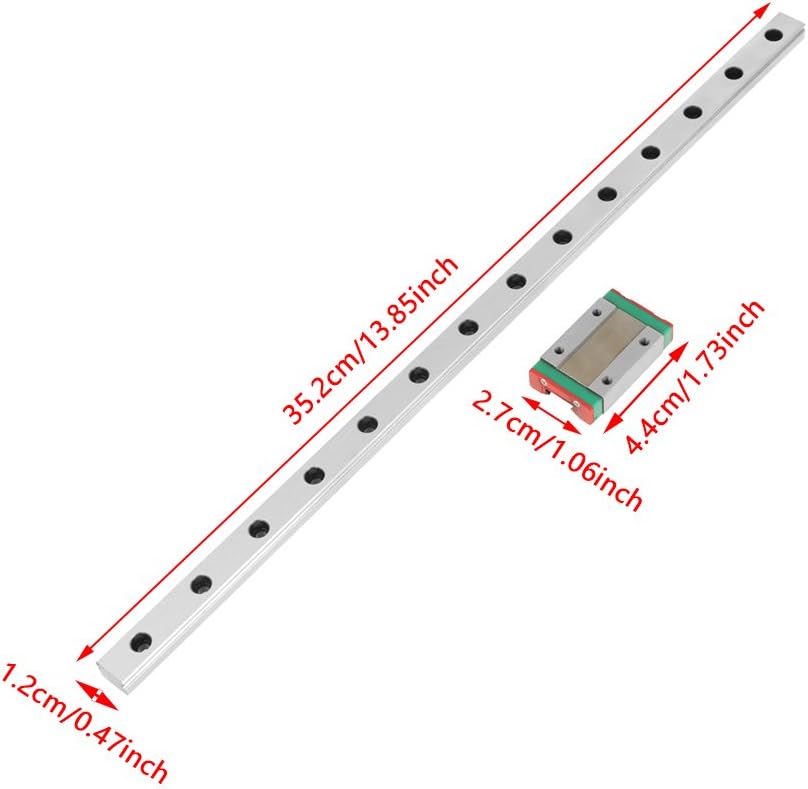

Length: 350 mm
Width: 12 mm / 0.5 inches
Material: bearing steel
Accuracy class: H
Block fix method: Locked
Weight: 287g (approx.)

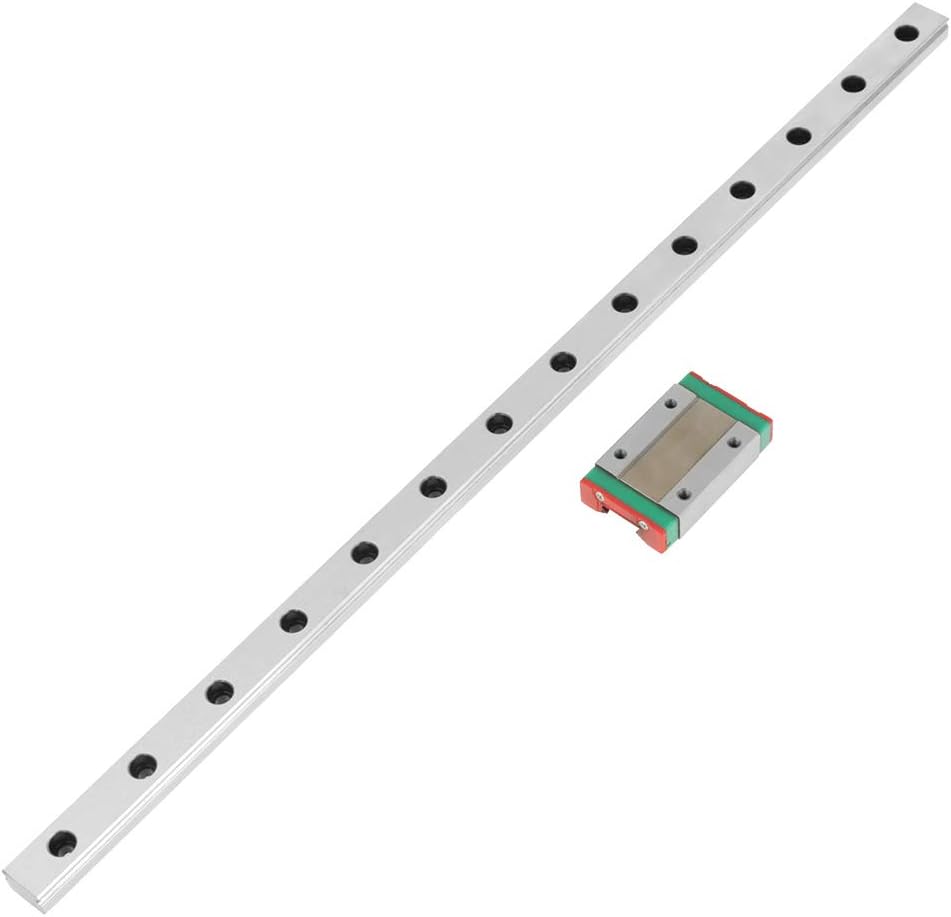

Package includes:
1 x linear guide rail
1 x linear guide block

Note: Please allow small errors due to manual measurement. Thank you for your comprehension.
