LCR Handheld Bridge LCR Meter capacitance Meter inductance Meter Test Frequency: 100Hz~100KHz, continuously Adjustable, 1Hz Step,ET433,Bule in Saudi Arabia

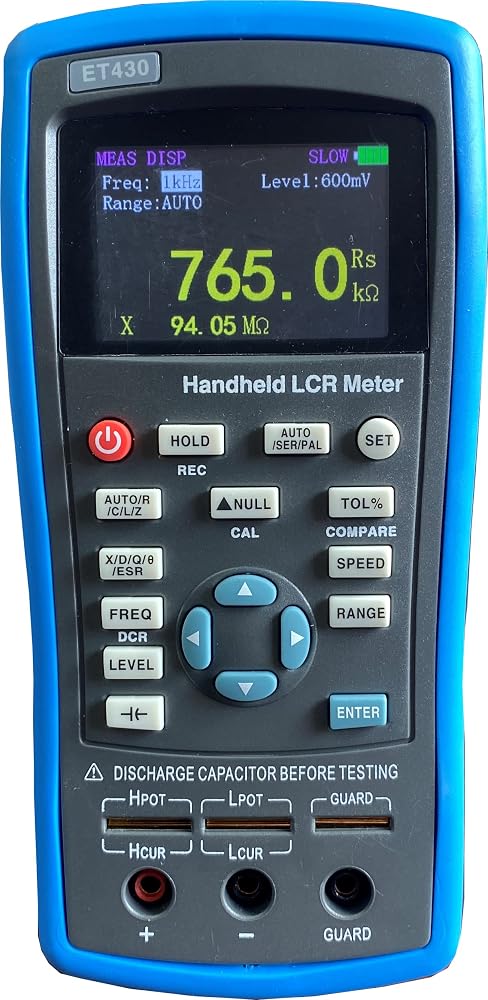

LCR Handheld Bridge LCR Meter capacitance Meter inductance Meter (ET430)

SAR 1,263
Brand
Easttester
Weight
0.6 kg
StyleET430
– 1 +

Special Features

  • LCR Meter ET433 2.8-inch TFT display, 4.5 digits display, 100Hz~100KHz, continuously adjustable, 1Hz step
  • LCR Meter ET433, Measuring range: L: 0.000µH ~ 2000H, C: 0.000pF ~ 20.000mF, R: 0.0001Ω ~ 20.000MΩ
  • LCR Meter ET433, Test level: 0.01~1.1V adjustable, 1mV step,Calibration function: open circuit calibration, short circuit calibration
  • Screening function: Screening limit range is 1%~50% and can be set, with fixed points of 1%, 5%, 10%, and 20% Deviation measurement: used to compare the deviation percentage between the original value and the set value and display
  • Display digits: Main parameter: 5 digits Sub-parameter: 5 digits Measurement parameters: Main parameters: L/C/R/Z Sub-parameters: X/D/Q/θ/ESR Electrolytic capacitor mode: Yes DCR mode: Yes

Description

Measuring frequency up to 100kHz, continuously adjustable in 1Hz steps
Support DC resistance and electrolytic capacitance measurement
Internal bias voltage output 10mV-500mV
Automatic recognition of component measurement
Support screening and bias measurement
2.8-inch TFT display, 4.5 digits display
USB communication interface
Powered by large-capacity lithium battery
Support SCPI protocol
Provides system settings, which can configure Chinese or English, buzzer, screen brightness, etc. as needed
Basic measurement accuracy 0.2%
Measurement speed adjustable
Manual and automatic range
With open circuit and short circuit calibration function
Provides a variety of test ports
