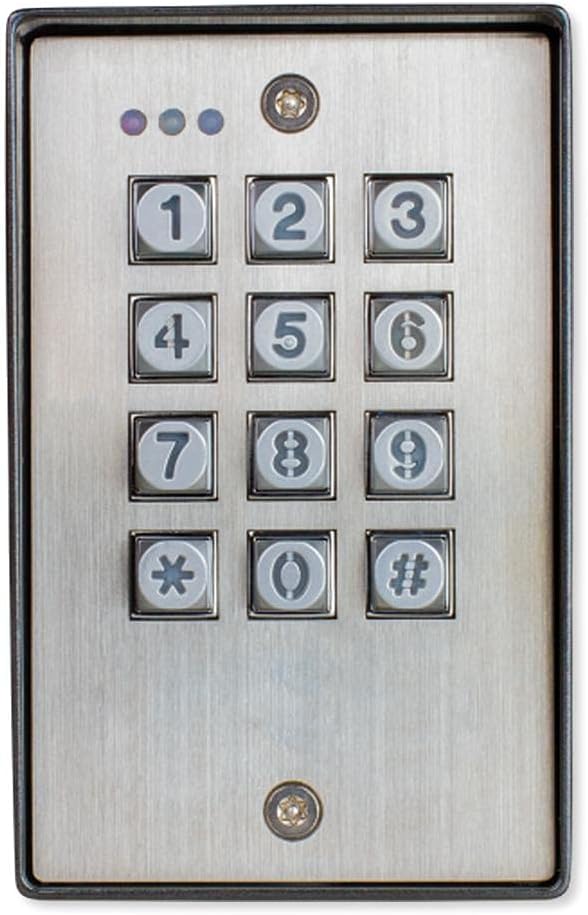

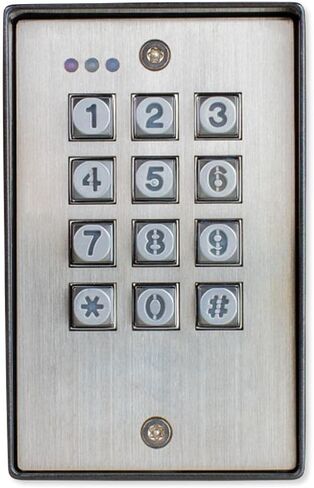

Seco-Larm SK-1123-SDQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 1,100 Users over 2 Outputs. Codes may be 4~8 digits: - Output #1 – Form C relay, 1A@30VDC, 1,000 users - Output #2 – Form C relay, 1A@30VDC, 100 users
SECO-LARM SK-1123-SDQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 1,100 Users over 2 Outputs. Codes may be 4~8 digits: - Output #1 – Form C relay, 1A@30VDC, 1,000 users - Output #2 – Form C relay, 1A@30VDC, 100 users

Key Features
Duress code signals a silent alarm if an authorized user is forced to open the door under duress
12~24 VDC/VAC Auto-adjusting operation
All features are programmed directly from the keypad: No need for an external programmer
Tamper output: N.C. Dry contact, 50mA@24VDC max
Keypad illuminates when a button is pressed; backlight can be programmed for FULL, AUTO, or OFF in standby mode
Mantrap: for a protected area with two doors, this feature allows only one door to be open at a time

Specifications
Operating Voltage: 12~24 VDC/VAC
Current Draw-Standby: 66mA@12VDC
Current Draw-Keypress: 93mA@12VDC
Current Draw-1 Relay Active: 99mA@12VDC
Current Draw-1 & 2 Relays Active: 126mA@12VDC
Current Draw-Total Max: 160mA@12VDC
Relay Output-#1: 1A@30VDC, Form C
Relay Output-#2: 1A@30VDC, Form C
Relay Output-Key Active: 100mA@24VDC
Relay Output-Duress: 100mA@24VDC
Relay Output-Interlock: 100mA@24VDC
Relay Output-Tamper: 50mA@24VDC
Egress Inputs: N.O. Ground
Door Inhibit Input: N.O. Ground
Door Sensor Input: N.C. Ground
Operating Temperature: -4°~158°F
Operating Humidity: 5~95% Non-condensing
Weight: 1-lb, 2-oz
Dimensions: 4-15/16”x3-1/8”x2-1/16”
