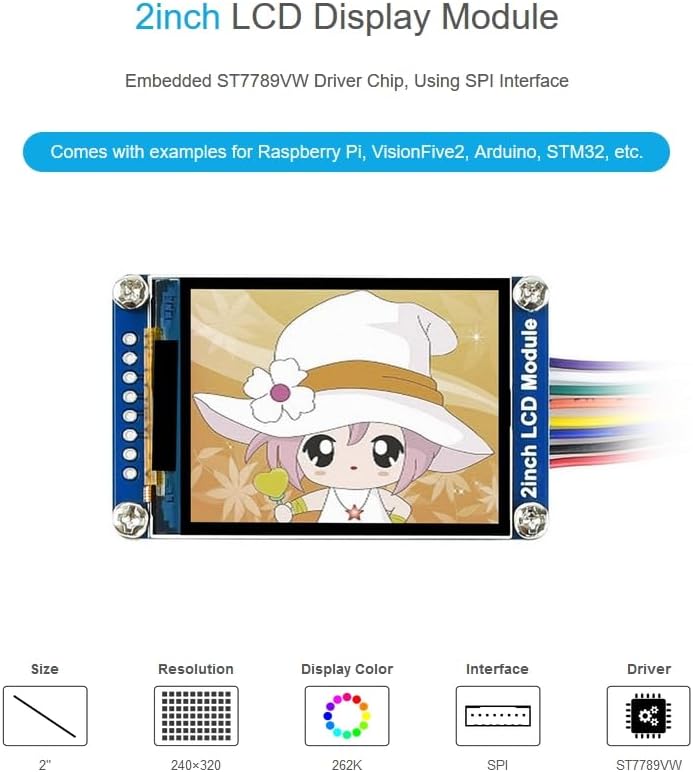

2inch LCD Display Module, IPS Screen, 240×320 Resolution, embedded ST7789VW driver chip, Using SPI Interface

Features
240×320 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins

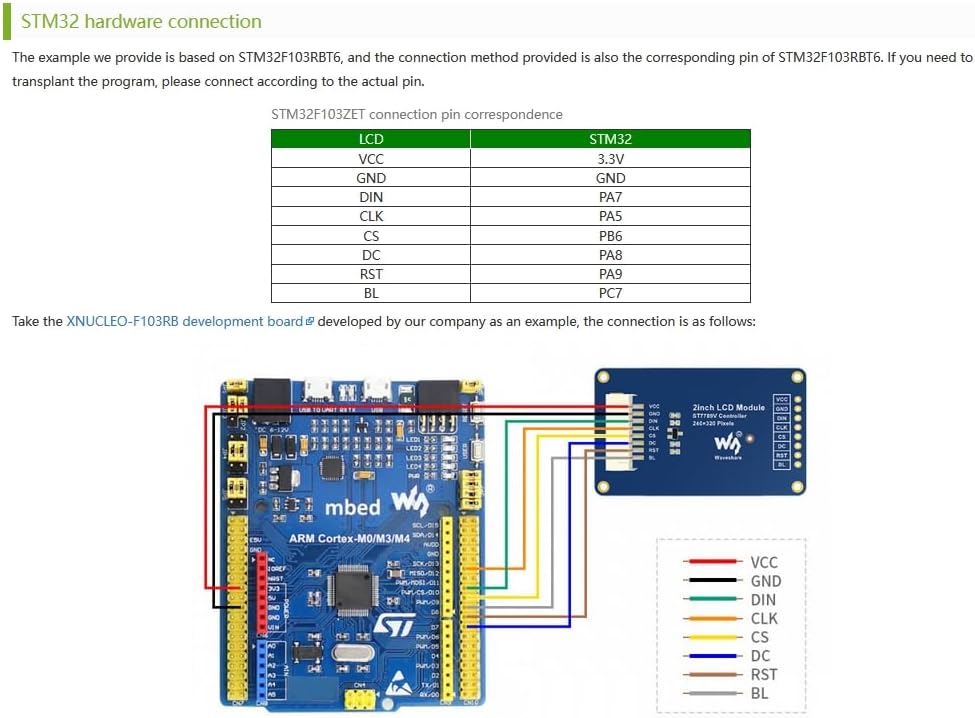

Comes with Online Development Resources (examples for Raspberry Pi/VisionFive2/Arduino/STM32)

Online Document/User Manual: //bit.ly/3TiYx7e

Specifications

Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)

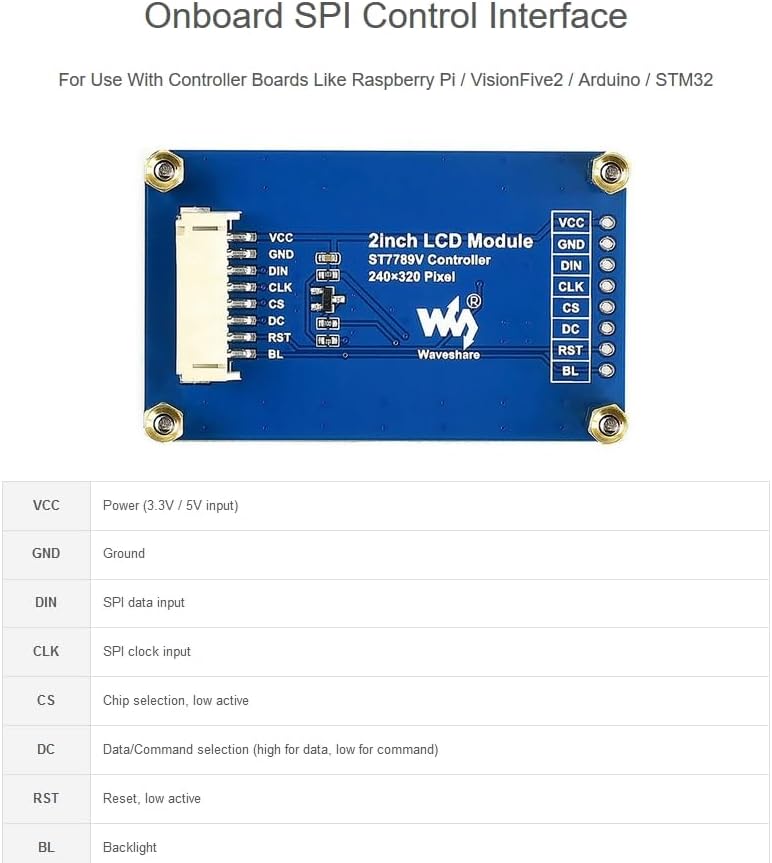

Interface: SPI
LCD type: IPS
Driver: ST7789V
Resolution: 240(V) x 320 (H) RGB
Display size: 30.60（H）x 40.80（V）mm
Pixel size: 0.0975（H）x 0.0975（V）mm

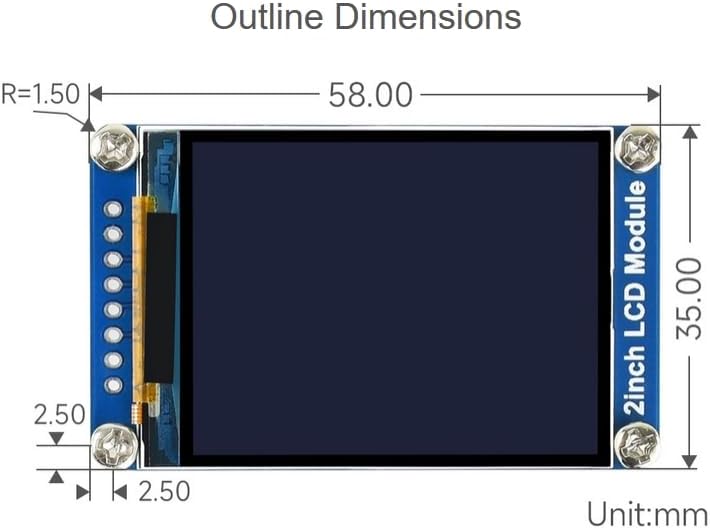

Dimension: 58 x 35 (mm)

FAQ

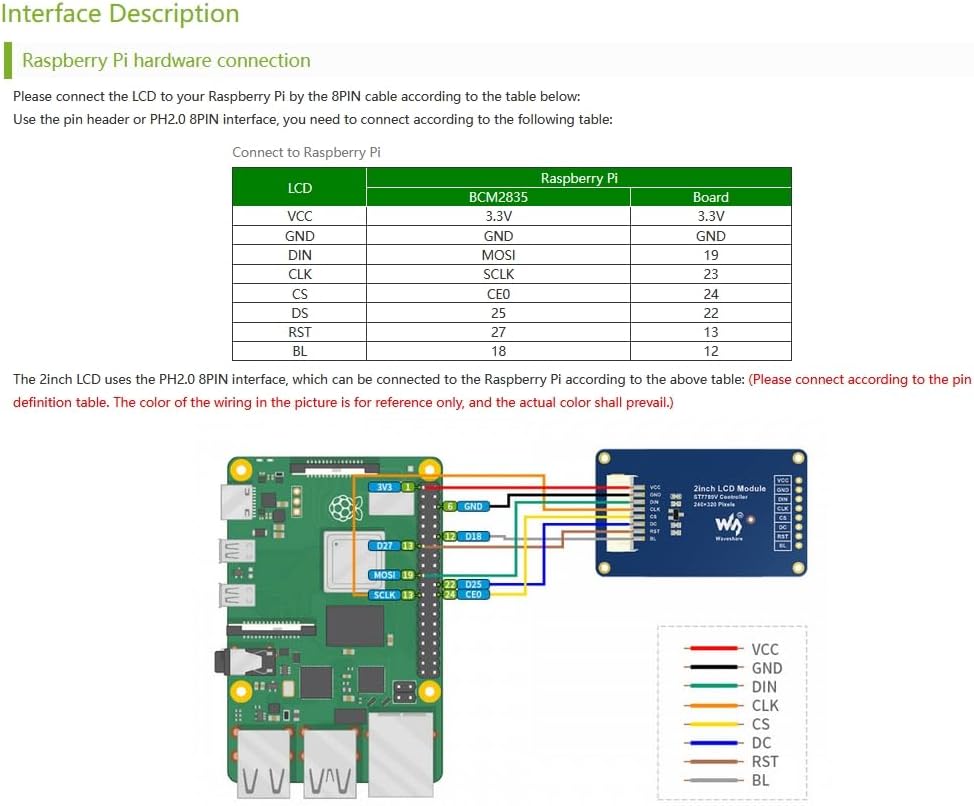

Question 1. The LCD keeps black when using it with Raspberry Pi?
Answer: a) Please check if you have enabled the SPI interface. b)Check the BL pin, if the BL pin has no output value, you can try to disconnect the BL pin and test it again.

Question 2. Why doesn't the screen display properly when connected toArduino?
Answer:When usingArduino, please make sure it is plugged into a 5v power supply.

Question 3.What is the maximum power consumption of the 2inch LCD Module?
Answer: 3.3V 46mA
