Overview

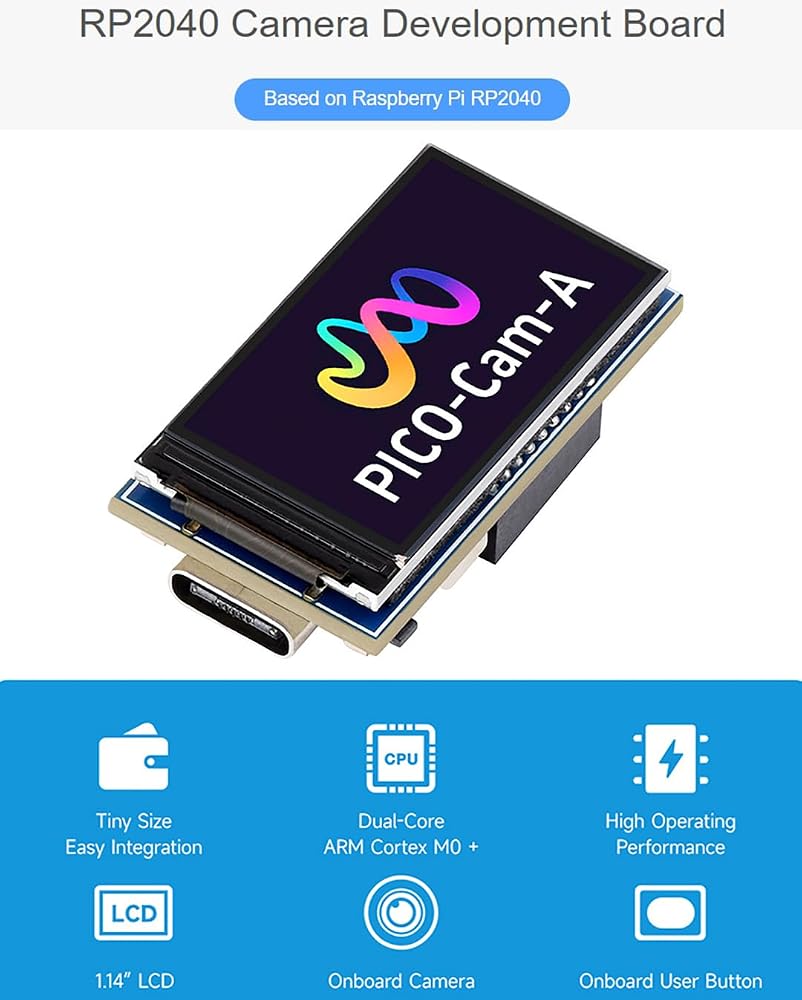

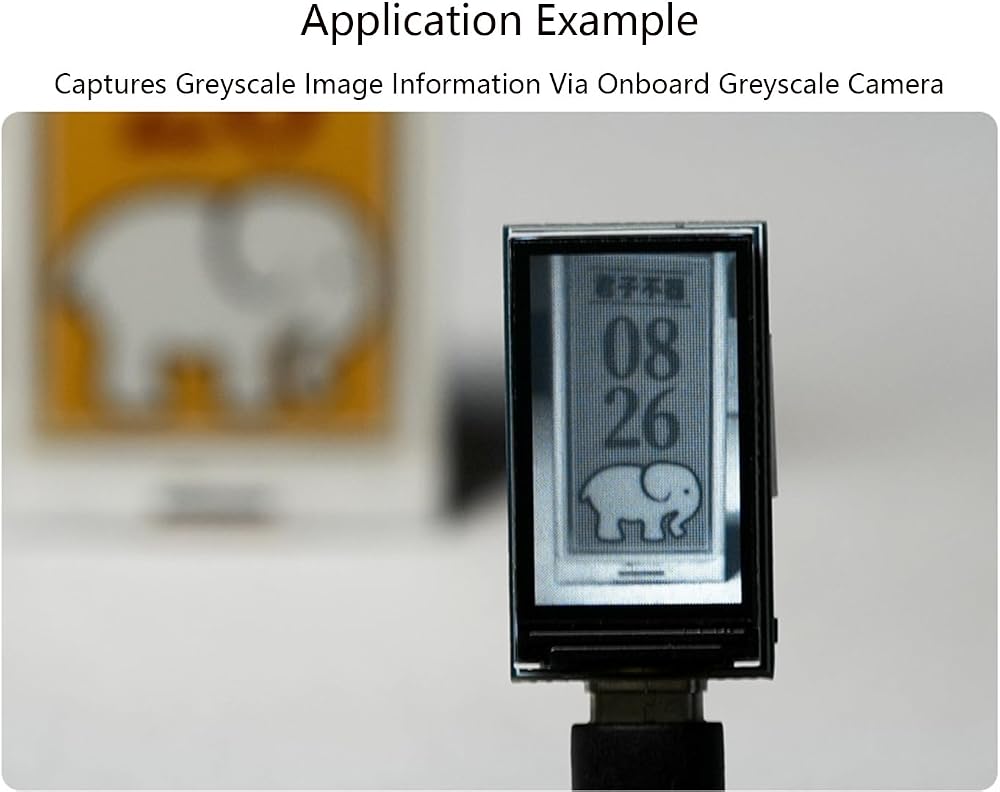

PICO-CAM-A is a cost-effective, high-performance MCU camera board based on Raspberry Pi RP2040, onboard HM01B0 grayscale camera and 1.14inch IPS LCD display, suitable for application scenarios such as image information capture.

Key features
1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 16MB of onboard Flash memory
4. Type-C connector, keeps it up to date, easier to use

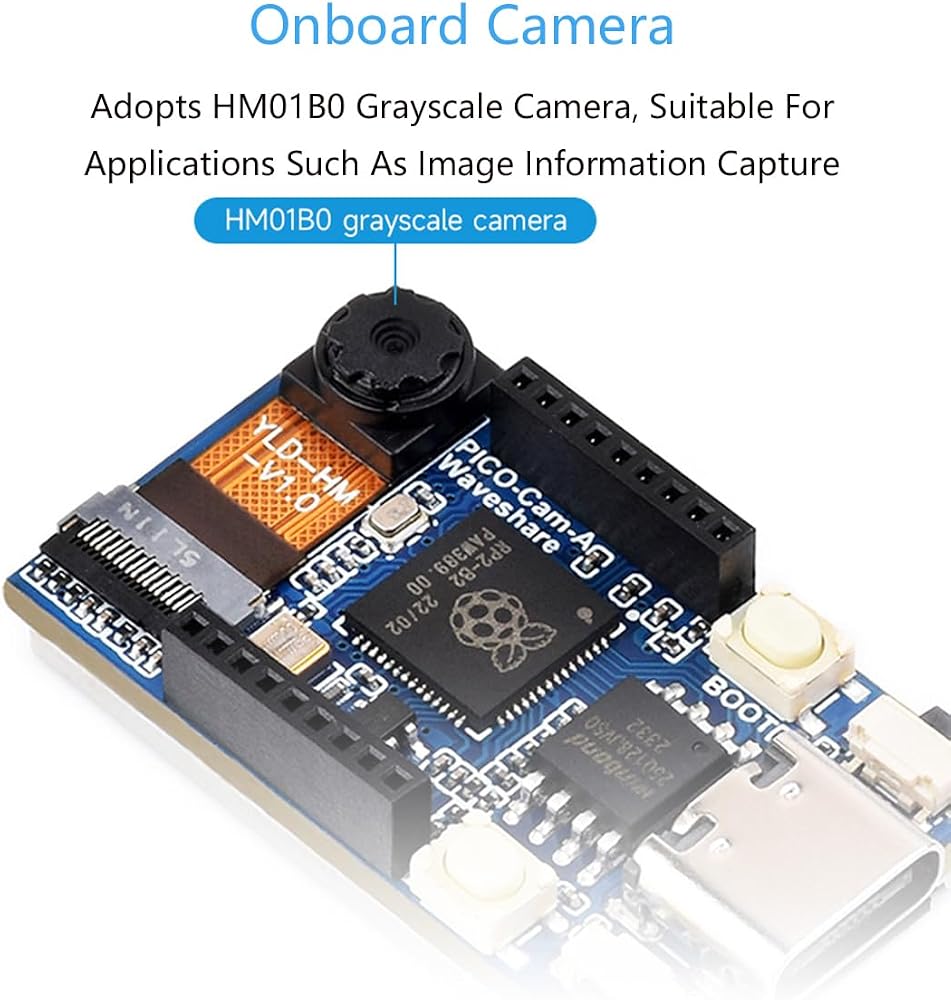

5. Onboard HM01B0 grayscale camera
6. Onboard 1.14inch IPS LCD display, 240×135 resolution, 65K color
7. USB 1.1 with device and host support
8. Low-power sleep and dormant modes
9. Drag-and-drop programming using mass storage over USB

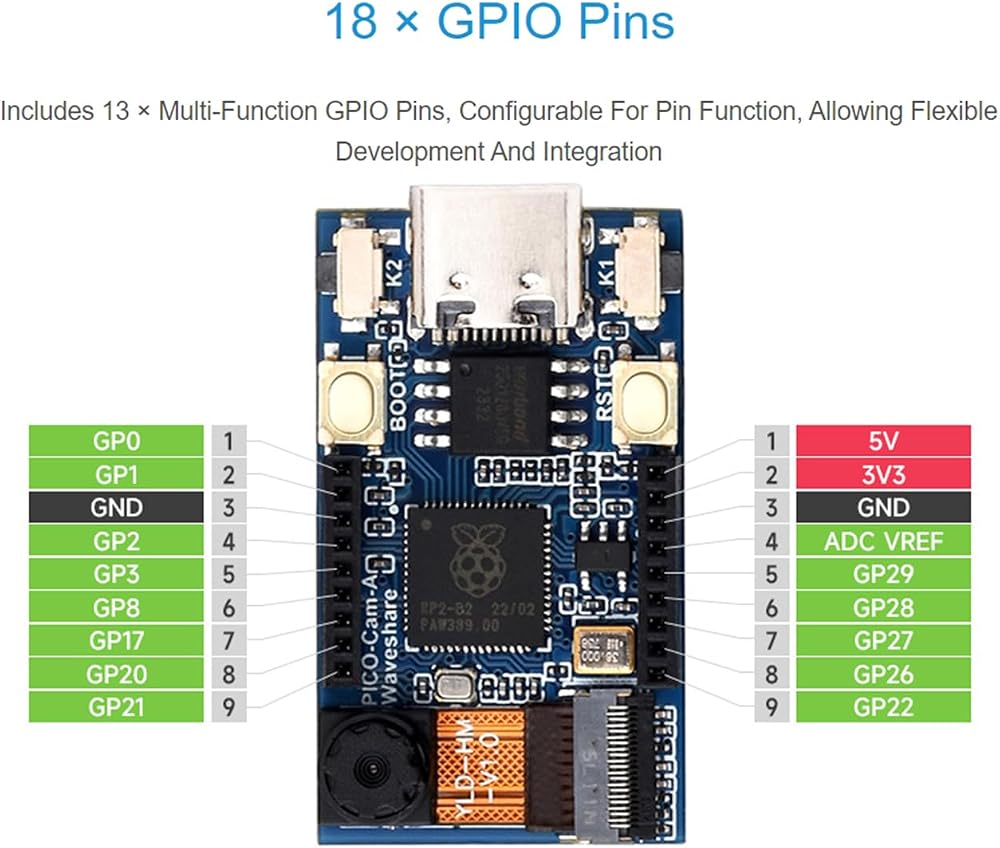

10. 13 × multi-function GPIO pins
11. Accurate clock and timer on-chip
12. Temperature sensor
13. Accelerated floating-point libraries on-chip
14. 8 × Programmable I/O (PIO) state machines for custom peripheral support

LCD Specifications
Controller: ST7789V
Communication Interface: SPI
Display Panel : IPS
Resolution: 135(H)RGB x 240(V)
Display Dimensions:14.864（H）x 24.912（V）mm
Pixel Size: 0.1101（H）x 0.1035（V）mm

Provide Online Development Resources /User Manual ://bit.ly/3RQSCac

Package Content
PICO-Cam-A x1
