Specifications:
Package: 6pcs
Voltage: DC 3v/3.3v

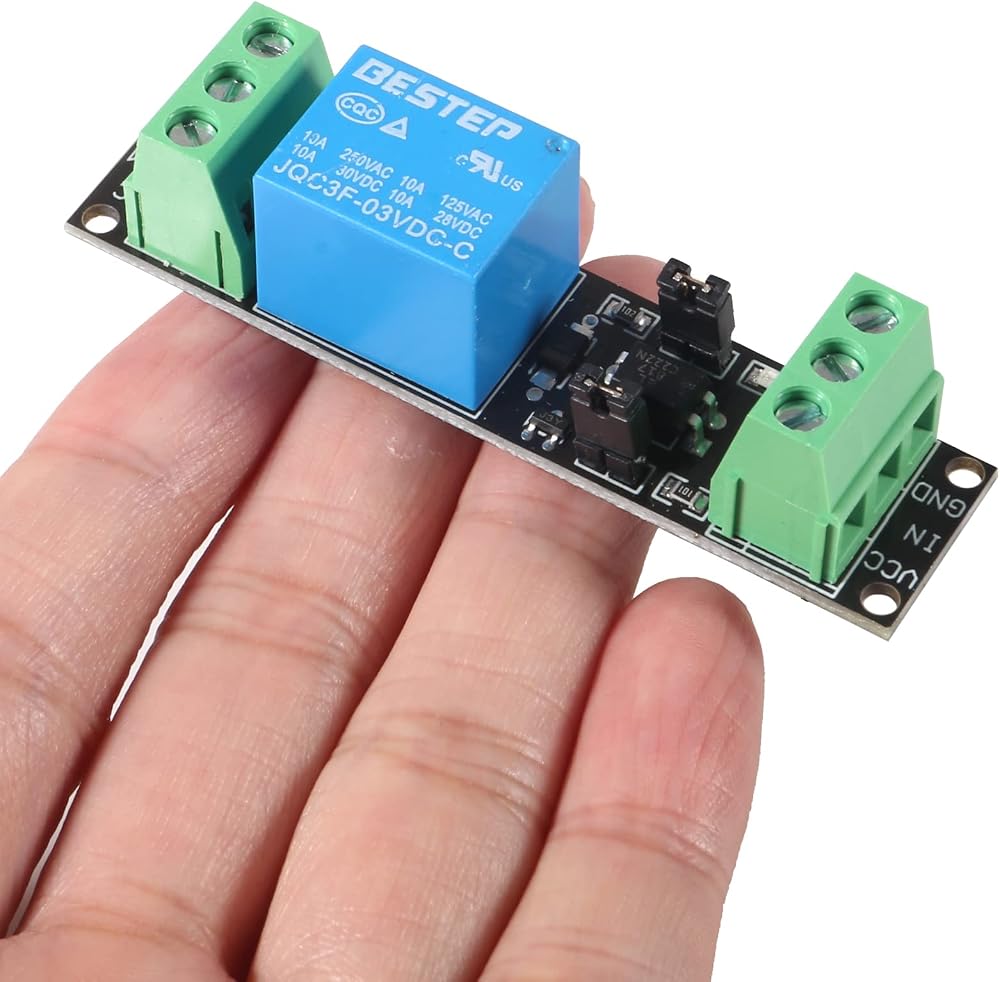

Size: 2.79" X 0.63" X 0.67"
Working Current: 65mA
Trigger Current: 3mA
Load Current: 10A max
Single Socket Length: 7.5mm
Response Time:

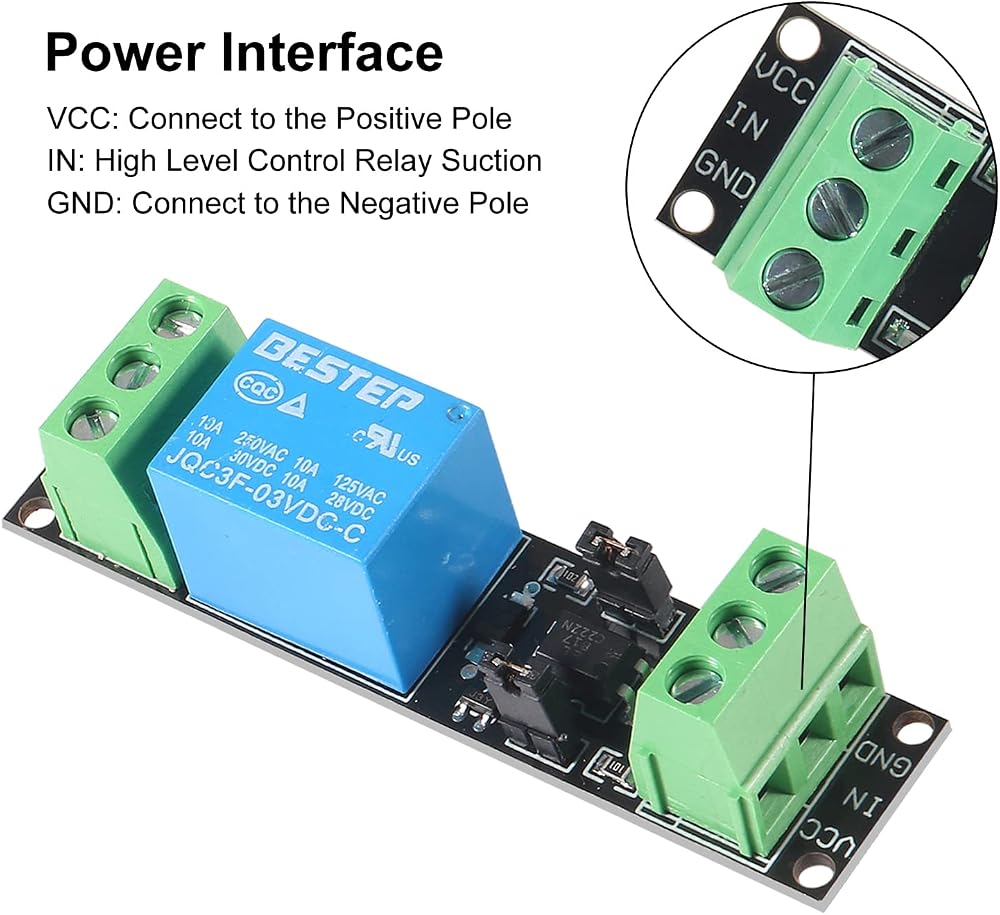

Power Interface：
VCC(+): Connect to the positive pole
IN: High level control relay suction
GND(-): Connect to the negative pole
Load Interface:
NO: Normally open interface
COM: Relay common interface
NC: Normally closed interface
Feature:
The relay module has the output signal indicator light indication;
2. The signal input port can connect SCM IO port, high level signal drive;
3. Dual power supply design with anti-interference ability
and high reliability of photoelectric isolation protection ;
4. With diode continuous flow protection;
5. Response time is less than 20 milliseconds;
6. Long life of relay can be absorbed 100,000 times continuously;
7. The external connection uses the Rotary crimping terminal, causes the wiring to be more solid;
8. With fixed installation hole, easy to install. Provide circuit diagram and detailed instructions for use.
Package include:

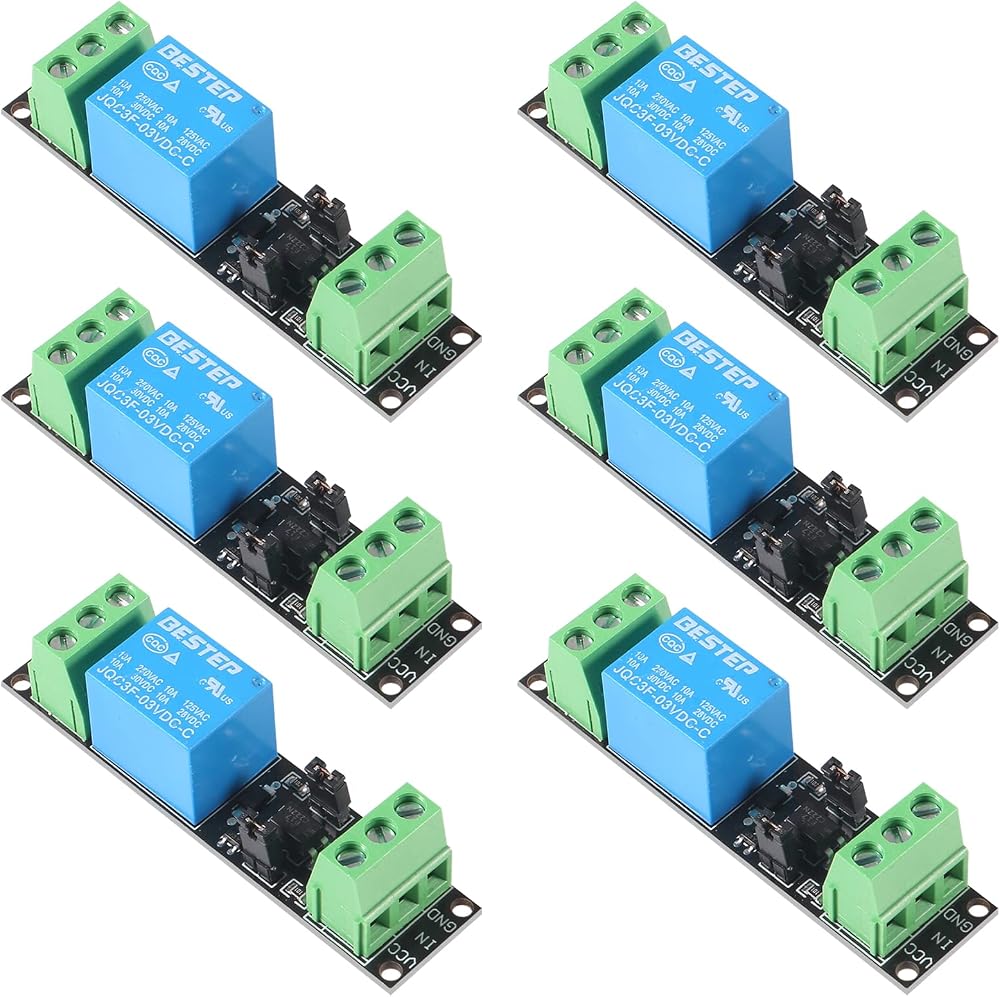

6 x 1 Channel 3v Relay Board
