Input voltage: DC 4.5 - 24V
Output voltage: integrated adjustable and fixed output, and adjustable range is 0.8 - 17V, fixed output is 1.8V, 2.5V, 3.3V, 5V, 9V, 12V, able to be chosen on the back side.
Output current: 3A max, please enhance cooling work when it is full load. When actual tested input 12V and output is 1.5A, no need to add other system.
Enable function control: yes, low electric level will stop working when high electric level is working. High electric level is 2-5V, low electric level is 0V or so.
Operating temperature: -40℃ - +85℃, industrial class, the higher the operation temperature is, and the smaller the output power is.
Conversion efficiency: 97.5%, 6.5V to 5V, 0.7A
Switch frequency: 500KHz
Output ripple: 20 mV, 12V to 5V, 3A, 20M width
Output over-voltage protection: no
Temperature rising range at full load: 40℃
Static current: 0.85mA
Voltage adjustment rate: ±0.5%
Dynamic response speed: 5% 200uS
Output short-circuit protection: yes, please don't keep making it short-circuit.
Output reverse connection protection: no
Wiring method: soldering
Output method: soldering or pins
Welding hole spacing: 2.54 mm

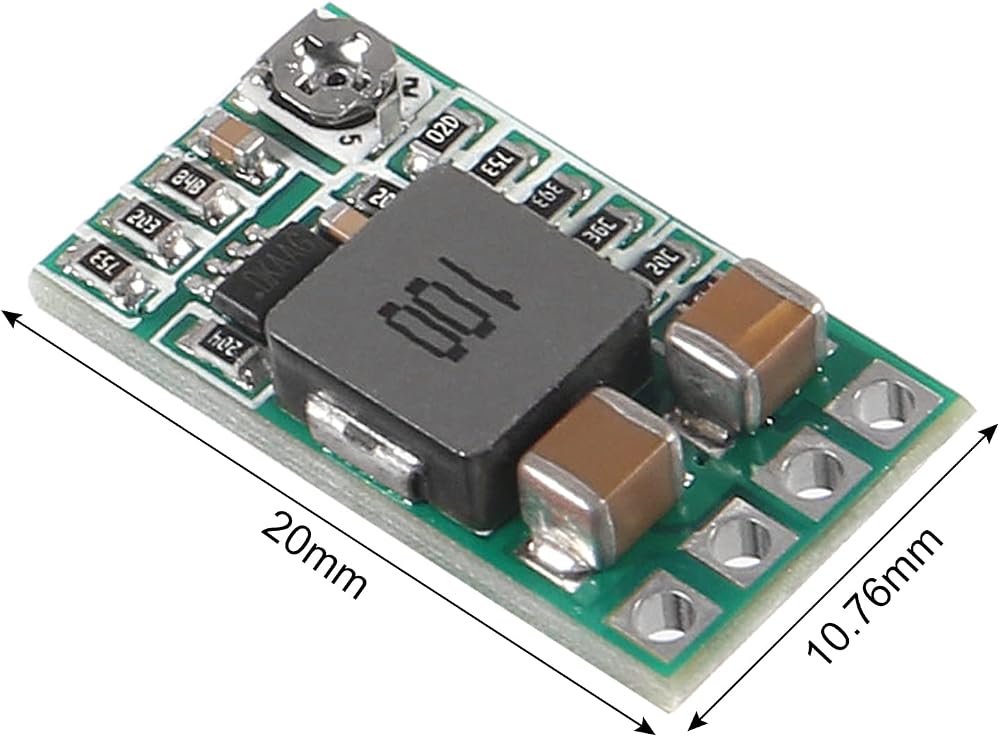

Size: 20 x 11 x 5 mm

Package includes:

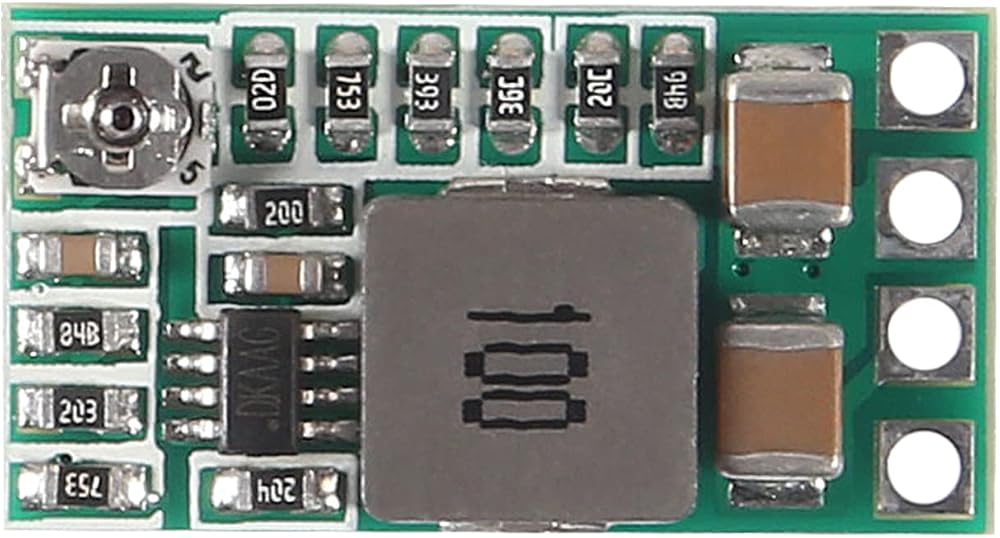

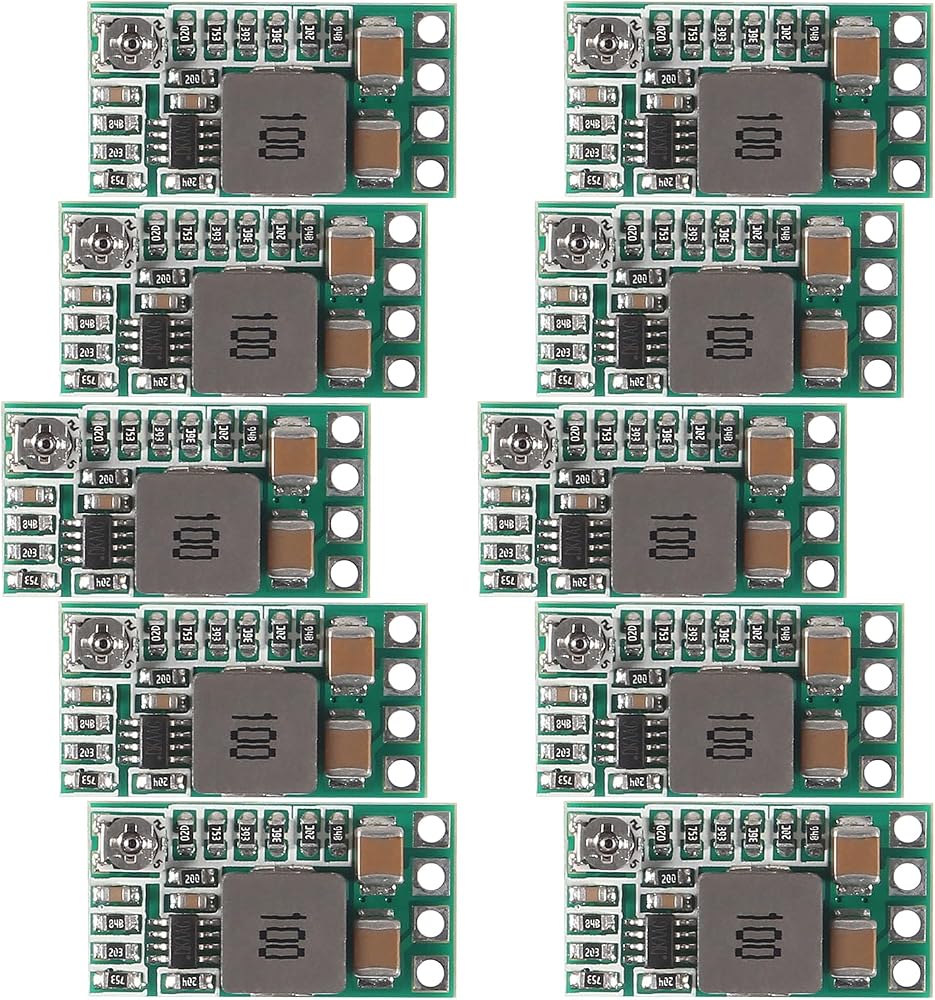

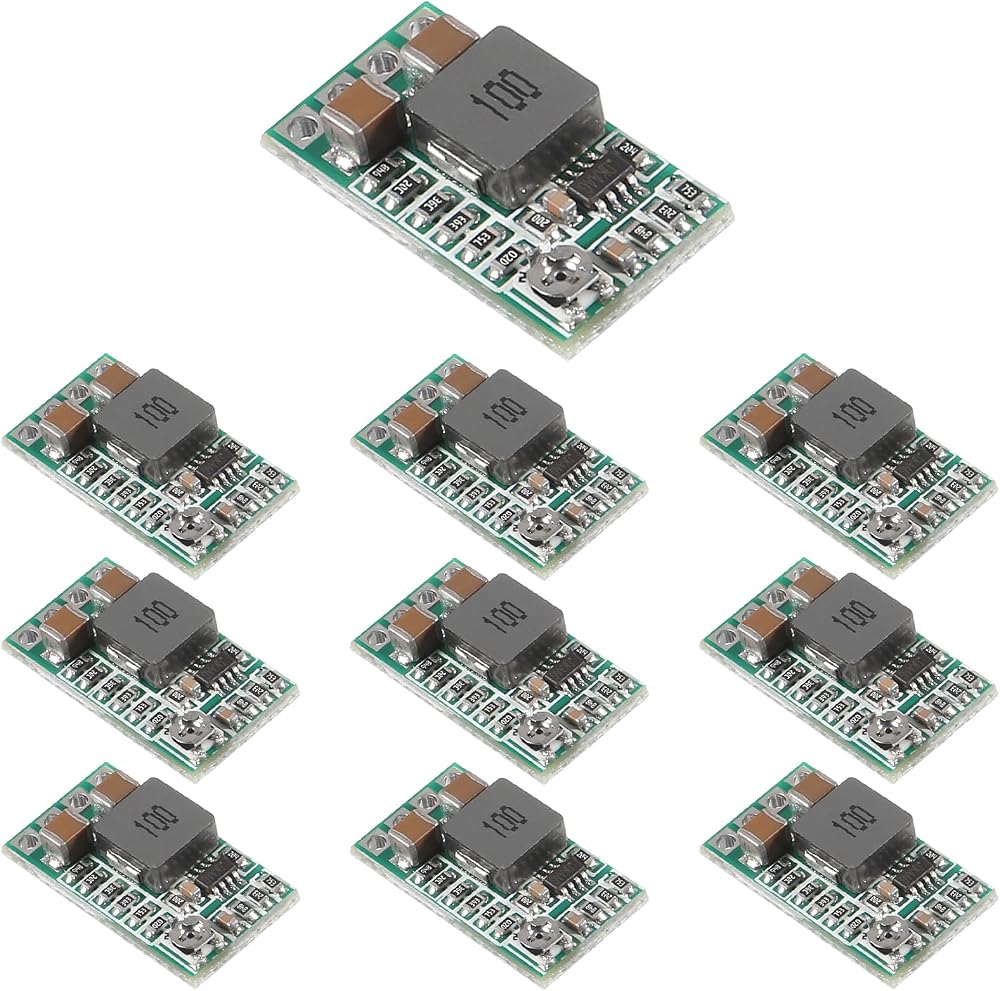

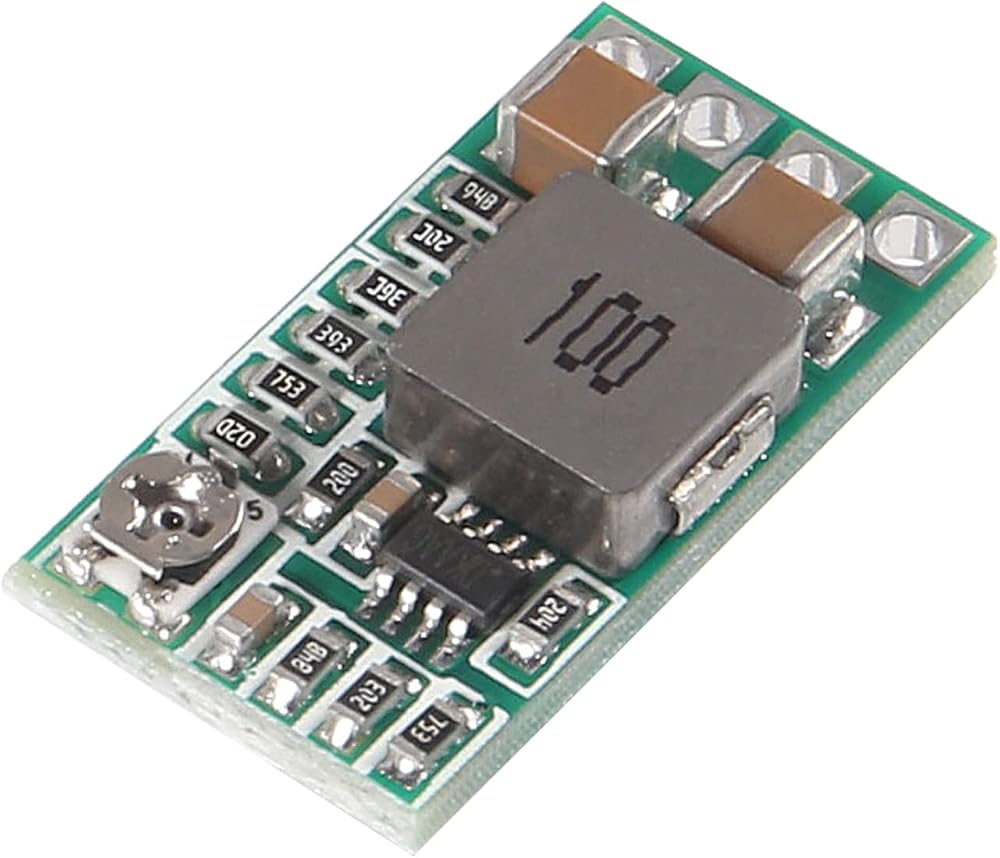

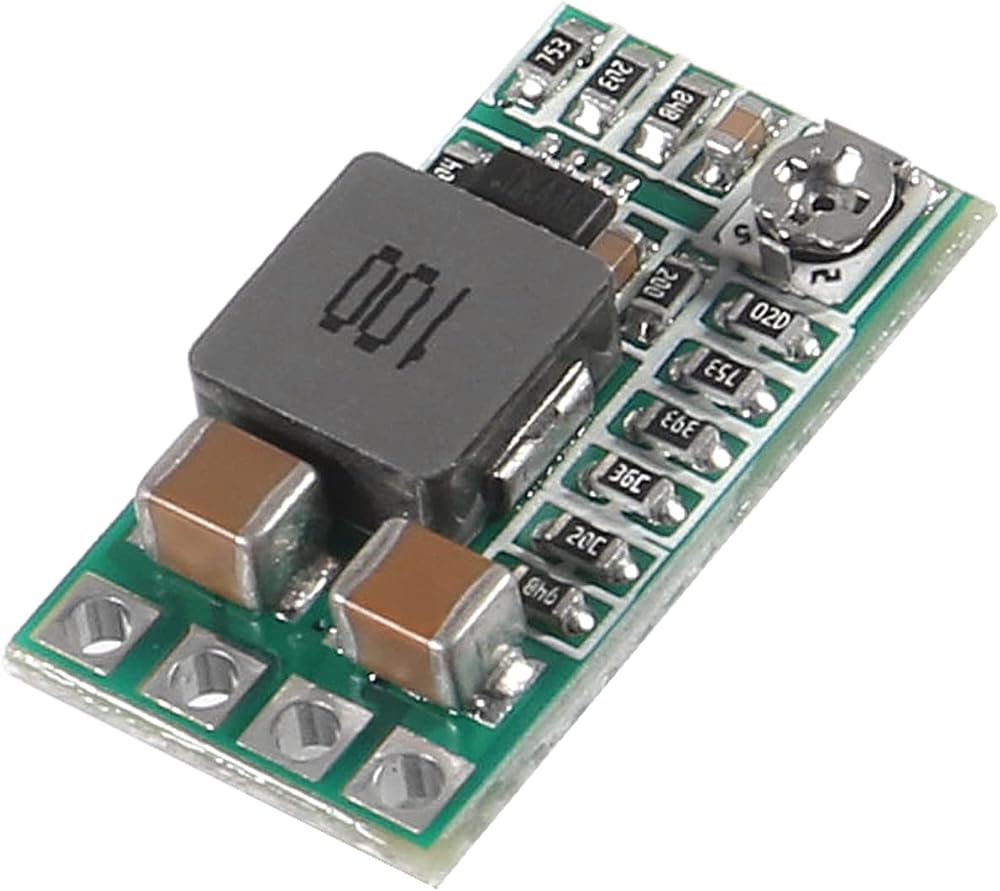

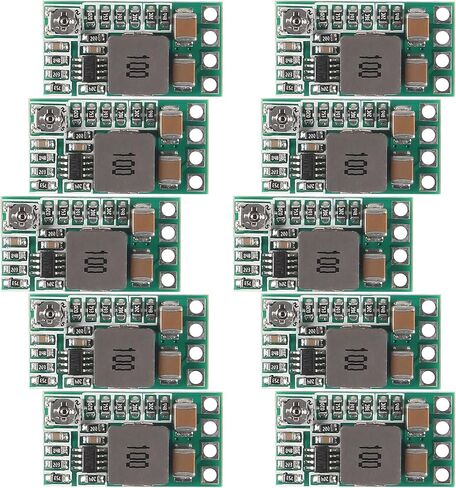

10pcs Tiny 12V to 5V Buck Converter
