Universal e-Paper Raw Panel Driver Shield Compatible with Arduino,etc, Onboard MX25R6435F Flash chip, Supports expanding external RAM, Suitable for various SPI interface e-Paper from Waveshare

Features
1. Universal E-Paper Driver Shield based onArduino connectivity, compatible with host boards like nRF528xx, UNO, Leonardo
2. Comes with adapter board and FFC cable: Expanding display interface via FFC cable, for easy connecting to the e-paper.

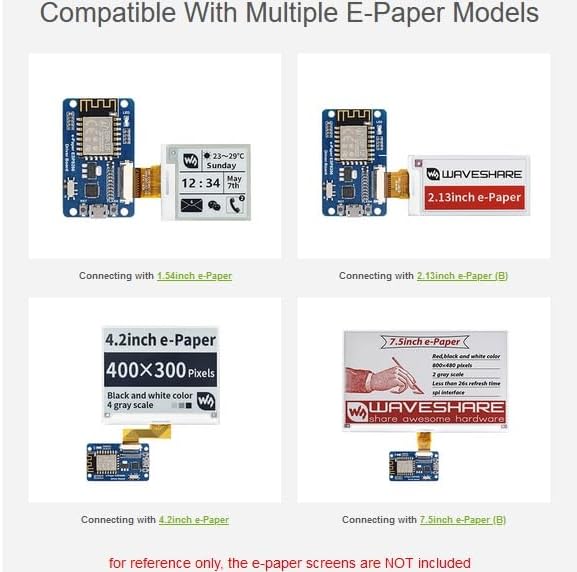

3. Compatible with multiple Waveshare e-paper models and various motherboards.
4. Onboard voltage translator, compatible with 3.3V/5V MCUs.
5. Onboard MX25R6435F Flash chip.
6. Reserved external RAM soldering pads for expanding more space.
7. Comes with online resources and manual: bit.ly/48NQtDa

Specifications
Operating voltage---3.3V/5V
Interface---3-wire SPI, 4-wire SPI
Flash memory size---64M-bit / 8M-byte
Reserved RAM Package ---SOIC-8
Outline dimensions---53.34 × 53.34mm

Package Content
e-Paper Shield (B) x1
e-Paper Adapter with 24PIN FFC cable ~200mm x1
