Parameters：

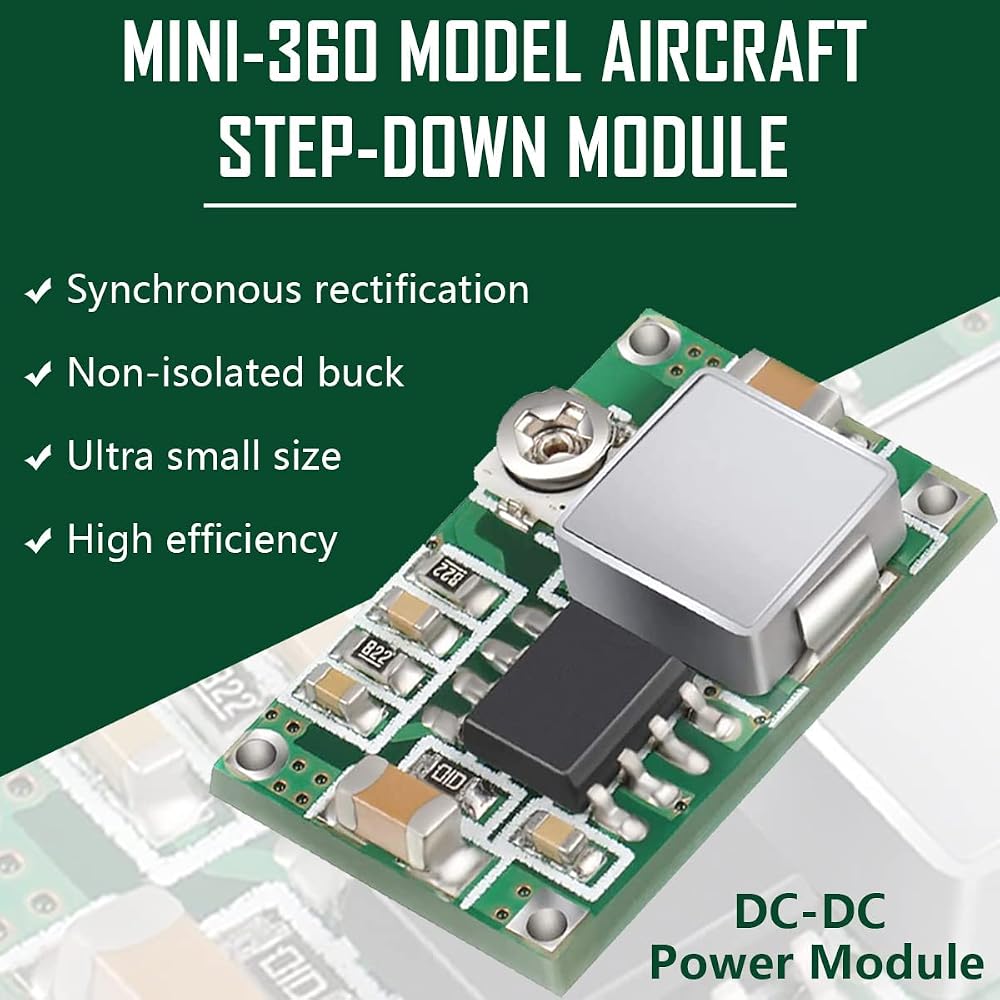

Module Properties: Non-isolated step-down module (BUCK)
Rectification: Synchronous rectification

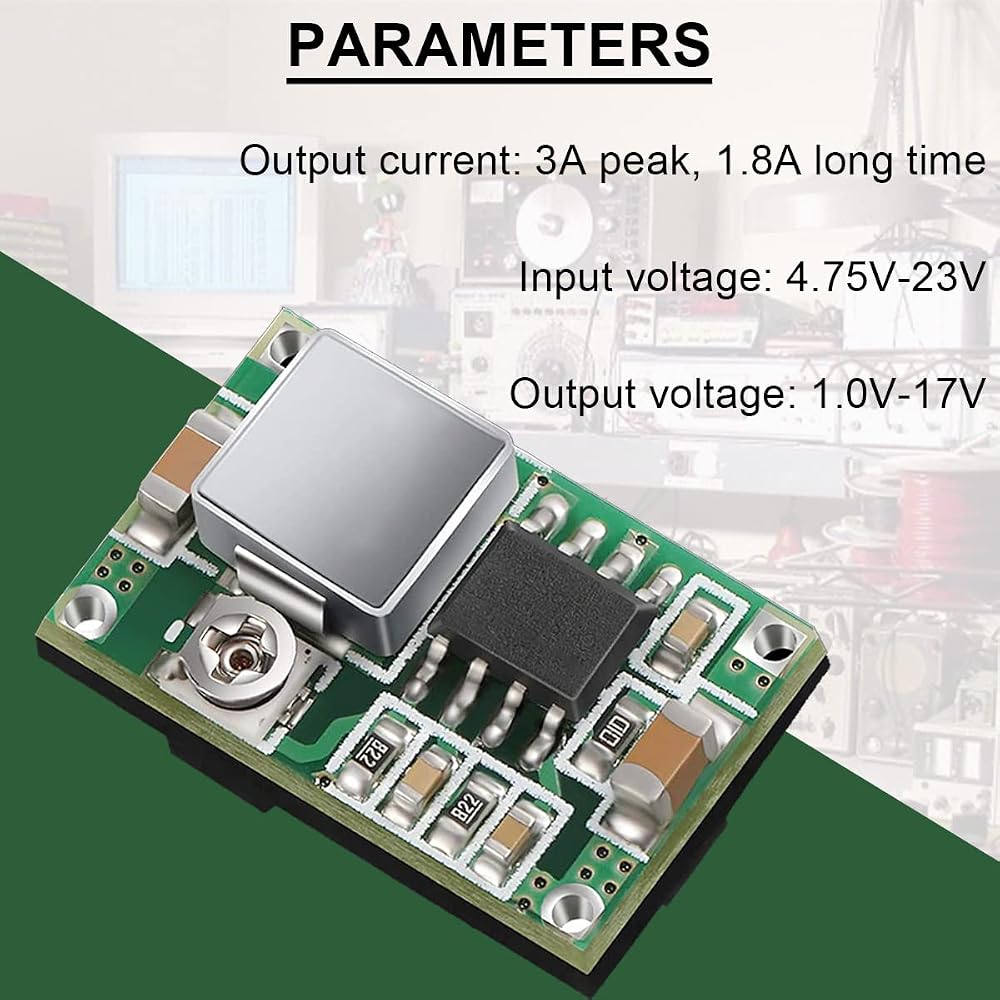

Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Conversion efficiency:96%(highest)
Switching Frequency: 340KHz.
Output ripple:30mV(no-load)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: Industrial (-40 ~ +85)

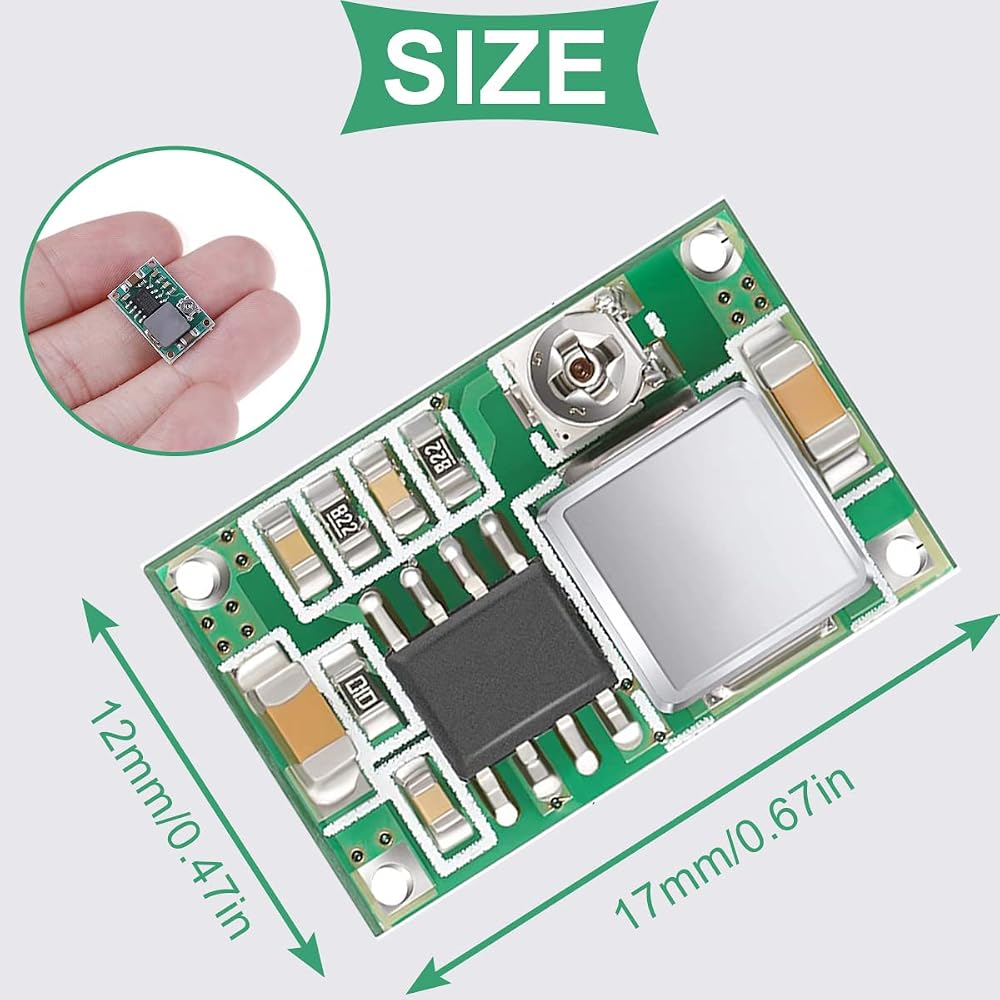

Outer size: 17x12x3.8mm/0.67x0.47x0.15in
NOTE:This can't be used to step up Voltage. Output voltage is always smaller than input!
100% brand new and high quality.

Features:

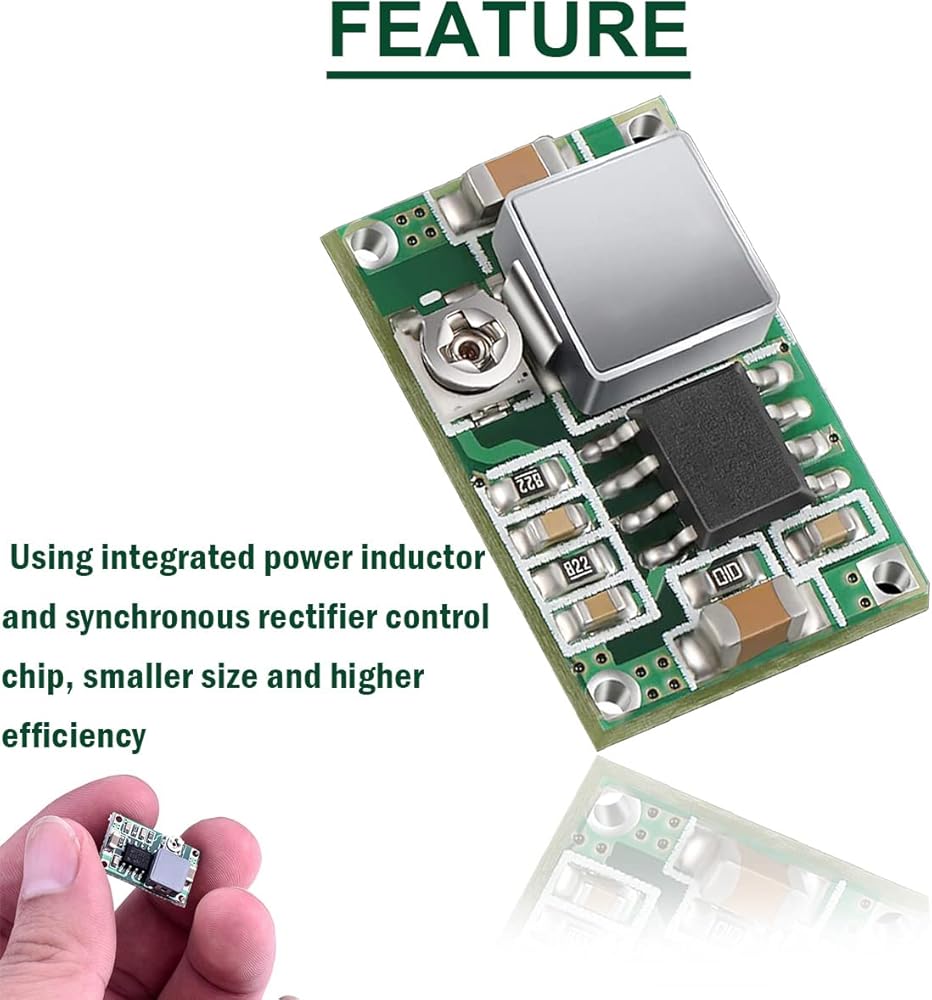

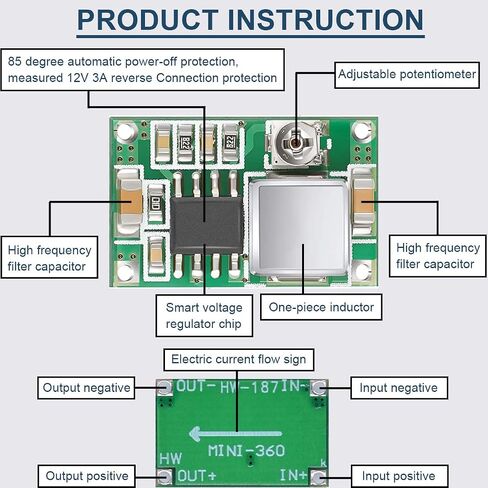

1.Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.

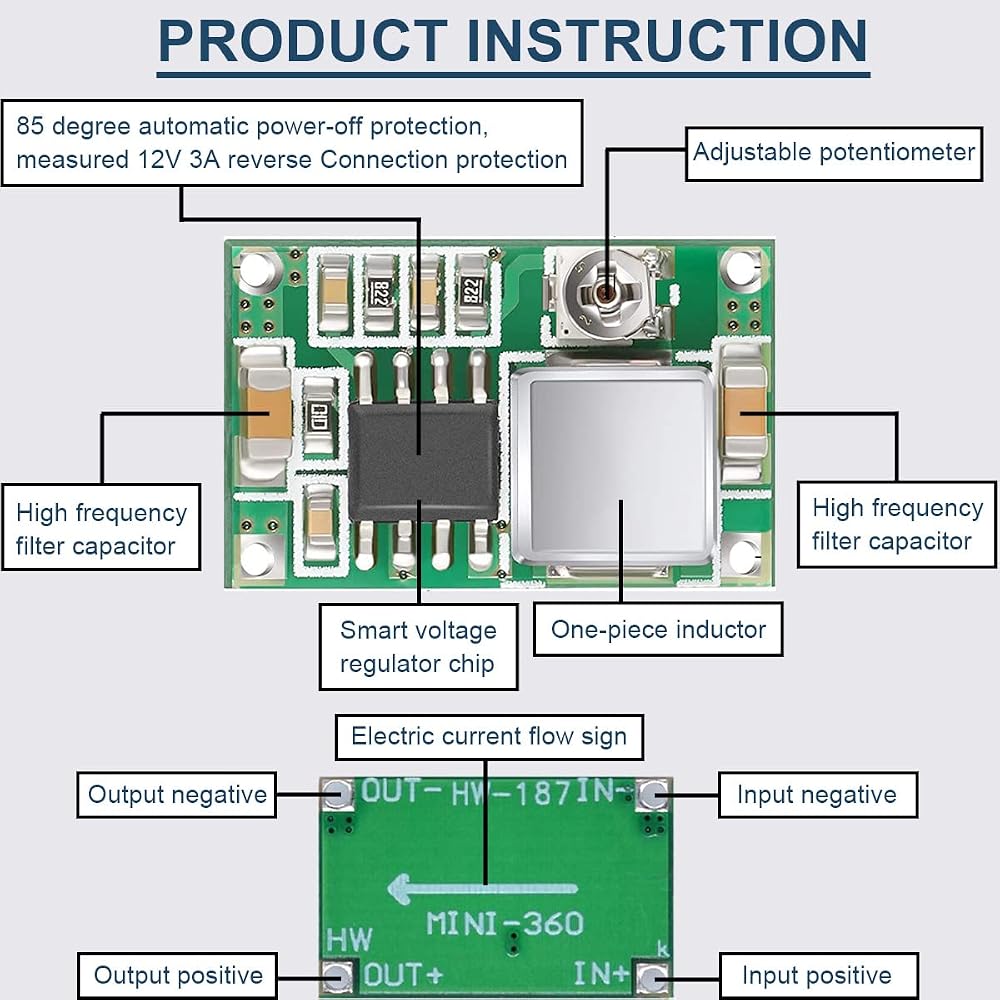

2.You can set a multimeter at the output port to adjust voltage synchronously, use screw driver to adjust potentiometer. It can get accurate voltage by tiny adjustment.

Note：
1.These circuit board can adjust current limit, fix 3A current limit.
2.Please make sure this module work in its range before use.
3.Please don't output short circuit, or the circuit board will burn out.
4.When setting parameters, please make sure the output voltage keep stable to avoid possible damage.

Application field：

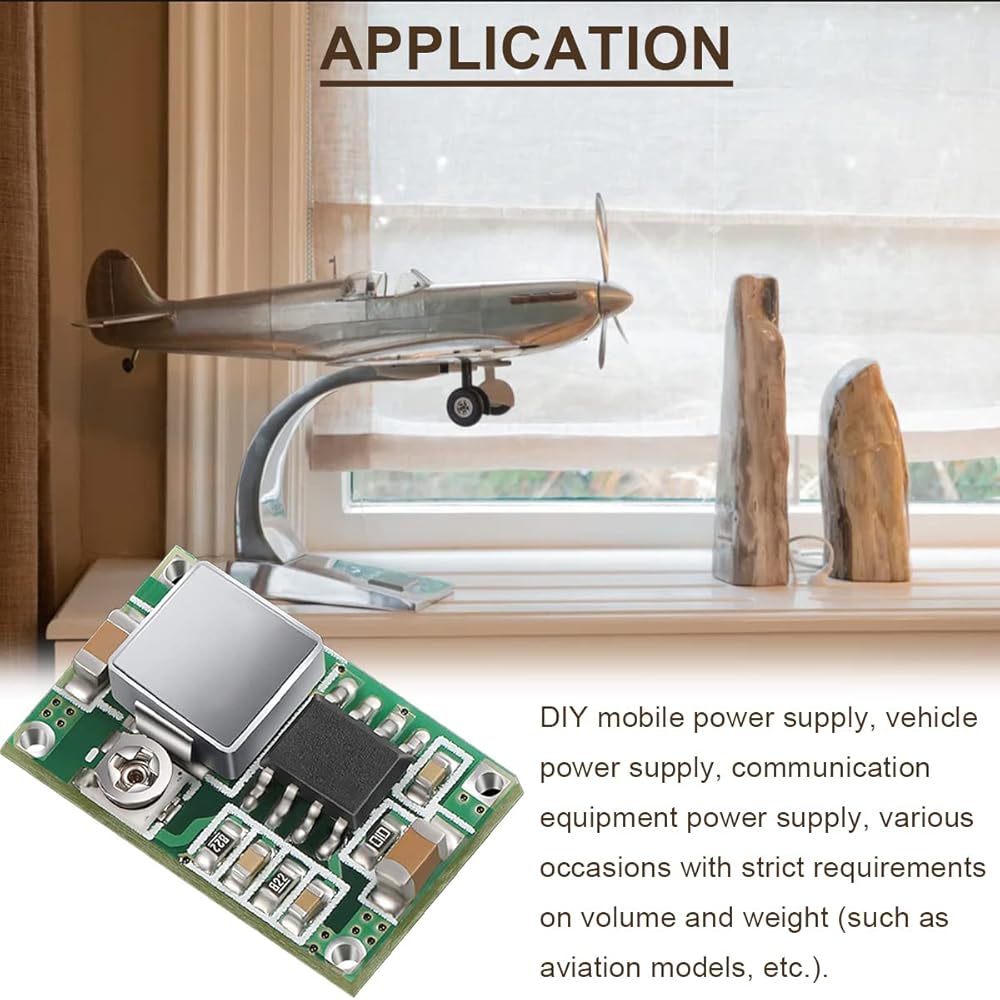

DIY mobile power supply, vehicle power supply, communication equipment power supply, various occasions with strict requirements on volume and weight (such as aviation models, etc.).

Package includes:

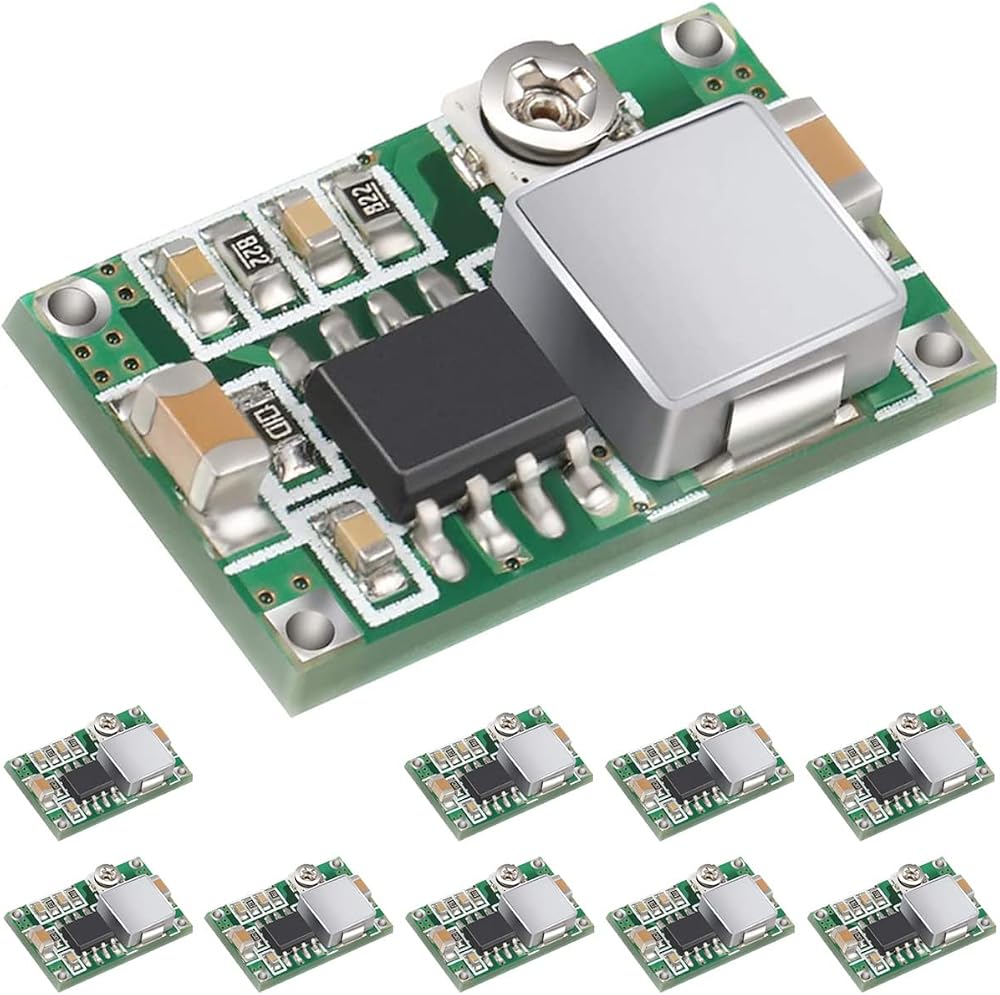

10 x Mini360 step-down buck converter module
