BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino in Saudi Arabia BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino in Saudi Arabia BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino in Saudi Arabia BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino in Saudi Arabia BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino in Saudi Arabia BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino in Saudi Arabia BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino in Saudi Arabia BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino in Saudi Arabia

BTS7960 Motor Driver Module 43A High Power Double DC Stepper Motor Driver Module H-Bridge Semiconductor Refrigeration PWM Smart Car Driver Module, for Arduino

Sorry, this product is not available
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.

Special Features

  • 🔋[BTS7960 Chip]H-bridge drive module composed of high-power drive chip BTS7960, with overheating and overcurrent protection. Double BTS7960 large current H bridge driver, limit up to 43A large current output, with a strong drive and brake effects.
  • 🔋[74HC244 chip]Using 74HC244 chip to effectively isolate the microcontroller and motor drive. With the microcontroller 5V isolation, effective protection of single-chip.
  • 🔋[Motor forward and reverse]Can achieve the motor forward rotation and reversal rotation. Two PWM input up to 25kHZ frequency. two heat flow passing through an error signal output.
  • 🔋[Protective function]Overcurrent and overheating error signal output; Over temperature, overvoltage, undervoltage, overcurrent protection, short circuit protection.
  • 🔋[Package includes]You will get 1 x BTS7960 43A High Power Double DC Stepper Motor Driver Module, 1 x 8Pin Female to Male Dupont Wire.

Description

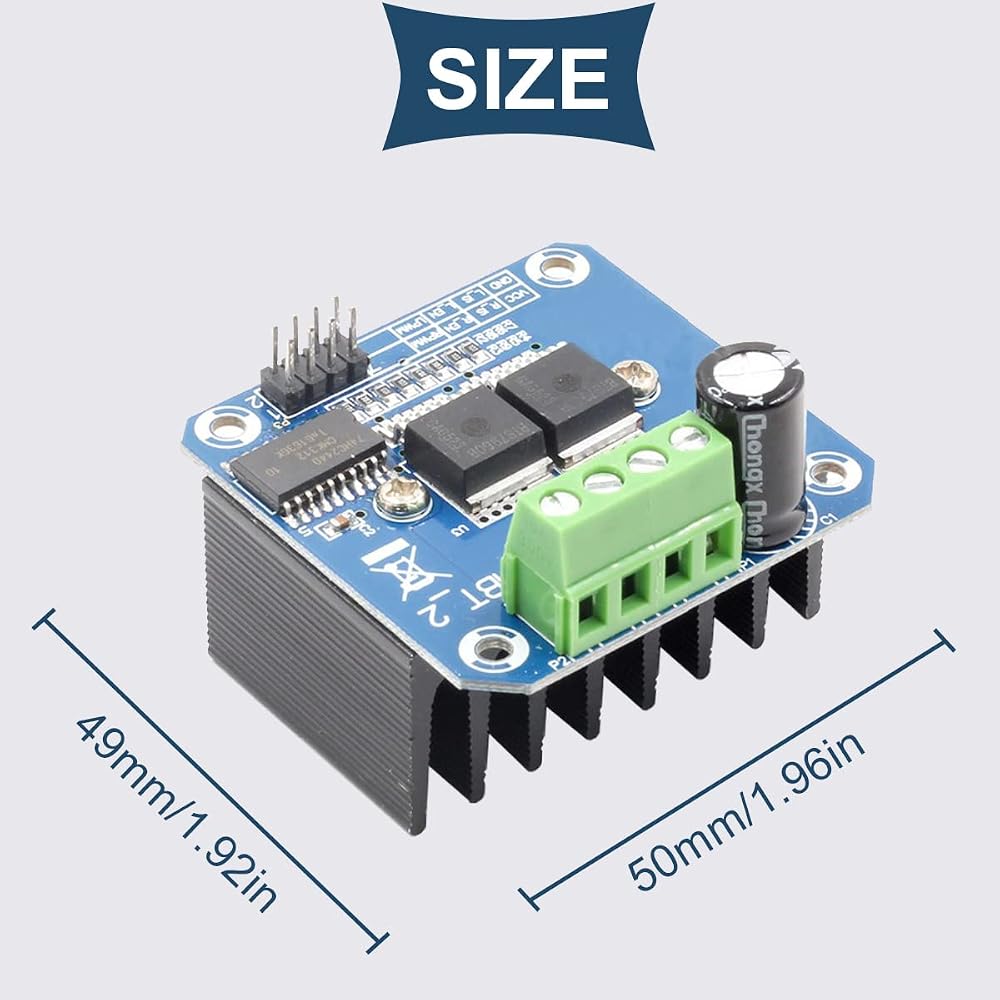

Parameters：

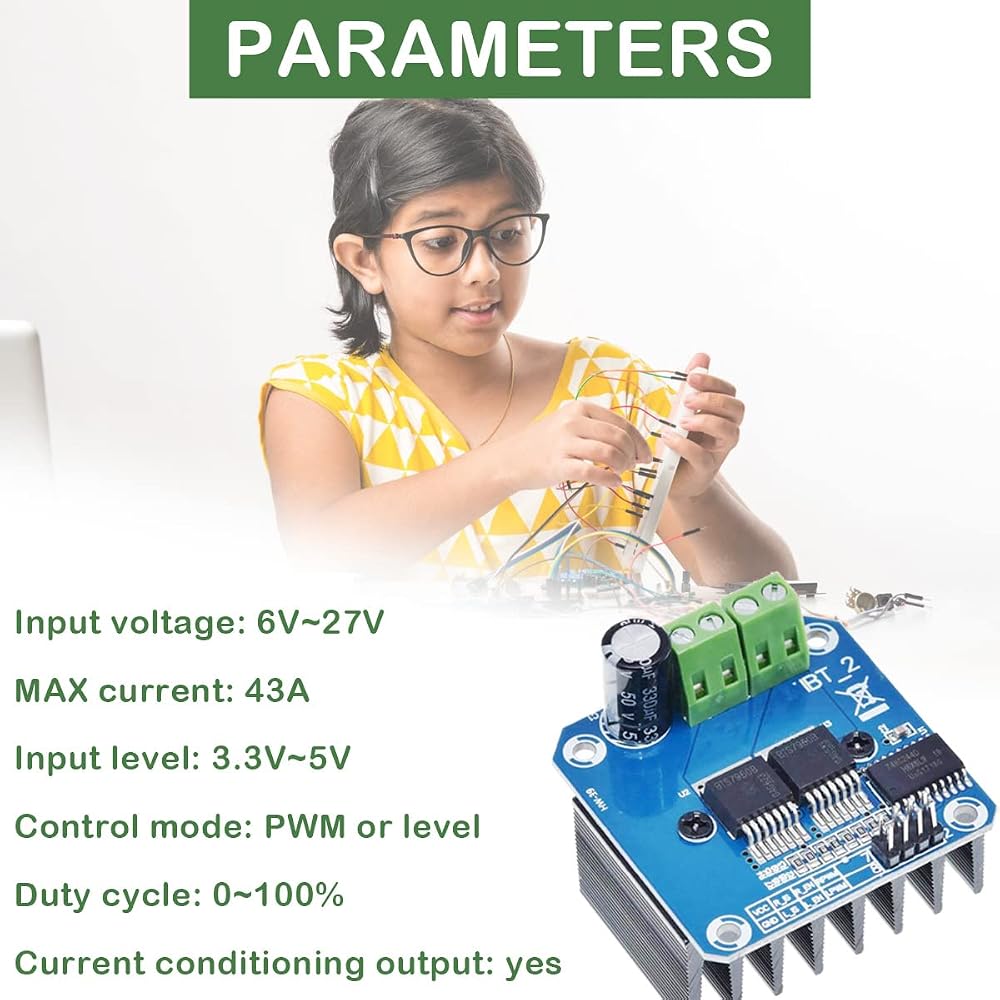

Product Name: BTS7960 Motor Driver Module
Input voltage: 6V~27V
MAX current: 43A
Input level: 3.3V~5V
Control mode: PWM or level
Duty cycle: 0~100%
Current conditioning output: yes

Features：

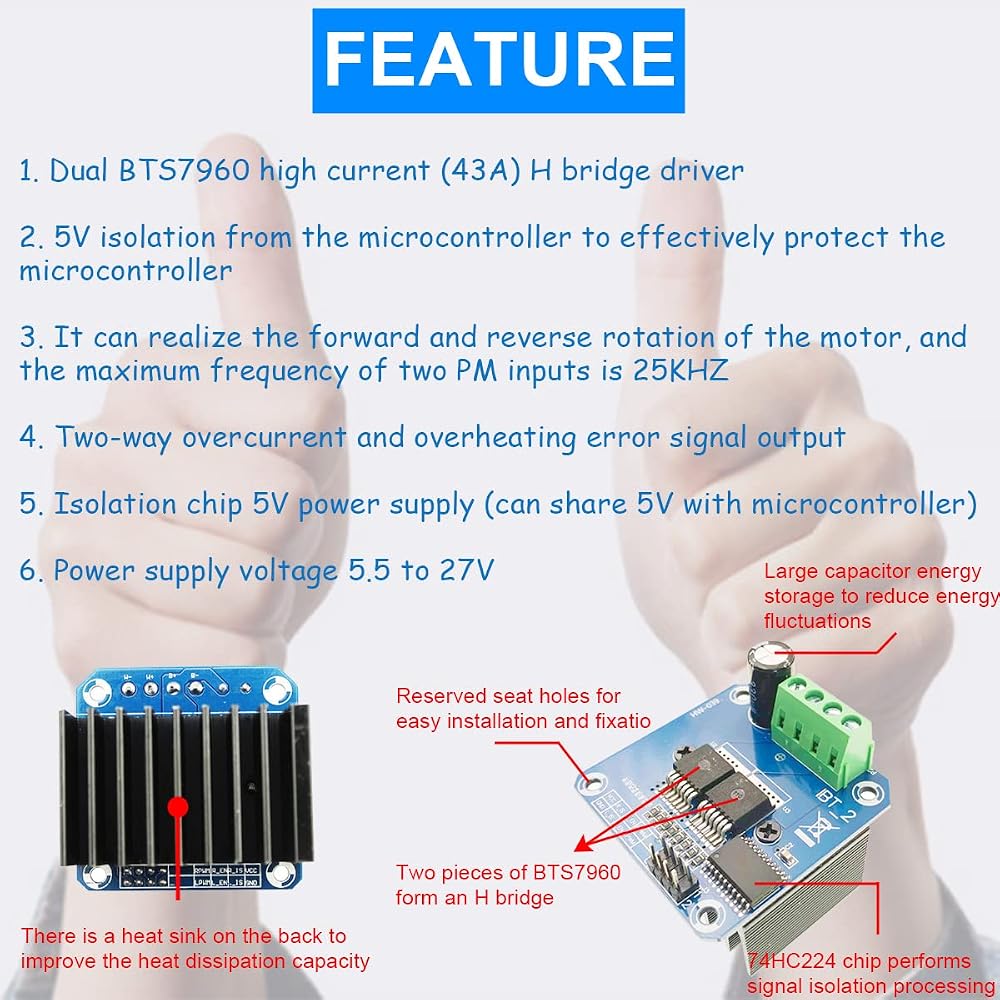

1. Dual BTS7960 high current (43A) H bridge driver
2. 5V isolation from the microcontroller to effectively protect the microcontroller
3. It can realize the forward and reverse rotation of the motor, and the maximum frequency of two PM inputs is 25KHZ.
4. Two-way overcurrent and overheating error signal output;
5. Isolation chip 5V power supply (can share 5V with microcontroller);
6. Power supply voltage 5.5 to 27V;

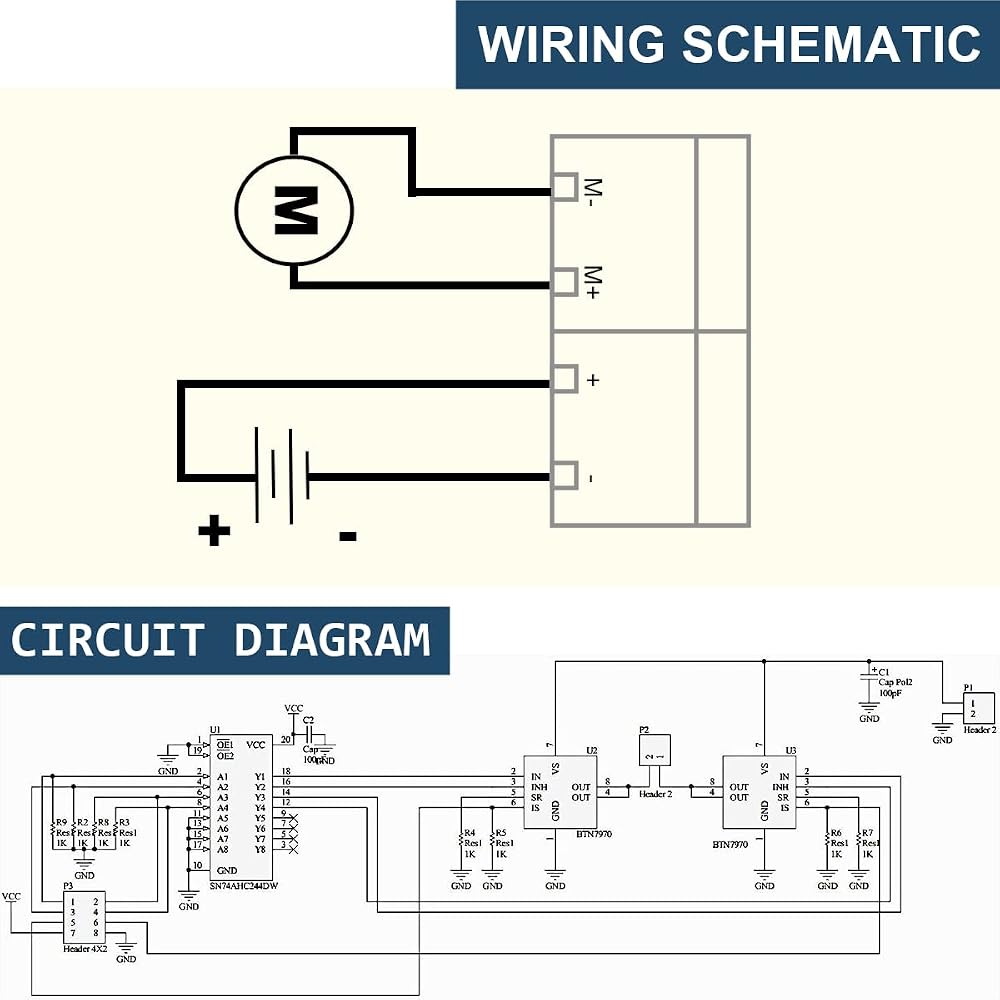

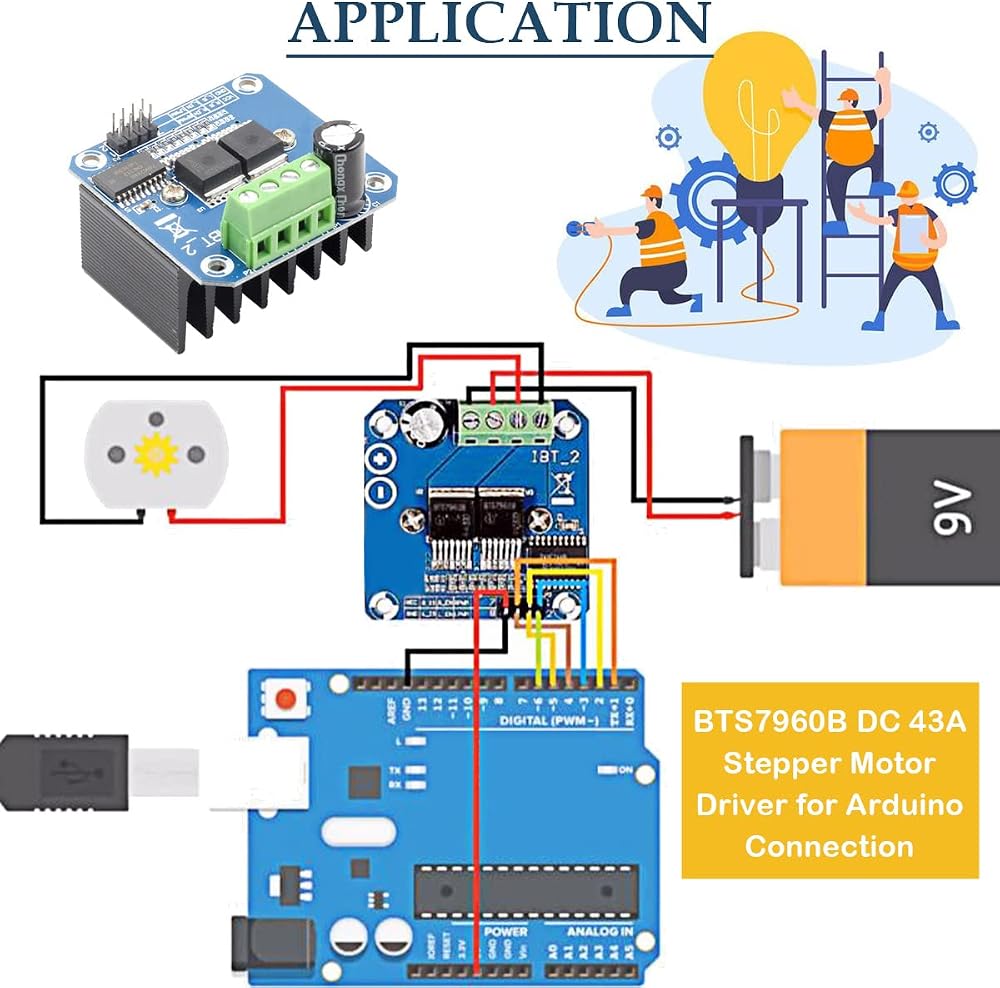

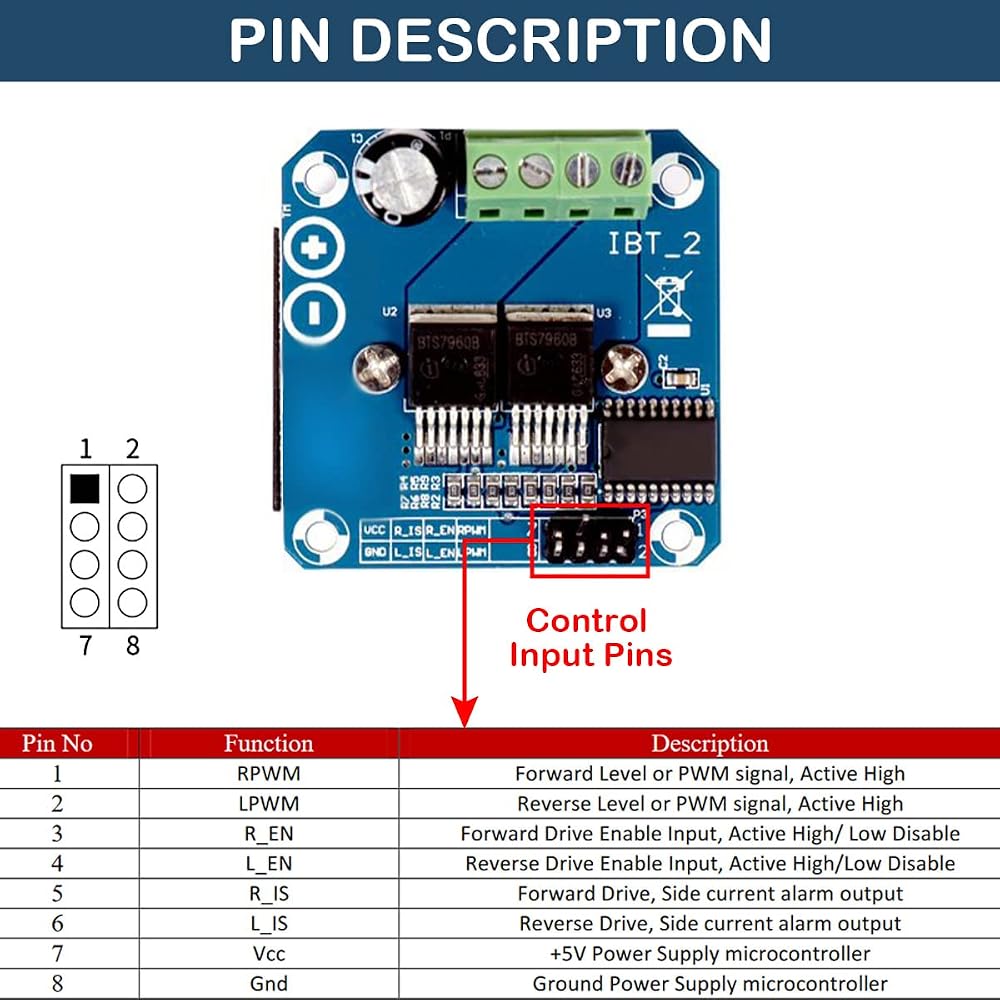

Instructions：
method 1:
VCC is connected to the 5V power supply of the microcontroller, and GND is connected to the GND of the microcontroller
R_EN and L_EN are short-circuited and connected to 5V level, the driver can work.
L_PWM, input PWM signal or high level motor rotates forward.
R_PWM, input PWM signal or high level motor reverse.
Method 2:
VCC is connected to the 5V power supply of the microcontroller, and GND is connected to the GND of the microcontroller
R_EN and L_EN are short-circuited and connected to the input PWM signal for speed regulation.
L_PWM, the pin input 5V level motor rotates forward.
R_PWM, pin input 5V level motor reverse.

Package includes:

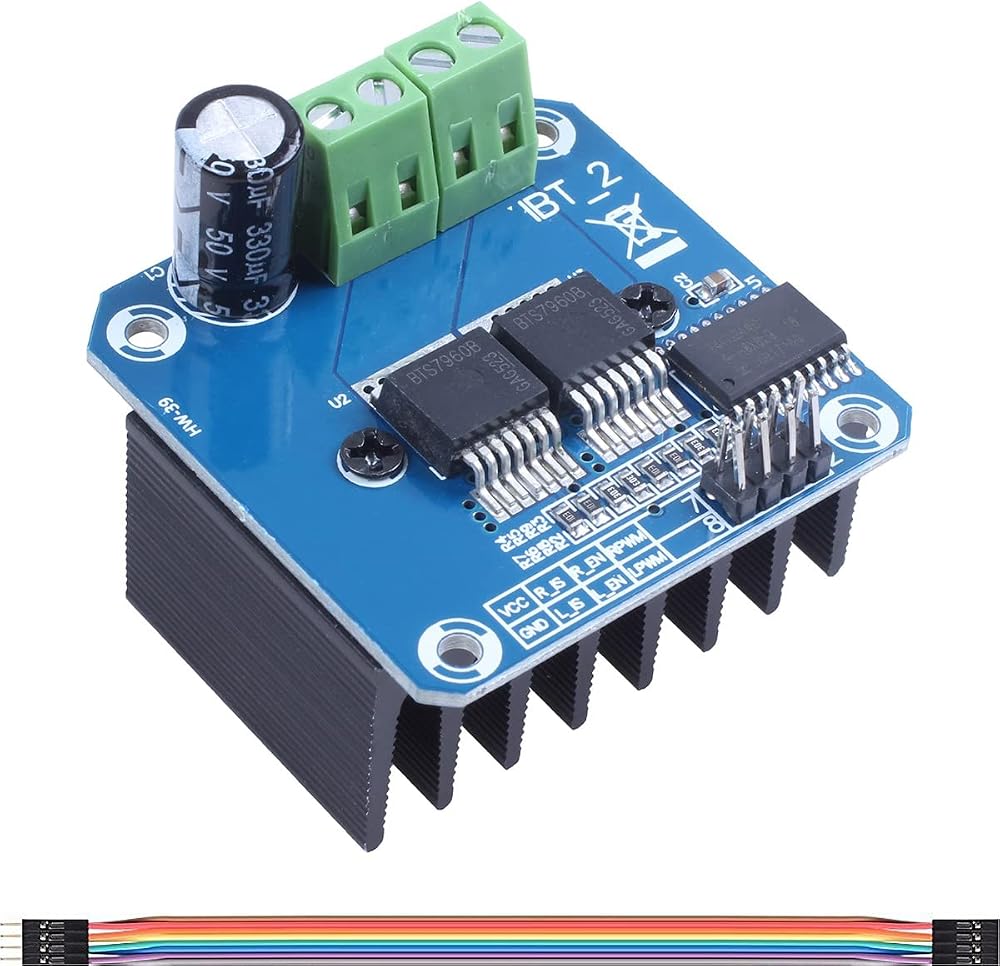

1 x BTS7960 43A High Power Double DC Stepper Motor Driver Module
1 x 8Pin Female to Male Dupont Wire
