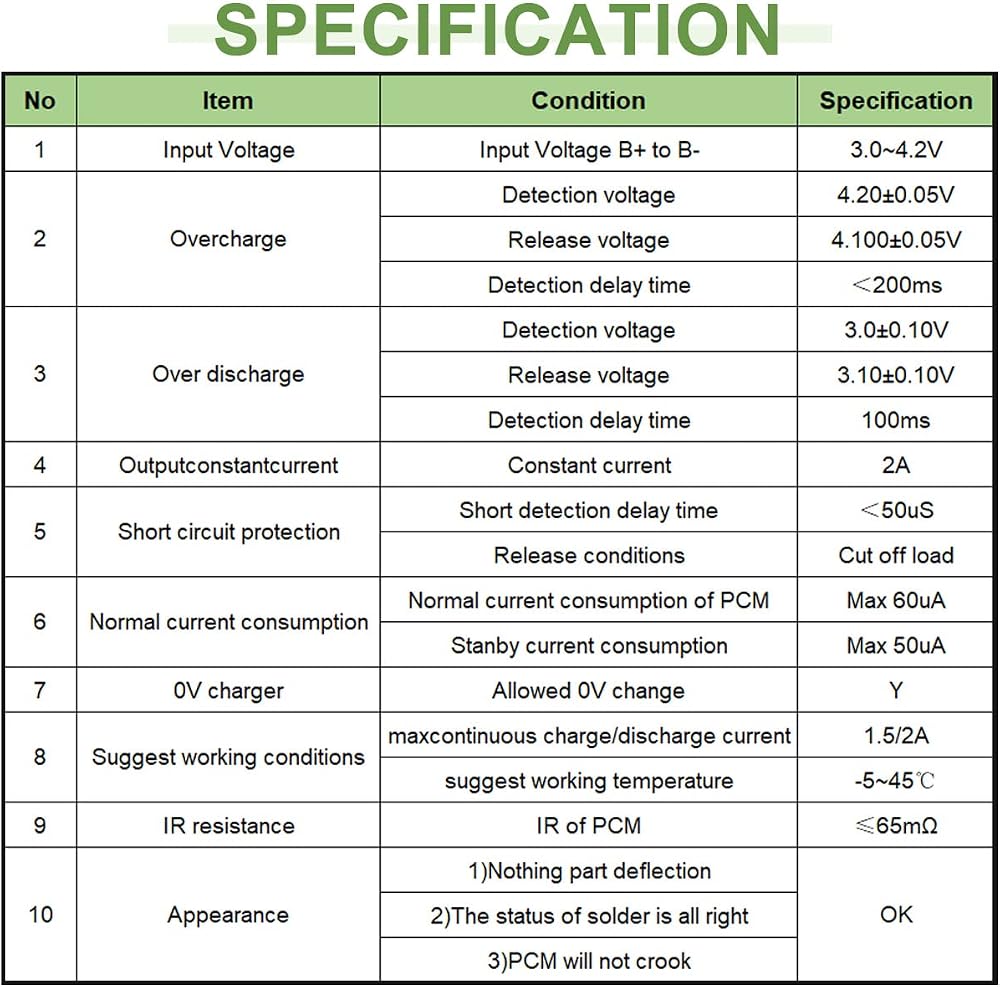

Specification:
1.Normal Current Consumption:
Normal current consumption of PCM: Max 60uA
Stanby current consumption: Max 50uA
2.Suggest Working Conditions:
Max continuous charge/discharge current: 1.5/2.4A
Suggest working temperature: -5～45℃
3.Normal Parameters:

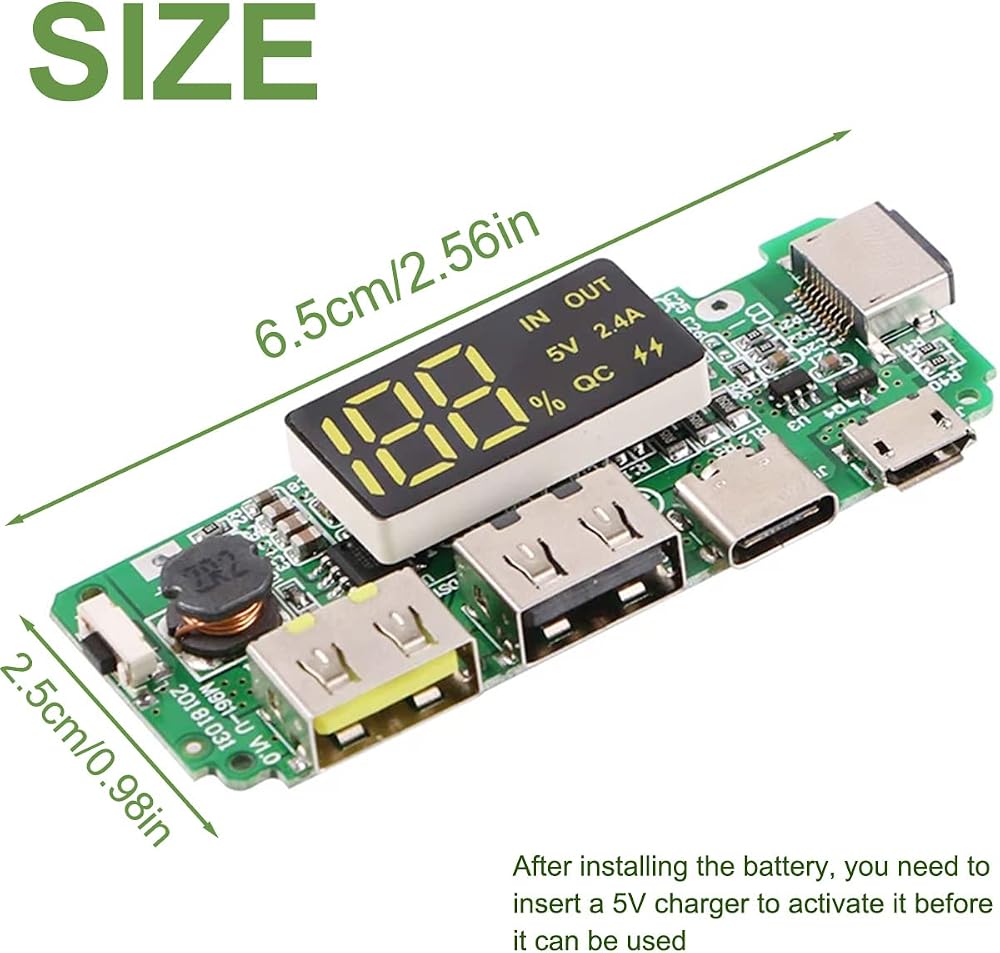

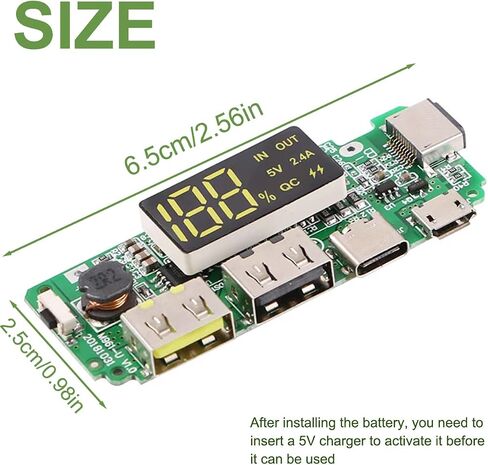

Size: 6.5 x 2.5cm/2.56 x 0.98in
Weight: 10.8G
IR of PCM : ≤65 mΩ
Allowed 0V change: Yes
Constant current: 2.4A

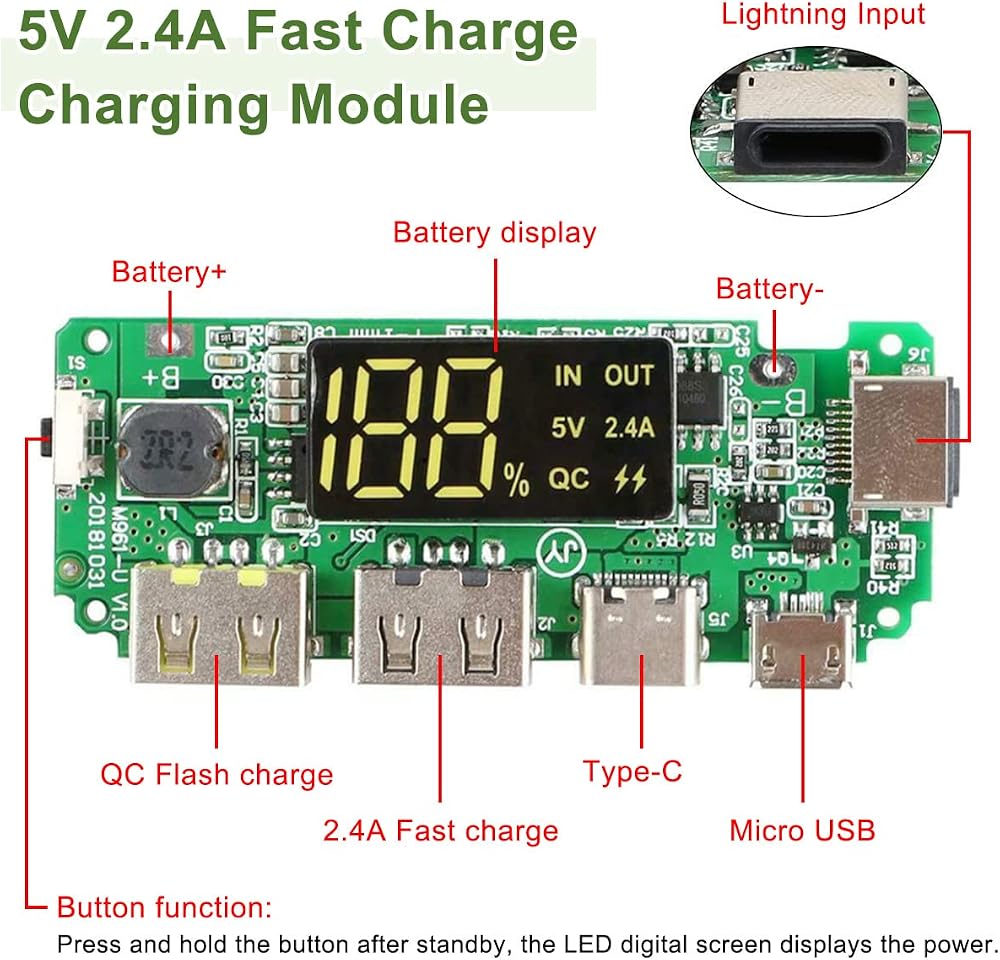

Dual output current: 5V 2.4A
Input voltage B+ to B-: 3.0 - 4.2V
4.Technical Specification:
Prevent Overcharge Protection:
Detection voltage: 4.20±0.05V
Release voltage: 4.100±0.05V
Detection delay time: Prevent Overdischarge Protection:
Detection voltage: 3.0±0.10V
Release voltage: 3.10±0.10V
Detection delay time:

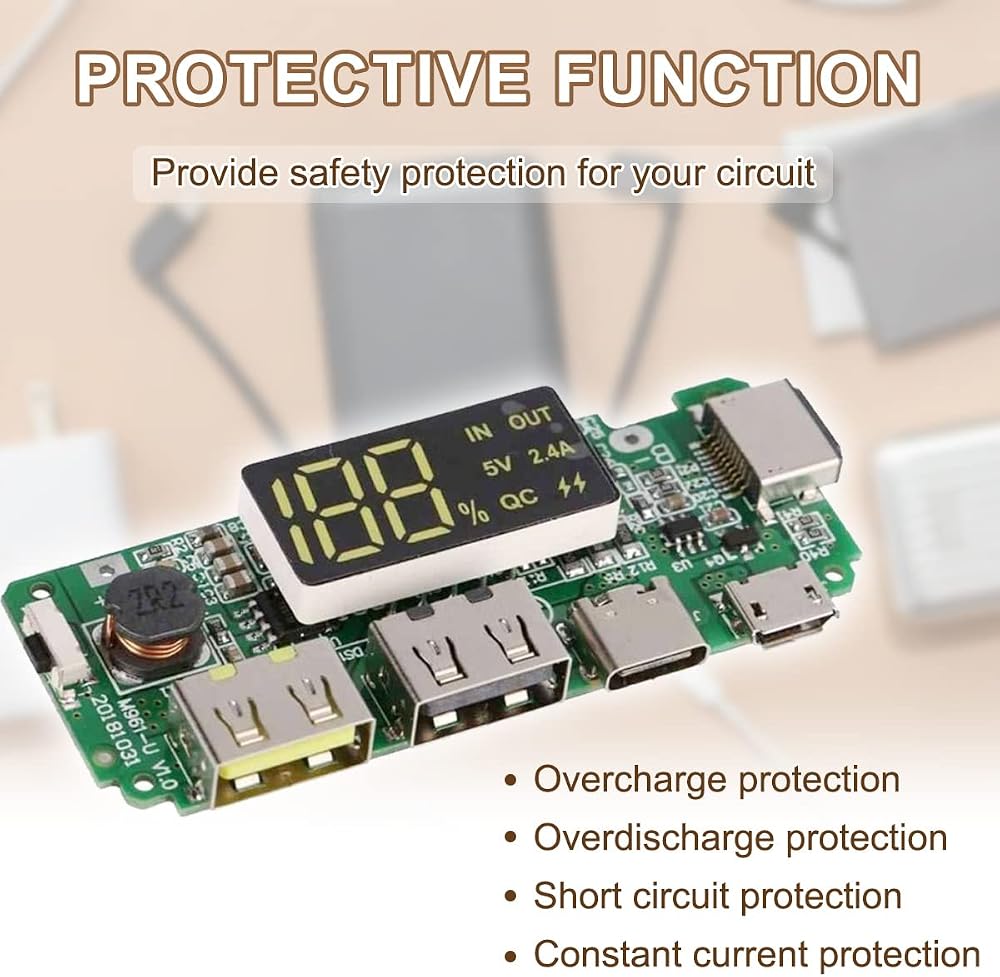

Protective function:
1.Over-discharge protection: Mobile Power Bank Module Charging Board keeps your battery from being discharged below 3V, a healthy minimum voltage level.
2.Overcharge protection: Charging Board will safely charge your battery to a full voltage of 4.2V. Maximum charging current is 1500mA.
3.Short-circuit and over-current protection: power bank circuit board-Should the discharge rate exceed 2A or if there is a short-circuit condition, the module will cut the output from the battery.

Package includes:

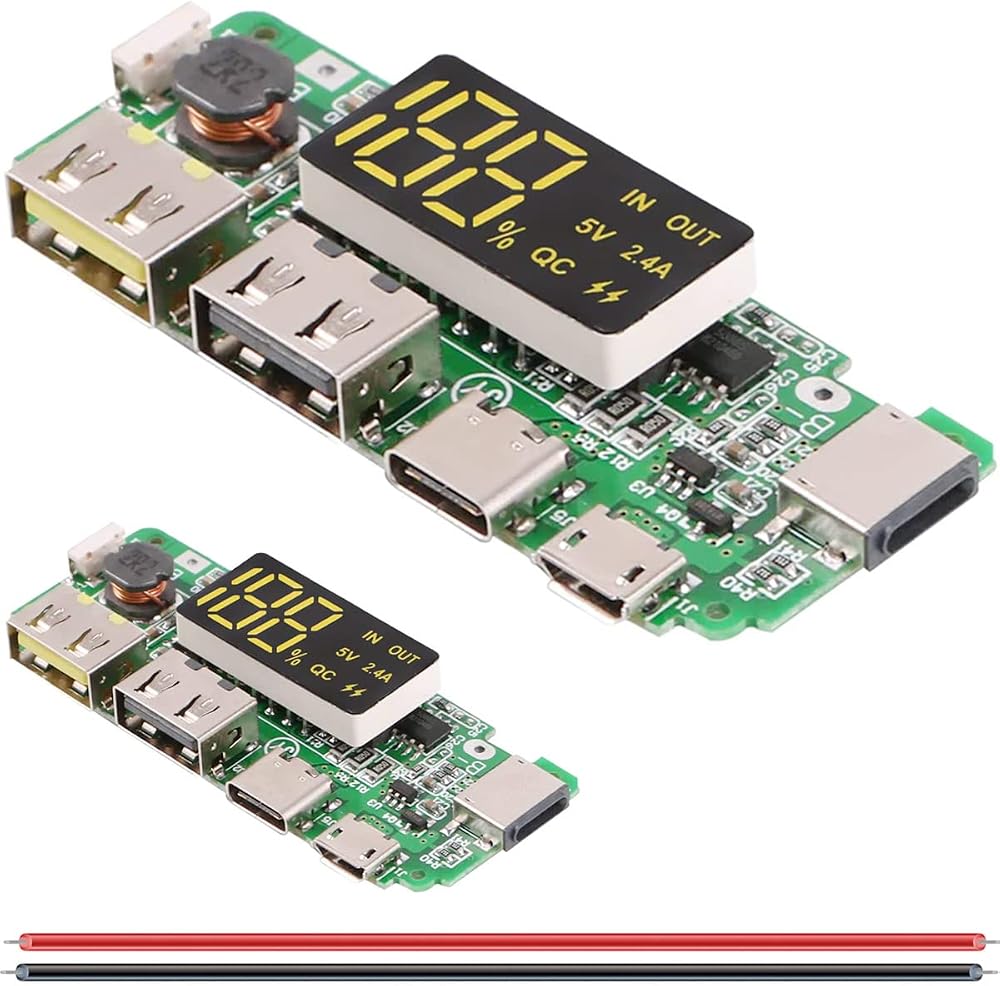

2Pcs 18650 Charging Board
2Pcs 50cm/19.68in 24AWG Cable
