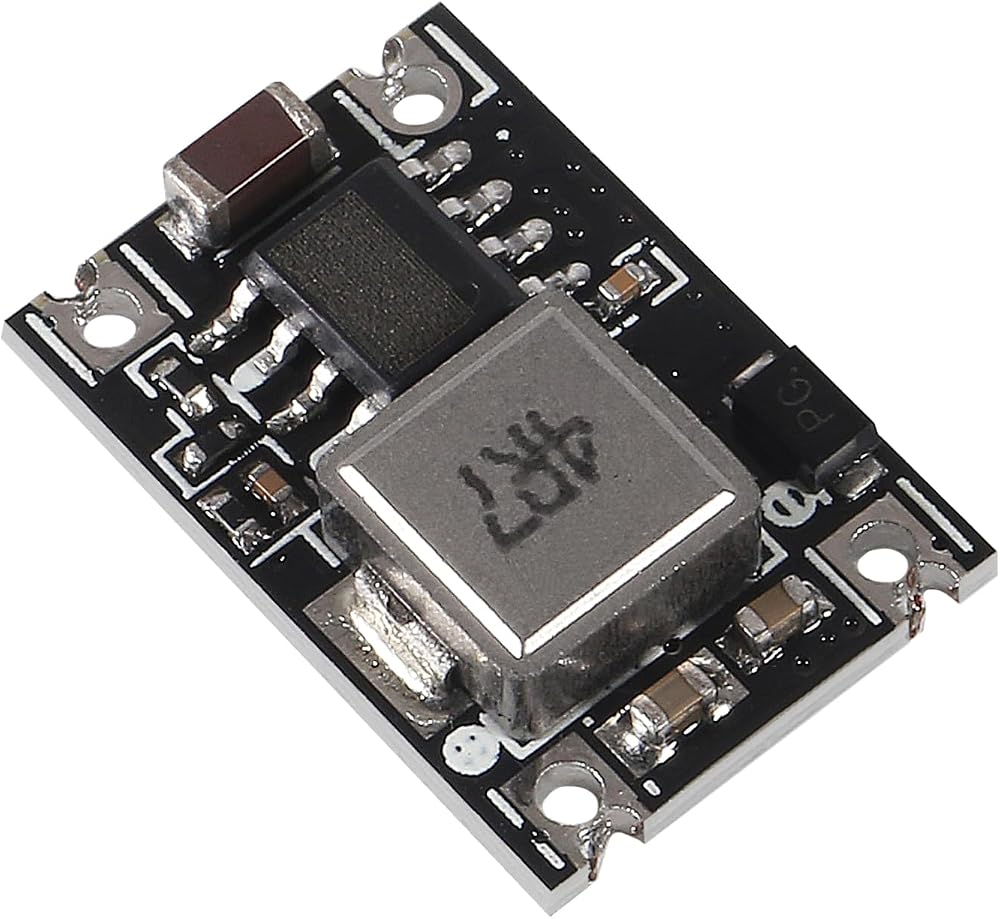

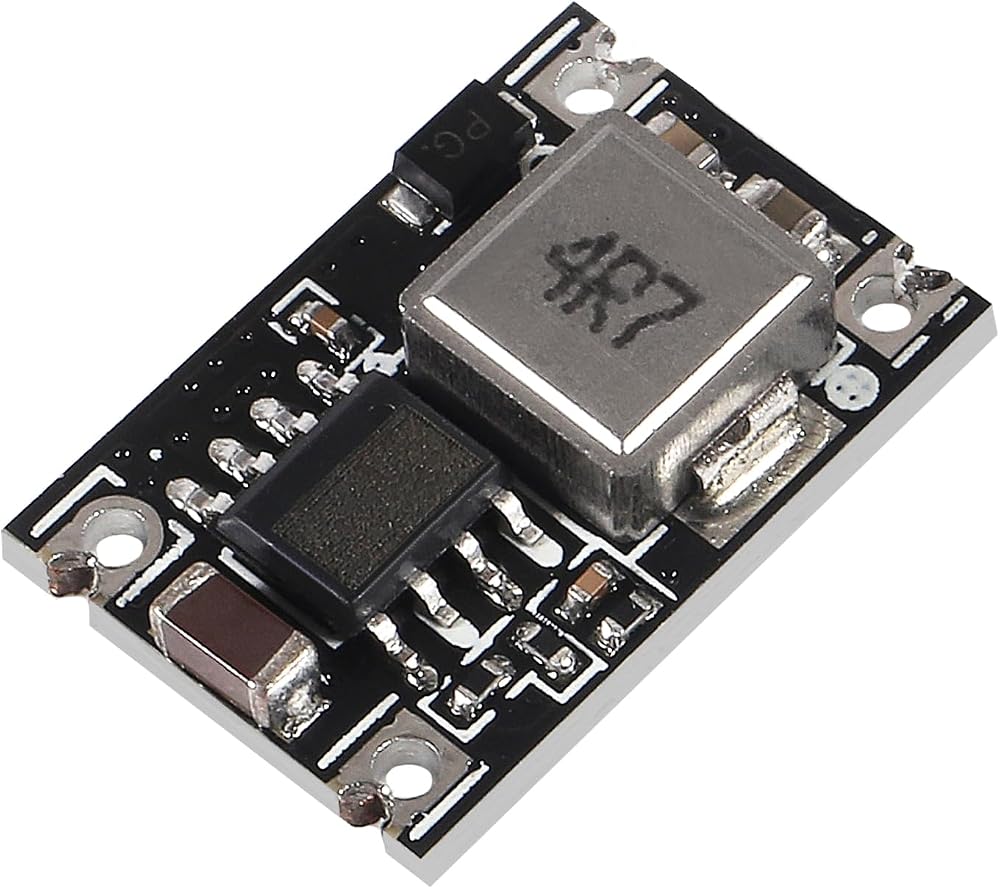

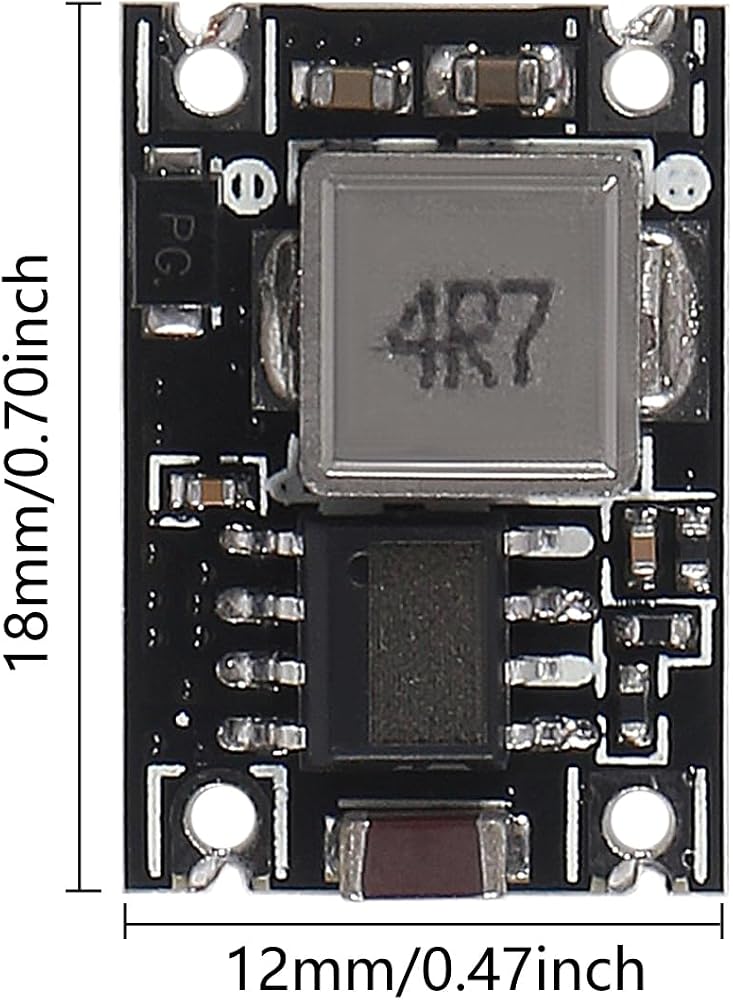

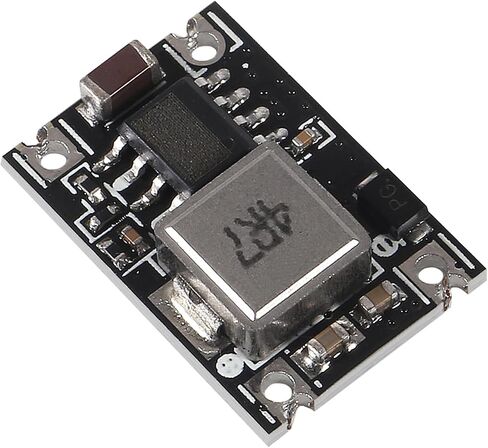

Buck Converter Step Down Power Supply Module 5-30V to 5V Mini360 Ultra-small
Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (highest), typically 1 MHz
the working temperature is -40℃-85℃
Ultra-Small Size DC-DC Step Down Power Supply Module 5A Adjustable Buck Converter Replace LM2596
Description
Input voltage:5-30V
Output voltage:5V/3.3V
Output Current: lowering the value of 3A,
Conversion efficiency:96%(maximum)
Working temperature:-40 Celsius to +85 Celsius
Note:

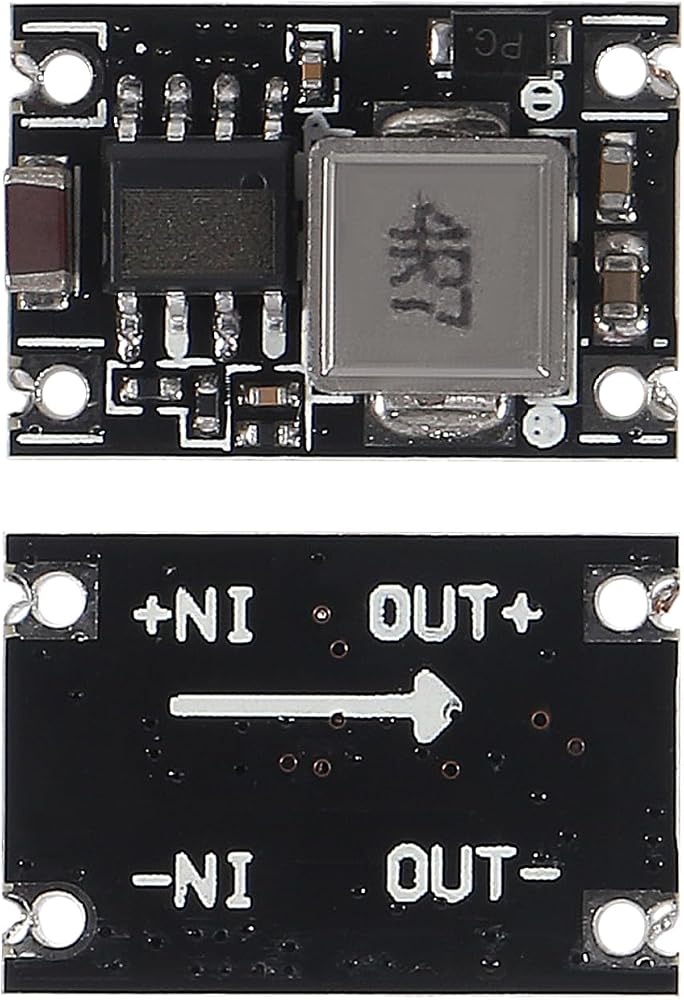

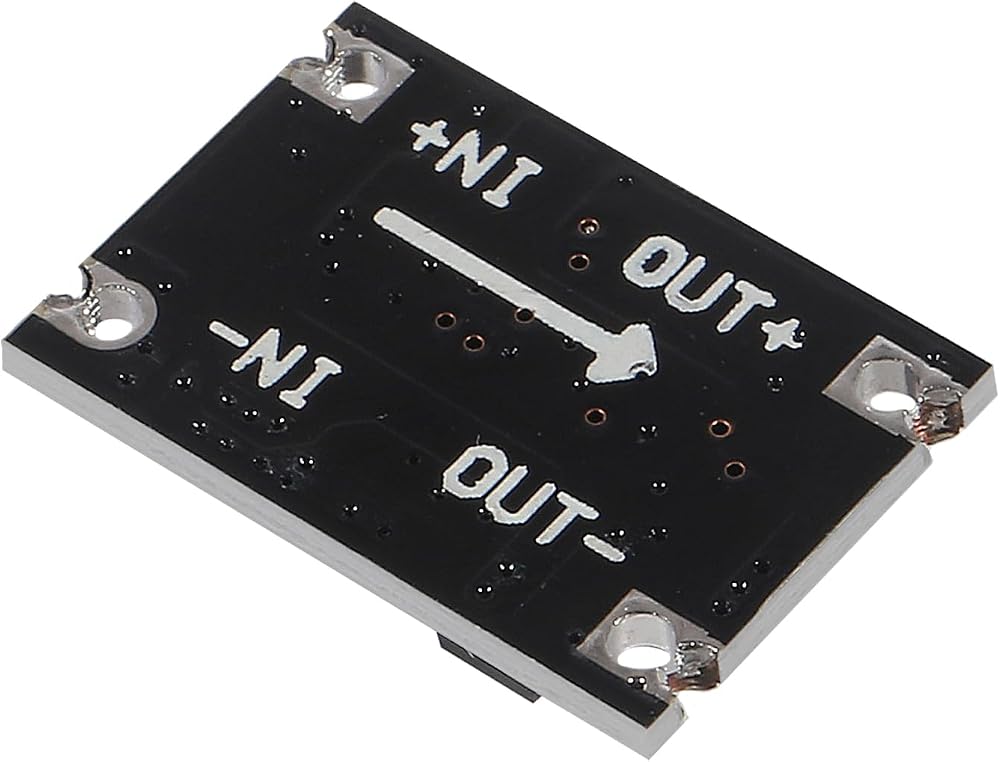

1: about the positive and negative poles : when using this module, the positive and negative pole marks are on the back of the circuit board
2: when the current over 3A .please use a heat sink

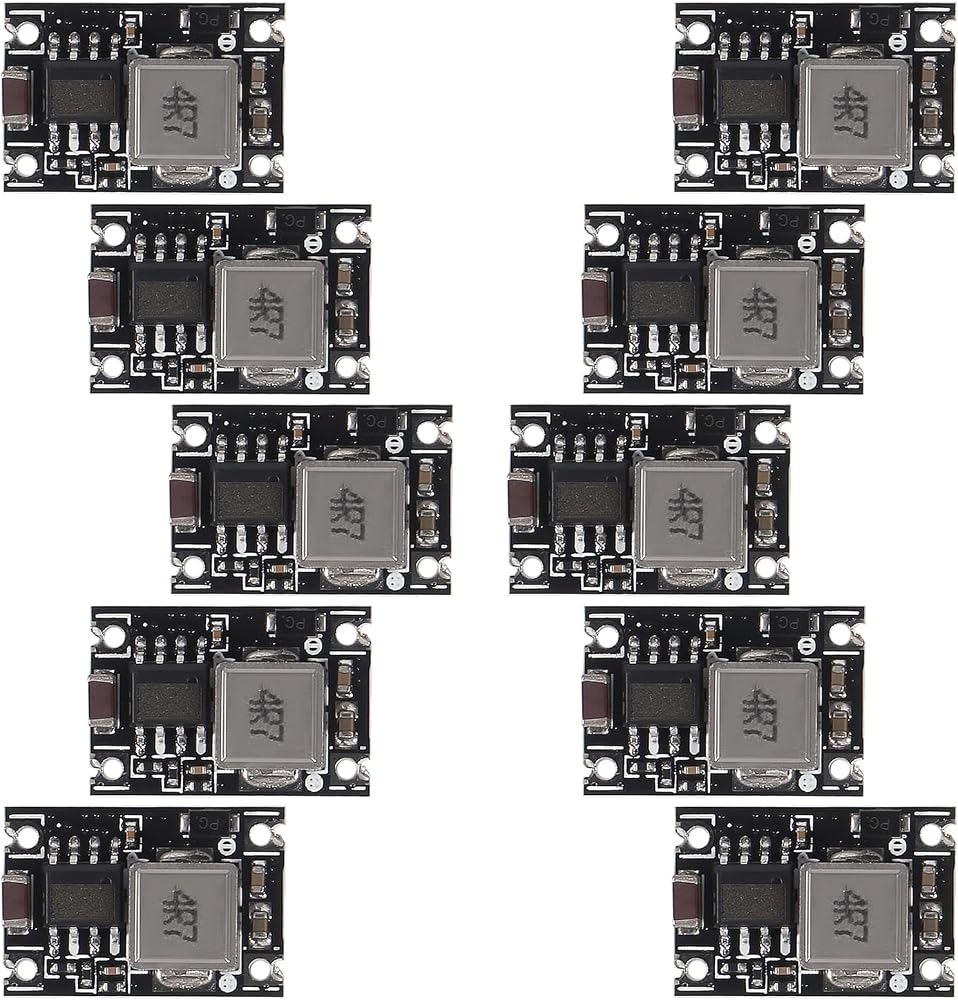

Package: 20PCS 5V Buck Module
