Features:
- running at 5V 16MHz.
- Supported under IDE v1.0.1.

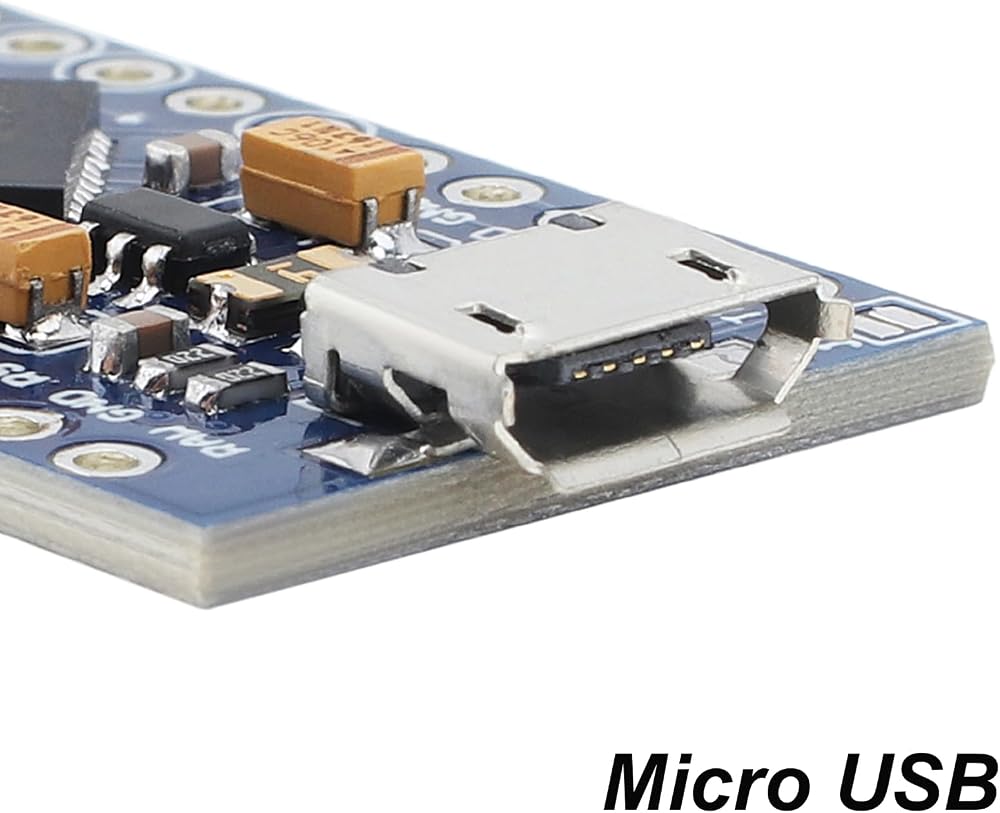

- On-Board micro USB connector for programming.
- 4 x 10-bit ADC pins. 12 x digital I/O (5 are PWM capable).
- Rx and Tx hardware serial connections.

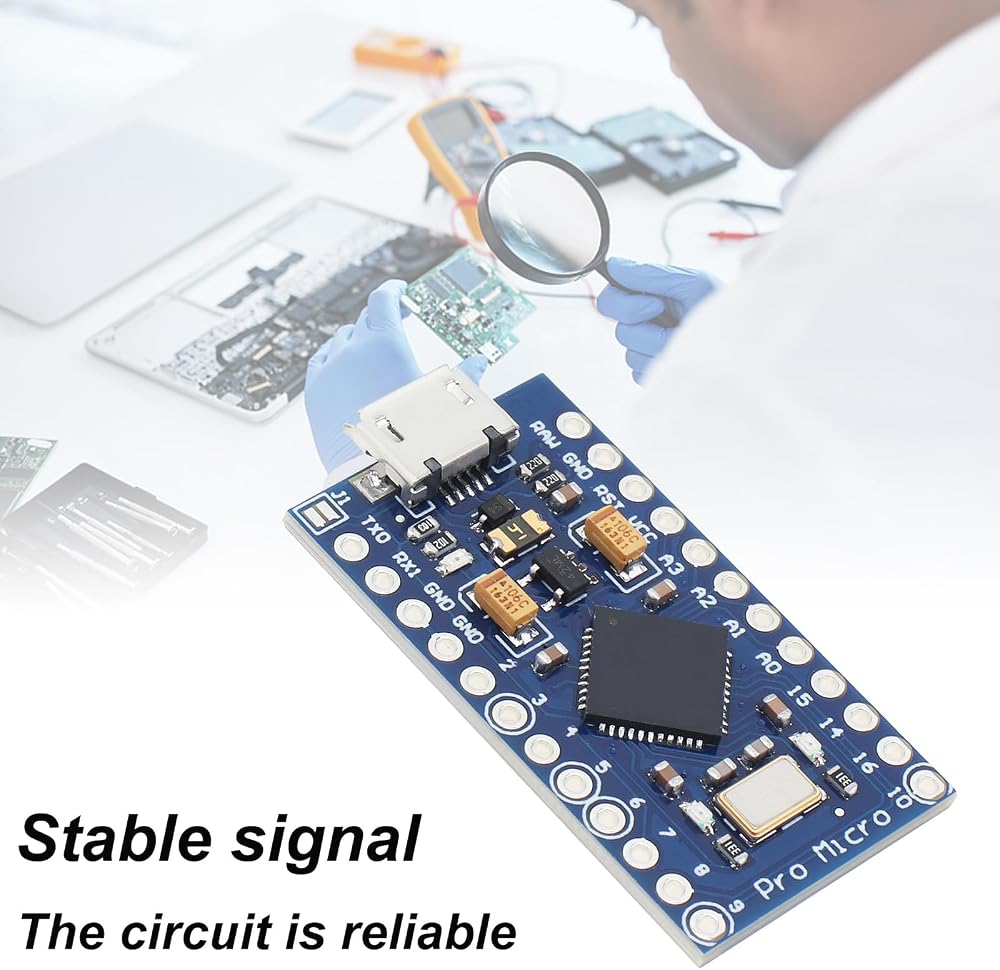

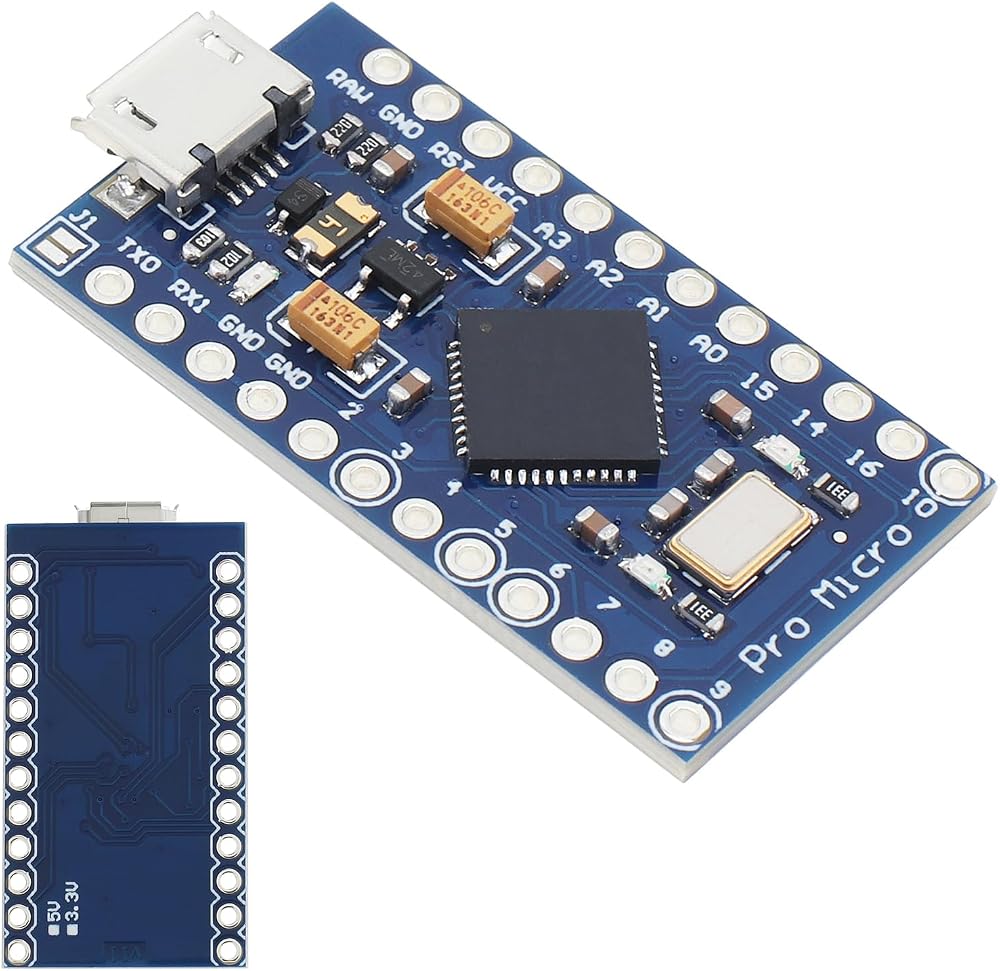

- This small circuit board realizes all the neat neighborhood skills: 4-channel 10 bit ADC, 5 PWM pins, 12 DIO, and the hardware serial connection with your familiar Rx and Tx.
- Running on 16MHz and 5V, this board will remind you of many other compatible boards you like. There is a voltage regulator on the board, so it can accept voltages up to 12V DC.
- If your power supply is unstable, be sure to connect to the "RAW" not VCC pin.
- PTC fuse and diode are added in this version to protect power circuit and correct RX and TX LED circuit.

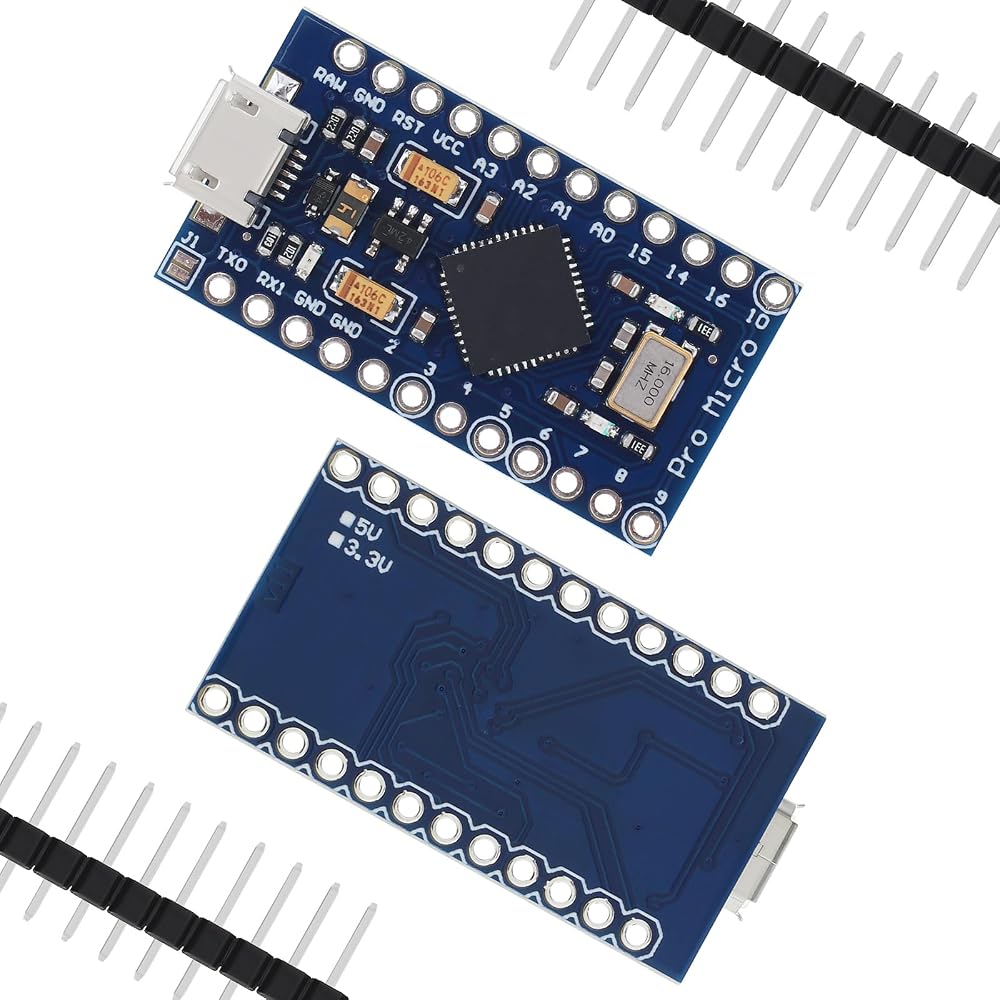

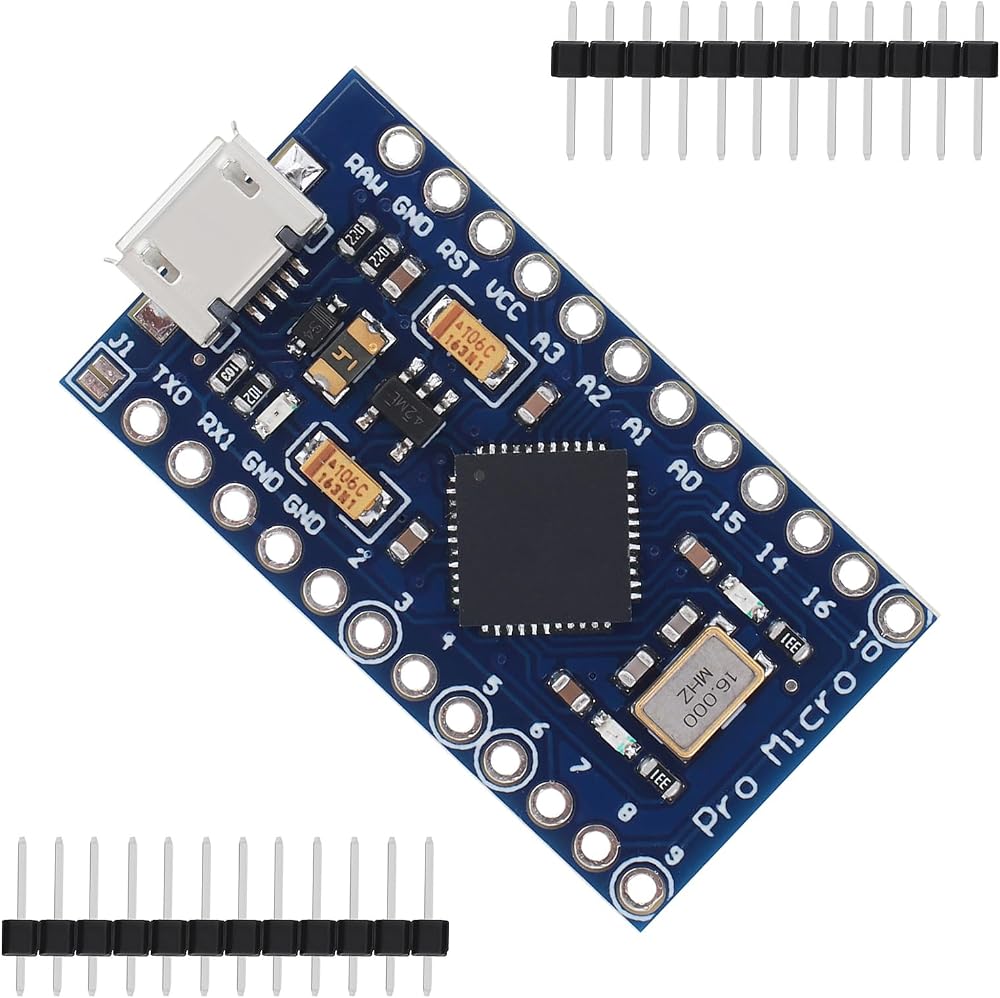

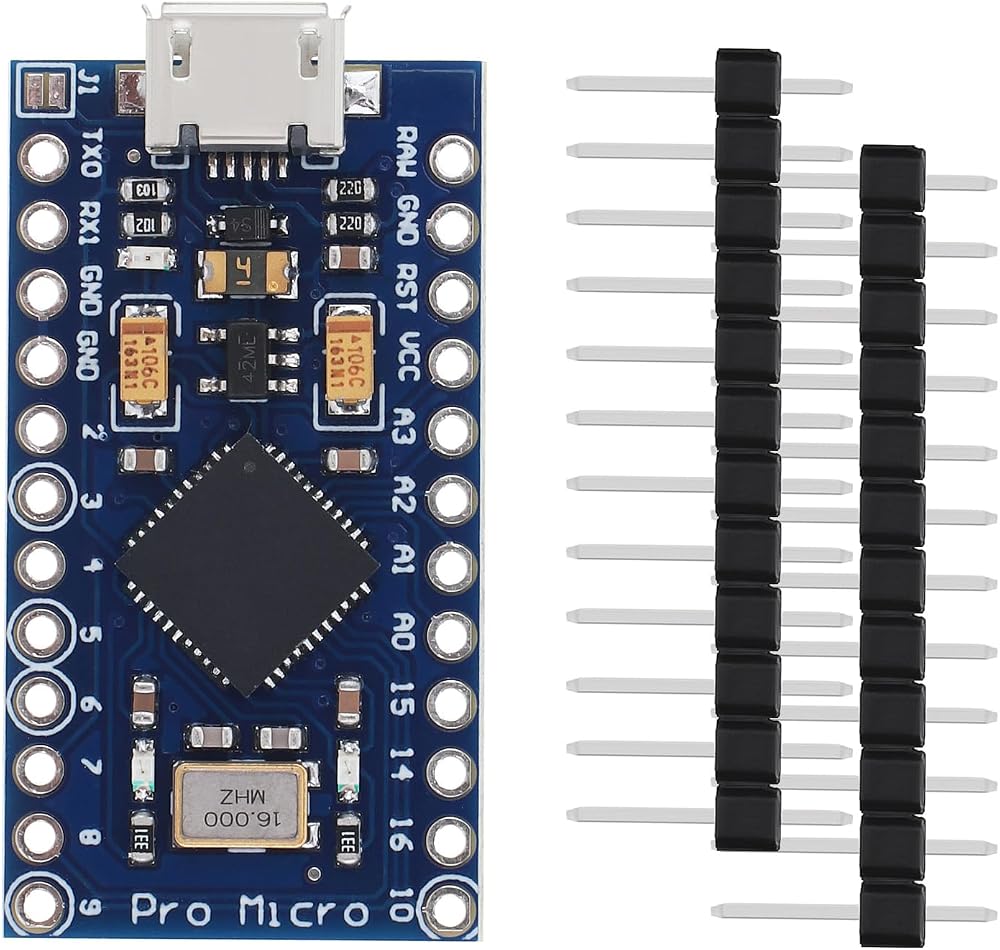

Package Include:
1 x Development Board Revision
2 x Row Pin Header
