General Information
Category Hard drives

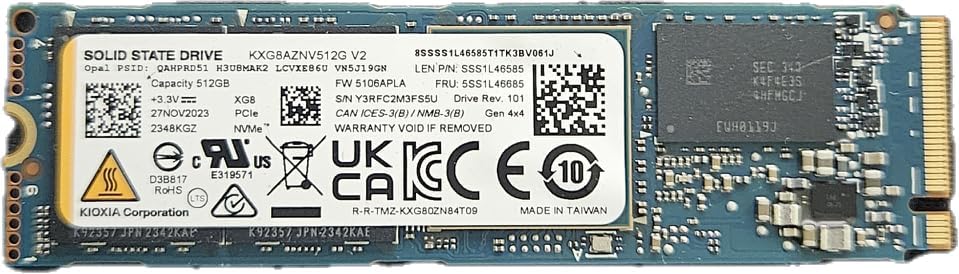

Description KXG8AZNV512G - SSD - encrypted - 512 GB - internal - M.2 2280 (single-sided) - PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.01
Main Specifications
Dimensions & Weight / Depth 80 mm
Dimensions & Weight / Height 2.23 mm
Dimensions & Weight / Weight 6.6 g
Dimensions & Weight / Width 22 mm
Hard Drive / Capacity 512 GB
Hard Drive / Form Factor M.2 2280 (single-sided)
Hard Drive / Hard Drive Type Internal hard drive
Hard Drive / Interface PCI Express 4.0 x4 (NVMe)
Hard Drive / Interface PCI Express 4.0 x4 (NVMe)
Packaged Quantity 1
Storage / Type Solid state drive
Environmental Parameters
Humidity Range Operating 0 - 90% RH
Max Operating Temperature 85 °C
Max Storage Temperature 85 °C
Min Operating Temperature 0 °C
Min Storage Temperature -40 °C
Shock Tolerance (operating) 1500 g @ 0.5 ms
Vibration Tolerance (non-operating) 20 g @ 20-2000 Hz
Vibration Tolerance (operating) 20 g @ 20-2000 Hz
Expansion & Connectivity
Compatible Bay M.2 2280 (single-sided)
General
Capacity 512 GB
Depth 80 mm
Device Type Solid state drive - internal
Features Self-Encrypting Drive (SED), NVM Express (NVMe) 1.4, 112-layer 3D BiCS FLASH, TCG Opal Encryption 2.01.
Form Factor M.2 2280 (single-sided)
Hardware Encryption Yes
Height 2.23 mm
Interface PCIe 4.0 x4 (NVMe)
NAND Flash Memory Type 3D triple-level cell (TLC)
Weight 6.6 g
Width 22 mm
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Performance
Internal Data Rate 7000 MBps (read) / 5000 MBps (write)
Power
Power Consumption
7.7 Watt (active (typical))
3 mW (L1.2 mode)
Reliability
MTBF 1,500,000 hours
