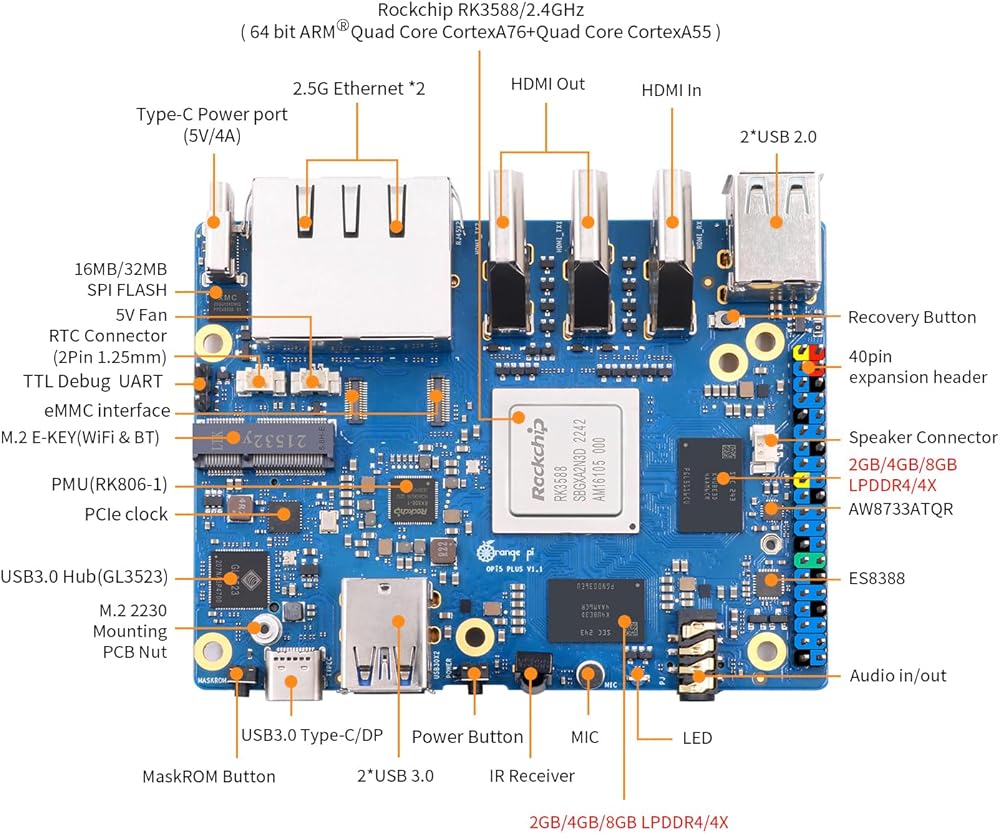

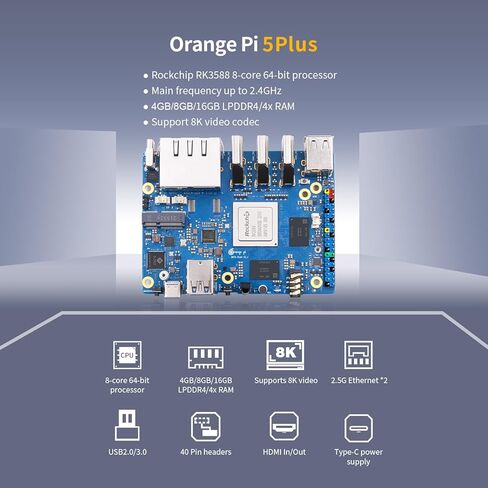

Hardware Parameters
SoC: Rockchip RK3588 (8nm LP process)
CPU: 8-core 64-bit processor 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
PMU: RK806-1
RAM: 4GB/8GB/16GB （LPDDR4/4X）

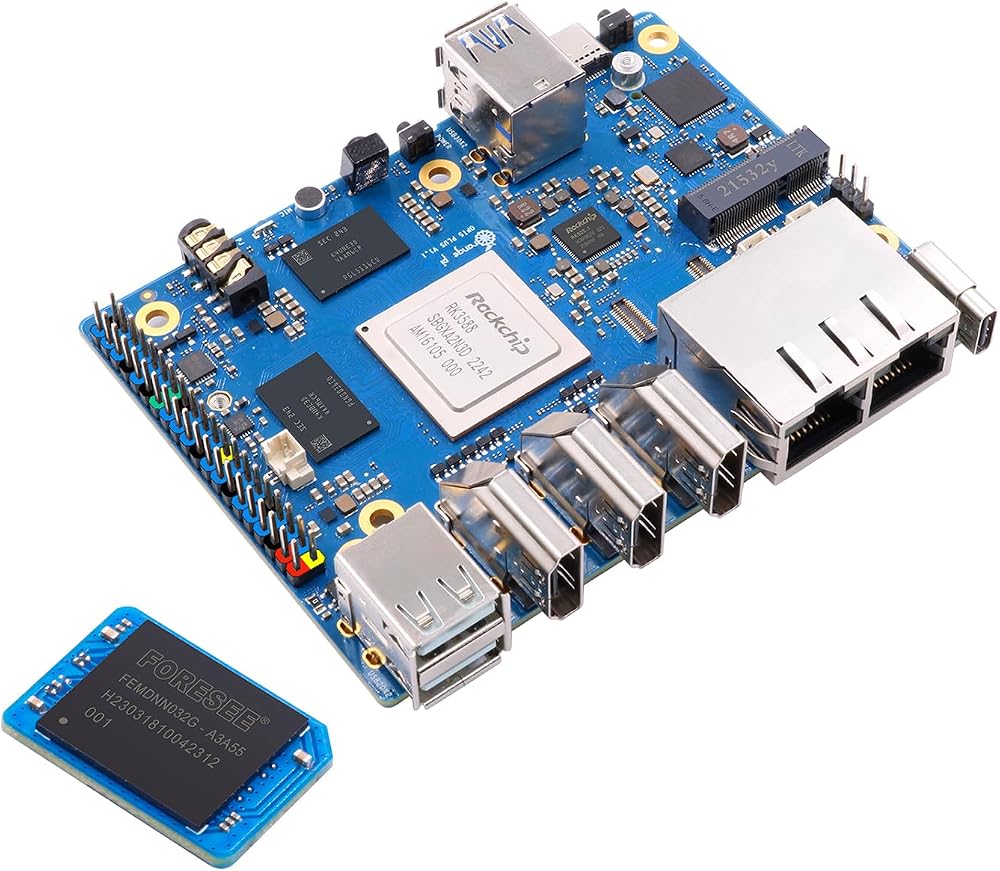

Memory: QSPI Nor FLASH: 16MB/32MB MicroSD card slot: up to 128GB eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s
USB: USB3.0 × 2USB2.0 × 2Type-C ×1
Video: 2x HDMI 2.1 out up to 8k@60FPS 1x Type-C with DP TX 1.4A，up to 8K@30FPS 1x HDMI in with up to 4K@60FPS 1 x MIPI DSI TX 4 Lane，up to 4K @60Hz
TP interface1x 6Pin FPC socket
Camera: 1XMIPI CSI 4 Lane
AudioCODEC: ES8388 1xAudio 3.5mm jack with mic 1xMIC In 1xHDMI 2.1 eARC 1xSPK
Ethernet: 2xPCIe 2.5G LAN（RTL8125BG)
Expansion Port: 40 Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO

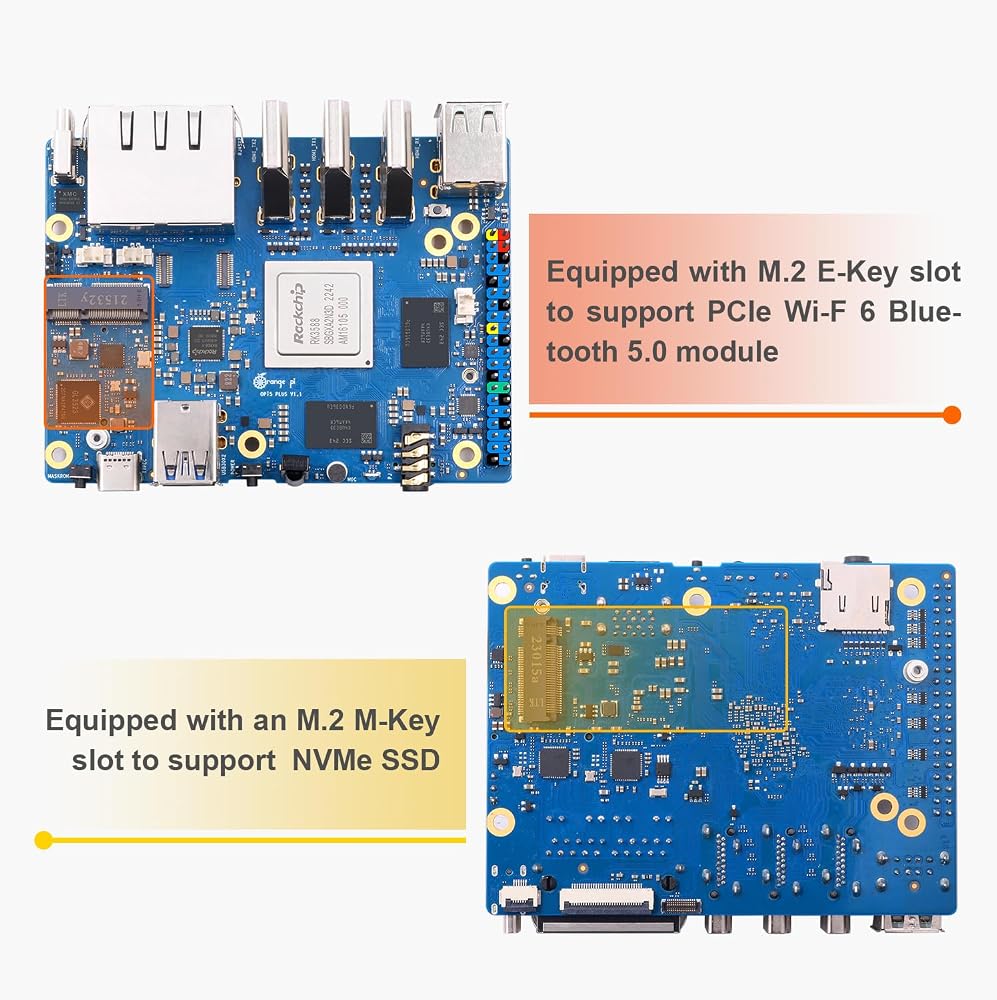

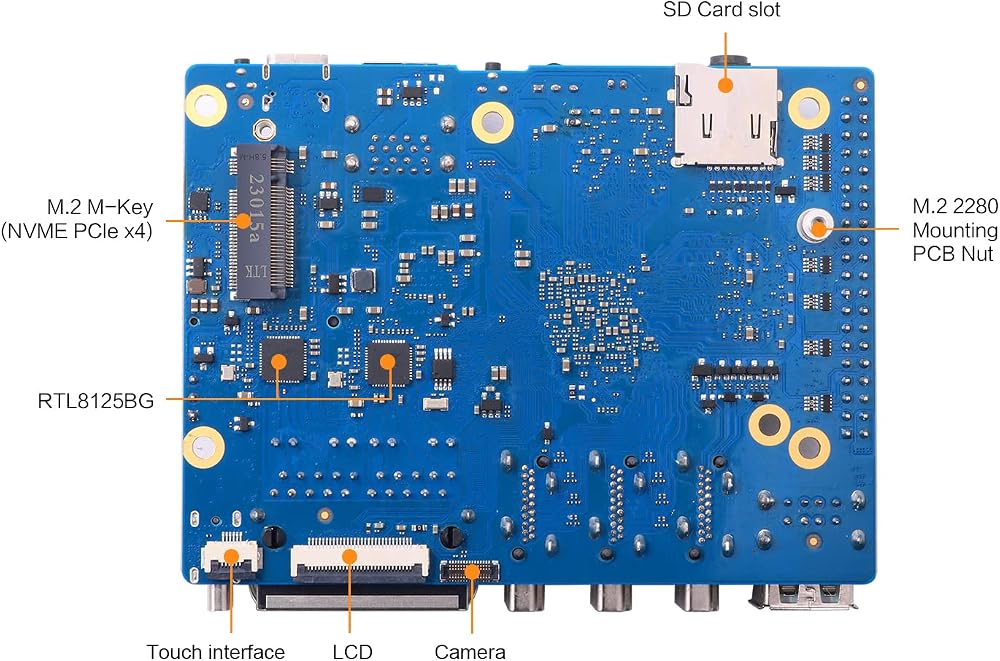

PCIe M.2 M-KEY Socket: M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD
PCIe M.2 E-KEY Socket: M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported
Button: 1×MaskROM key1xRecovery1×on/off key
Power Source: Support Type-C power supply, 5V@4A
IR receiver: 1x IR receiver tube
LED: RGB LED side light
FAN: 5V FAN
RTC2Pin: RTC backup battery
Debugging: 3Pin debug serial port (UART)
Supported OS: Orangepi OS(Droid), Orangepi OS(Arch), Ubuntu22.04, Debian11, Android12
