مميزات خاصة

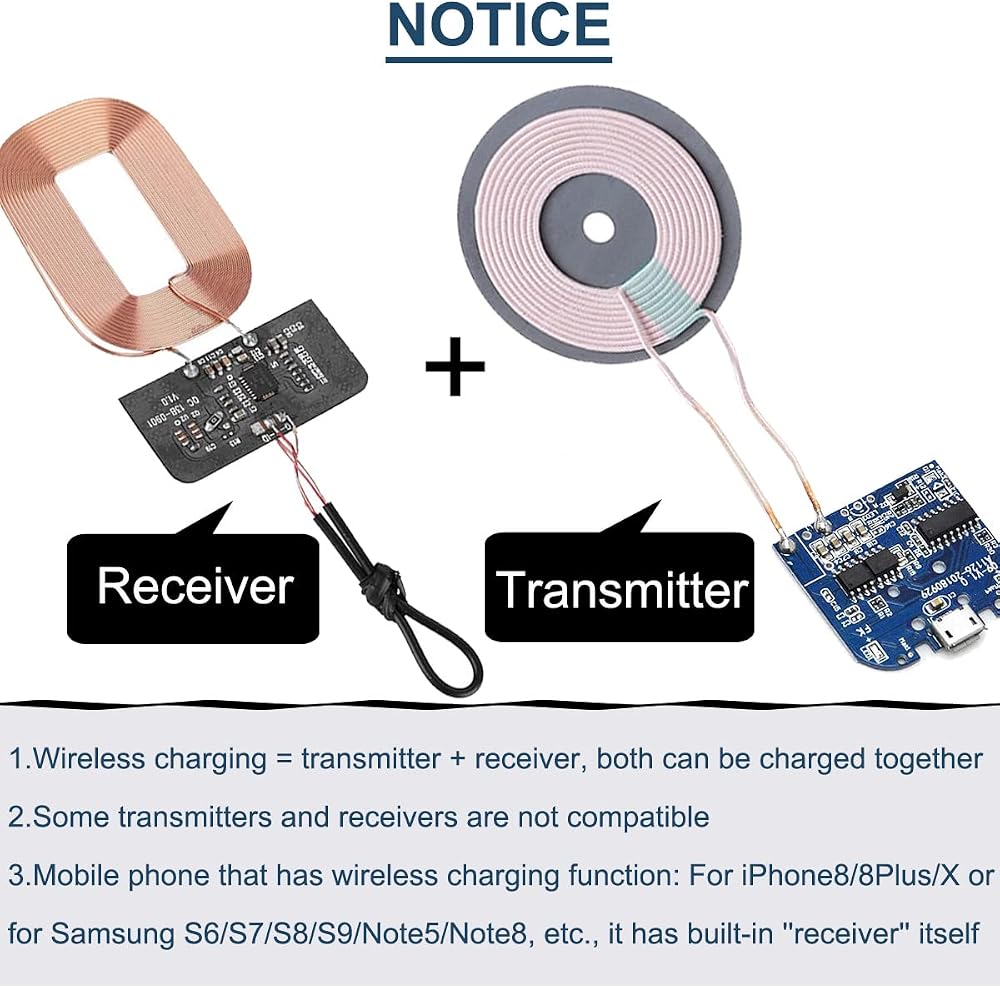

🔳[Module]QI Wireless Receiver PCBA Circuit Board, It is a DIY wireless charging receiver module.CE/FCC/ROSH certification, in line with QI certification standards.
🔳[Parameters]Input power: DC5V±0.25V 2A, Output power: 1A, Charging efficiency: 75%, Transmission distance: 2-8mm, Implementation standard: Qi wireless charging standard
🔳[Multi-level Protection] Built-in short-circuit protection, over-voltage protection to ensure safe charging. Protective cases that exceed 7 mm thick prevent the charger from working properly. In this case, remove it before charging

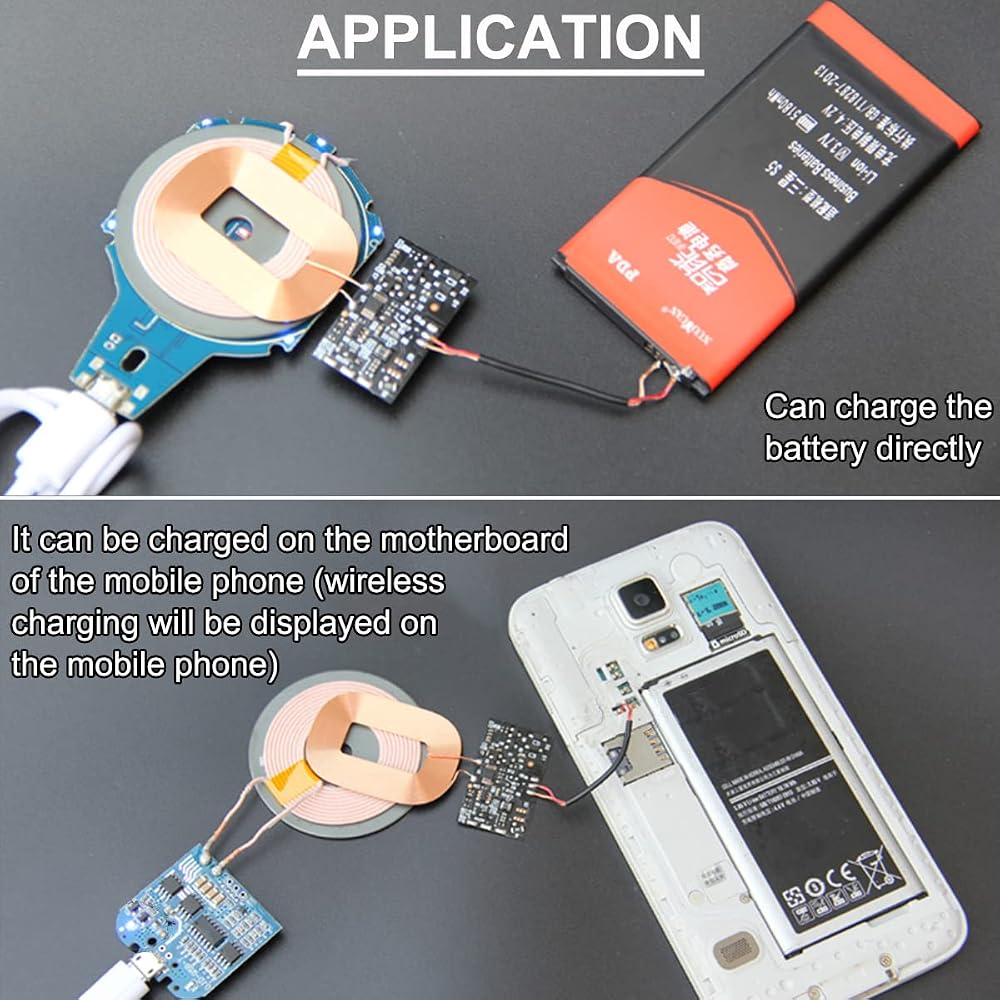

🔳[Application]This product can directly charge the battery. It can charge the mainboard of the mobile phone (the mobile phone will display wireless charging). The charging current is about 5V, 1A
🔳[Package includes]You will get 1 x QI Wireless Receiver PCBA Circuit Board, 1 x Qi Standard Wireless Charger Board

وصف

Specifications:

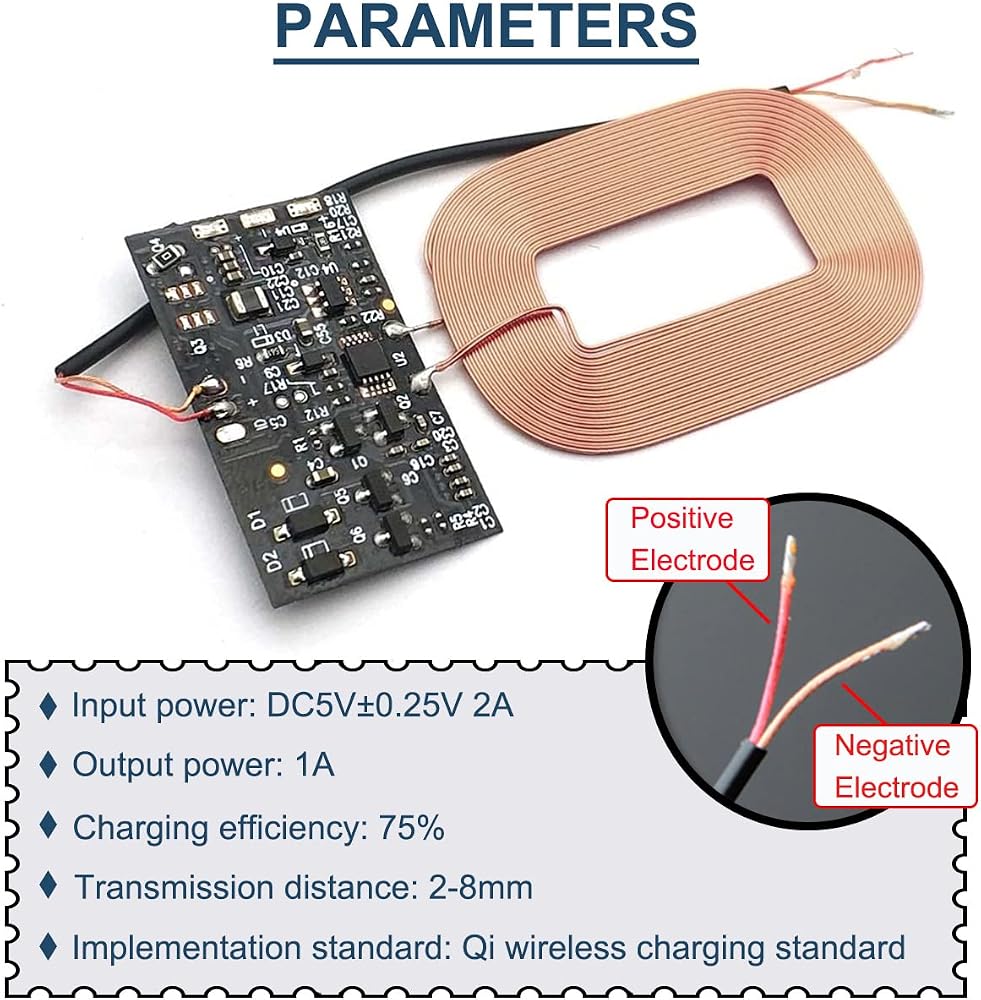

Qi Charger Receiver Module:
Input power: DC5V±0.25V 2A
Output power: 1A
Charging efficiency: 75%
Transmission distance: 2-8mm
Implementation standard: Qi wireless charging standard

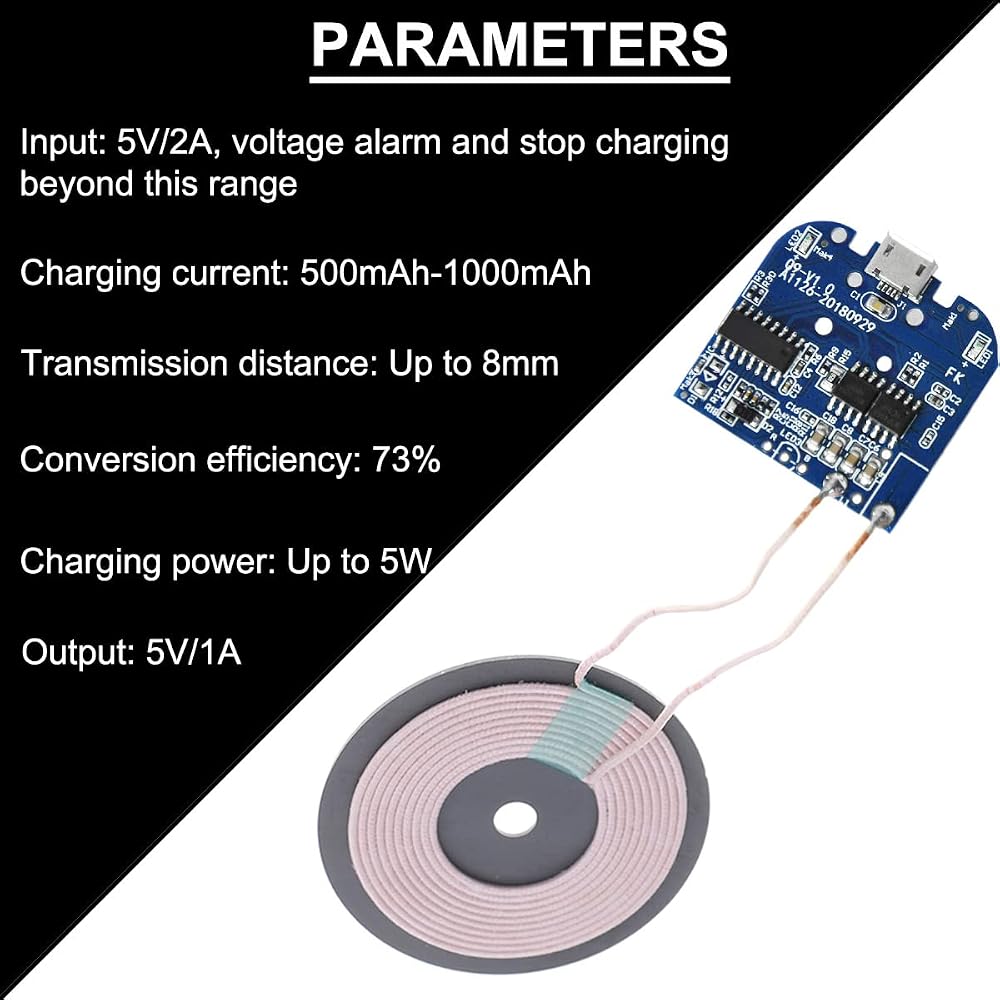

Qi wireless charger:
1.Input voltage:DC5V
2.Input current:2A-1.5A
3.Charging voltage:5V
4.Charging current:1A-1.5A
5.Charging power:5W
6.Charging distance:10mm
7.Conversion:≥75%

Features:
1. Standby power consumption: the average power consumption is less than 50mW
2. Over-temperature protection: When the temperature is higher than 60 degrees when charging, automatically stop charging for 2 minutes, and then recharge after the temperature drops
3. Over-current protection: when the charge and current consumption is greater than 1.8A, automatically stop charging to prevent damage to the charger

Package includes:
1 x QI Wireless Receiver PCBA Circuit Board
1 x Qi Standard Wireless Charger Board
