12PCS Micro SD Storage Expansion Board Mini Micro SD TF Card Memory Shield Adapter Module with Pins

SAR 47
Brand
Shutao
Weight
33 g
– 1 +

Special Features

  • Micro SD storage expansion board voltage: 4.5V~5.5V DC; Communication Interface: Standard SPI; Interface Voltage Level: 3.3V or 5V; Applicable card type: Micro SD Card, Micro SDHC Card.
  • The mini micro SD TF card memory shield module built-in level regulator circuit, level conversion circuit board that can interface level is 5V or 3.3V.
  • Onboard pop-up MINI SD card interface, the related pins are already done elicit and annotations.
  • The module (Micro SD Card Adapter) is a Micro SD card reader module, through the file system and the SPI interface driver, SCM system to complete the file to read and write MicroSD card.
  • The communication interface is a standard SPI interface, easy to connect to any device with SPI interface; 2 M2 screws positioning holes with a diameter of 2.2mm, so the module is easy to install positioning, to achieve inter-module combination.

Description

Specifications:
Voltage: 4.5V~5.5V DC
Current: 0.2~200mA
Interface Voltage Level: 3.3V or 5V
Communication Interface: Standard SPI

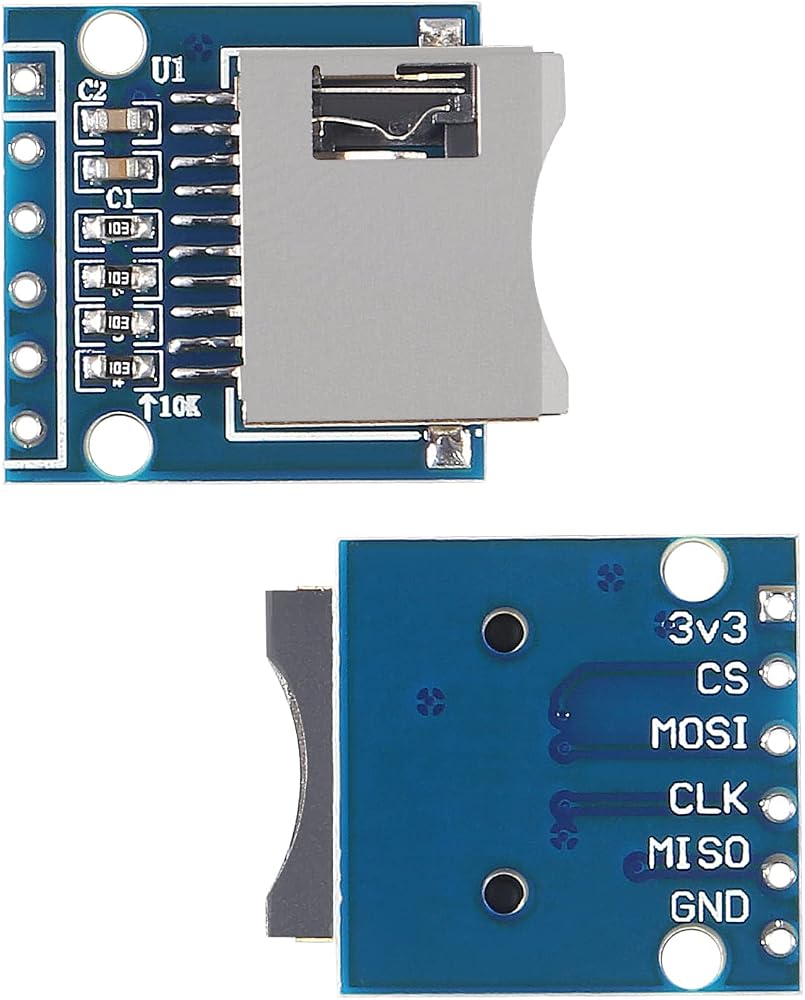

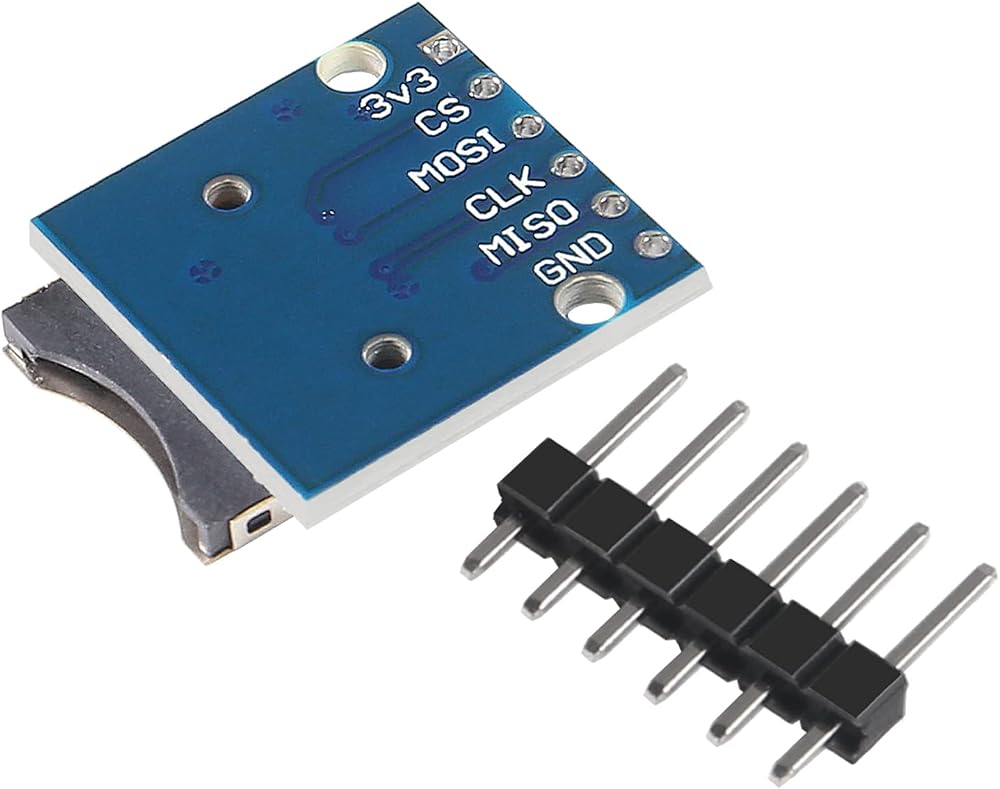

Control Interface: (GND, 3V3, MISO, MOSI, CLK, CS), GND to ground, 3V3 is the power supply, MISO, MOSI, CLK for SPI bus, CS is the chip select signal pin
Onboard pop-up MINI SD card interface
Applicable card type: Micro SD Card(less than 2G), Micro SDHC Card(less than 32G)

Package includes:
12 x Micro SD storage expansion board
