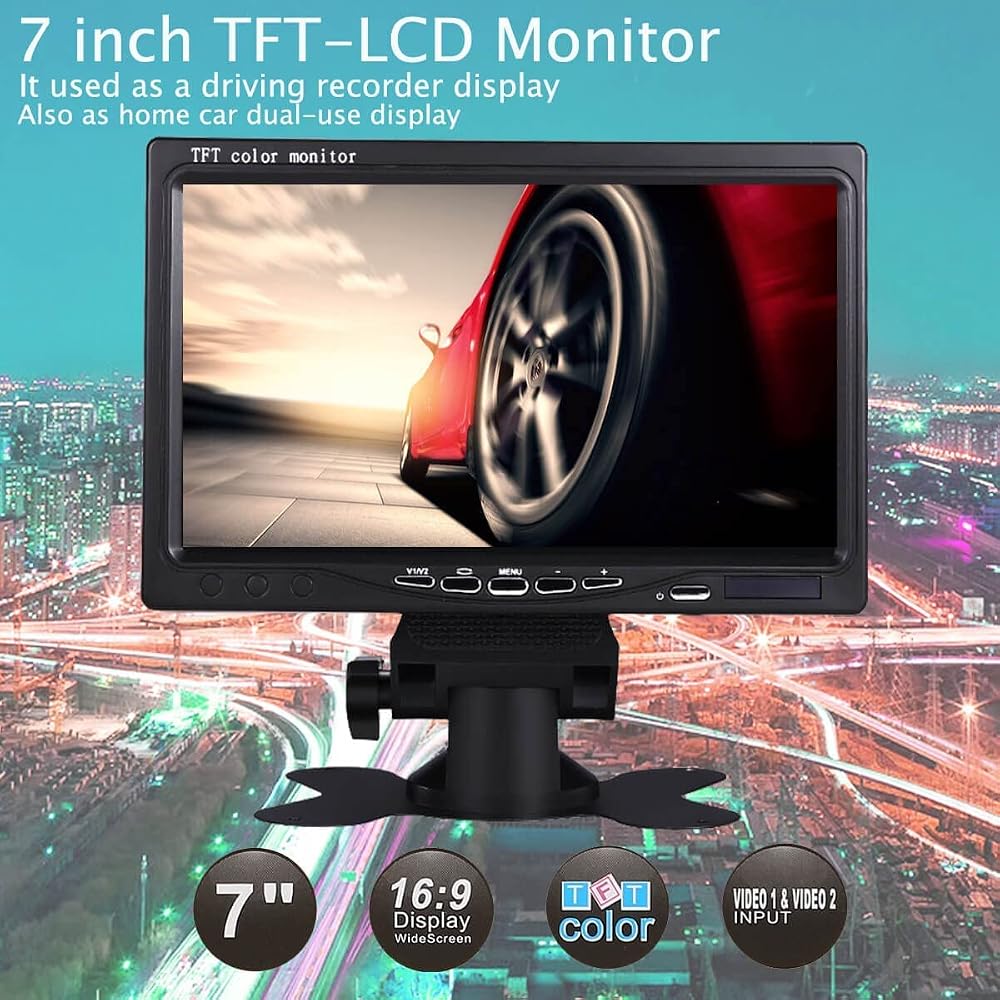

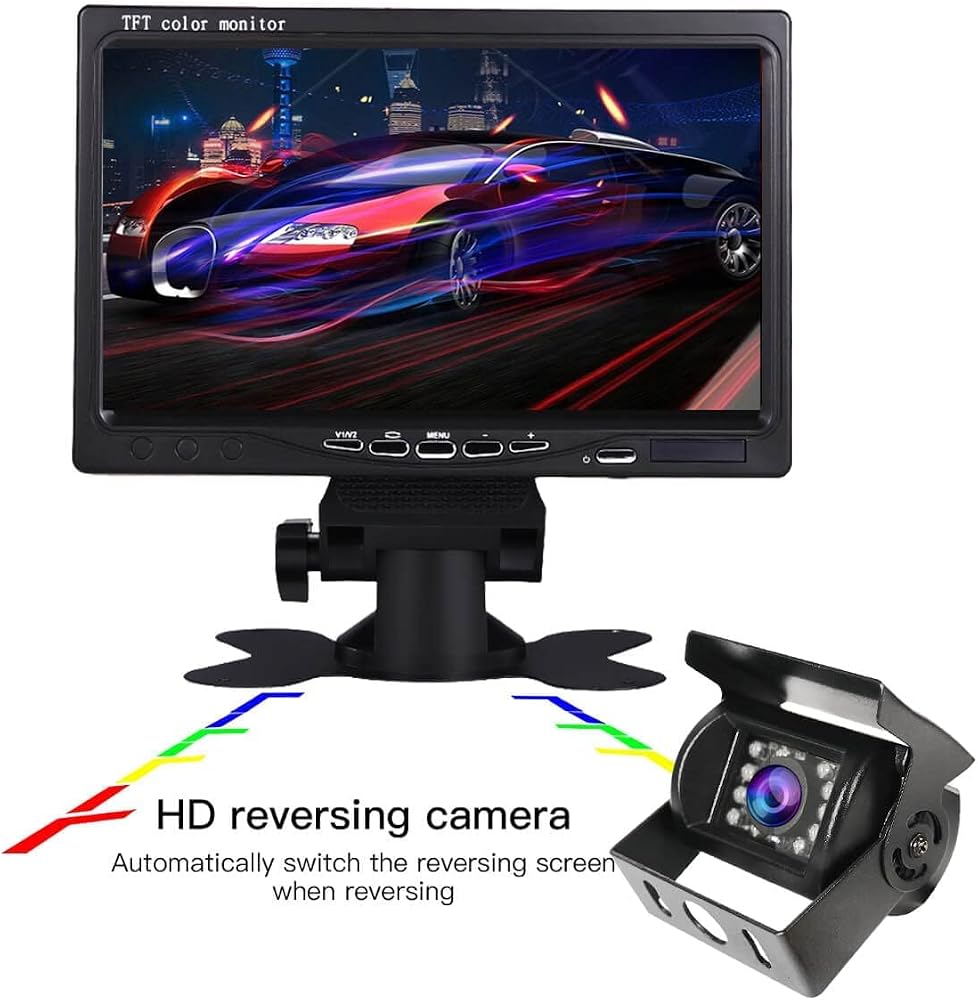

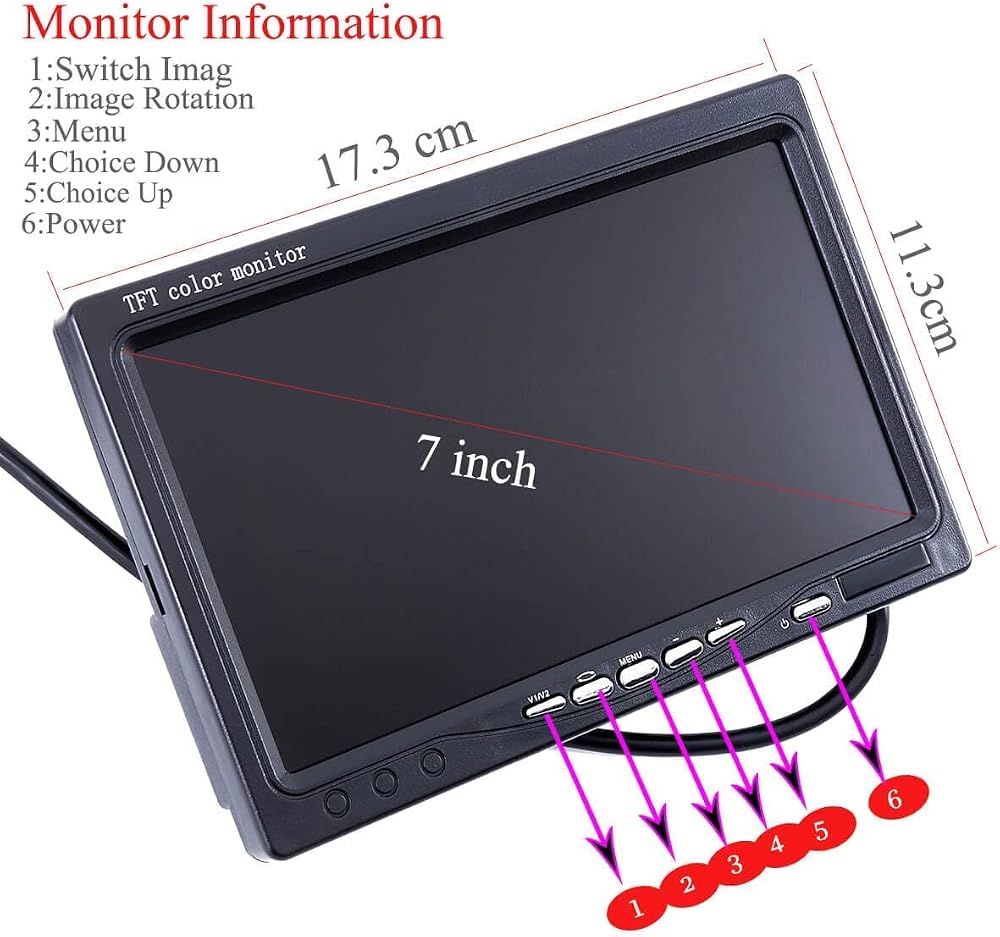

Features for the 7 inch car monitor
- 1. Adopts the newest A standard 7 inch TFT LCD screen
- 2. Multi-language function
- 3. Equipped with a card type full function remote control(no battery)
- 4. Can be matched with different color car interior decorations

Installation
Connection Method: Red wire is connected to the +12V / 24V DC, black wire to the -12 / 24(GND), blue wire to the reversing forced wire, AV plug to camera(AV2), AV socket to DVD VIDEO(AV1)

Detailed parameters
Screen Size: 7 inches car monitor
Display Component: Color TFT LCD monitor
Screen Ratio: 16:9
System: PAL / NTSC system(auto switch)
LED Backlight Brightness: 500 cd/m2
Contrast Ratio: 350:1
Power Supply: DC 12V- 24V can be used.
Power: ≤7W
Color: Black

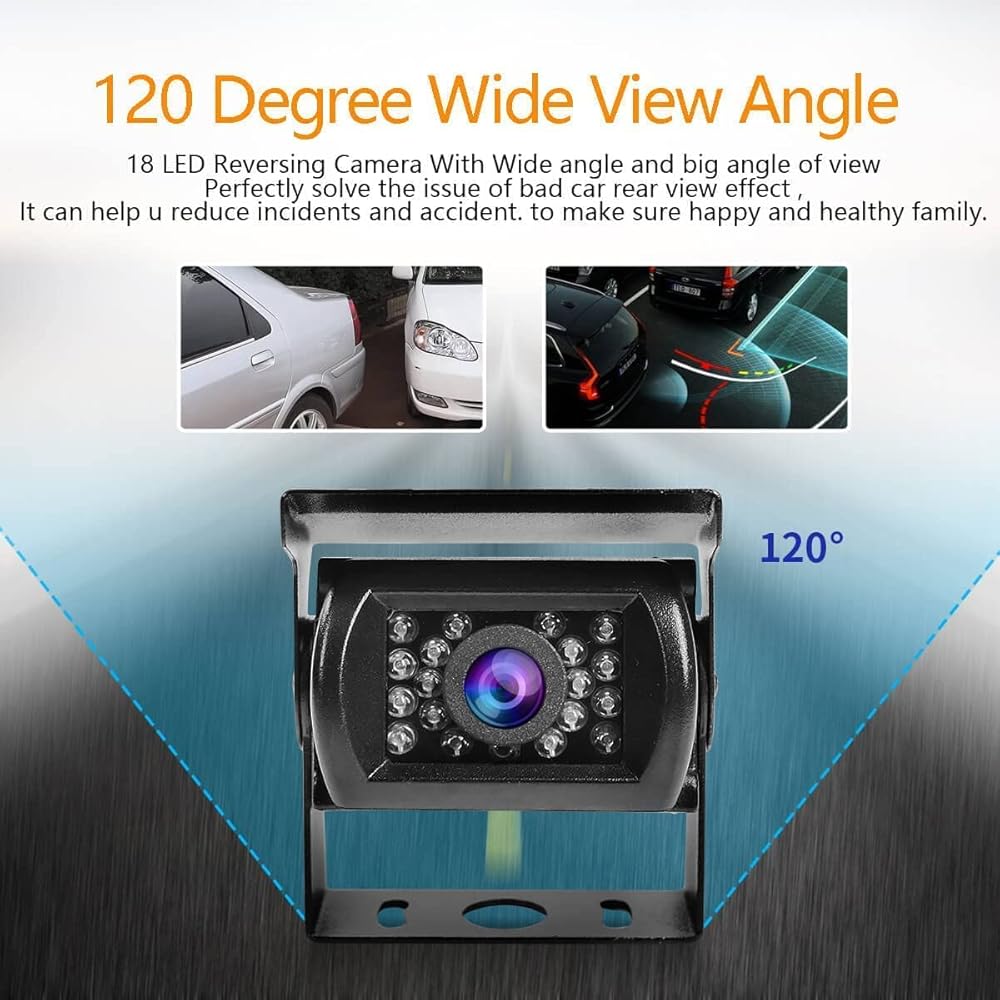

Features for 18 led IR car rear view camera
Product Model: 4 pin bus night vision IR car rear view camera
Image Sensor: CM0S 7090 HD sensor high quality chip
Video Output: 49.2ft AV connetor interface,1.0Vp-p.1.5ω.
Signal System: PAL/NTSC (default)
Effective Pixels: 656*492 pixels

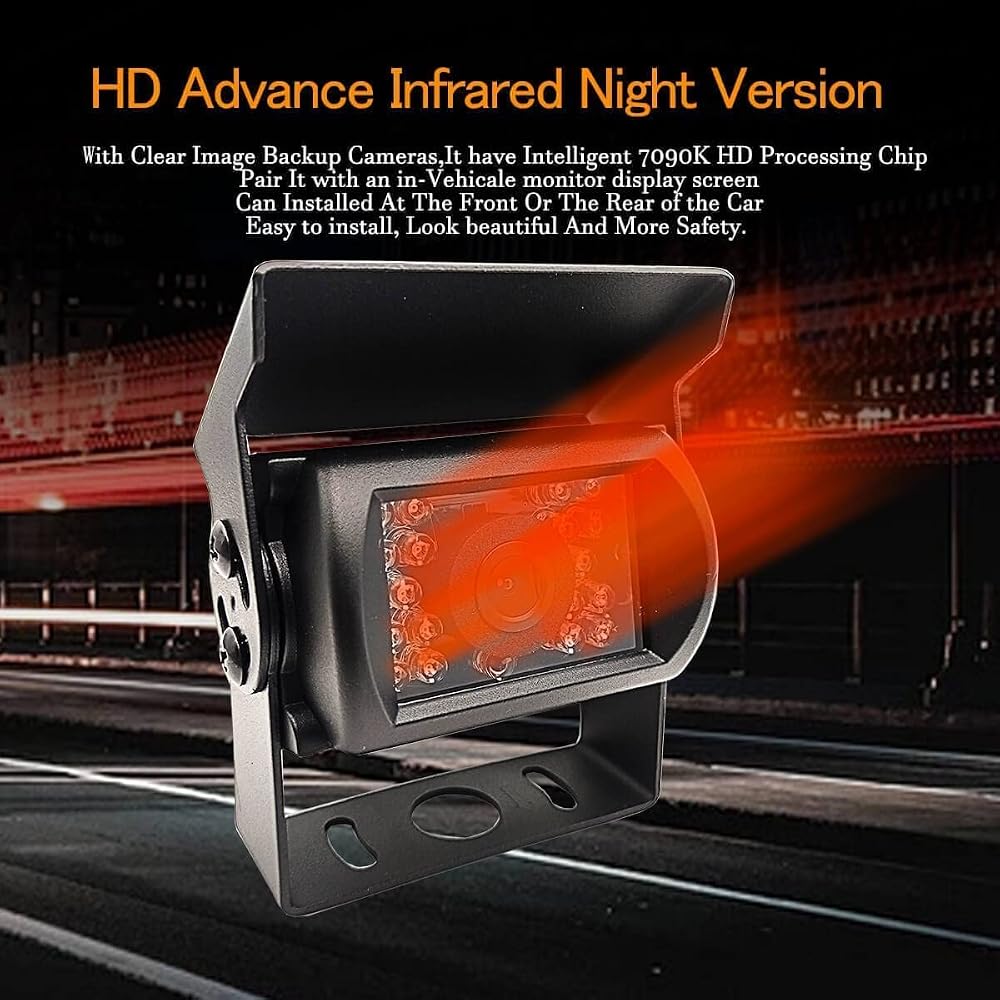

18 Led Night Vision Lights with Sensors
White Balance: Automatic
Sensing Area: 4.08x 3.102mm

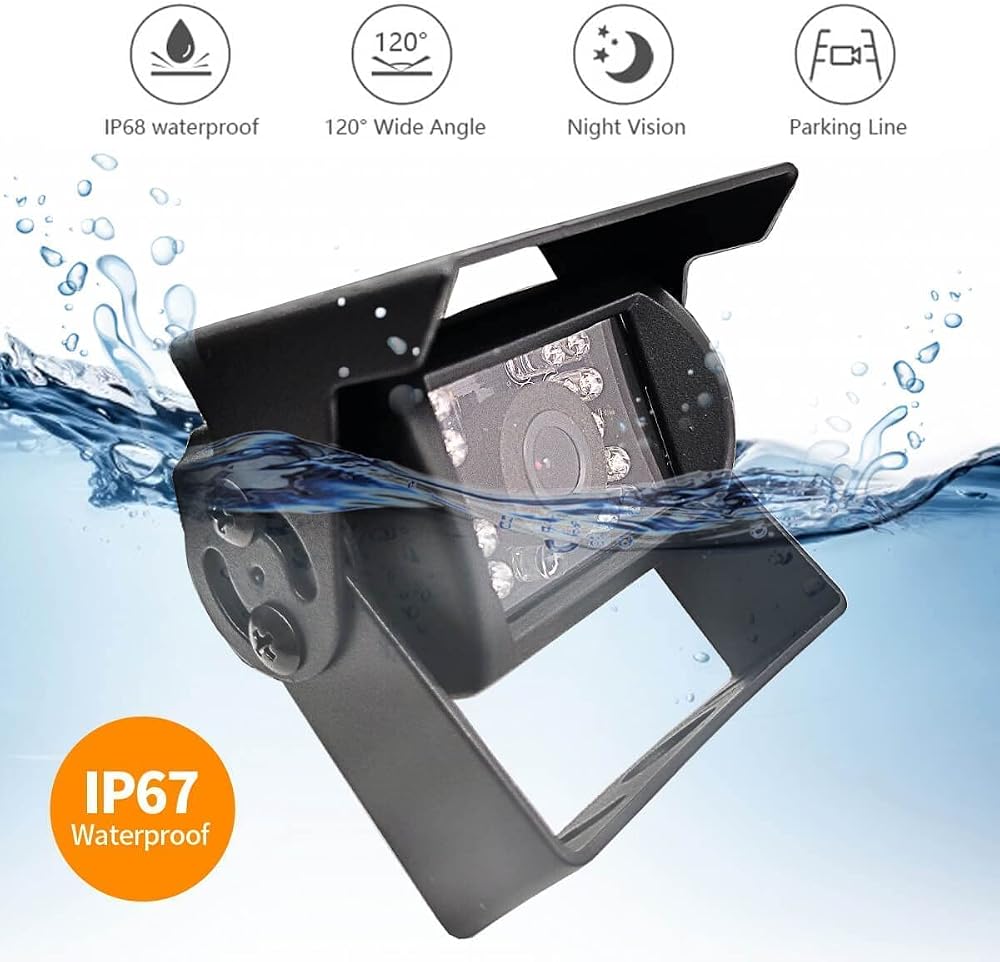

With Anti-Shock and Waterproof Grade Design: IP67
Power Supply: DC 12 24V
Resolution: 480 TV lines
Current Consumption: 60mA
Minimum Illumination: 0.1-0.5Lux/ F=1.2 (0 Lux with IR on)
Operating Temperature: -20 - 75 degree centigrade,RH 95% MAX
Storage Temperature: -40 - 85 degree centigrade, RH 95% MAX
Night Visual Range: 0-5m

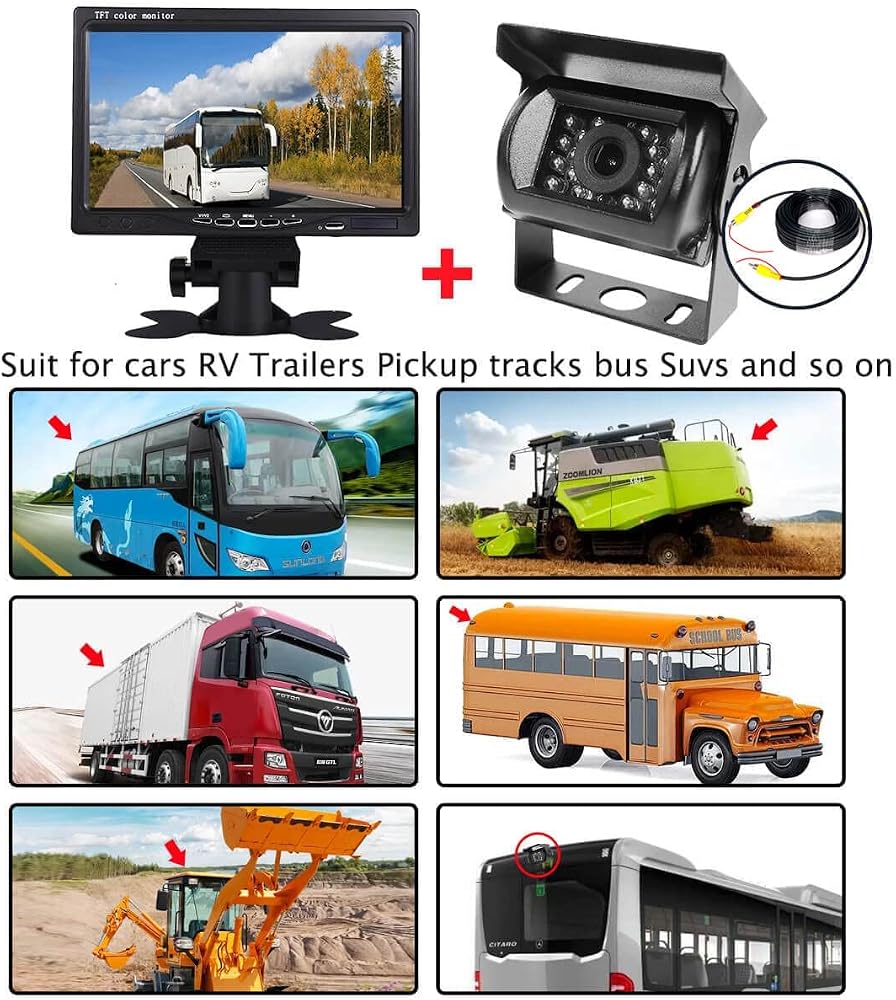

Used for universal Truck/Trailer/Pickups/RV and More
Product Color: Black color

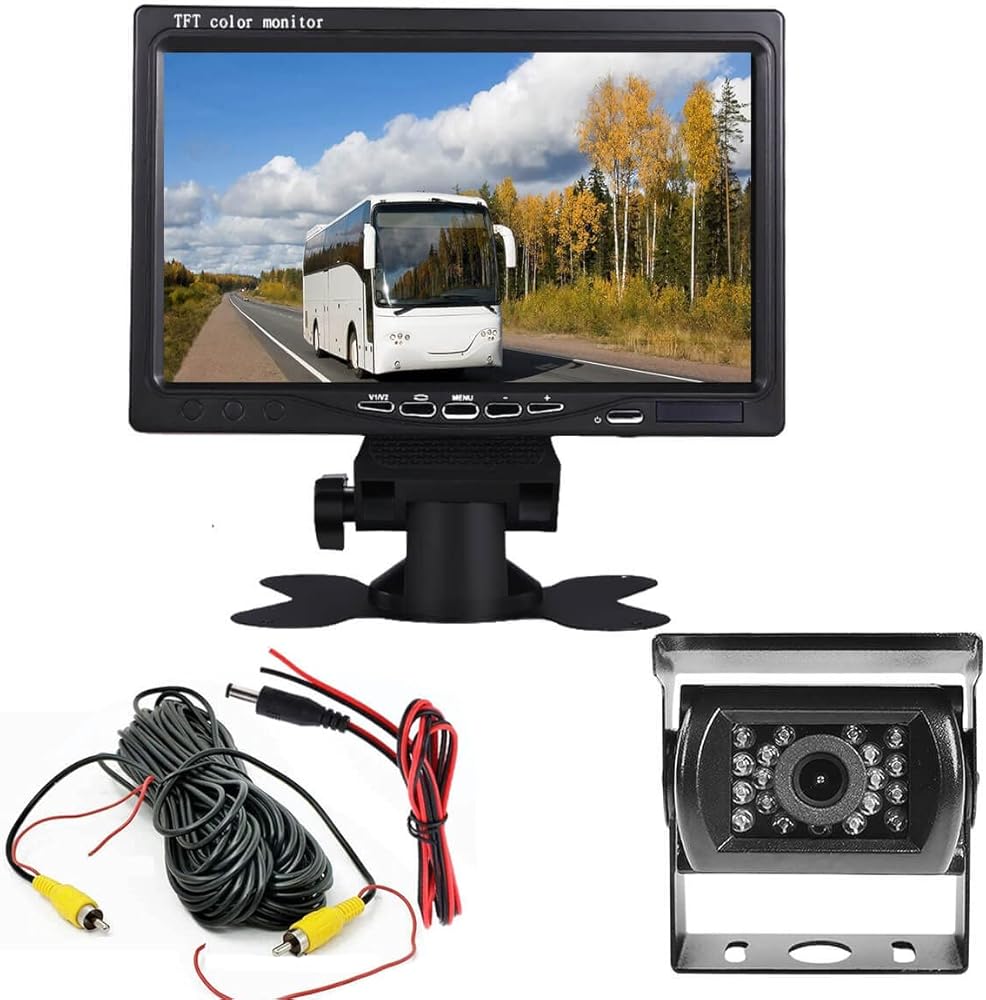

Package Included:
1 x 7 inch car monitor
1 x 18 Led reversing AV camera
1 x 15m RCA connector extension cable
1 x Instruction
