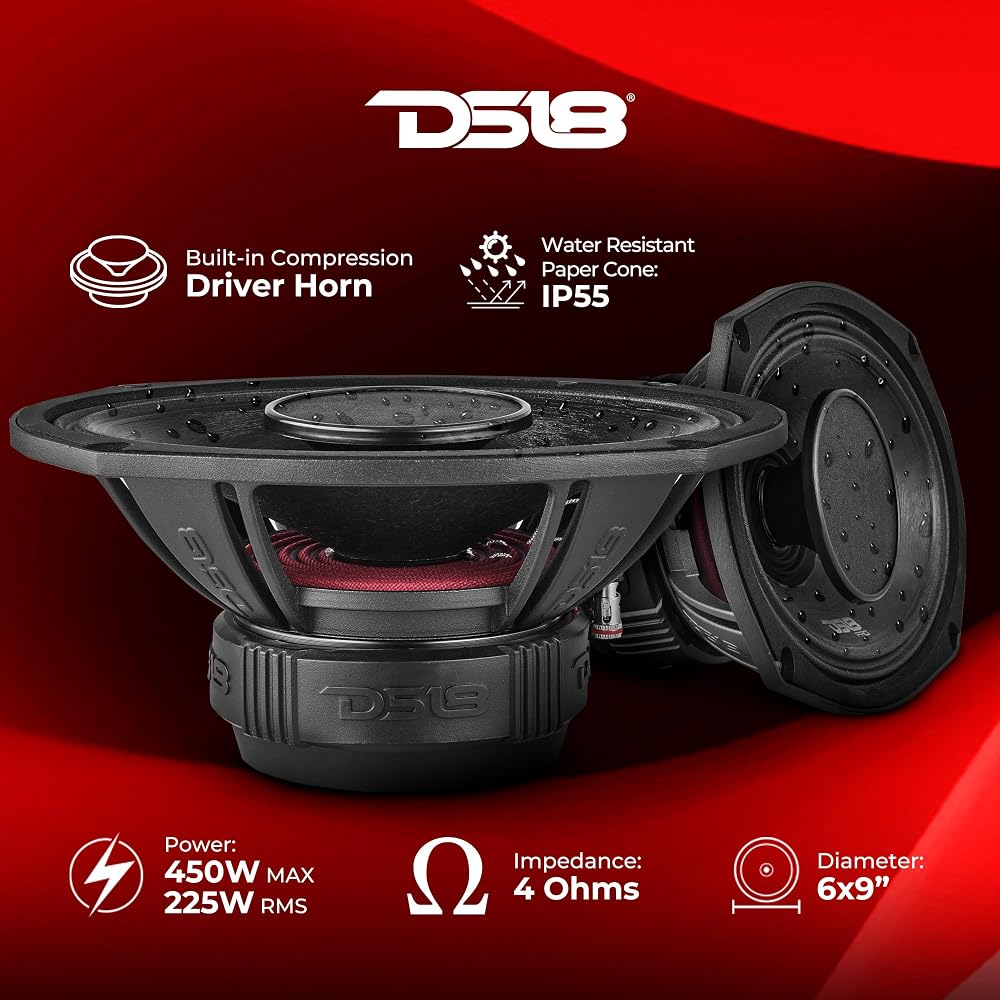

GENERAL SPECIFICATIONS
Nominal Diameter: 6X9" / 152x228 mm
Nominal Impedance: 4 OHMS
RMS Power Handling: 250 Watts
MAX Power Handling: 500 Watts
Sensitivity (1w/1m): 97 dB
Frequency Response: 50Hz-20KHz
Recommended Hi Pass Crossover: 80 Hz
Number of Ways: 2 Ways
Pair or Single: Single
Grill Included: Yes

WOOFER SPECIFICATIONS
Voice Coil Diameter: 1.5" / 38.6 mm
VC Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: Water Resistant Paper (IPX5)
Surround Material: Cloth
Basket Material: Aluminum
Basket Color/Finish: Matte Black
Magnet Material: Ferrite
Magnet Weight: 27 Oz
Displacement Volume: 0.051L / 0.0018ft3

THIELE & SMALL PARAMETERS
Equivalent Volume: Vas: 14.84L / 0.52ft3
Excursion (one way): Xmax: 9.2 mm
Free Air Resonance: Fs: 87 Hz
Mechanical Factor: Qms: 3.629
Electrical Factor: Qes: 0.661
Total Factor: Qts: 0.559
Mechanical Mass: Mms: 14.264 g
Mechanical Compliance: Cms: 0.236 mm/N
BL Factor: Bl: 6.135
Voice Coil Inductance: Le: 4.22 mH
Cone Area: Sd: 210.48 cm²
DC Resistance: Re: 3.2 ohm
Mechanical Mass w/o air: Mmd: 12.509 g

DRIVER SPECIFICATIONS
Voice Coil Diameter: 1" / 25.4 mm
VC Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Titanium
Magnet Material: Neodymium
Horn Diameter: 3.26" / 83 mm

MEASUREMENTS

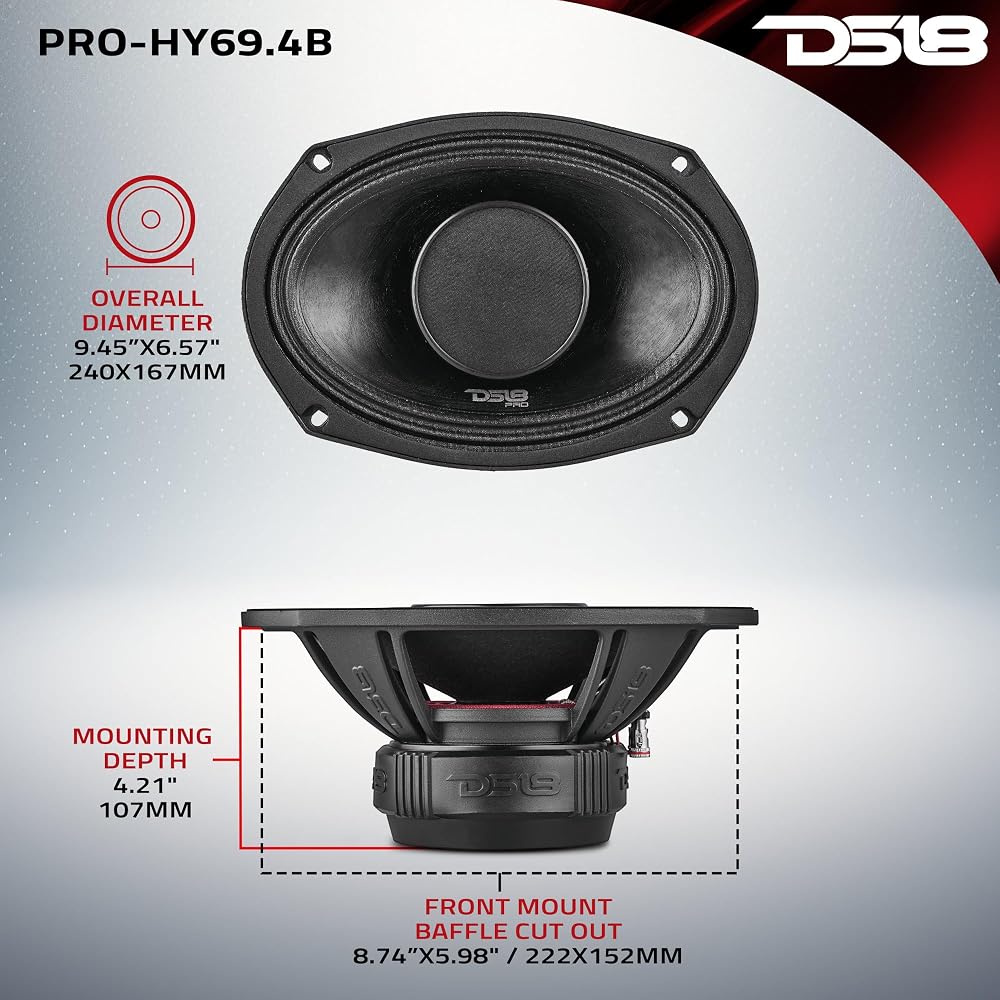

Overall Diameter: 9.45X6.57" / 240X167 mm
Overall Depth: 4.54" / 115.4 mm
Front Mount Baffle Cutout: 8.74X5.98" / 222X152 mm
Mounting Depth: 4.21" / 107 mm
Motor Diameter: 4.61" / 117 mm
