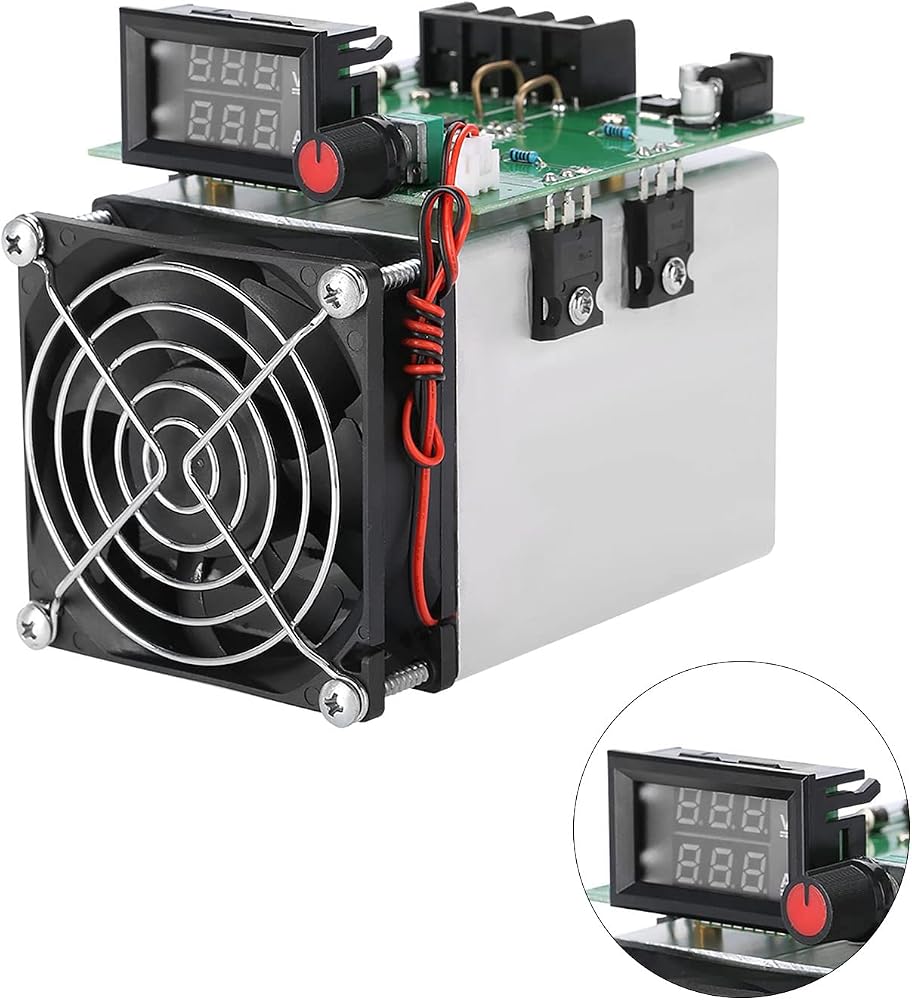

Acouto Electric Discharge Monitor Electronic Load 12V 250W Electronic Load 020A Discharge Board Burnin Module Temperature

SAR 301
SAR 329
– 1 +

Special Features

  • The voltage and current wiring connectors are separated, with proper connection it can eliminate the influence of the of the wire to the voltage.

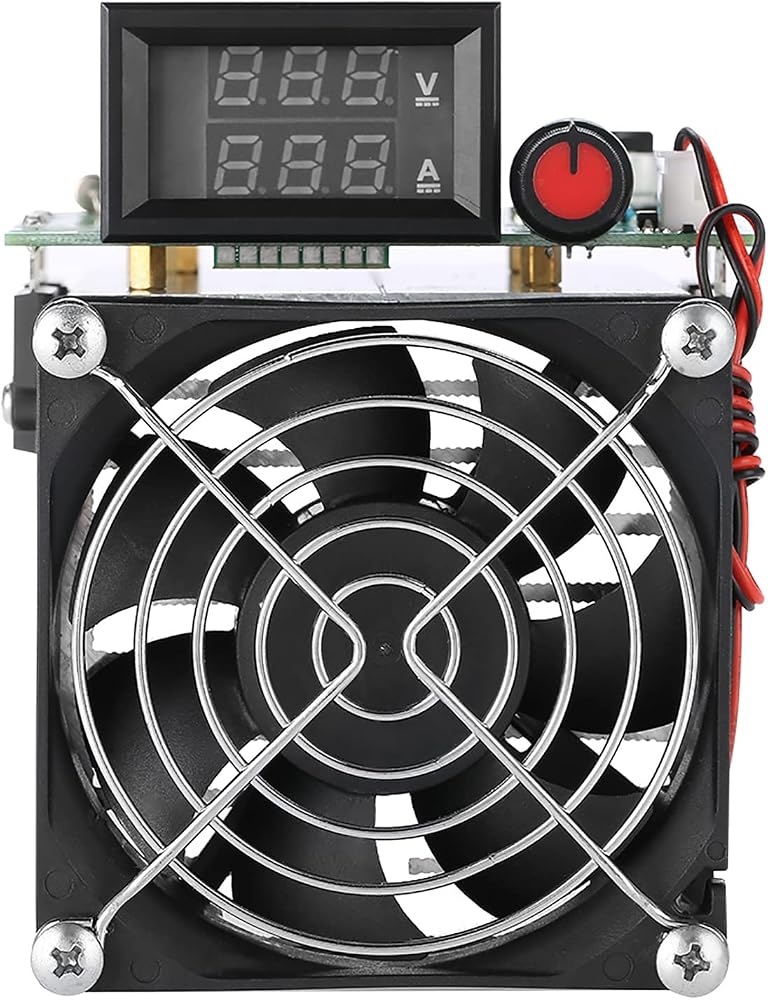

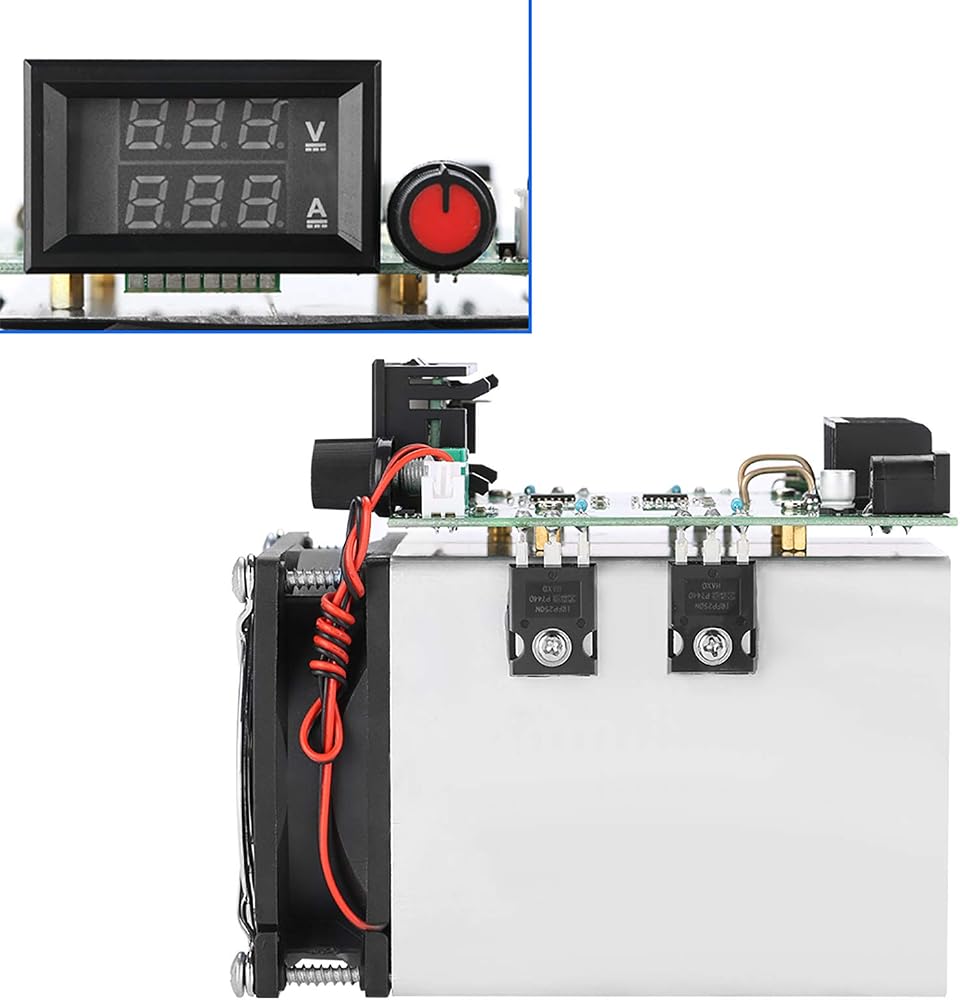

  • The discharge board burn in module can display voltage and current when discharging constant current, visually reflecting the discharge conditions.
  • Voltage and current wiring connectors are separated, with appropriate connection, it can eliminate the influence of wire to voltage

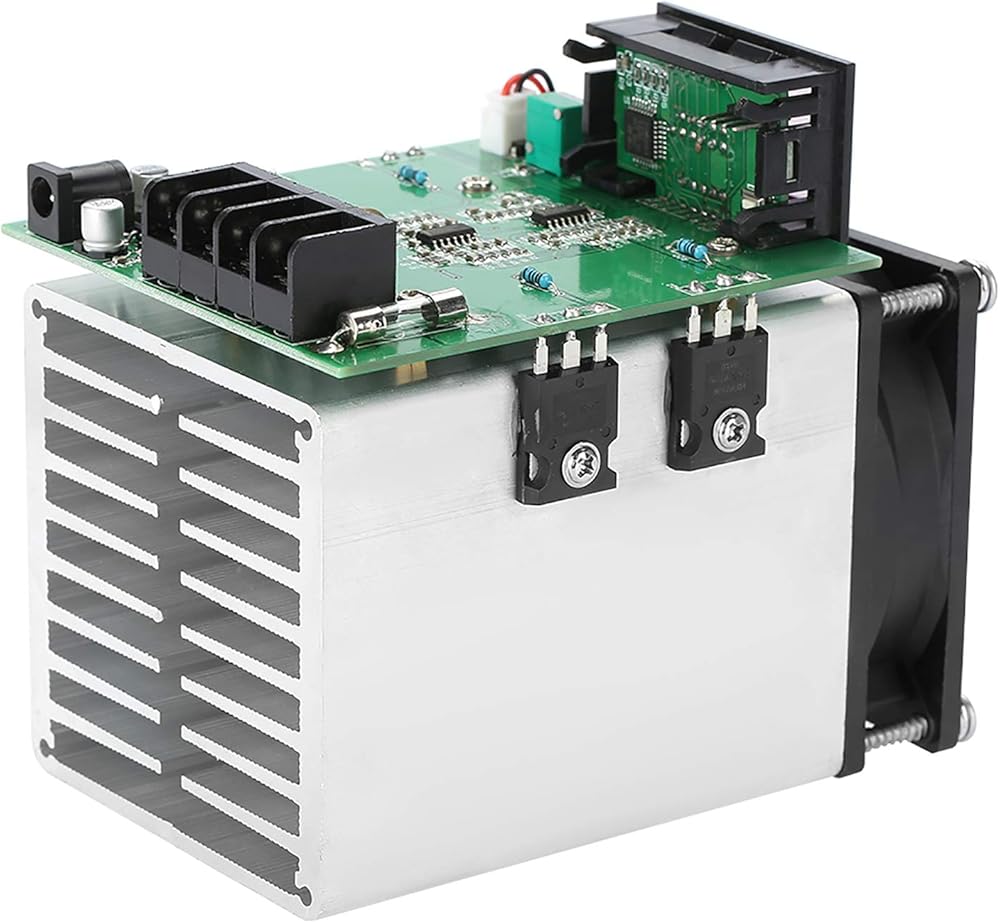

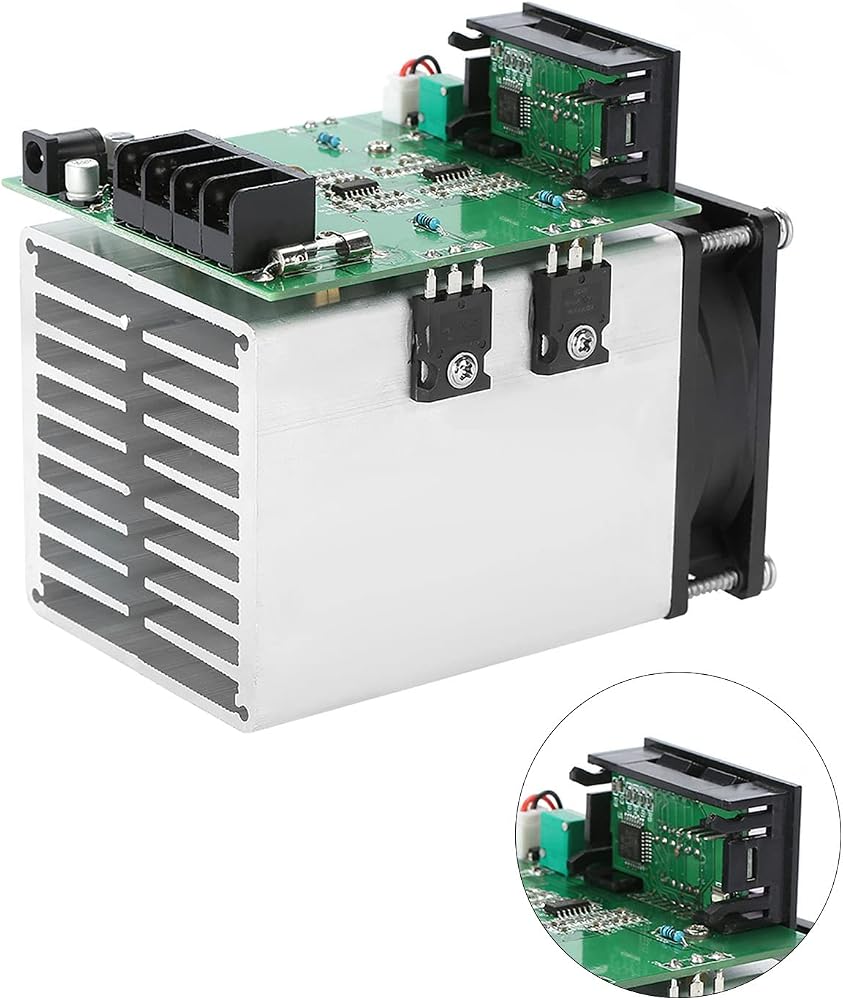

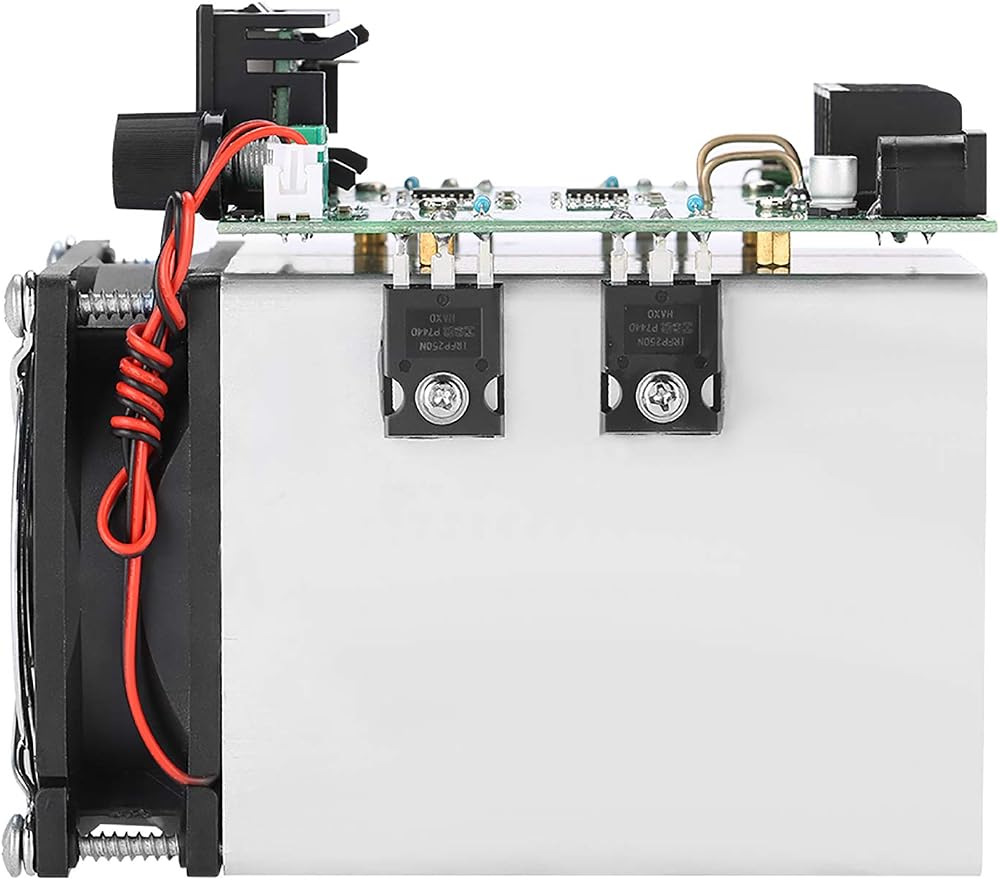

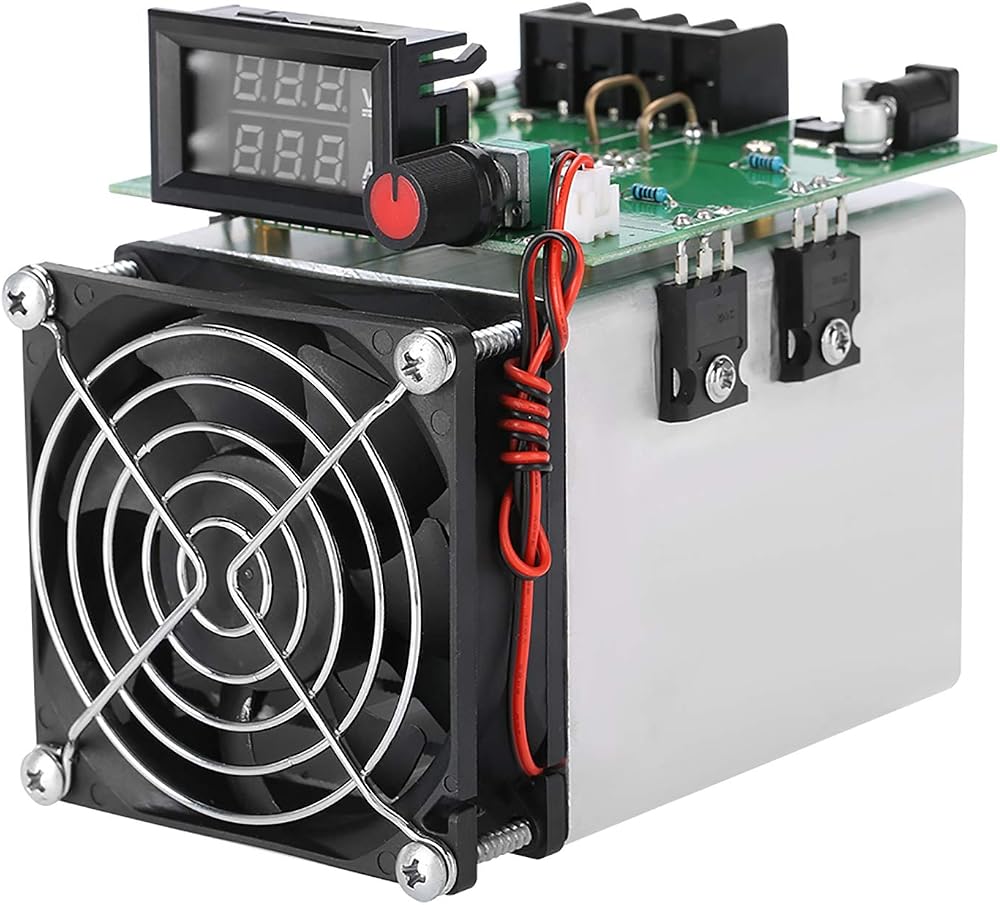

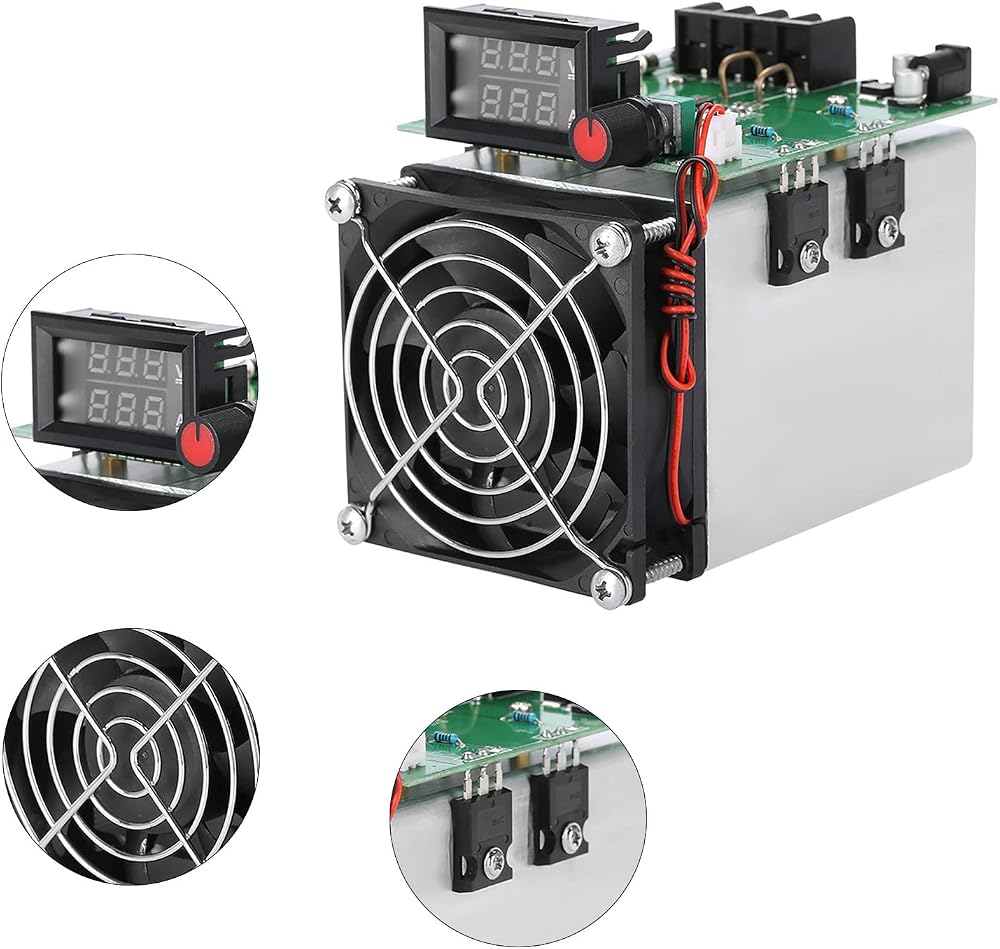

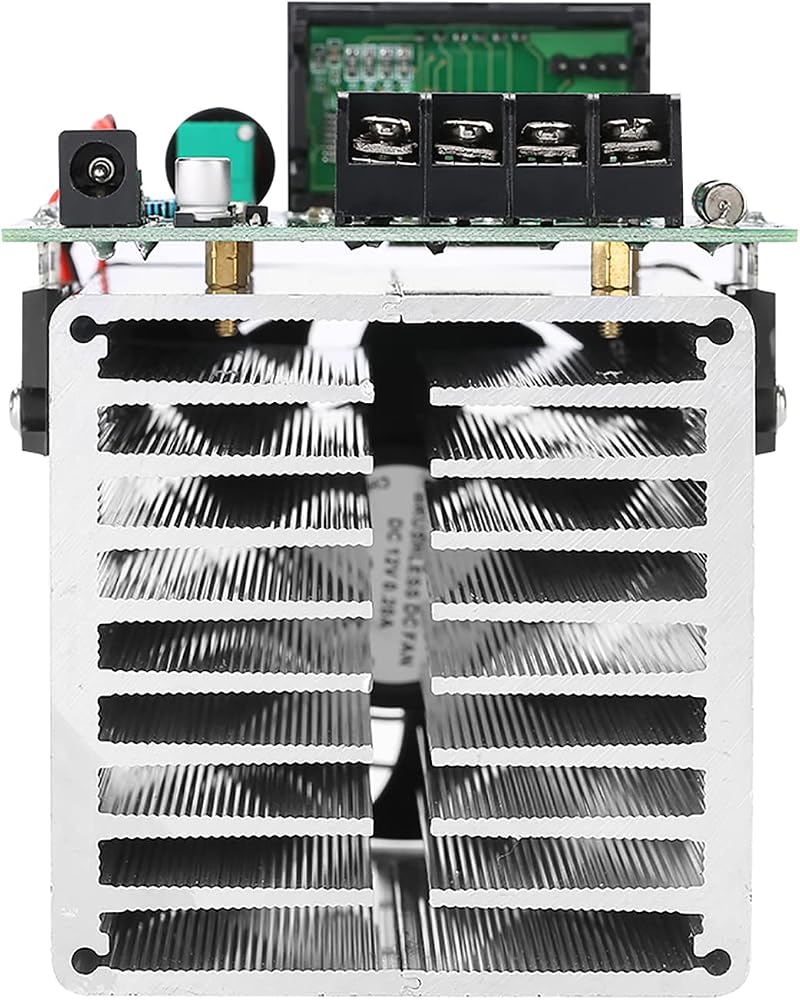

  • This electronic load uses original IR power tube and double high speed ball bearing fan, with big fin heat sink, which is not afraid of and can guarantee the stability for a long time use, power redundancy is no less than 50 25 .
  • It can display voltage and current when discharging constant current, visually reflecting the discharge conditions.

Description

Specifications:
Power Supply Voltage: DC12V(±5%) (equipment supply voltage)
Maximum Load Voltage: 100V
Constant Current Discharge Adjusting Range: 0-20A
Work Mode: Constant current mode (CC)
Maximum Discharge Current Error: 0.7%-0.01A
Maximum Discharge Power: 250W
Size: Approx. 13*9*11.5cm/5.1*3.5*4.5in
Weight: 879g(approx.)

Instruction:
1. Connect to 12V power supply then power on to electronic load mode. Make sure it is at stop condition (knob clockwise is minimum) then connect the tested power supply to the input power port, pay attention to the polarity.
2. Rotate knob to set constant current.

Note:
1. Since it works openly, there is no voltage and power limitation, but normal work should be below 100V, 250W.
2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

Package Includes:
1 x Electronic Load
