Specification:

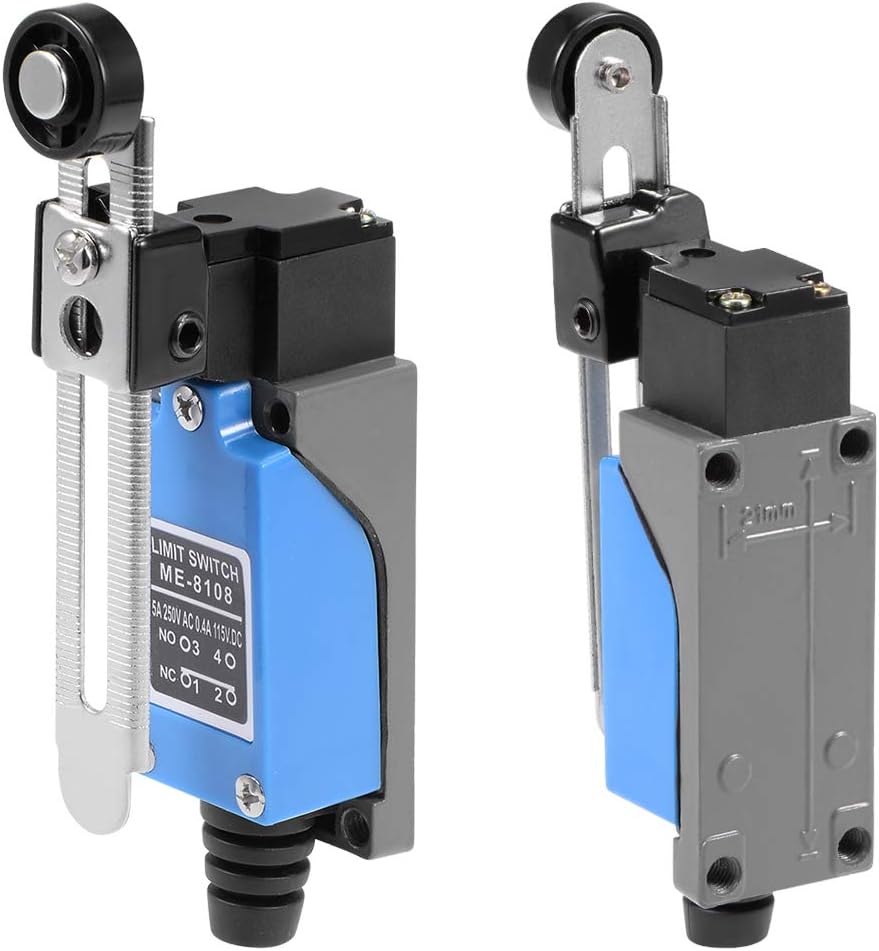

Product Name: Limit Switch
Model: ME-8108

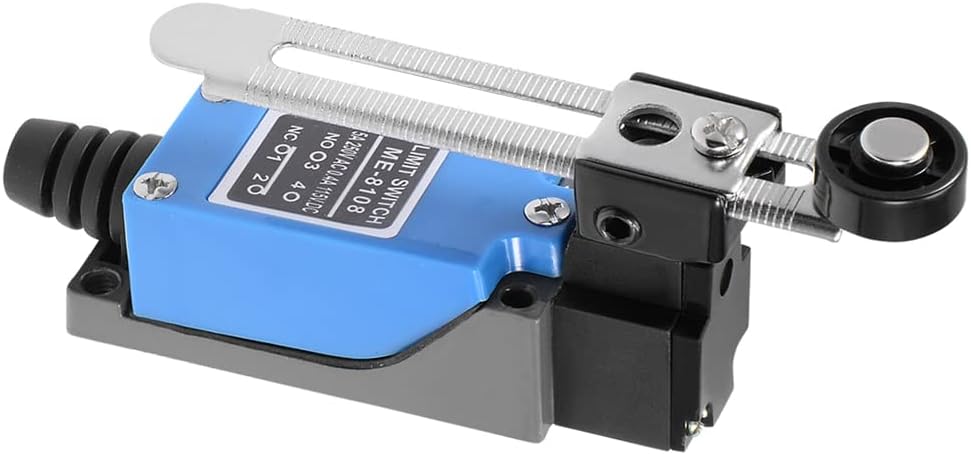

Actuator Type: Plastic Wheel Adjustable Roller Lever Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC

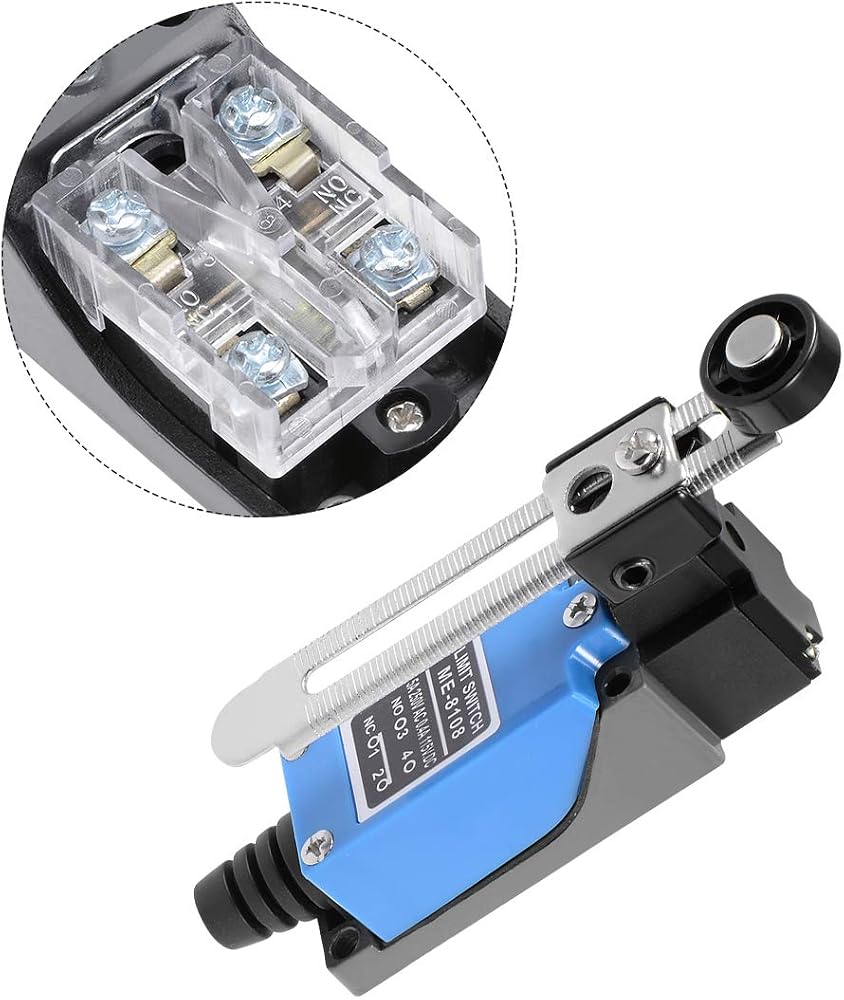

Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5

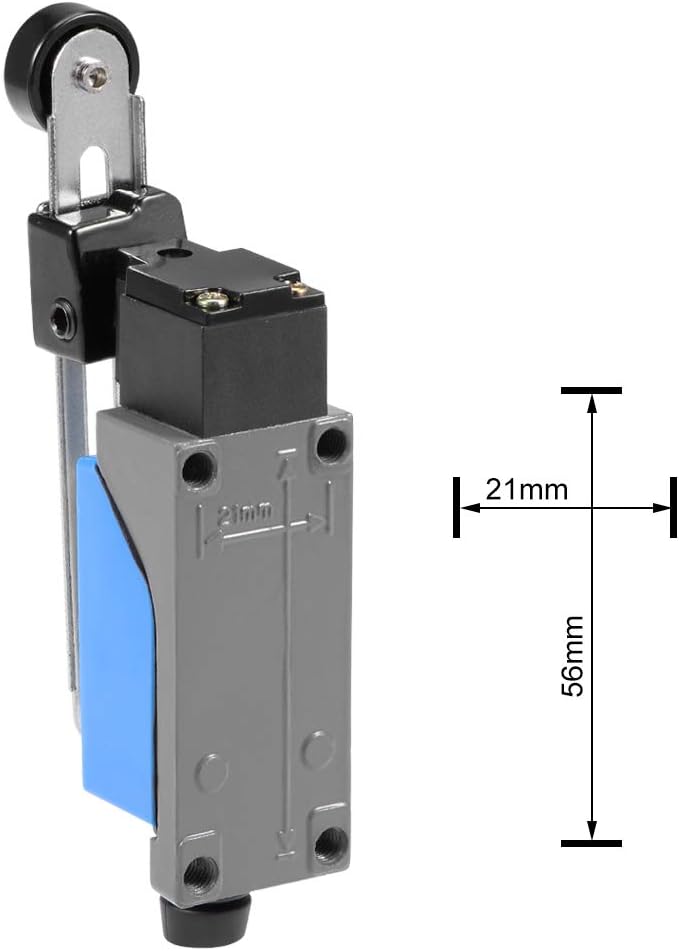

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.
These roller lever limit switches are applied to a wide range of applications including object positioning and detection.
The length of the lever is adjustable.

Operating Characteristics:
OF max.: 800g (7.84N)
RF min.: 60g (0.59N)
PT max.: 30°
OT min.: 60°
MD max.: 15°
TT: 90°

Description:

Double circuit limit switch with build-in double reed mechanism.
Zine alloy and intensive plastic shell, strong and hightly rigid construction.
Smooth operation with highter OT.
Brass contacts with 30% silver contained. Easy-to-wire design.
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
