Specification:

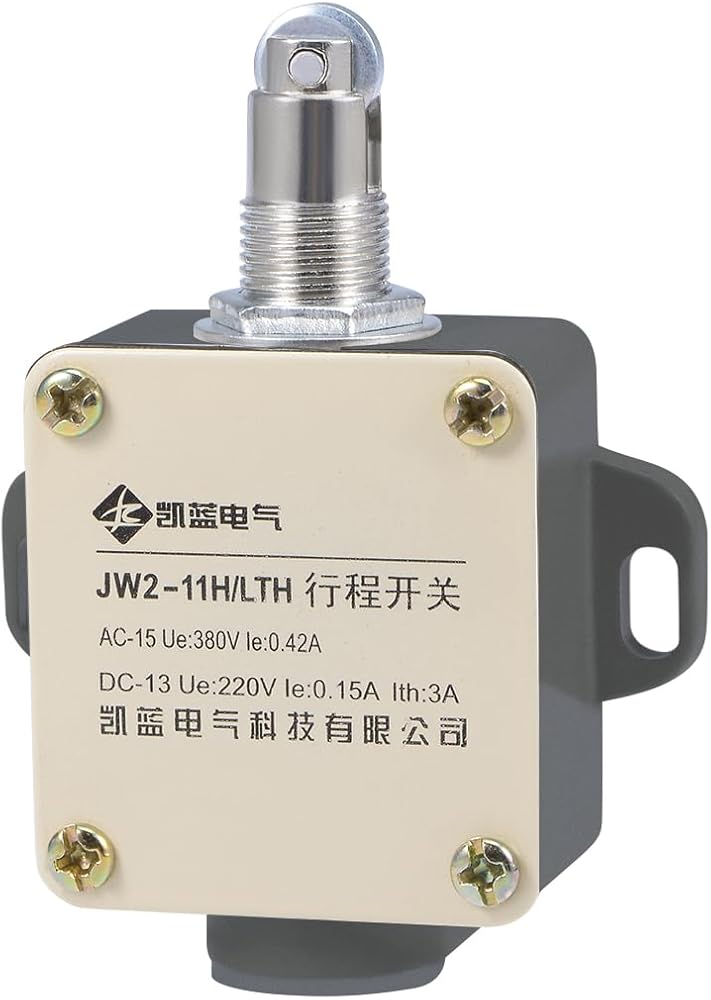

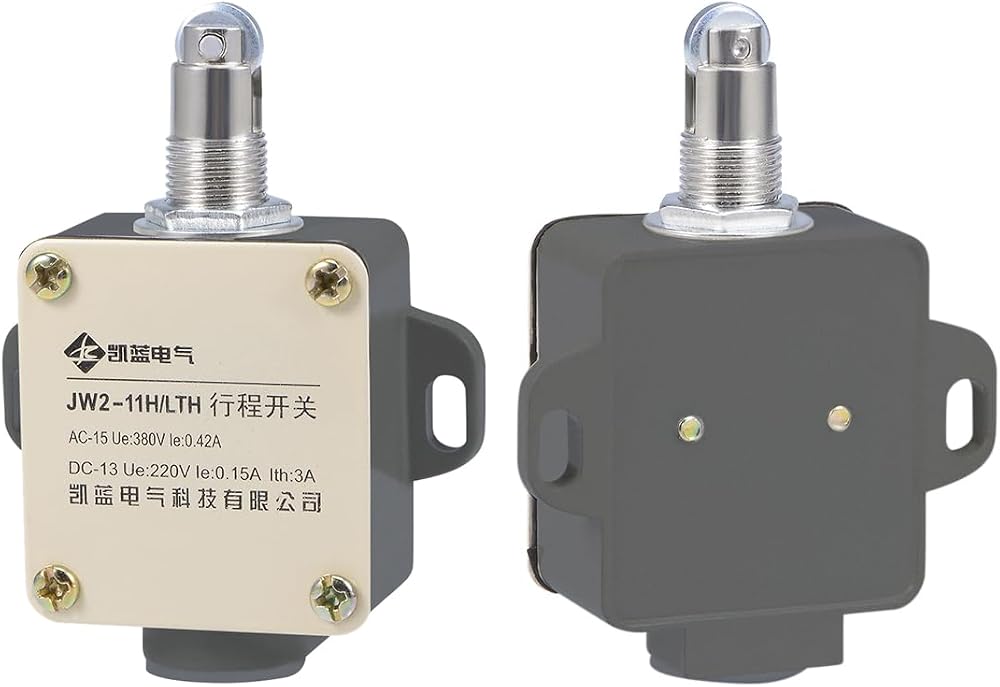

Product Name: Limit Switch
Model: JW2-11H/LTH
Actuator Type: Roller Plunger Type
Rated Voltage:
DC-13: Ue:220V Ie: 0.15A Ith:3A
Contact Configuration: 1NC+1NO
Body Size: 44 x 40 x 23mm/1.73" x 1.57 x 0.91 (L*W*T)
Mounting Hole Size: 8 x 4mm(L*W)
Mounting Hole Distance: 49mm
The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.
Position detection accuracy is high.
Operating Characteristics:
OF max.: 1kg
RF min.: 0.3kg
PT max.: 5mm
OT min.: 2mm
Description:

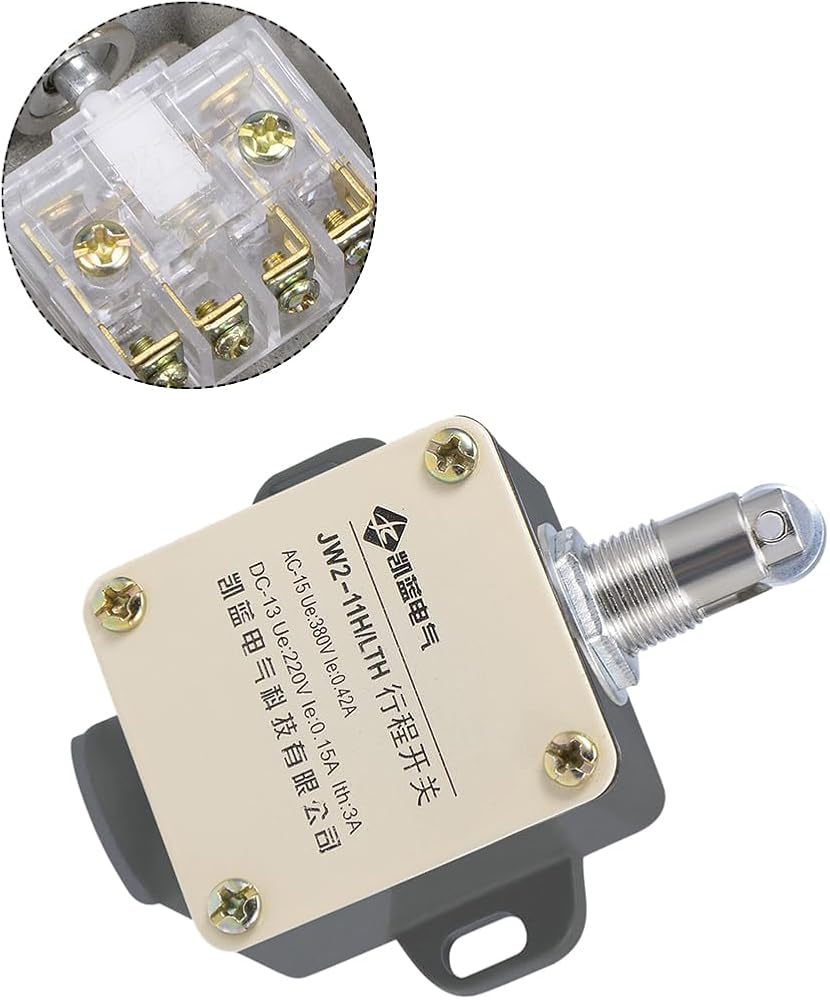

Double circuit limit switch with build-in double reed mechanism.
Zine alloy shell, strong and hightly rigid construction.
Smooth operation with highter OT.
Brass contacts with 30% silver contained. Easy-to-wire design.
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
