【Advantages】Full ceramic bearing with diamagnetic electrically insulating,wear resistance,not self lubricating, high temperature resistance, cold and other characteristics, can be used in extremely harsh environment and special conditions.
【Electrical & Resistance Insulation】Due to electrical resistance, electrical insulation, can avoid arc damage bearings, can be used in a variety of insulation of power equipment.
【Performance】Since the effect of thermal expansion and contraction of ceramics is smaller than that of steel, the bearing can be allowed to work in an environment where the temperature difference changes more severely.

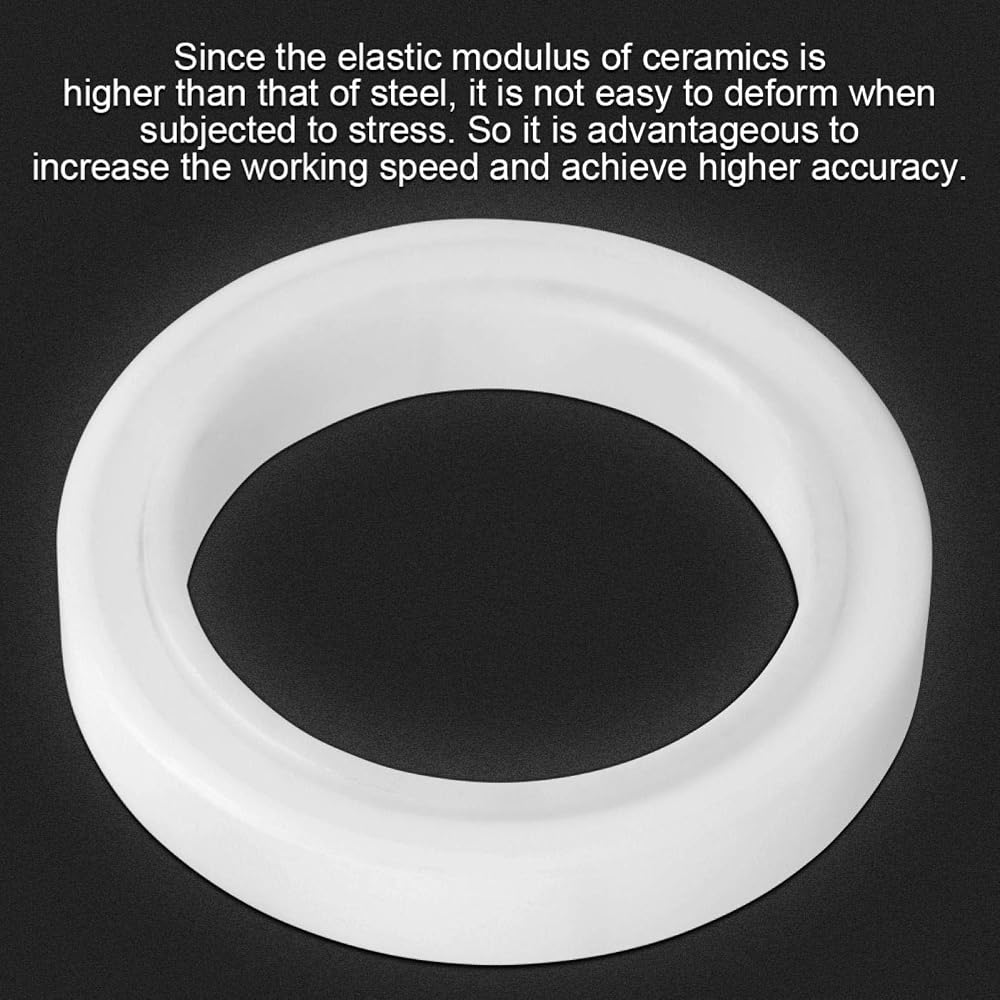

【High Efficiency】Since the elastic modulus of ceramics is higher than that of steel, it is not easy to deform when subjected to stress. So it is advantageous to increase the working speed and achieve higher accuracy.
【Function】Because of no magnetic, it can reduce premature bearing flaking, big noise. Available in the demagnetization device, precision instruments and other fields.
Description
Specifications:

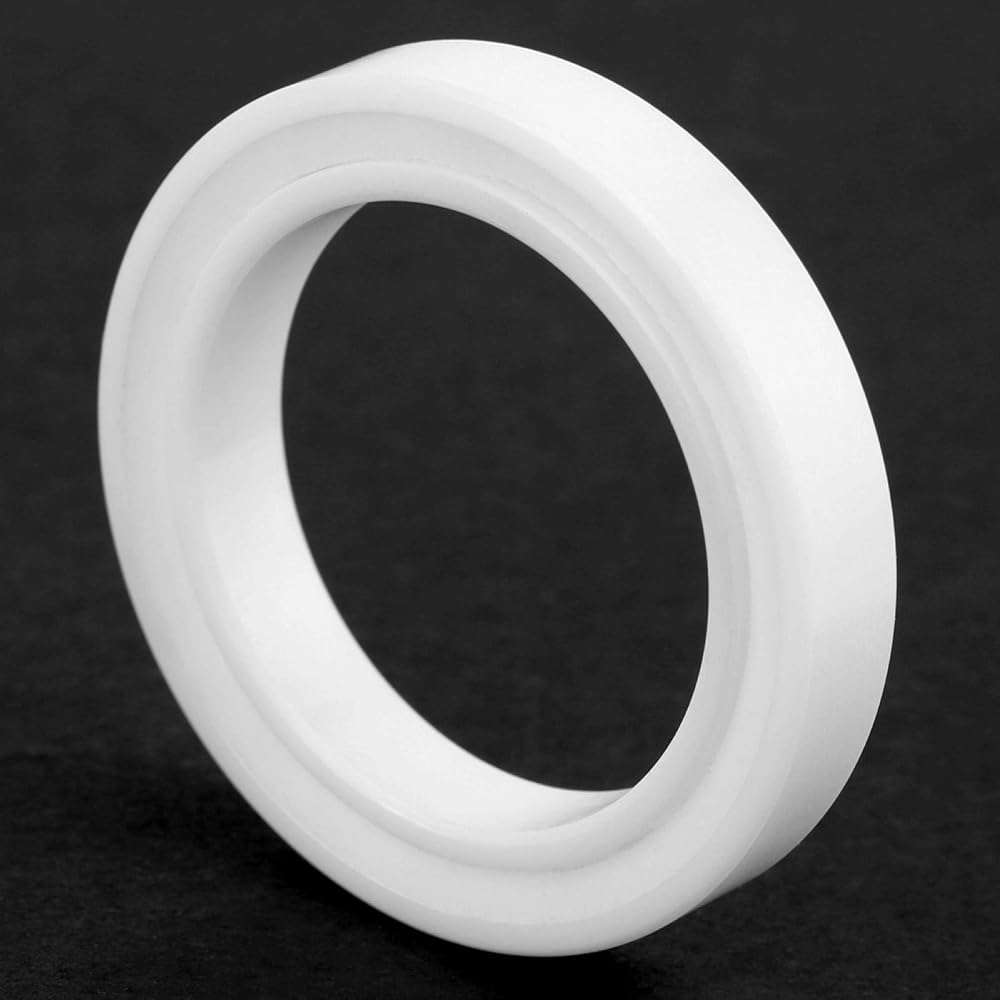

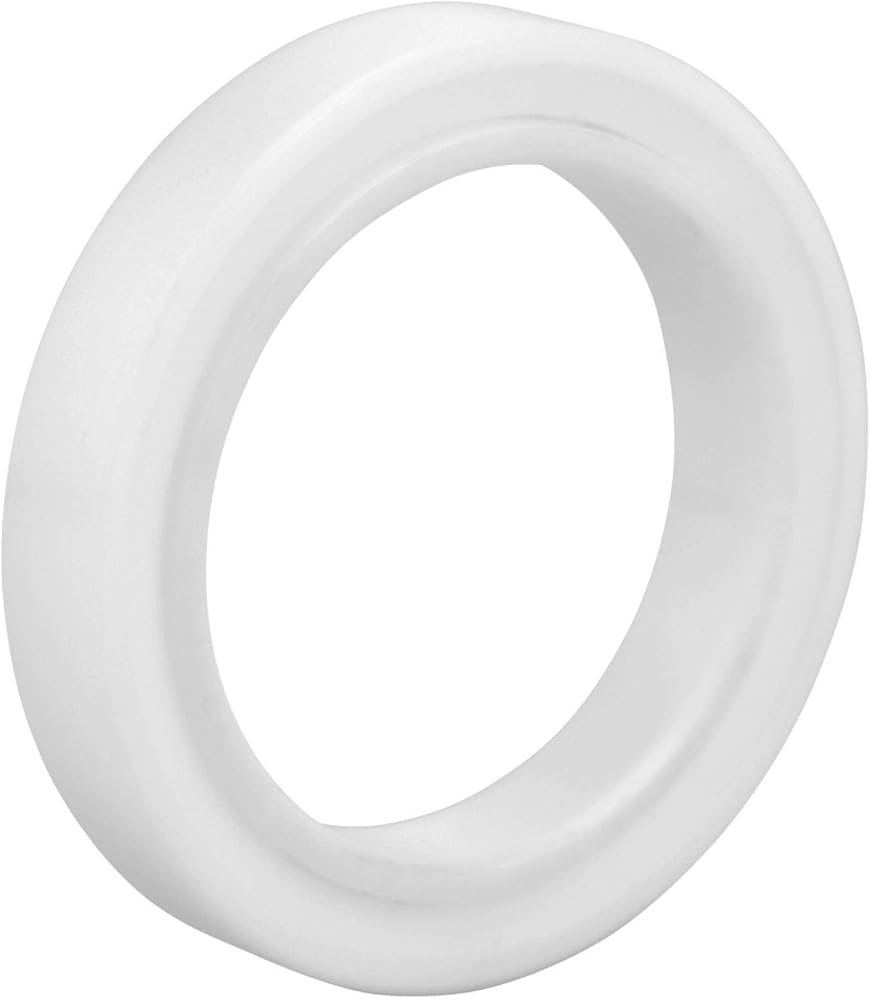

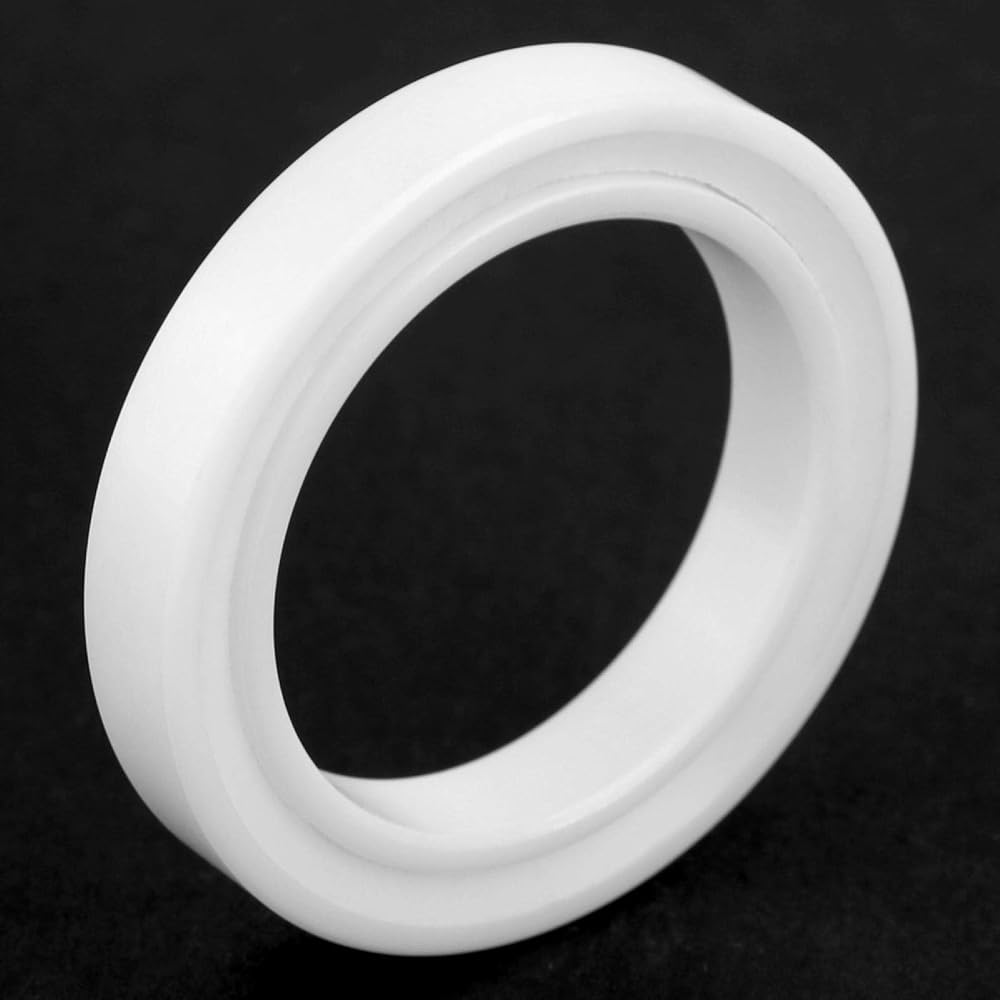

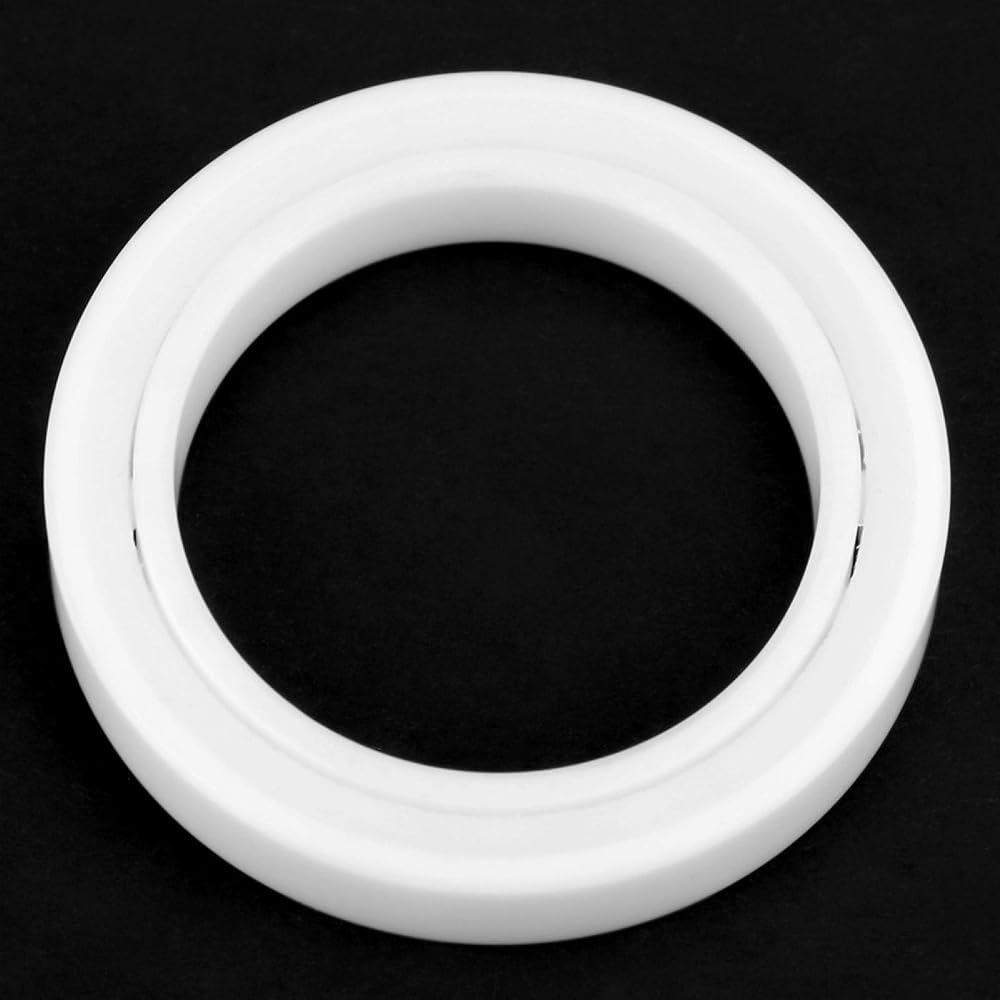

Model: 6806-2RS
Balls: ZrO2 Ceramic
Inner/outer races: ZrO2 Ceramic
Color: White
Dimensions: 30x42x7mm/1.2x1.7x0.3in
ID (inner diameter): 30mm/1.2in

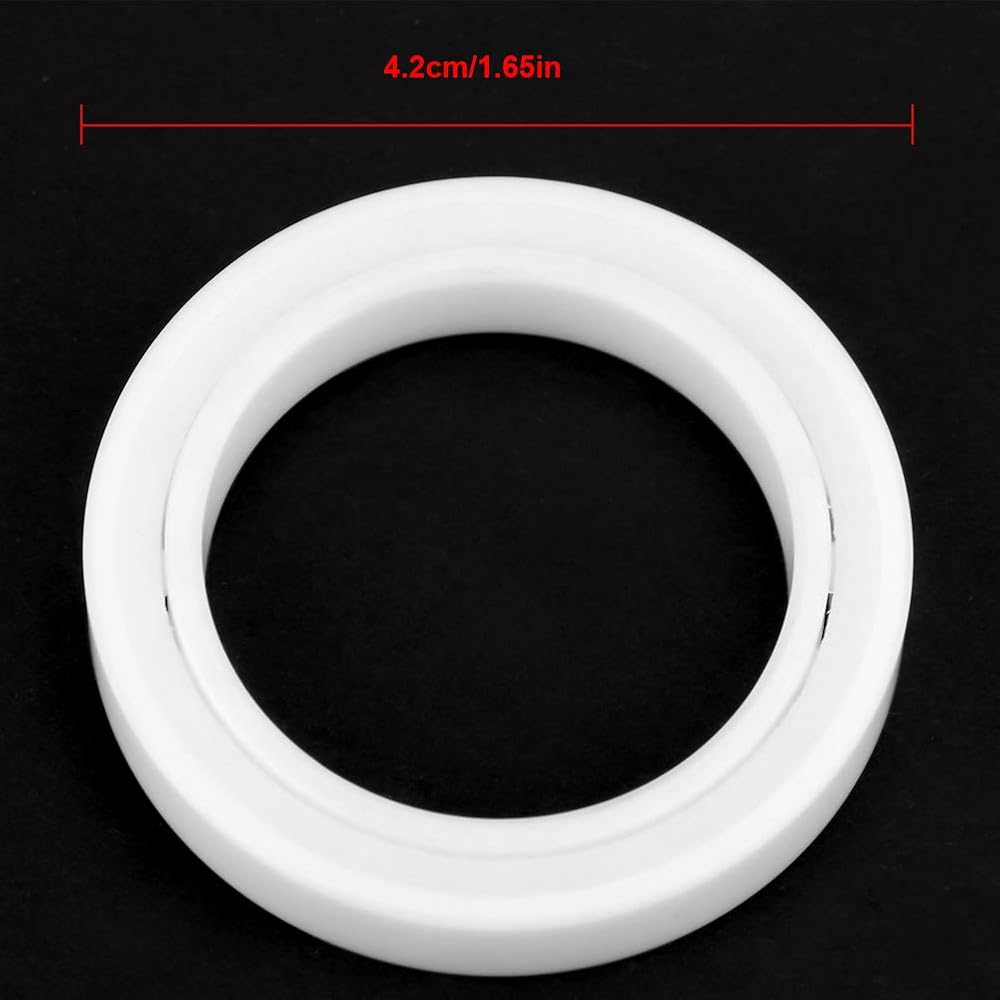

OD (outer diameter): 42mm/1.7in
Thickness: 7mm/0.3in
Weight: Approx. 27g
Package includes:
1 x Full Ceramic Bearing
