[MULTIPLE PROTECTIONS] - Overvoltage, overload andprotections extend the working life of the solar system and support long distance communication.

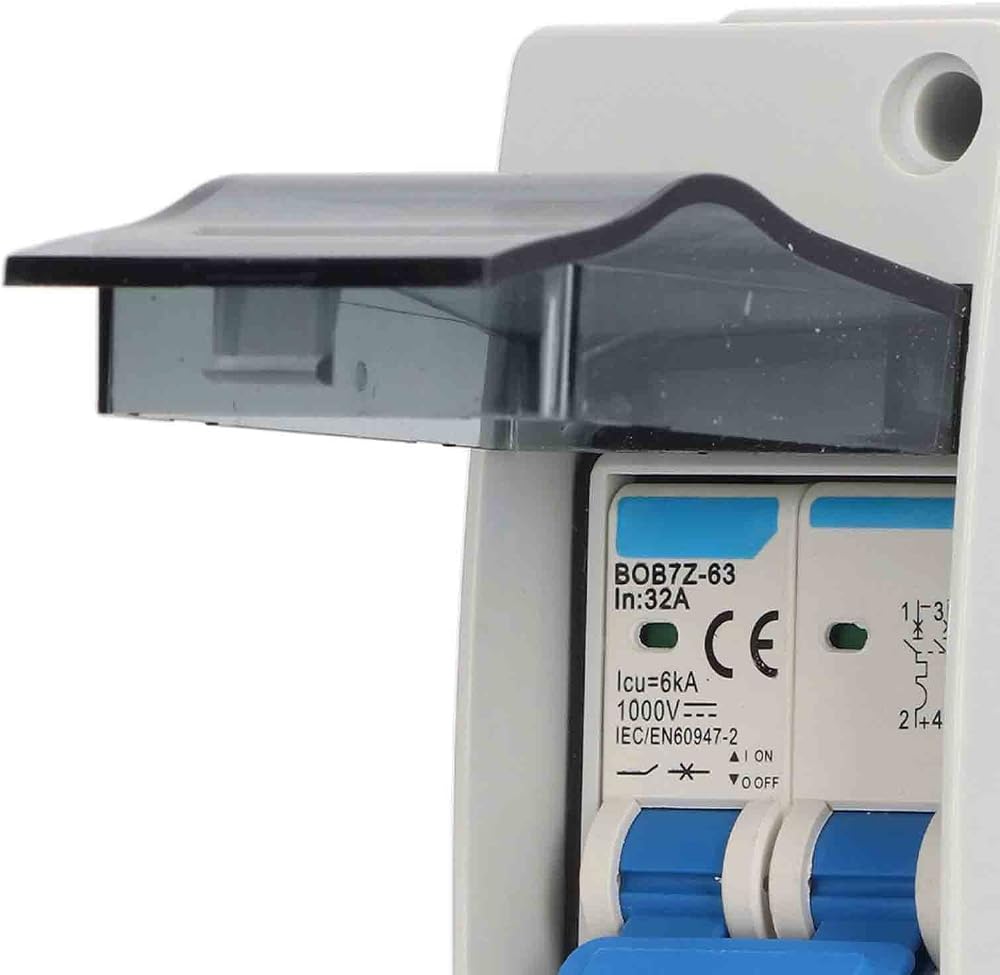

[RELIABLE COMPONENTS] - Equipped with the most reliable DC modules to maximize protection. Transparent cover allows for easy checking.
[IP65 WATERPROOF] - Withstands severe weather and environment. Suitable for indoor and outdoor installation.

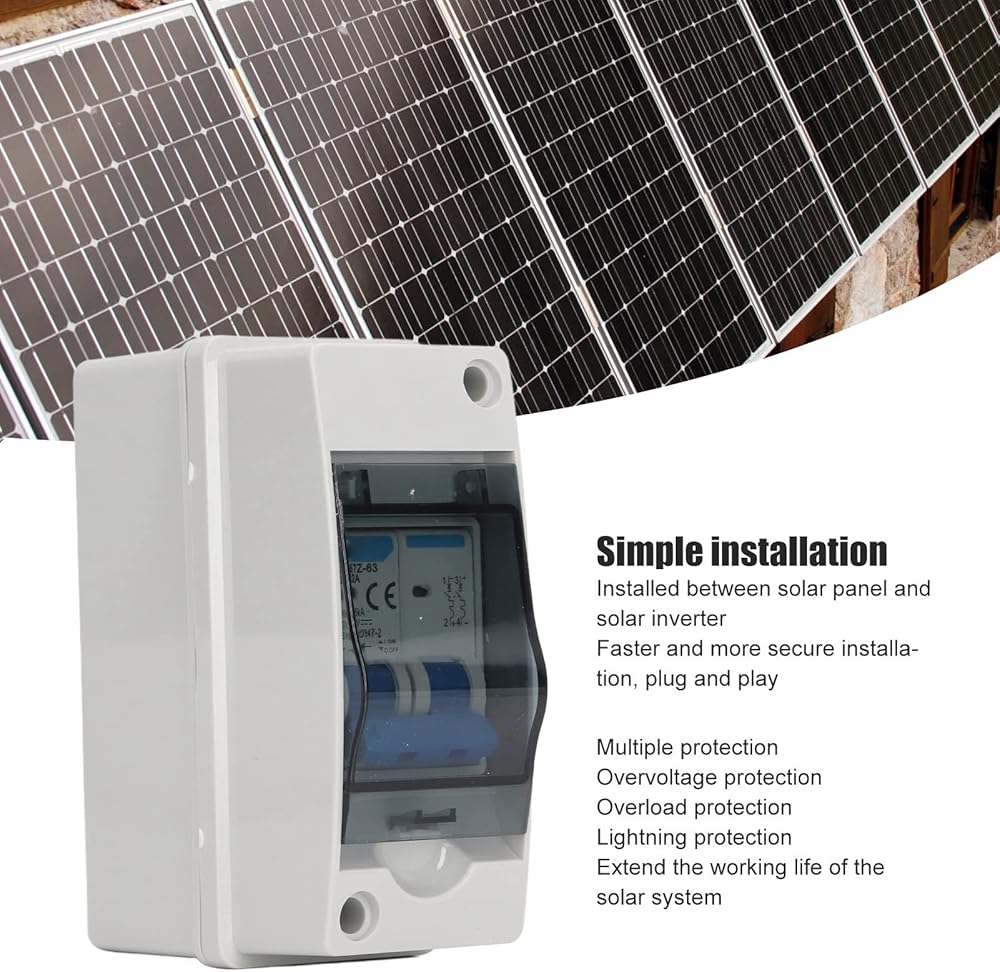

[SIMPLE INSTALLATION] - Fast and safe installation with plug and play feature. Installed between solar panel and solar inverter.
[WIDELY USED] - Suitable for photovoltaic solar panel grid connected system, solar off grid system, household, RV, and more.

Spec:

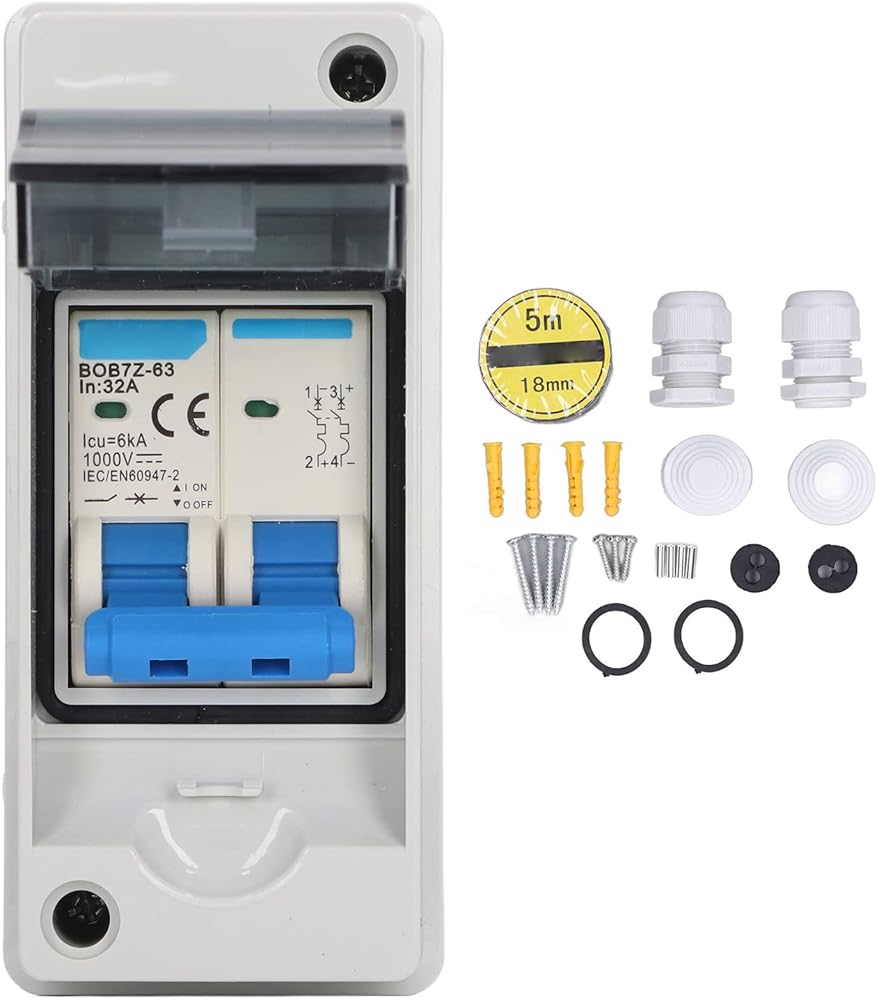

Item Type: PV DC Circuit Breaker
Material: Polycarbonate, ABS
Model: BOB7Z 63 32A
Maximum Voltage: 1000V
Maximum DC Short Circuit Current of Each Input (Isc): 32A
Protection Grade: IP65

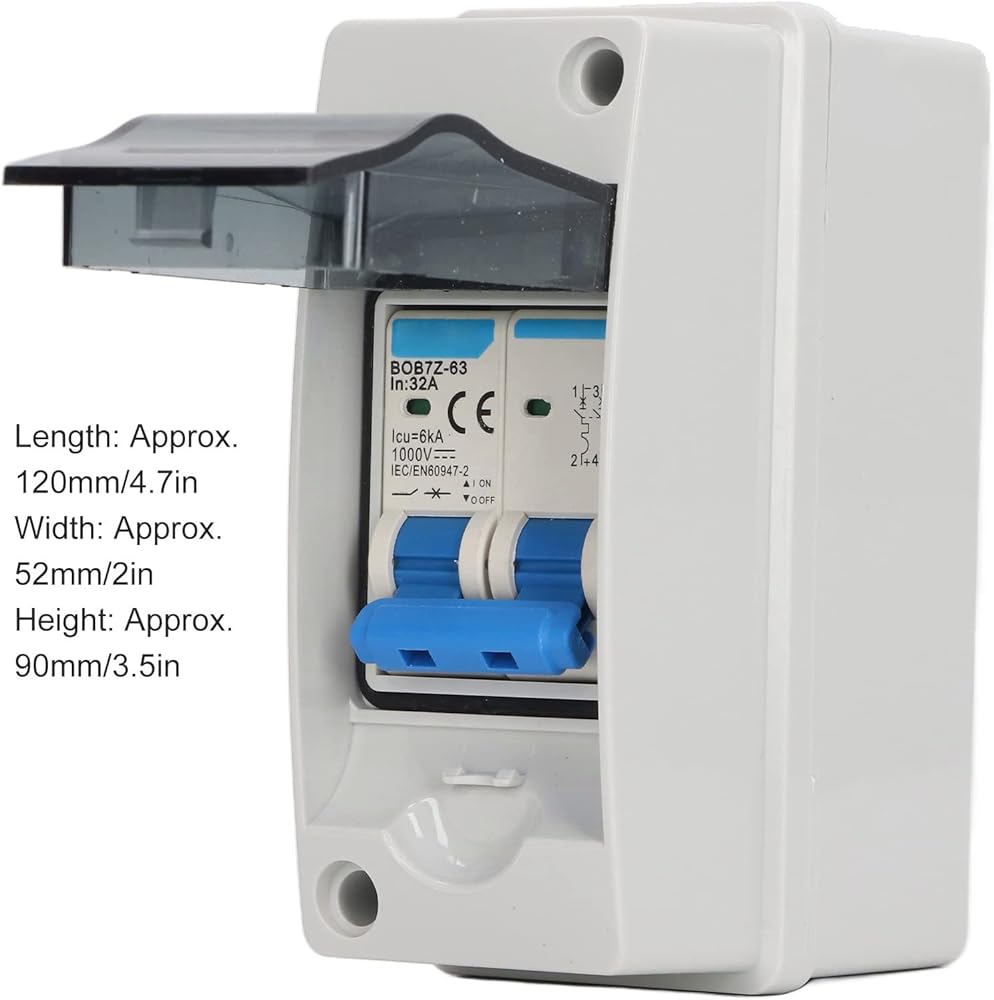

Size (L x W x H): Approx. 120x52x90mm/4.7x2x3.5in
Cable Inlet: PG20 4²
Output Cable Sealing Sleeve: PG20 4²
Rated Insulation Voltage (Ui): 1000V
Rated Current (Le): 32A
Maximum Working Voltage (Ucpv): 1000V
Rated Working Voltage: 1000V
Breaking Capacity (ICU): 6KA
Widely Used: Applicable to photovoltaic solar panel grid connected system and solar off grid system solar power generation system, household, RV, etc.

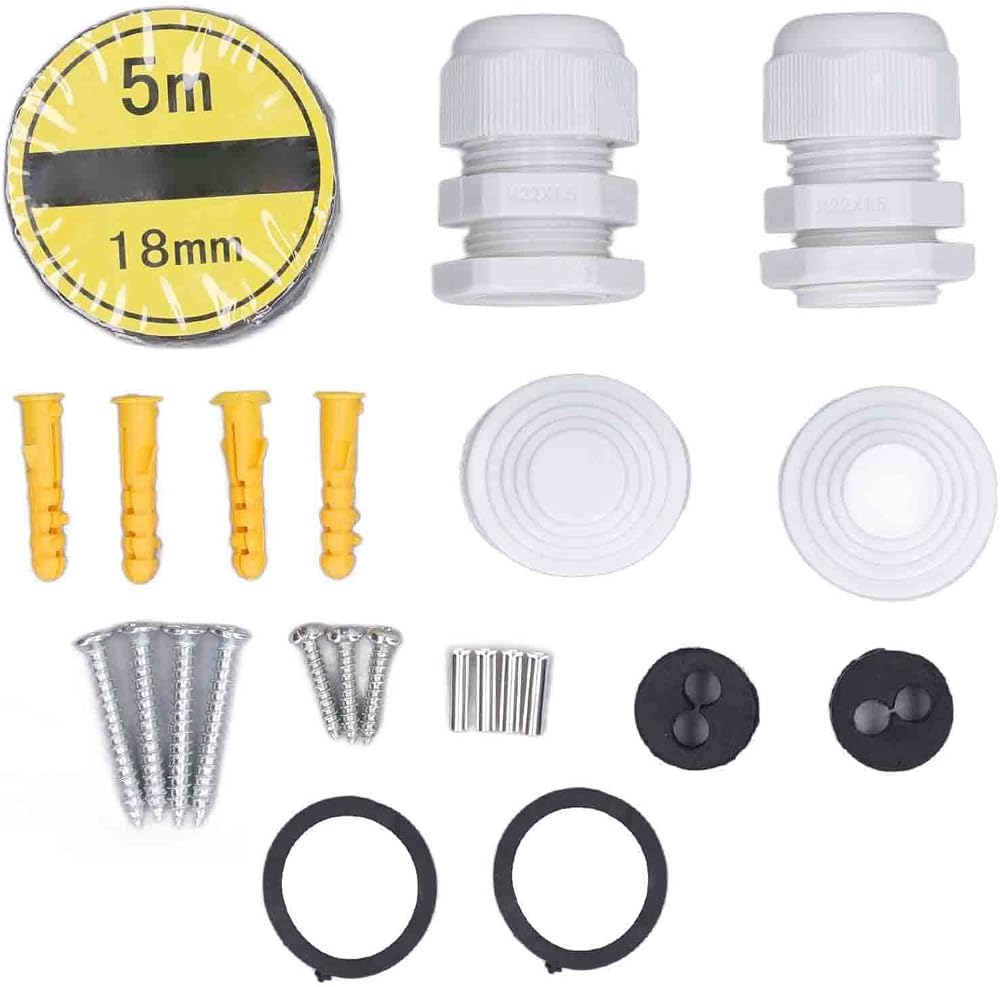

Package List:
1 x PV DC Circuit Breaker
2 x Connector Cap
2 x Connector
2 x Waterproof Ring
2 x Waterproof Head
3 x Short Pointed Screw
4 x Long Pointed Screw
4 x Flat Screw
4 x Anchor
1 x Waterproof Tape

How To Use:
Install and use.
