6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap in Saudi Arabia 6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap in Saudi Arabia 6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap in Saudi Arabia 6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap in Saudi Arabia 6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap in Saudi Arabia 6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap in Saudi Arabia 6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap in Saudi Arabia 6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap in Saudi Arabia

6PCS EC11 Rotary Encoder Code Switch 5Pins 20mm Digital Potentiometer Push Button Switch for Arduino with 6PCS Knob Cap

SAR 47
Brand
DAOKI
Weight
101 g
– 1 +

Special Features

  • Type: Encoder code with Switch; Adjustment method: 360 Degree; Number of pulses: 20; Pin Numbers: 7(5 working signal pins & 2 mounting pins);

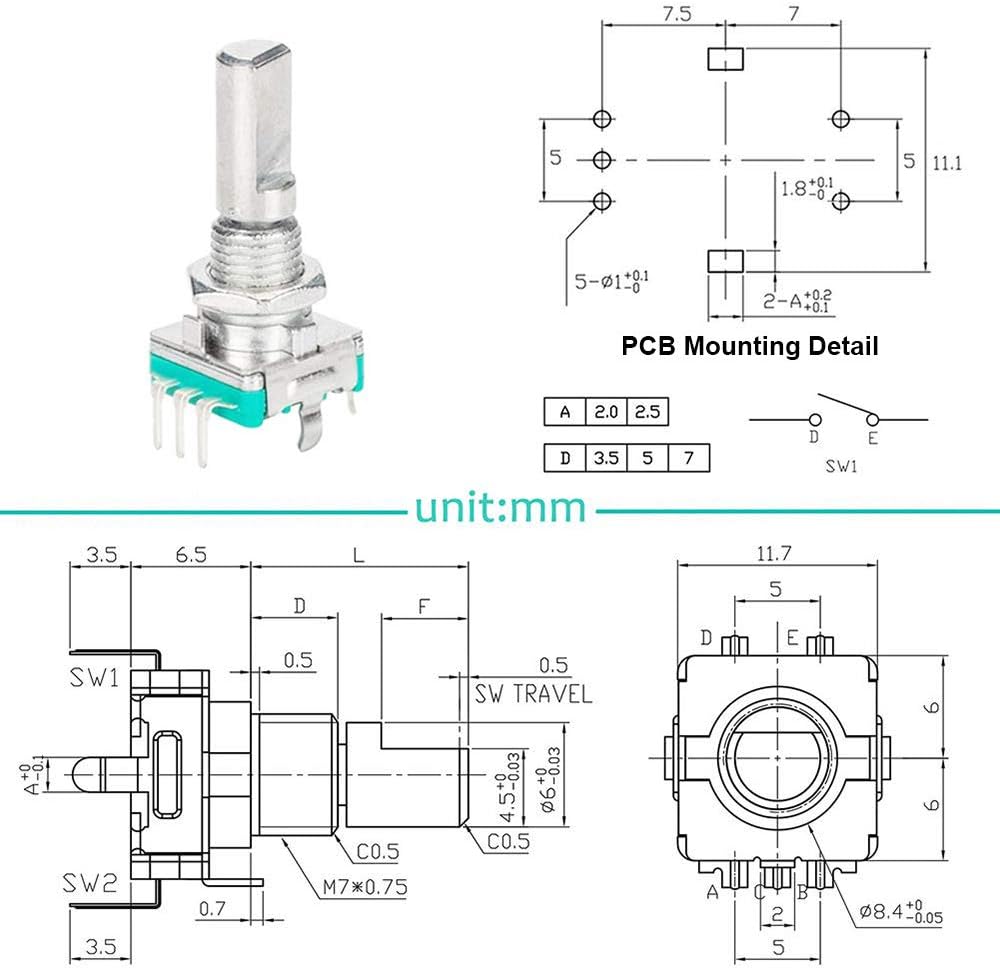

  • Shaft Diameter: 6mm/0.24inch; Shaft Height: 20mm/0.79inch; Thread Diameter: 6.8mm/0.27inch; Total Dimension: 15 x 12.5 x 30mm/0.59 x 0.49 x 1.18inch(LxWxH)
  • In the forward rotation, the A line phase leads the B line phase; when reversed, the B line phase leads the A line phase. The phase relationship and number of rotations of AB can be identified using a simple digital logic circuit (exclusive OR gate and D flip-flop)
  • Widely used for data entry as with modern in car CD players, for volume & on/off control or data selection via LED or LCD display

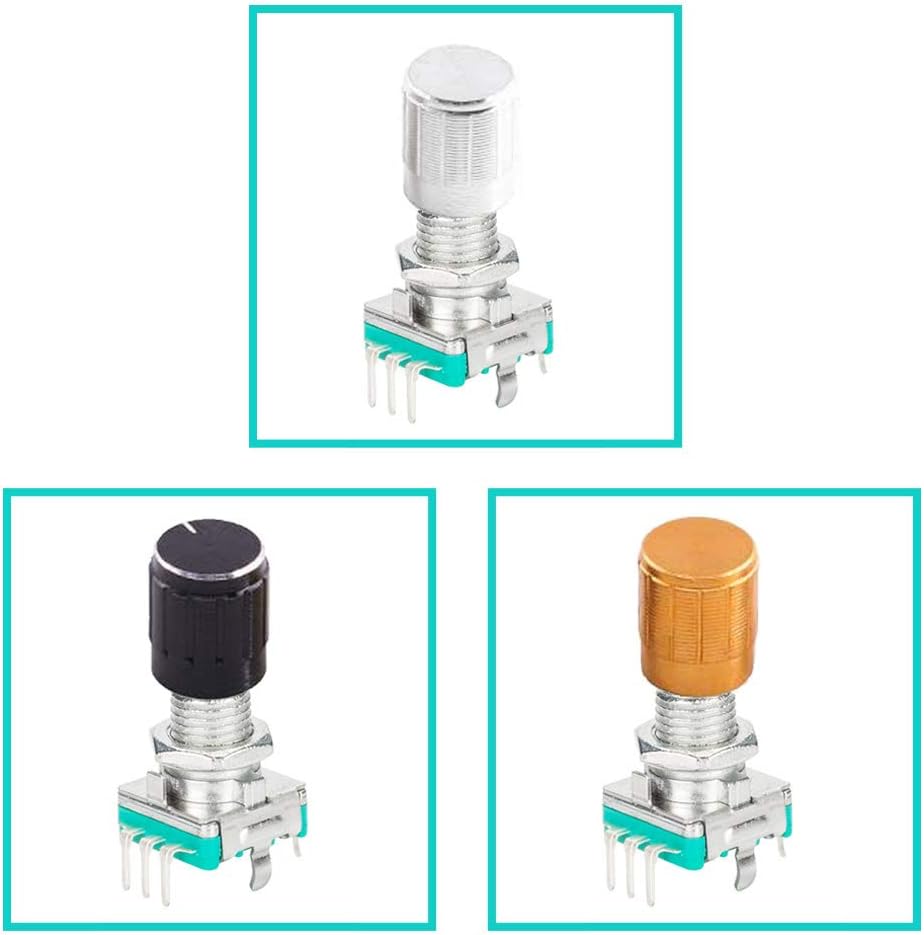

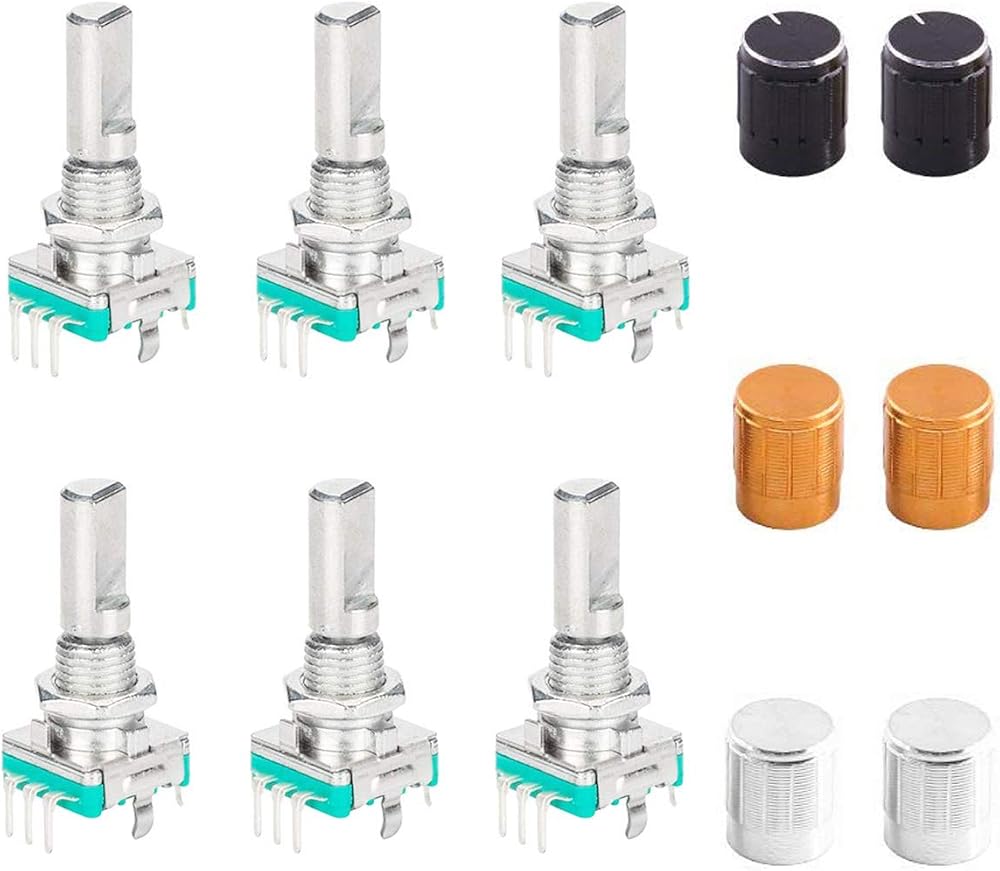

  • Package Content:6 x EC11 Rotary Encoder Code Switch, 2 x Black Knob Cap, 2 x Golden Knob Cap, 2 x Silver Knob Cap

Description

Specifications:
Type: Encoder code with Switch
Adjustment method: 360 Degree
Number of pulses: 20
Pin Numbers: 7(5 working signal pins & 2 mounting pins)
Shaft Diameter: 6mm/0.24inch
Shaft Height: 20mm/0.79inch
Thread Diameter: 6.8mm/0.27inch
Total Dimension: 15 x 12.5 x 30mm/0.59 x 0.49 x 1.18inch(LxWxH)

Usage:
1.In the forward rotation, the A line phase leads the B line phase; when reversed, the B line phase leads the A line phase. The phase relationship and number of rotations of AB can be identified using a simple digital logic circuit (exclusive OR gate and D flip-flop)
2.By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer count, this rotation counts are not limited. With the buttons on the rotary encoder can be reset to its initial state, that starts counting from 0

Package Included:
6 x EC11 Rotary Encoder Code Switch
2 x Black Knob Cap
2 x Golden Knob Cap
2 x Silver Knob Cap
