Features:

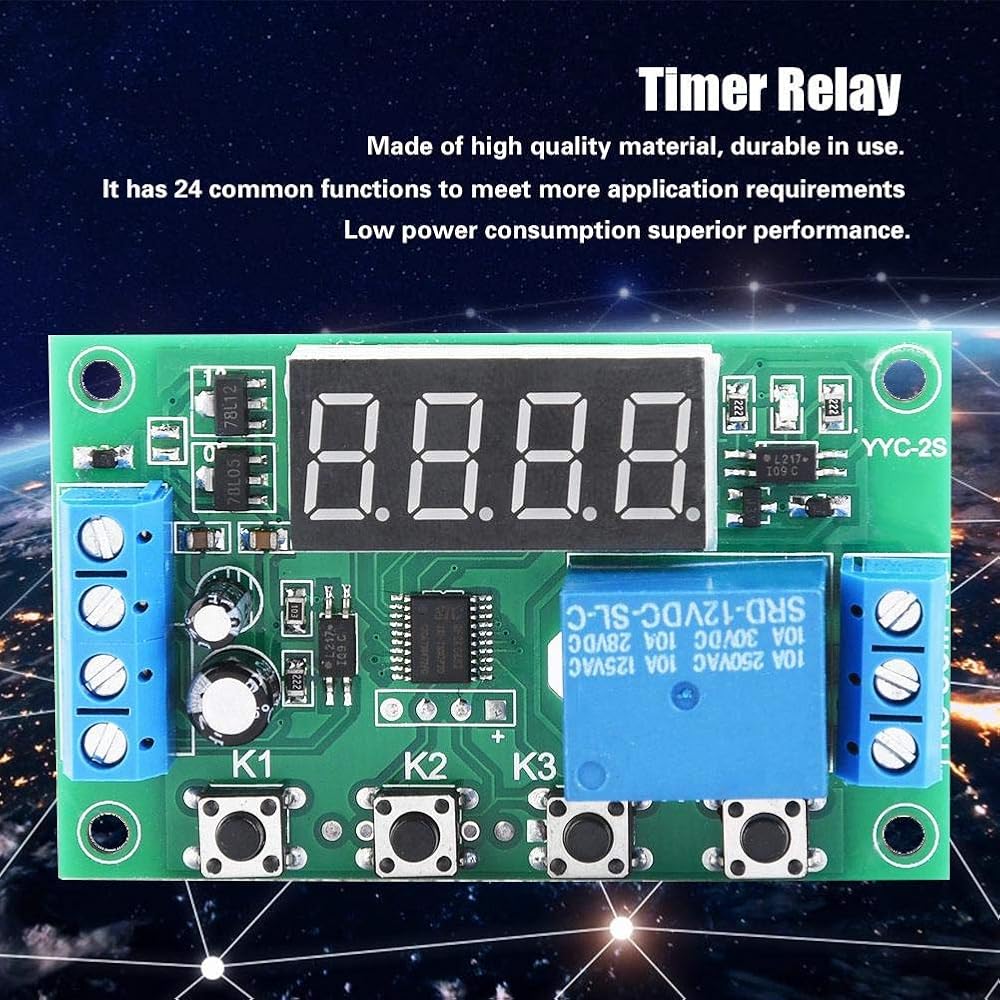

Made of high quality material, in use. It has 24 common functions to meet more application requirements Can control the solenoid valve, , motor, light belt and so on. Low power consumption, superior performance. The product has a wide range of applications and can be used in many fields.

Specification:

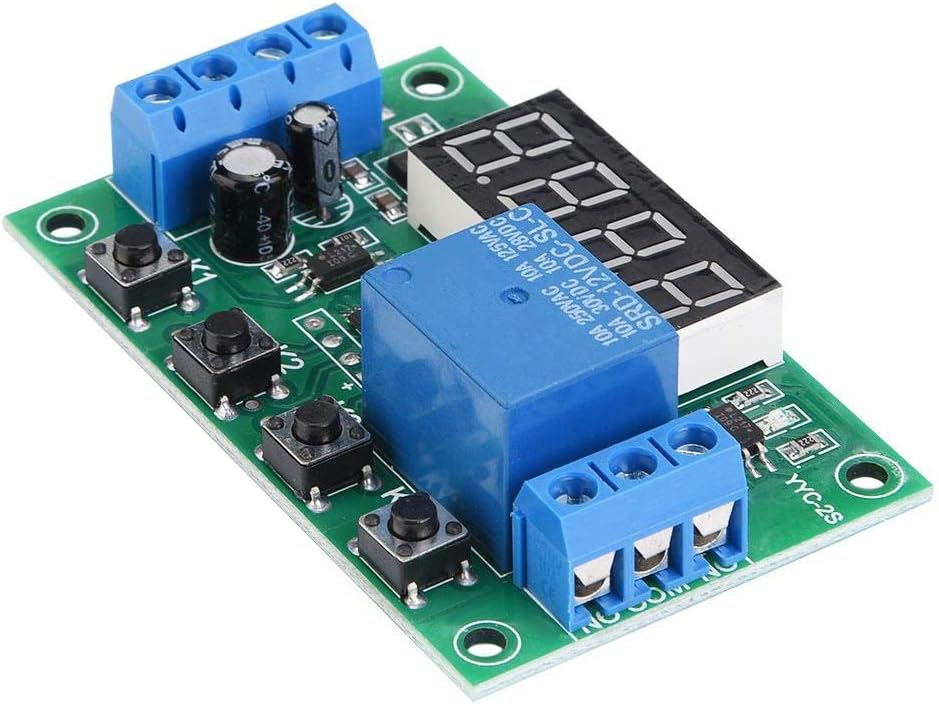

Model: YYC-2S
Material: Plastic
Weight: 30g/1.1oz
Voltage: 5V, 12V, 24V (Optional)
Output power: DC or AC load within 5A can be controlled
Time range: 0.01 seconds to minutes can be adjusted at any time

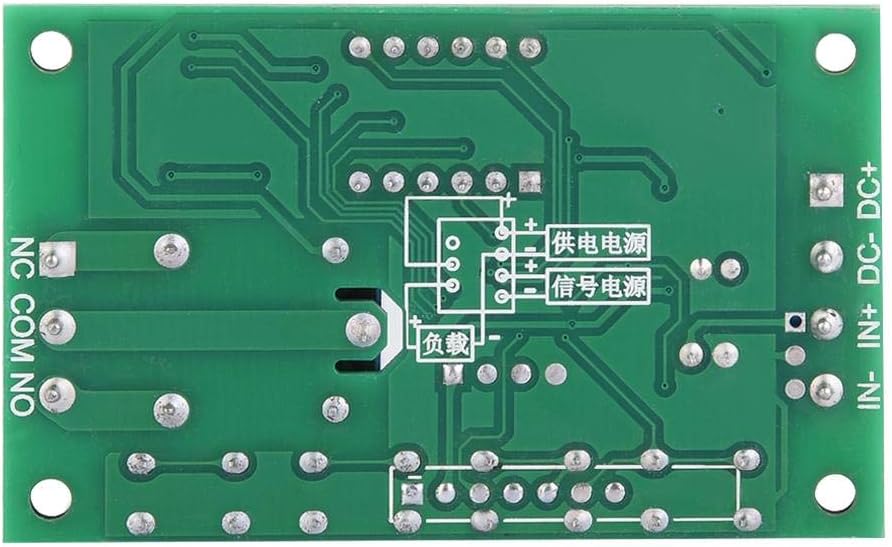

Description of wiring port:
1. DC+ : input the positive pole of DC power supply
2, DC- : input DC power supply cathode
3. IN+ : input is positive
4, IN- : input terminal negative
5. NO: the relay normally opens the interface, and the relay is suspended before absorption, and is connected with COM short after absorption
6. COM: relay public interface
7. NC: the relay normally closes the interface, and the relay is short connected with COM before absorbing and suspended after absorbing.

Package List:
1 x Timer Relay
