Feature:
1. The actuator can be used in a variety of simple or complex processes as a mechanical machine for remote control, centralized control or automatic control.
2. The electric actuator is an electric drive device that converts the rotation motion of the motor into a linear reciprocating motion.

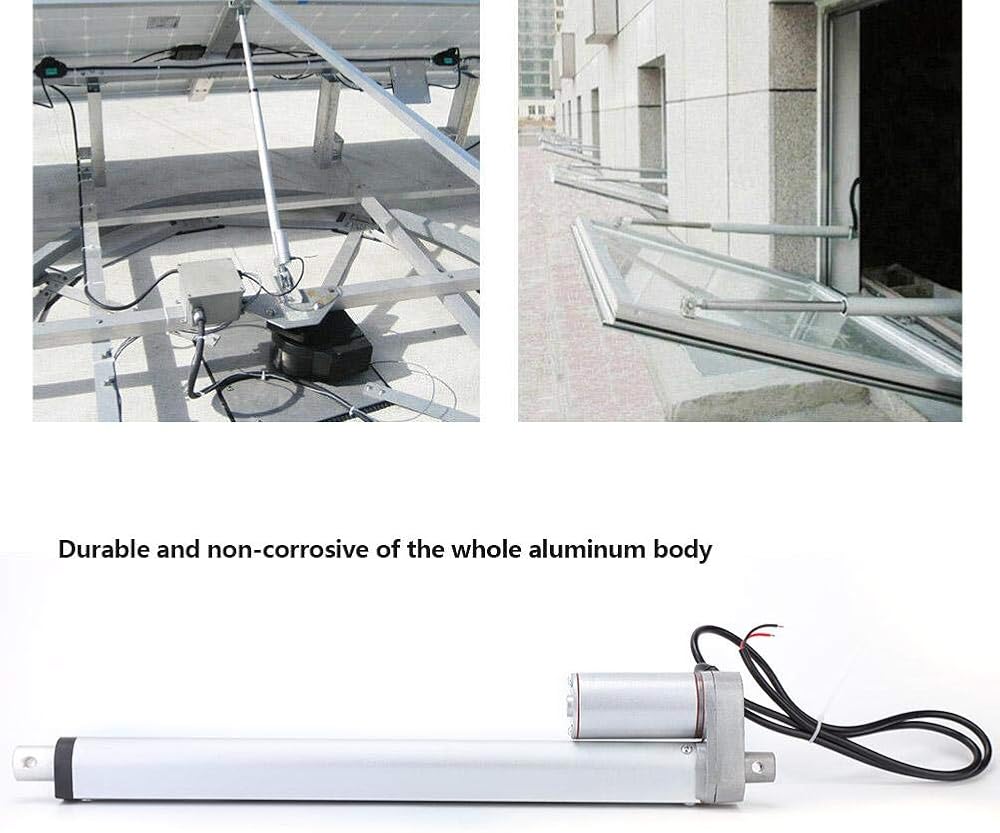

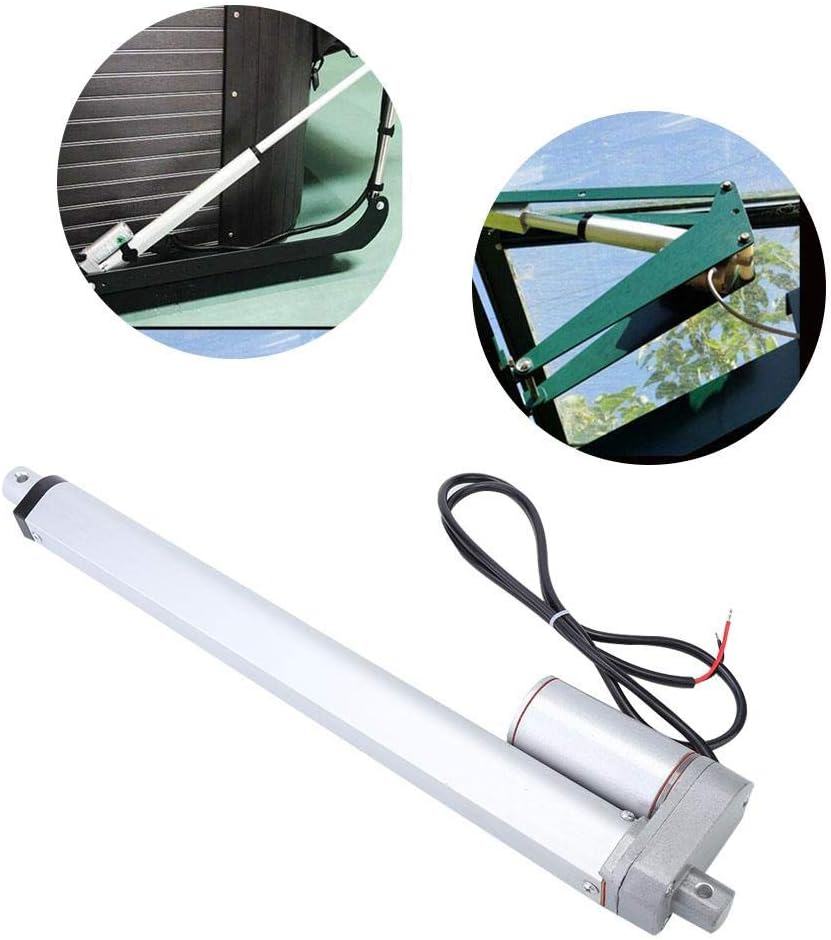

3. Applicable to electric bed, electric sofa, electric stand lifting rod, industrial electric lifting system, camera frame, head camera, wedding system.
4. After the motor is decelerated by the gear, it drives a pair of screw nut. Turn the rotation motion of the motor into a linear motion, and use the motor to reverse the push rod to complete the actuator action. Complex movements such as turning and shaking can be accomplished by various levers, rockers or connecting rods.
5. By changing the length of the lever arm, the stroke can be increased or increased.

Specification:

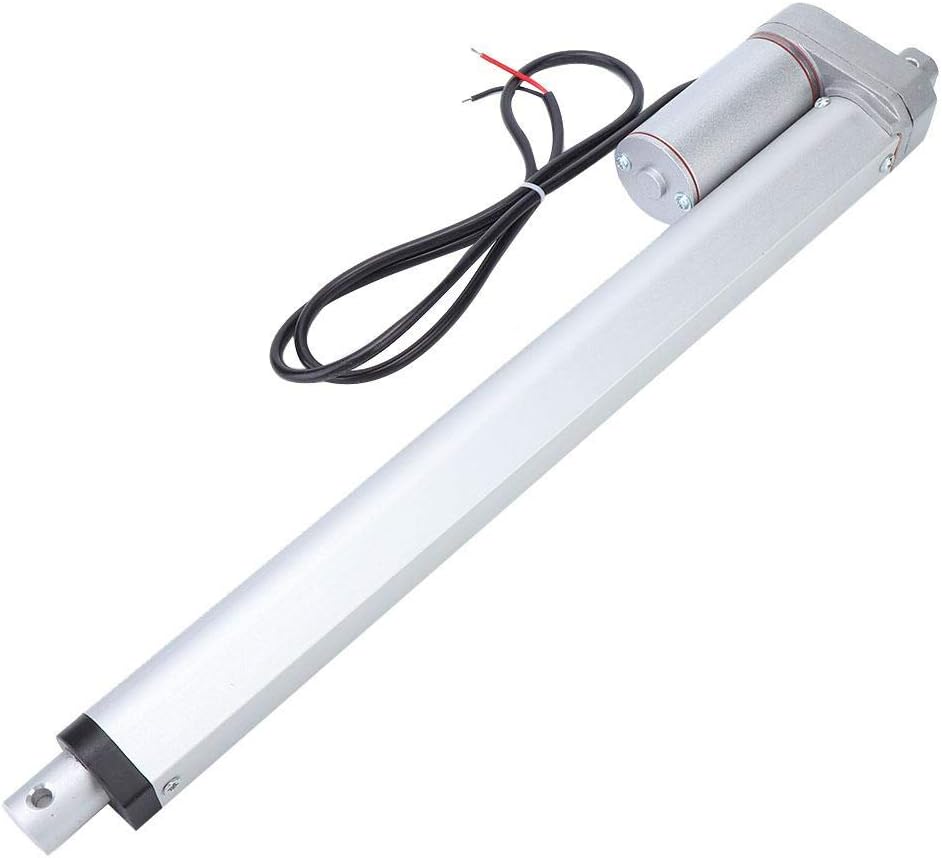

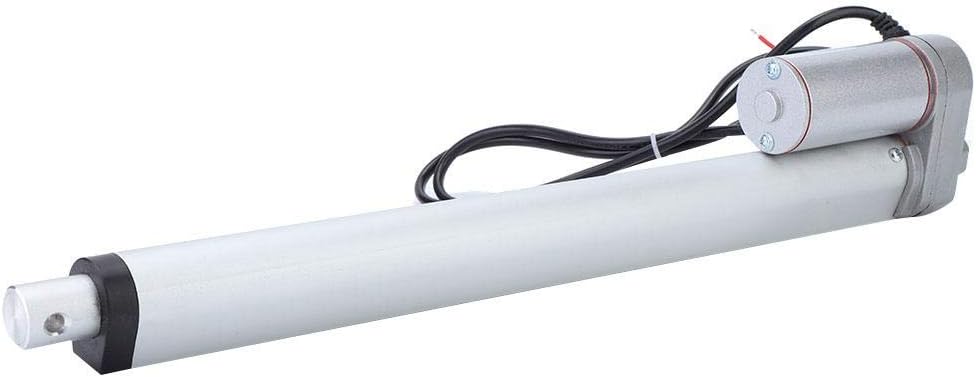

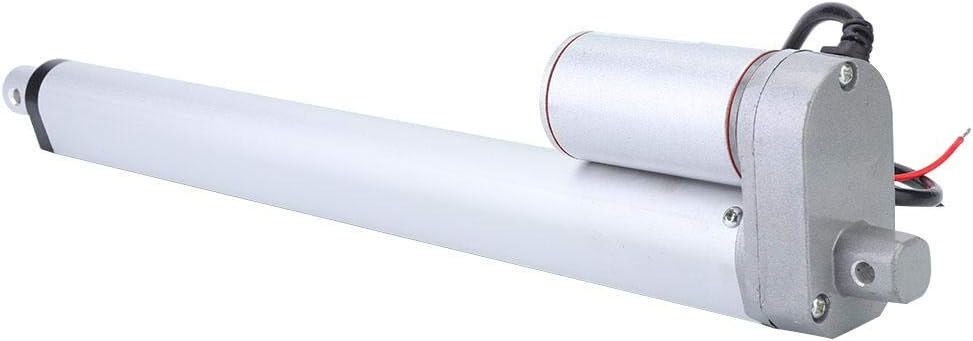

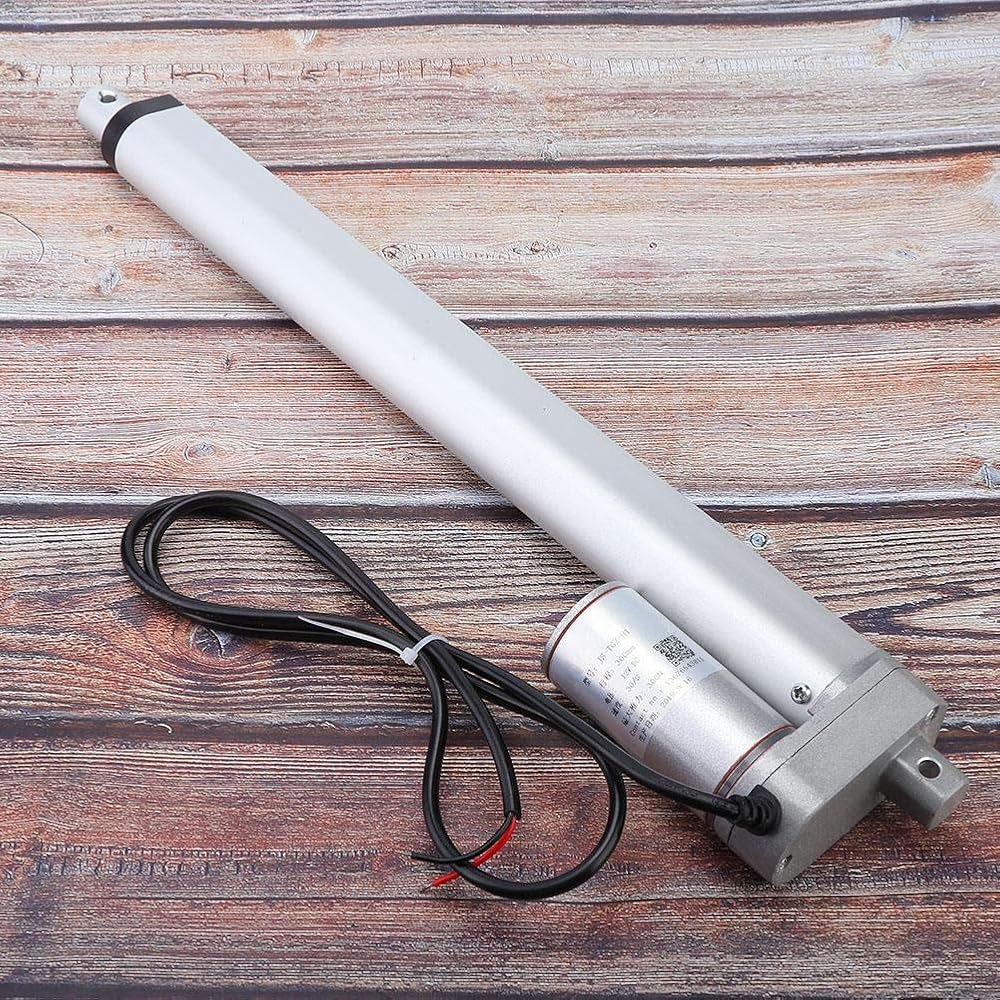

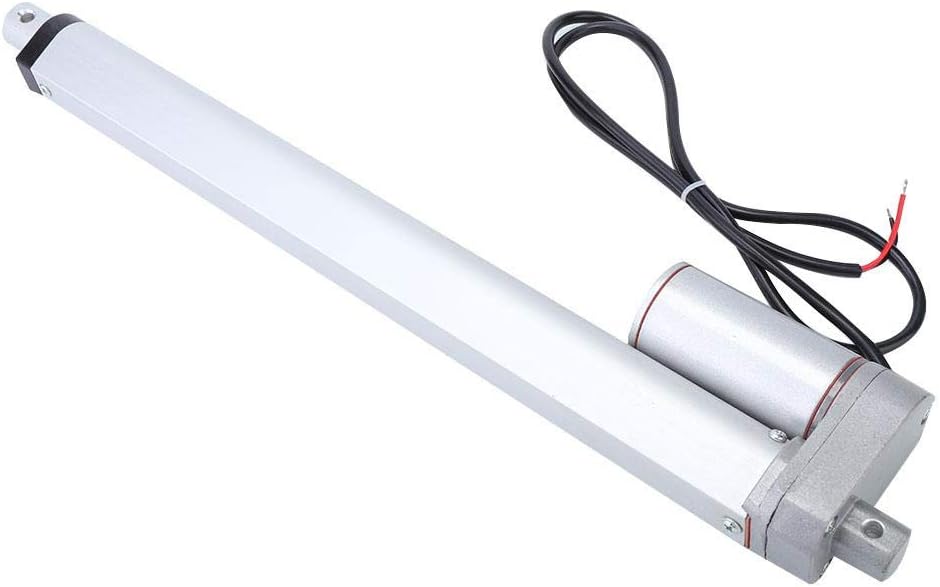

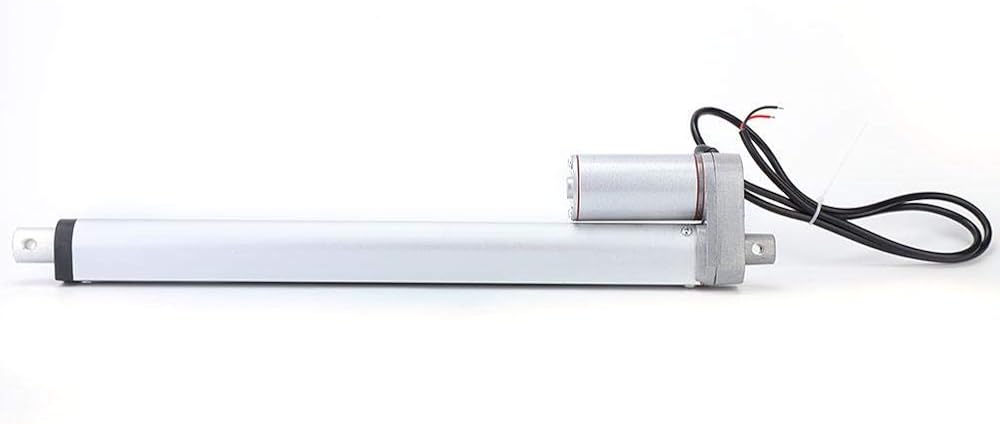

Item Type:Linear Actuator
Model:JS-TGZ-U1
Stroke:300mm/350mm/400mm/450mm(Optional)
Voltage:12VDC
Motor Power:25W
Standard installation size: stroke + 105mm
Load capacity: 300N
No-load speed: 30mm/s
Work efficiency: 10%
Ambient temperature: -5 ~+50
level: IP45
Built-in limit switch, not adjustable after delivery
Noise:

Package List:
1 x Linear Actuator
