Specification:
Weight: 239g/8.4oz

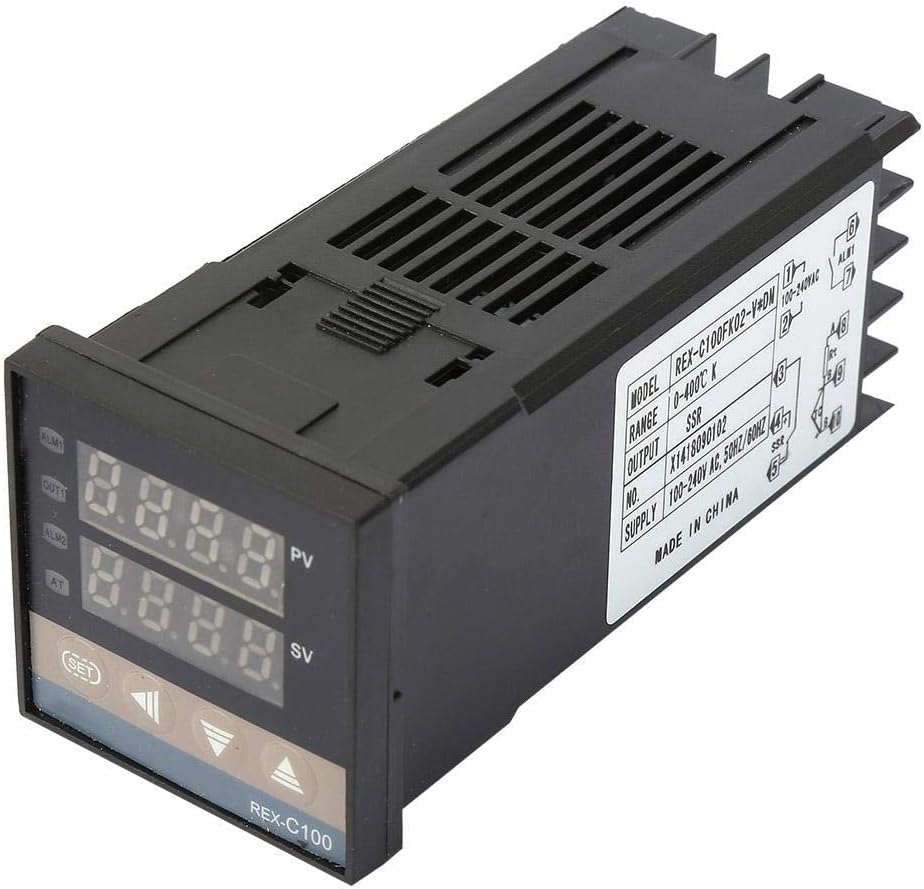

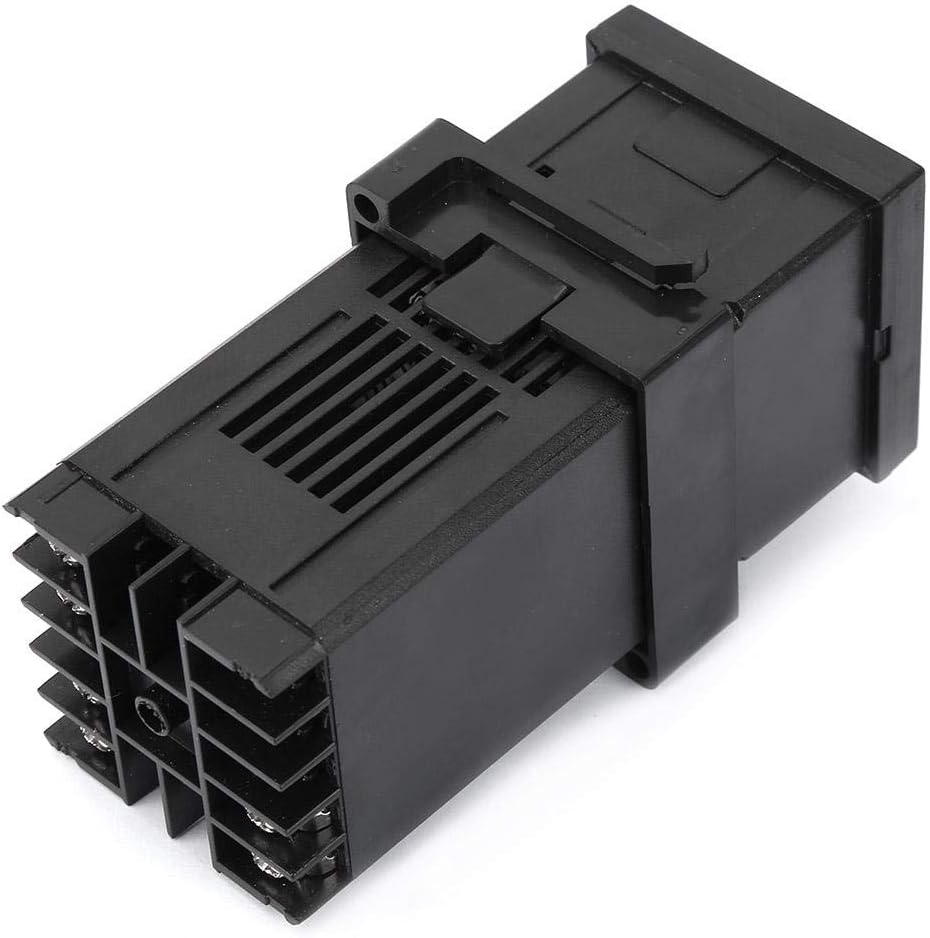

REX - C100 thermostat:

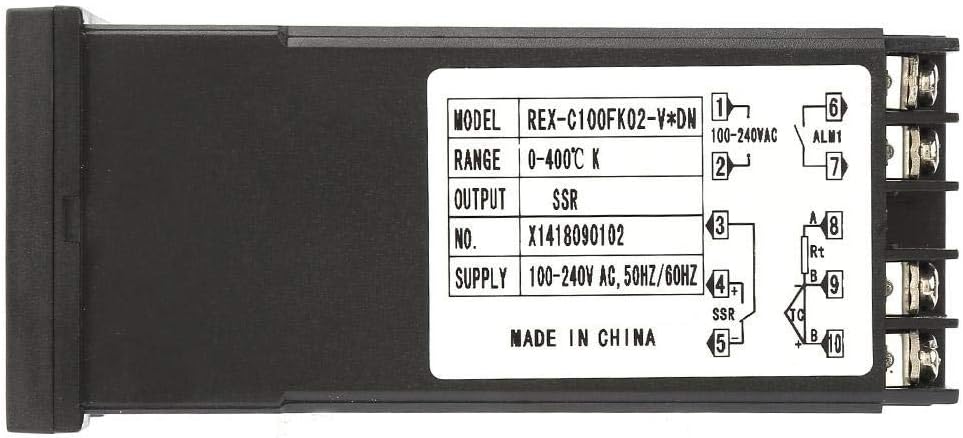

Model: REX-C100FK02-V*AN DN
Measurement accuracy: ±0.5% FS
End to end compensation tolerance: 0 ~ 50 can be through the software to modify + 2
Resolution: 14 bits
Sampling cycle: 0.5 seconds
Power supply: AC 110-240V 50/60hz
Process value: (PV)
Set value: (SV)
Output, alarm and self-setting indicate: by LED
PIN control: including ON/OFF, stepper PID and continuous PID
Self-adjusting control: Yes
Delayed output: capacity 250V AC 3A ( load)
Alarm function output: No
Proportional band (P) : 0 ~ full range (ON/OFF control set to 0)
The testing temperature range: 0 ~ 400
Insulation : > 50M ohm (500V DC)
Insulation : 1500V AC/min
Insulation : power consumption The environment of service: 0 ~ 50
Non-corrosive gas environment 30 ~ 85% RH
Temperature input type: K-type thermocouple
Size: 48 * 48 * 110mm / 1.9 * 1.9 * 4.3in

K Type Thermocouple:
Length: 1m
Diameter of sensor: 4.5mm
Temperature range: 0 ~ 1300
Internal insulation: fiberglass
External shielding: insulation shielding

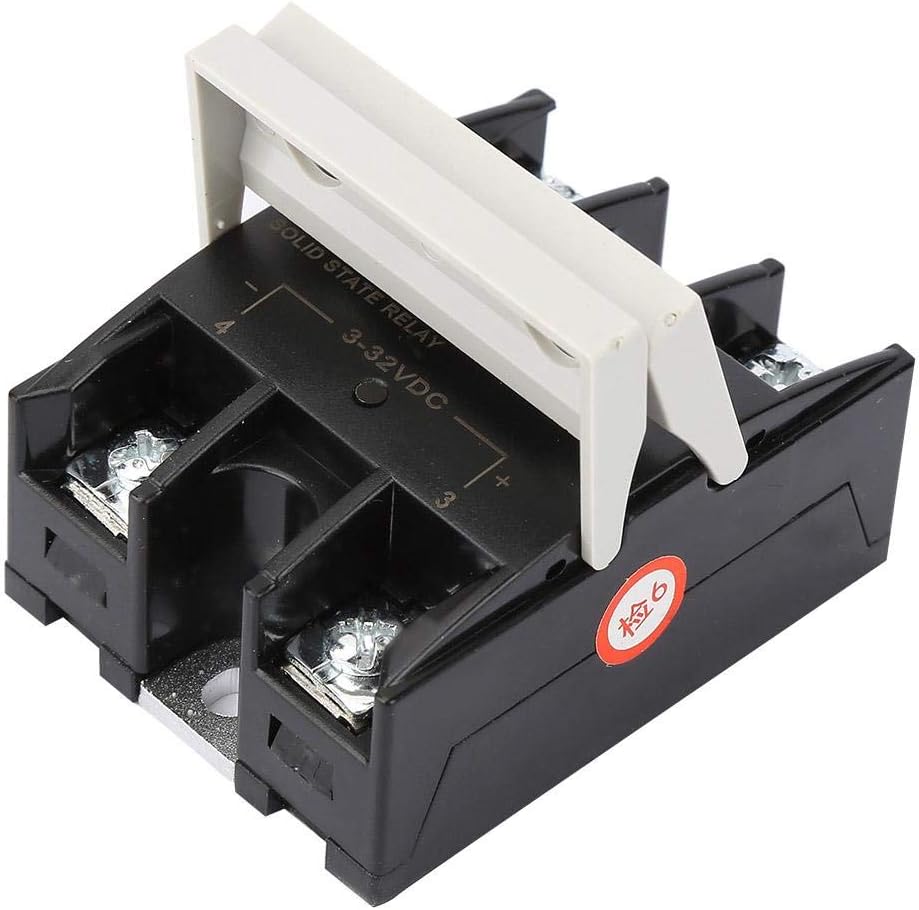

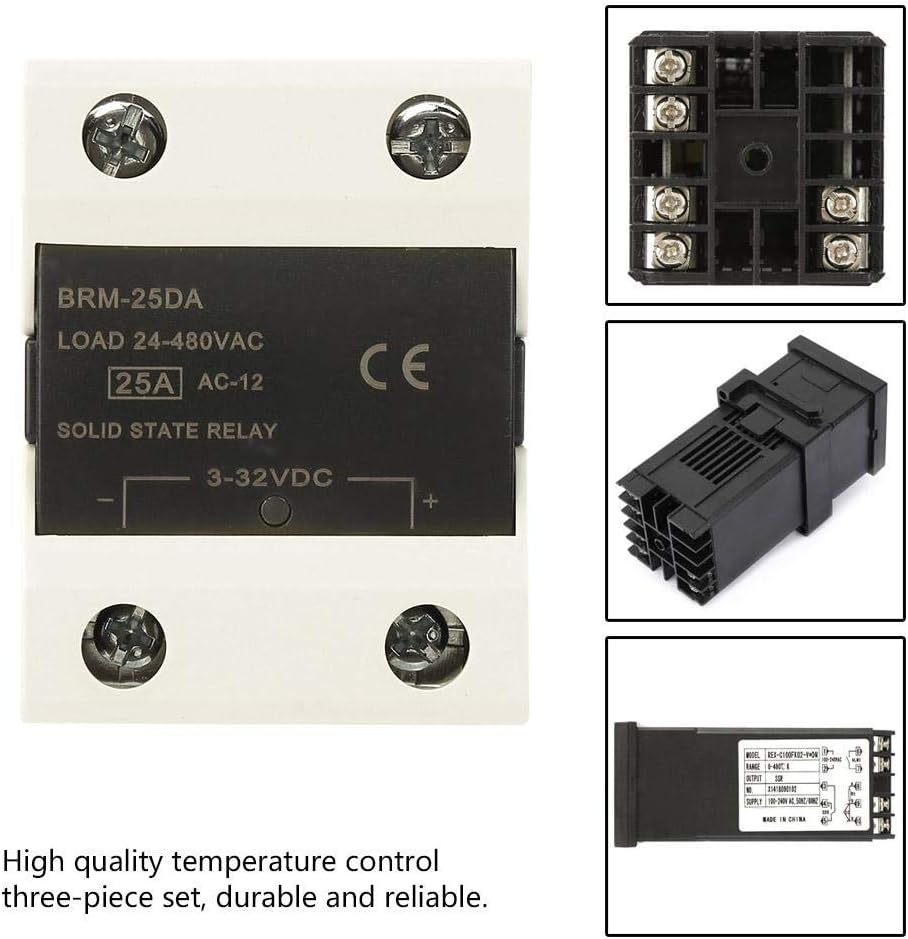

Solid-state relay:
Output voltage range: standard
Output current: 25A
Input voltage: DC 3-32V
Output voltage: 24-380V AC

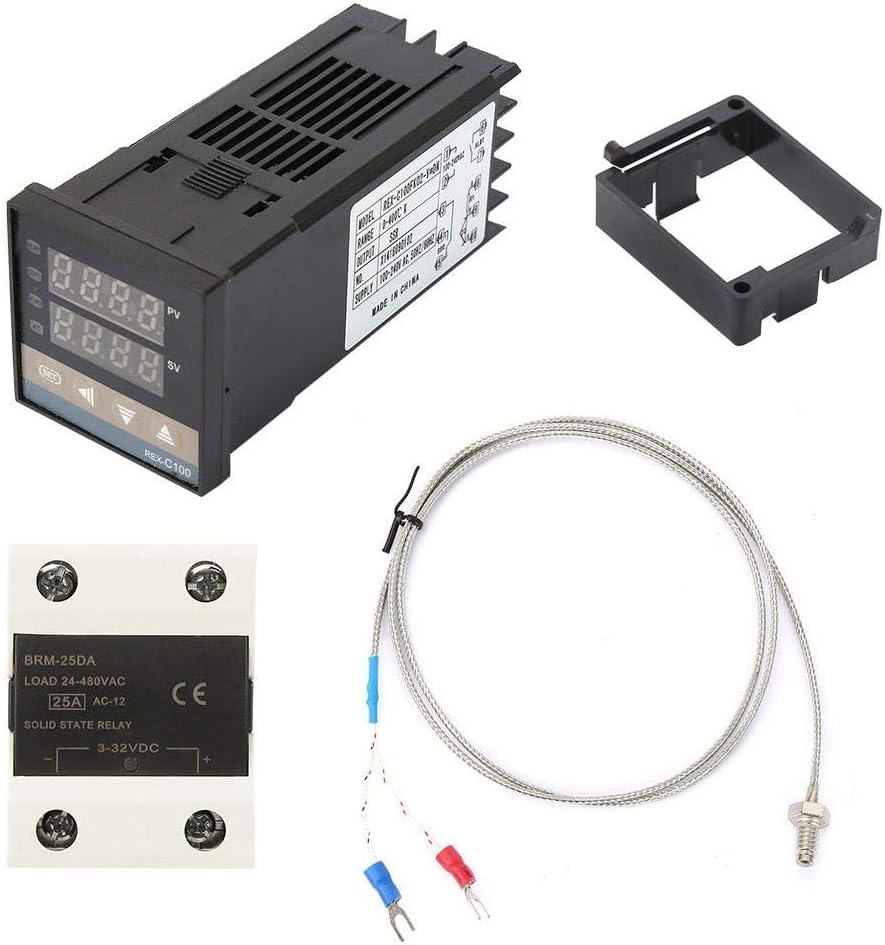

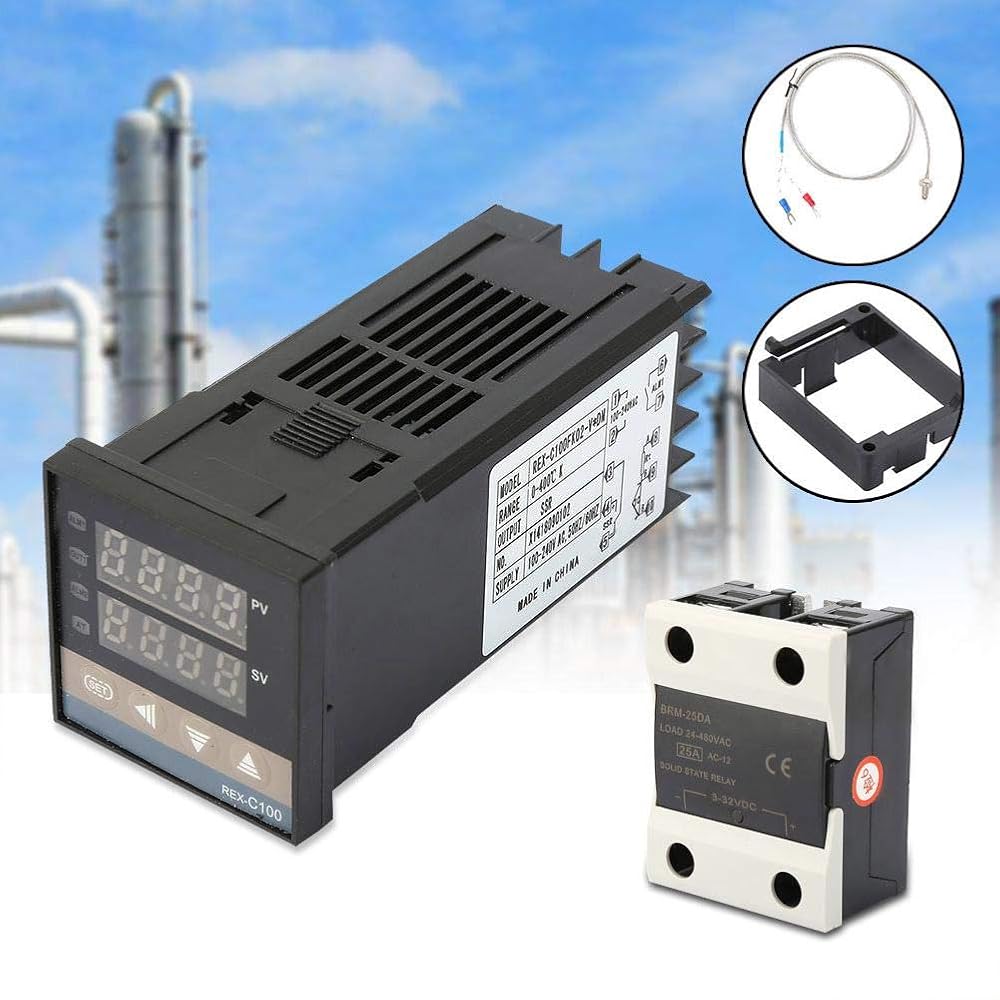

Package List:
1 x REX-C100 Temperature Controller
1 x K-type Thermocouple
1 x Solid-state Relay
