Functions:

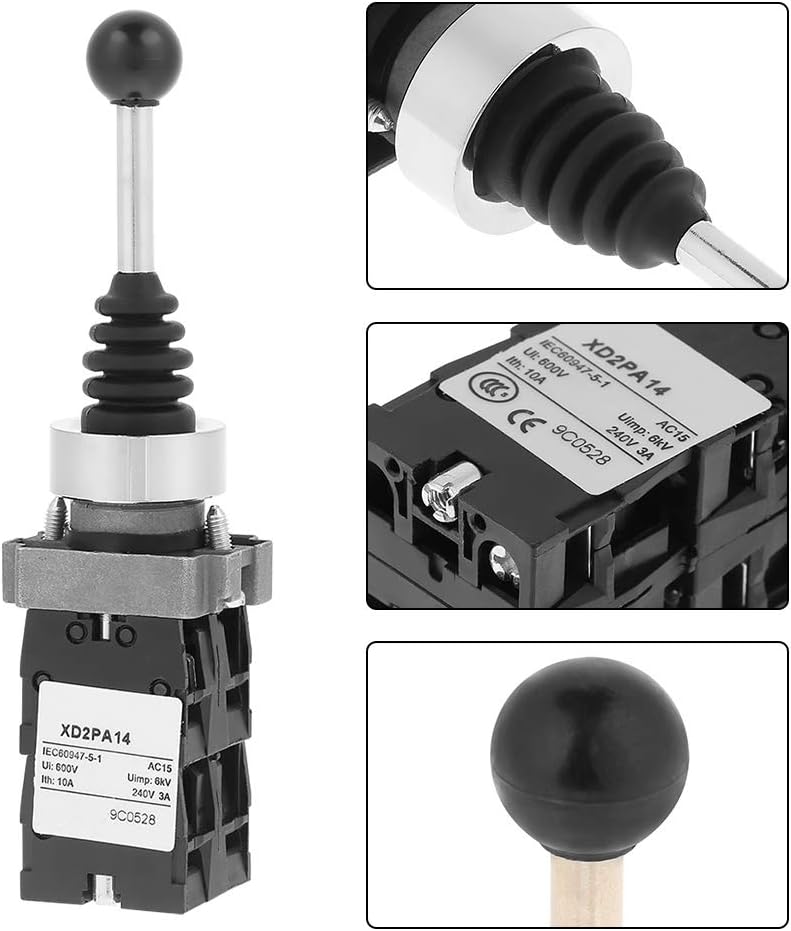

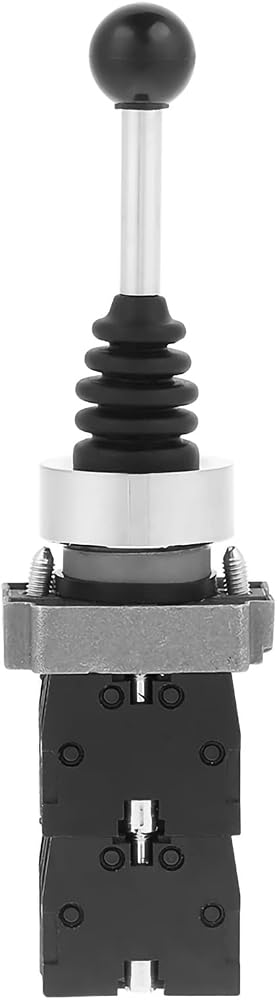

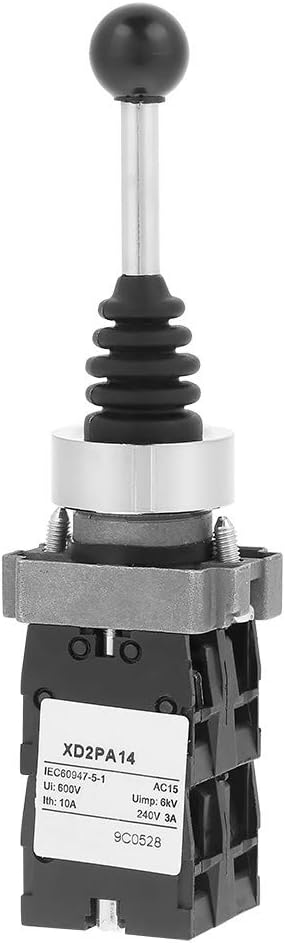

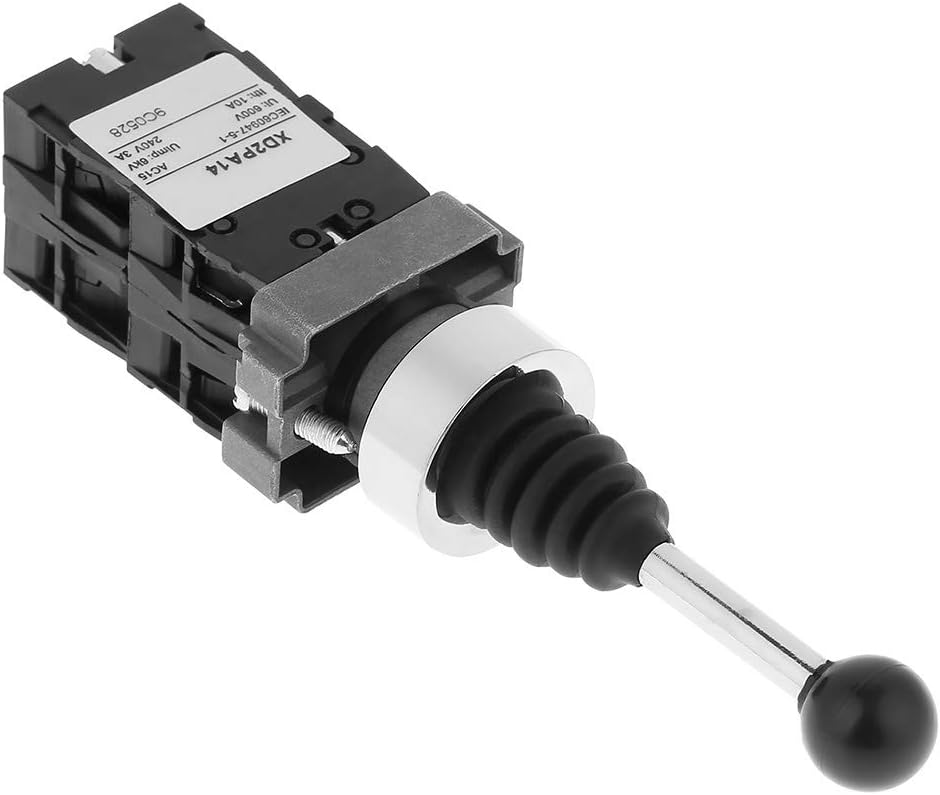

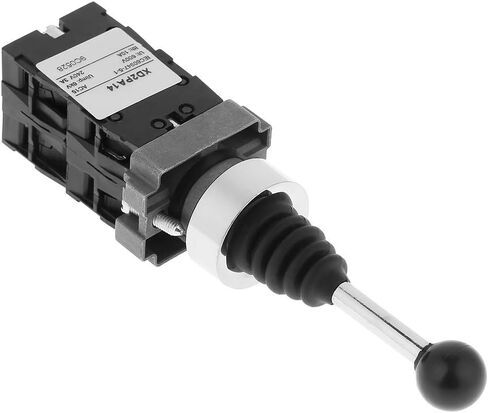

The joystick switch is a latch switch that has 4 normally open contacts.
Made of high quality material, this switch is durable and has good performance.

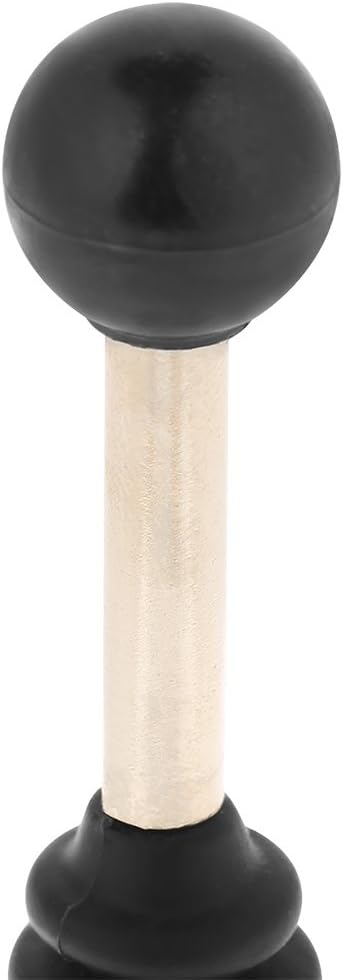

The rubber cover on the stick is waterproof, oil and dust resistant.
Widely used for AC 50Hz and DC industrial control circuits.
It can control magnetic starters, contactors, relays and other electrical circuits.

Specifications:

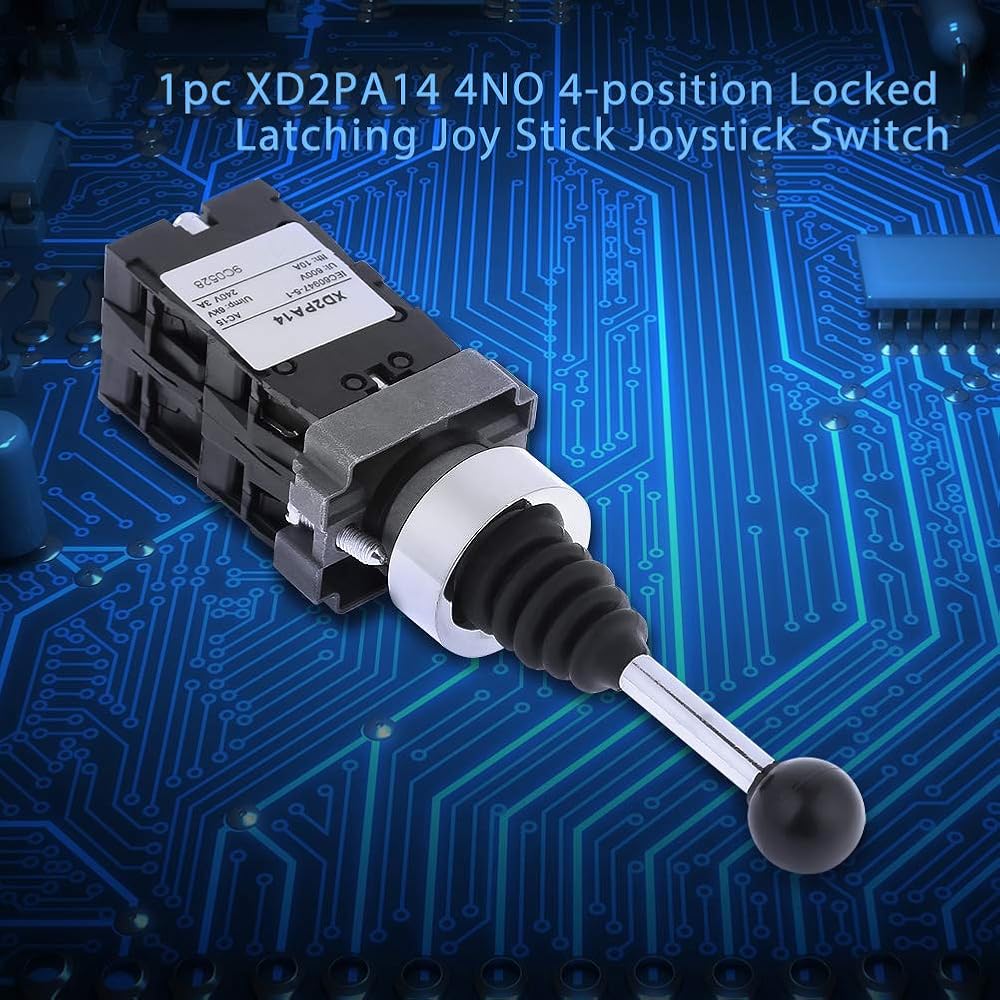

Model No.: XD2PA14

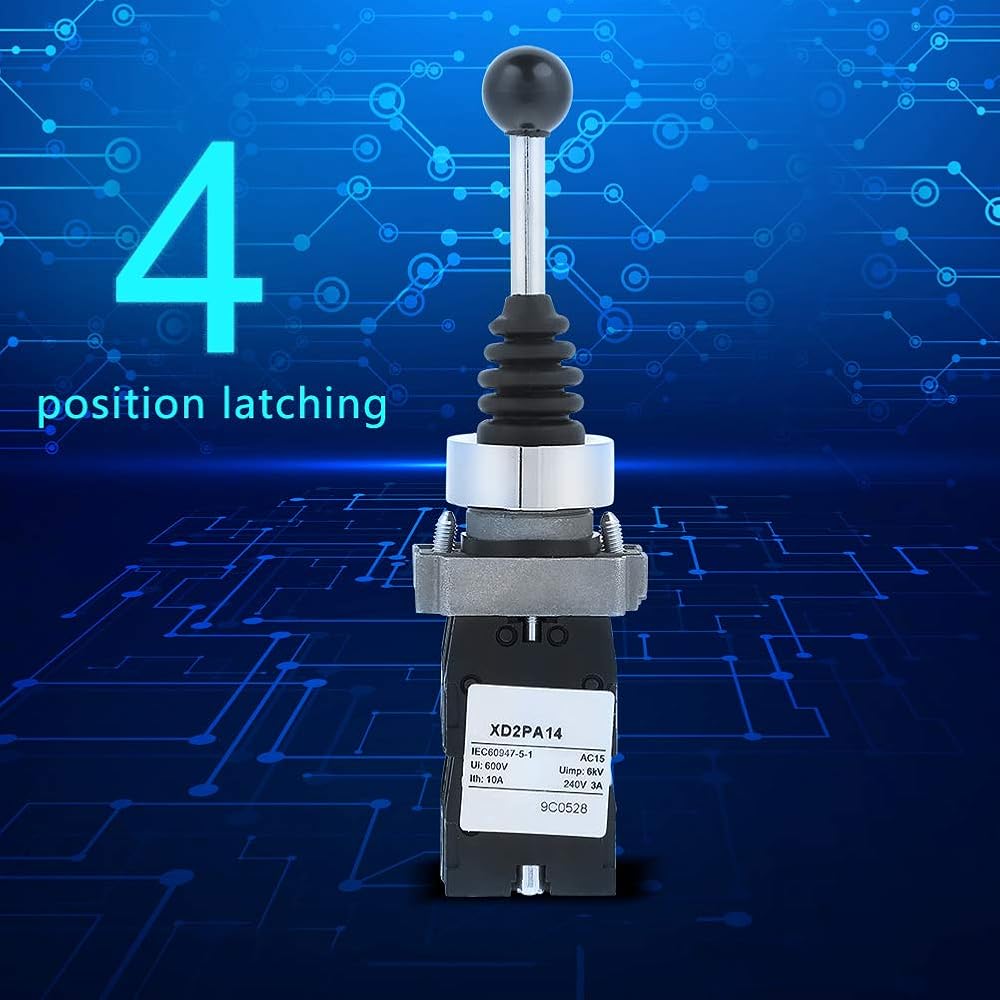

Type: 4-position latch

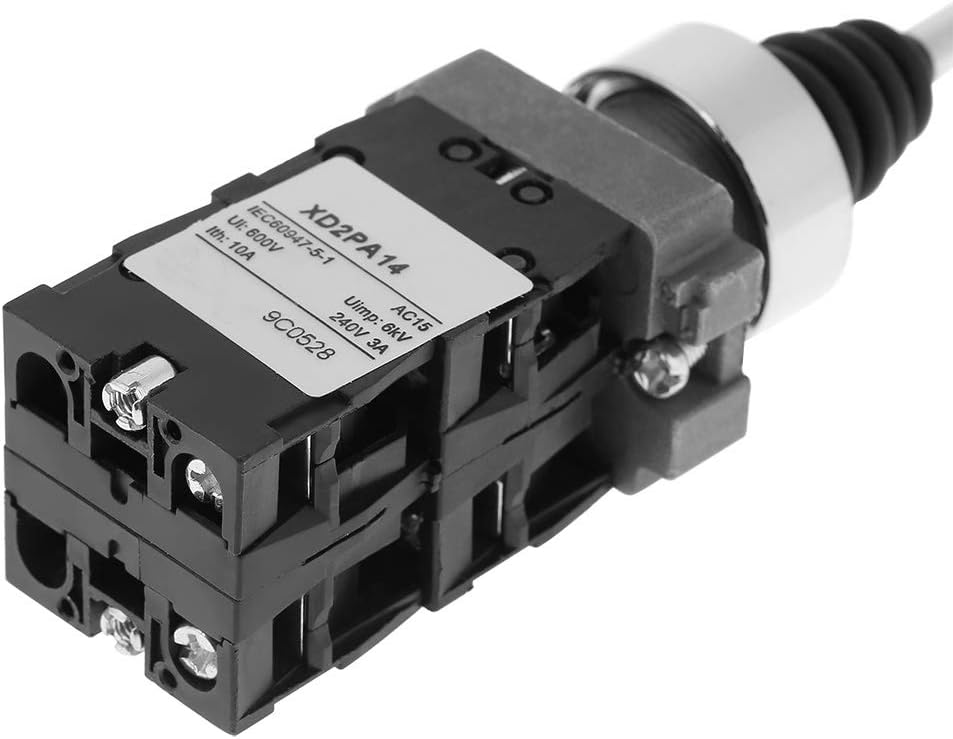

Contact: 4NO
Rated Voltage: 0~380V AC (50Hz); 0~220V DC
Mounting hole diameter: 22mm
Rated Isolation Voltage (Ui): 600 V
Rated Impulse Resistance Voltage (Uimp): 6Kv
Thermal Current Rating(Ith): 10A
Operating temperature: -25~+55℃(without ice)
Operating humidity: 45~85%RH (non-condensing)
Contact resistance: ≤50mΩ
Insulation resistance: ≥100Ω
Max. Resistance voltage: 3000V, AC 50Hz
Vibratility: 50Hz, amplitude is about 1mm. Shock resistance: > 10m/s² (about 10G)
Electrical life: > 3,000,000 times
Mechanical life: 1,000, 000 times

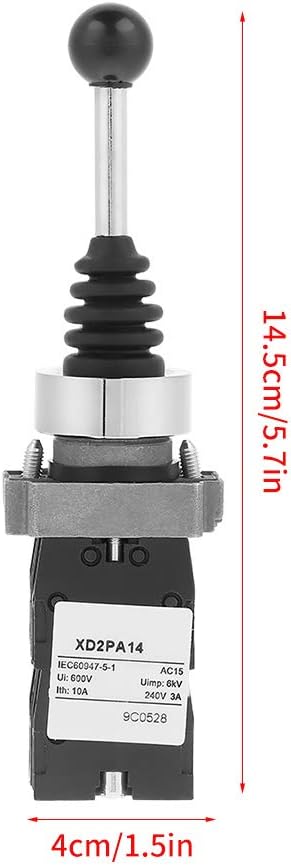

Size: 14.5 x 4cm/5.7 x 1.6 inches
IP Rating: IP40 Weight: 150g (approx.)

Package includes:
1 x Switch
