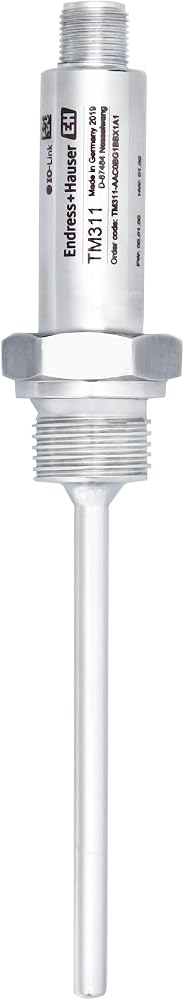

ميزان الحرارة TM311-AAC0BD3BBX1A1 TipSens؛ 0…150 درجة مئوية in Saudi Arabia

ميزان الحرارة TM311-AAC0BD3BBX1A1 TipSens؛ 0…150 درجة مئوية

SAR 810
– 1 +

مميزات خاصة

  • Compact, accurate and fast Pt100 RTD sensor with IO-Link and 4-20mA
  • 50 mm immersion depth and best-in-class response time with a T90 of 1.5 s
  • Suited for Non-hazardous areas and a temperature range of -50 to 200 °C
  • Fast installation and easy commissioning thanks to compact dimensions for installation in tight spaces
  • Version with iTHERM TipSens ensures a highly accurate measurement for short immersion lengths for example in small pipelines in the food and beverages industry.
  • Measurement accuracy: class A acc. to IEC 60751

وصف

The iTHERM CompactLine TM311 is a thermometer that provides accurate and fast process temperature measurements in hygienic and aseptic applications. It is available with a common Pt100 RTD or a Pt100 RTD with TipSens technology reaching response times as low as 1.5 s (t90) for optimum process control. The sensor is very accurate even with short immersion lengths. Features: -Approval: Non-hazardous area -Output: IO-Link/4-20mA, 0...150oC -Design; Diameter Insert: W/o thermowell, direct contact; 6mm -Material Wetted Parts: 316L -Process Connection: Clamp > NA Connect ISO2852, DN40 - 51 (2"), form B -Surface Wetted Parts: Ra
