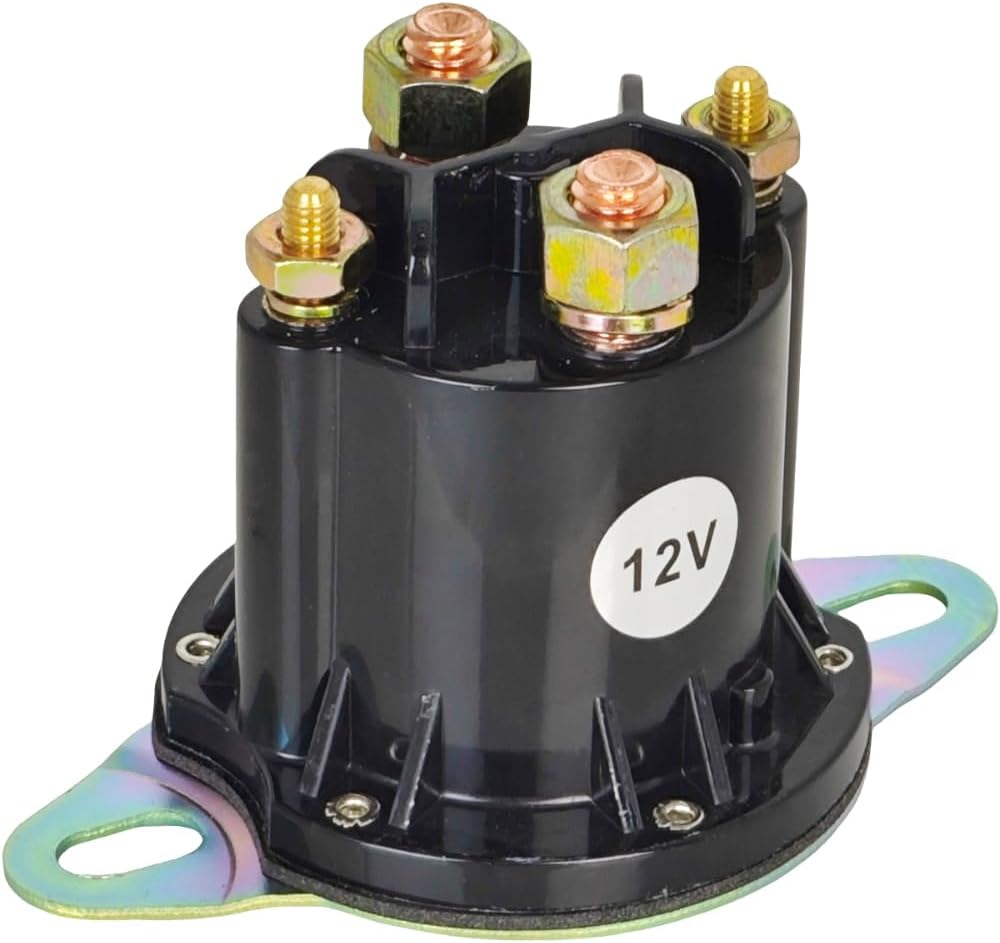

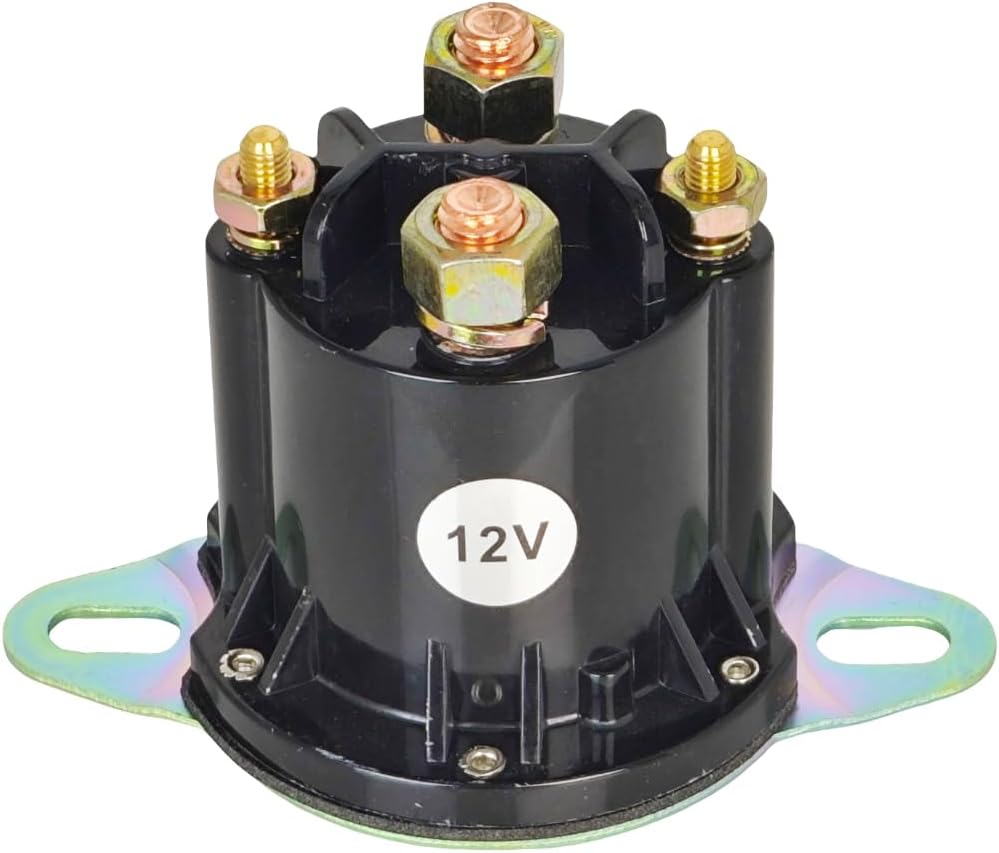

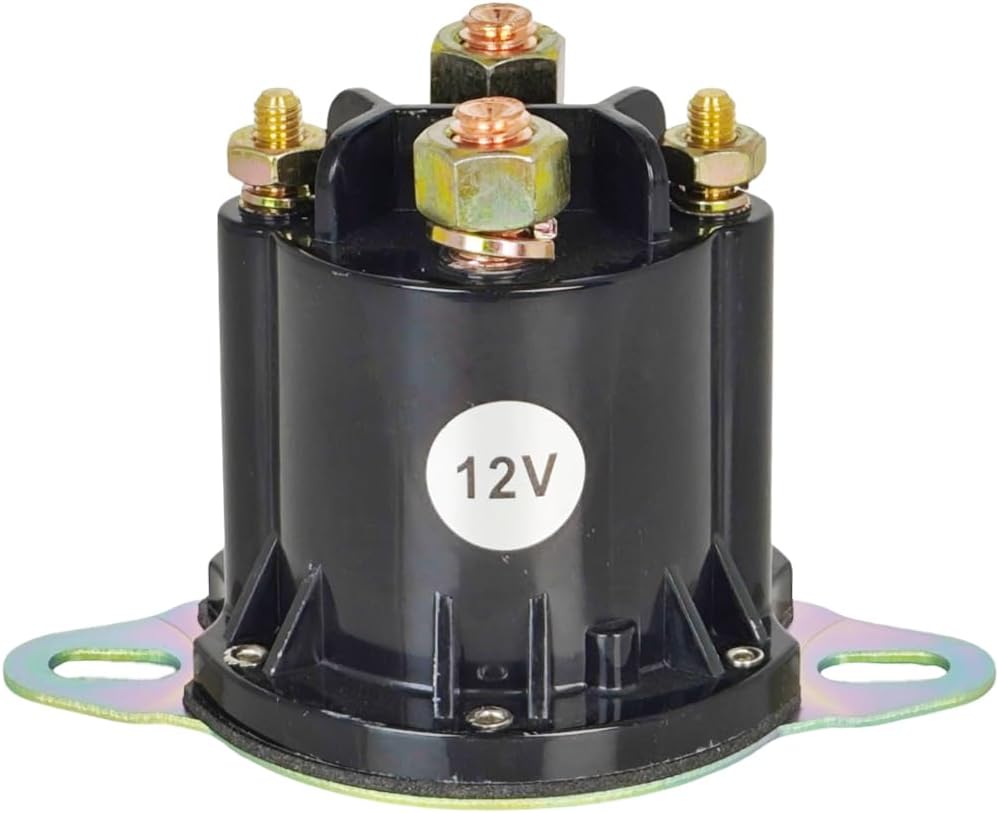

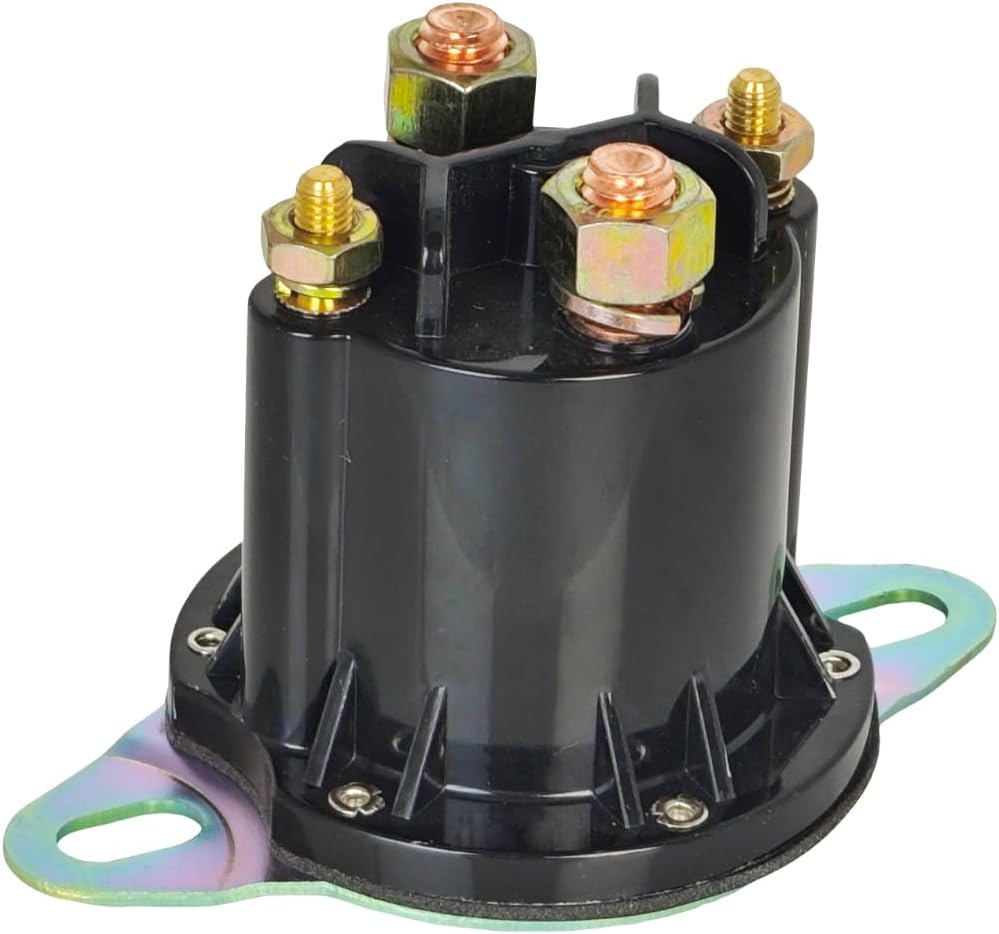

XYZIL 12V 150A 684-1221-012 56131K 5794K-1 Solenoid Motor Relay Compatible with Western Fisher Snow Plow 16160410 1306317 Compatible with Trombetta Powerseal DC Contactor Continuous 4 Terminal

SAR 102
Brand
XYZIL
– 1 +

Special Features

  • Part Number: 684-1221-012, 684-1221-012-02, HYD01633, 16160410, 56131K, 5794K-1, 56131, 56131K-2, W56134, W56131K, 25634, 1306317, B80051, 56134, SO51189
  • Voltage: 12V
  • Carry Current 150 Amps, Inrush 800 Amps
  • Terminals: 4
  • Duty cycle: 100% continuous duty

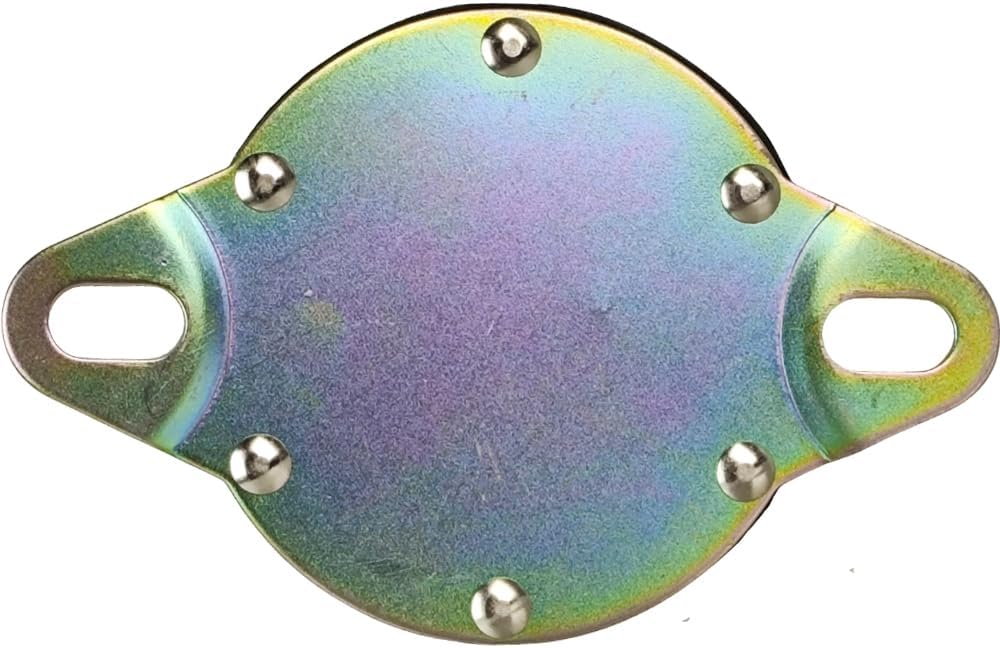

  • Mounting Type: 180-degree Flat-Bracket

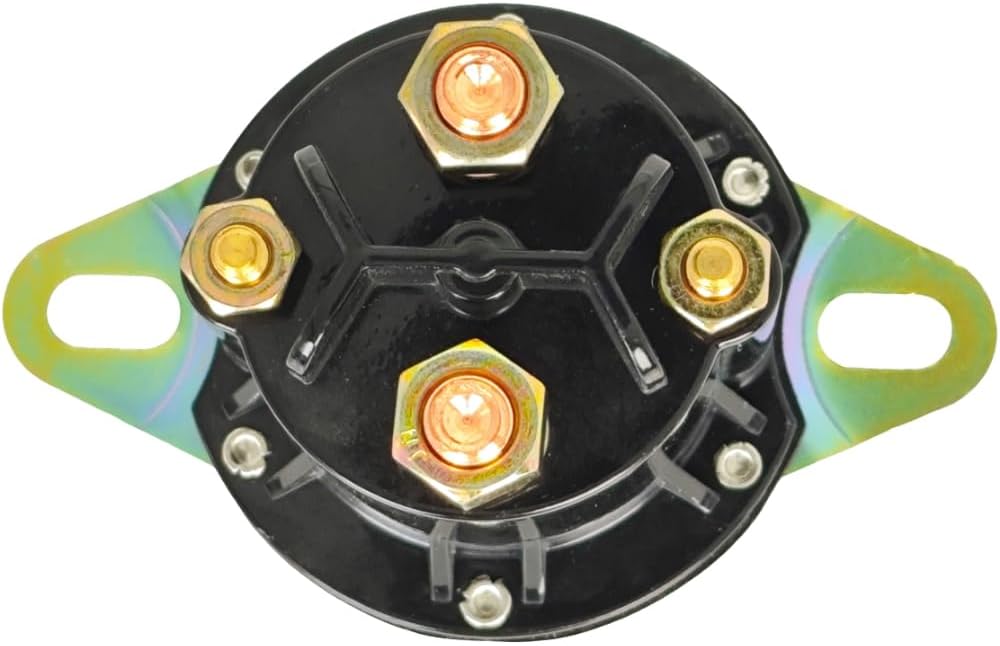

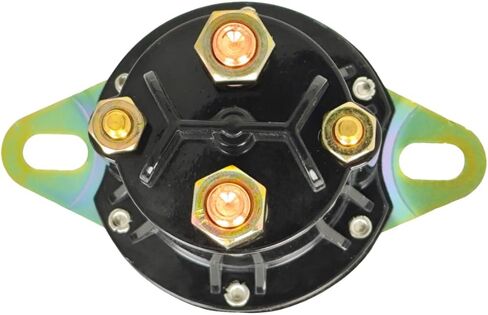

  • Coil terminals: (2) Non-Grounded 10-32 Studs
  • Contact studs: (2) 5/16-24
  • Contact material: Copper
  • If your application requires a sealed or submersible design, you must have this one.Sealed design protects against dust and water jets. IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If this unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.

Description

Part Number:
684-1221-012, 684-1221-012-02, HYD01633, 16160410, 56131K, 5794K-1, 56131, W56134, W56131K, 25634, 1306317, B80051

Specification:
Voltage: 12V
Carry Current 150 Amps, Inrush 800 Amps
Terminals: 4
Duty cycle: 100% continuous duty
Mounting Type: 180-degree Flat-Bracket
Coil terminals: (2) Non-Grounded 10-32 Studs
Contact studs: (2) 5/16-24
Contact material: copper
Sealed Design protects against dust and water jets.

If your application requires a sealed or submersible design, you must have this one.Sealed design protects against dust and water jets. IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If this unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.

Mounting Instructions:
1. Select a desired mounting location
2. Using the contactor as a template, mark the centers of the mounting holes.
3. Using a ¼” drill bit, drill the holes marked in the previous step.
4. Mount the contact using ¼' bolts and nuts.
5. Wire the relay according to the wiring diagram
