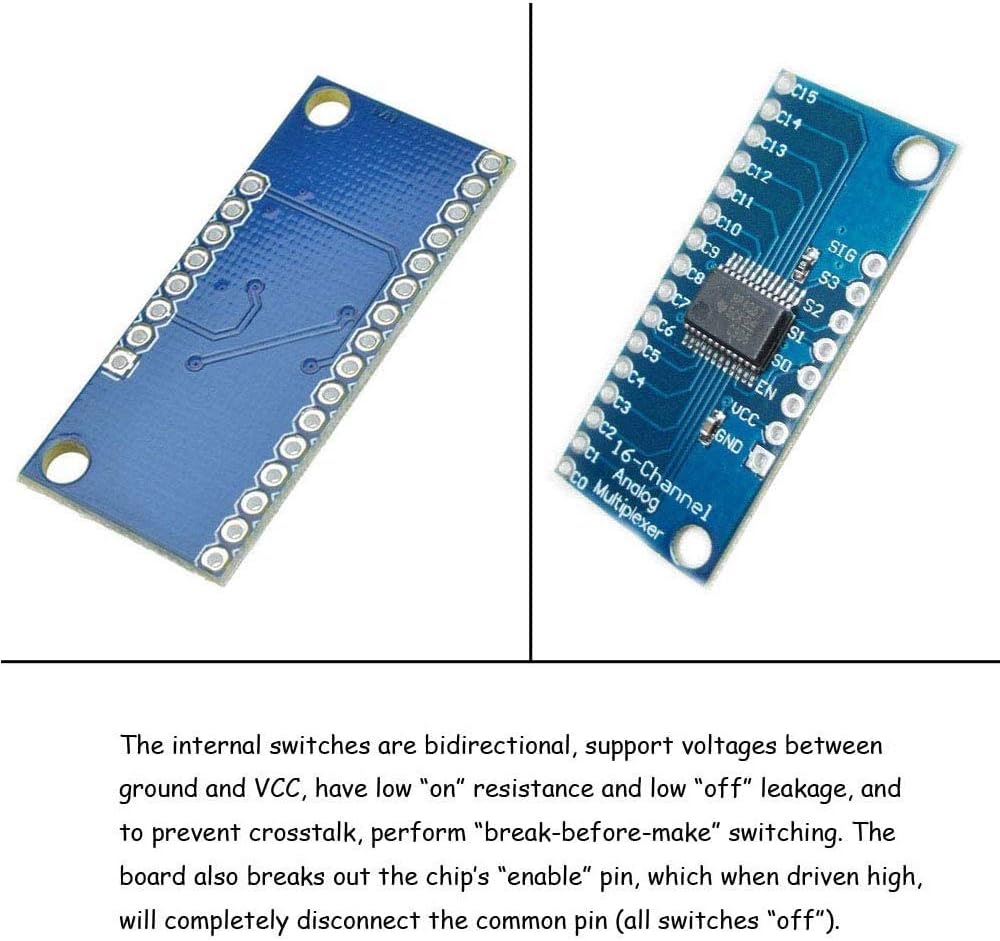

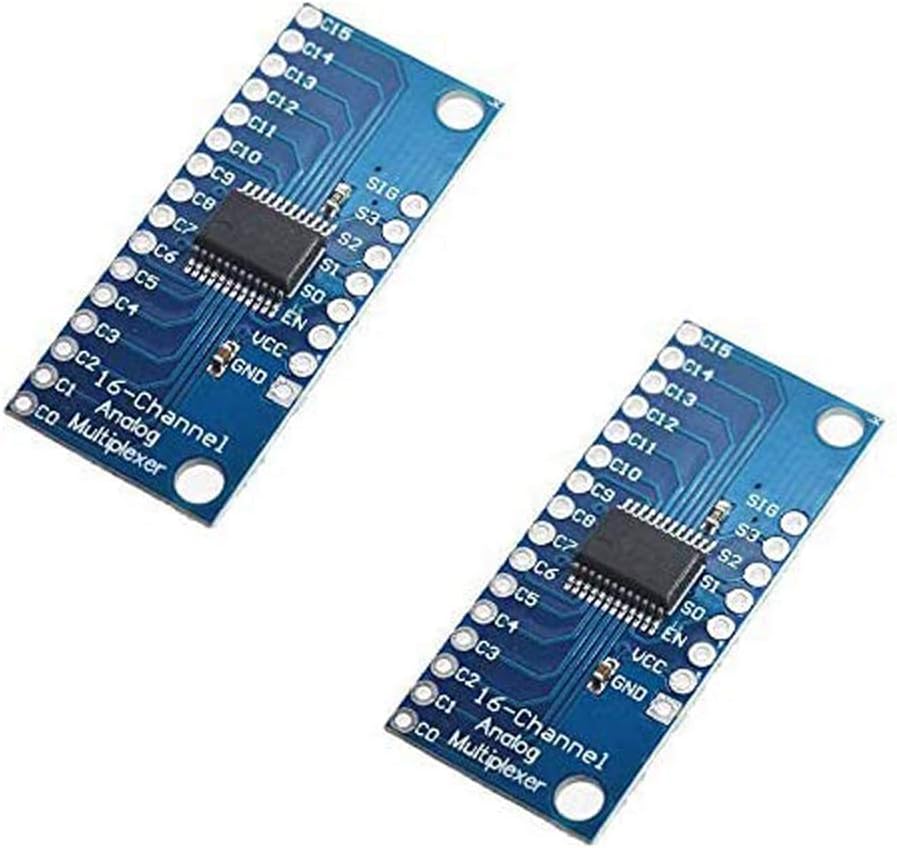

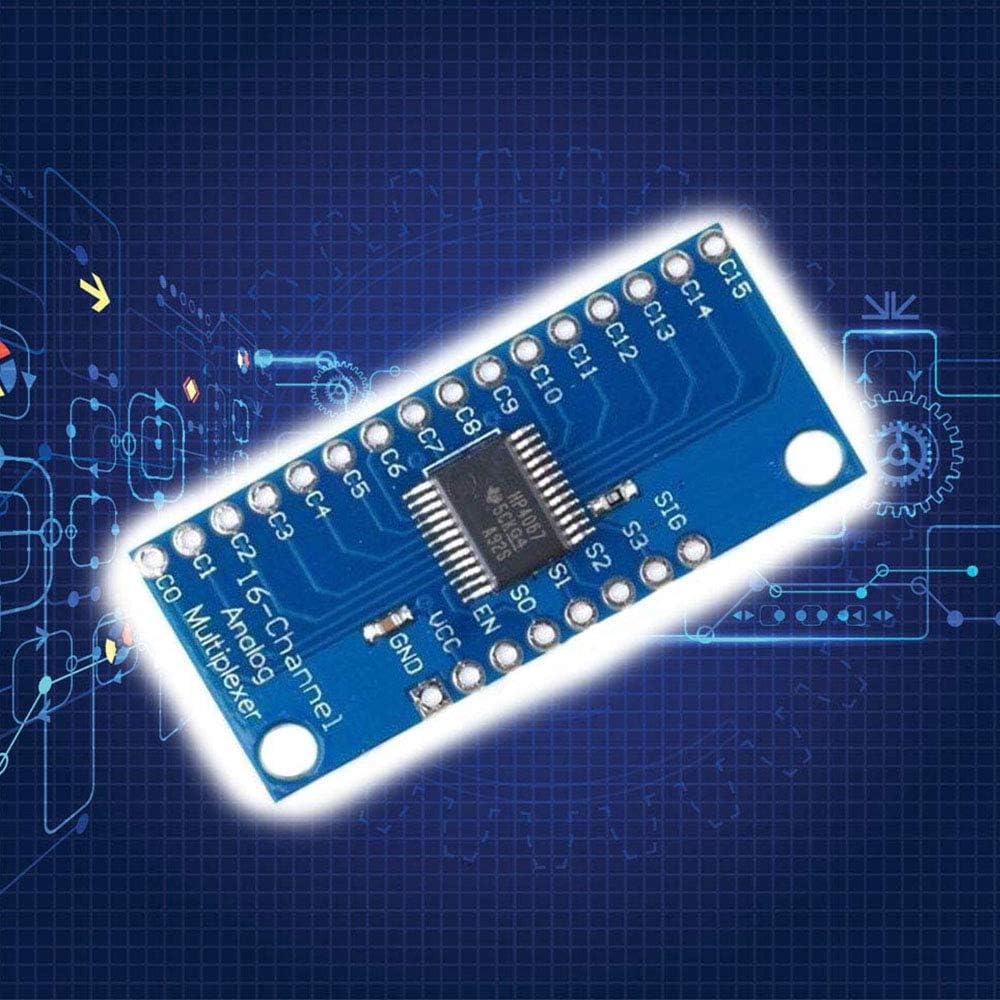

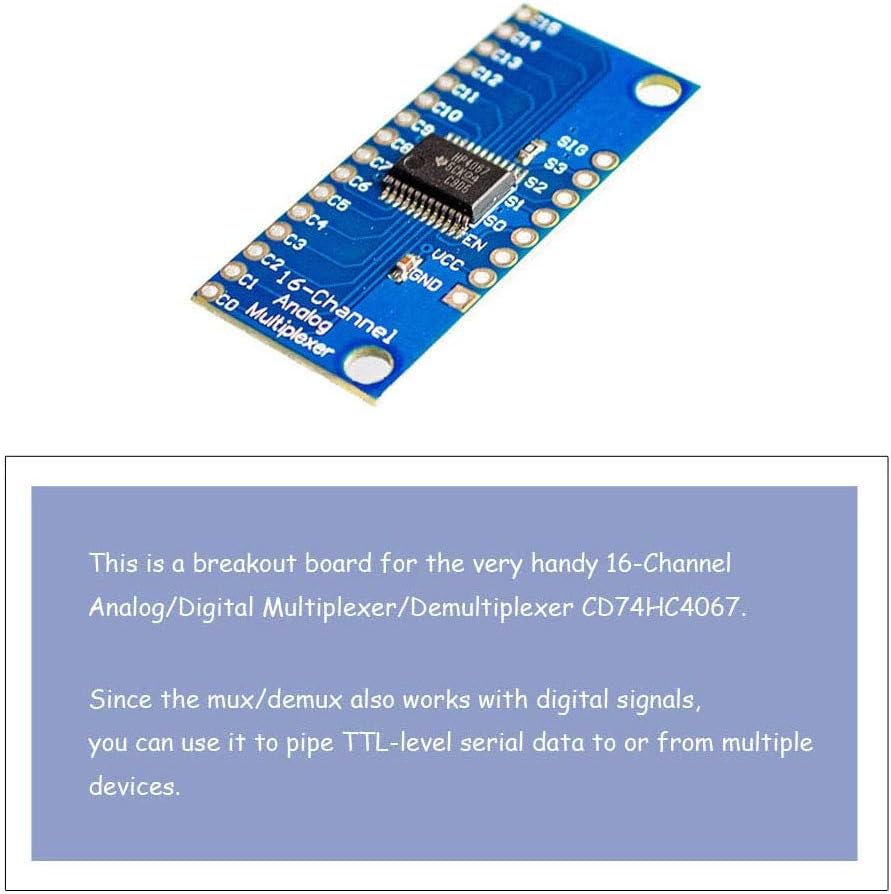

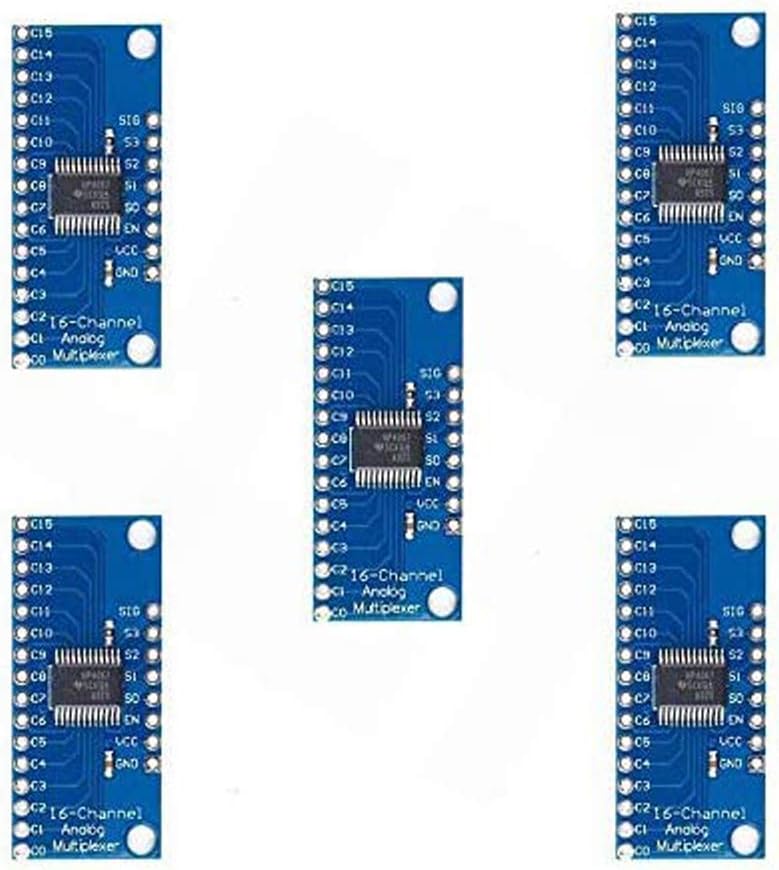

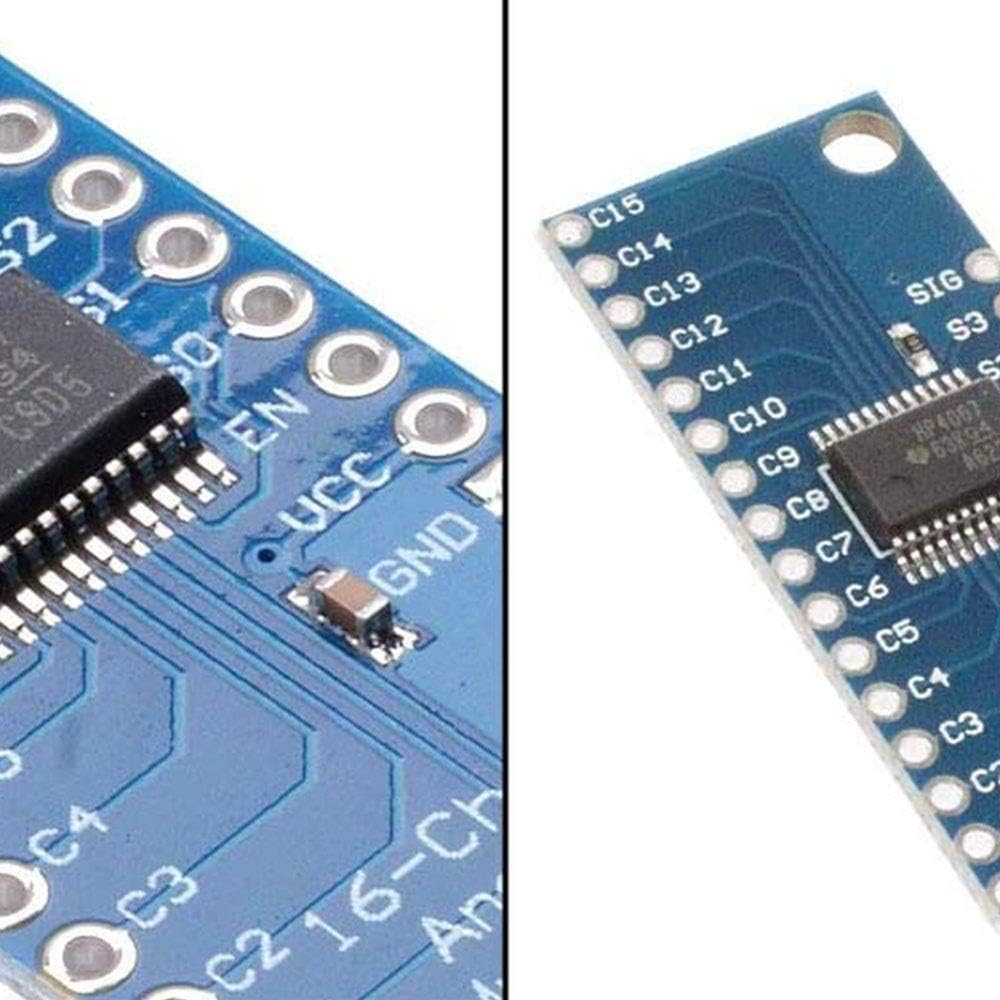

16CH Analog Digital Multiplexer Breakout Board Module CD74HC4067 CMOS Precise Module
Description:
It works with both digital and analog signals (the voltage can't be higher than VCC), and the connections function in either direction.To control it, connect 4 digital outputs to the chip's address select pins (S0-S3), and send it the binary address of the channel you want. This allows you to connect up to 16 sensors to your system using only 5 pins!

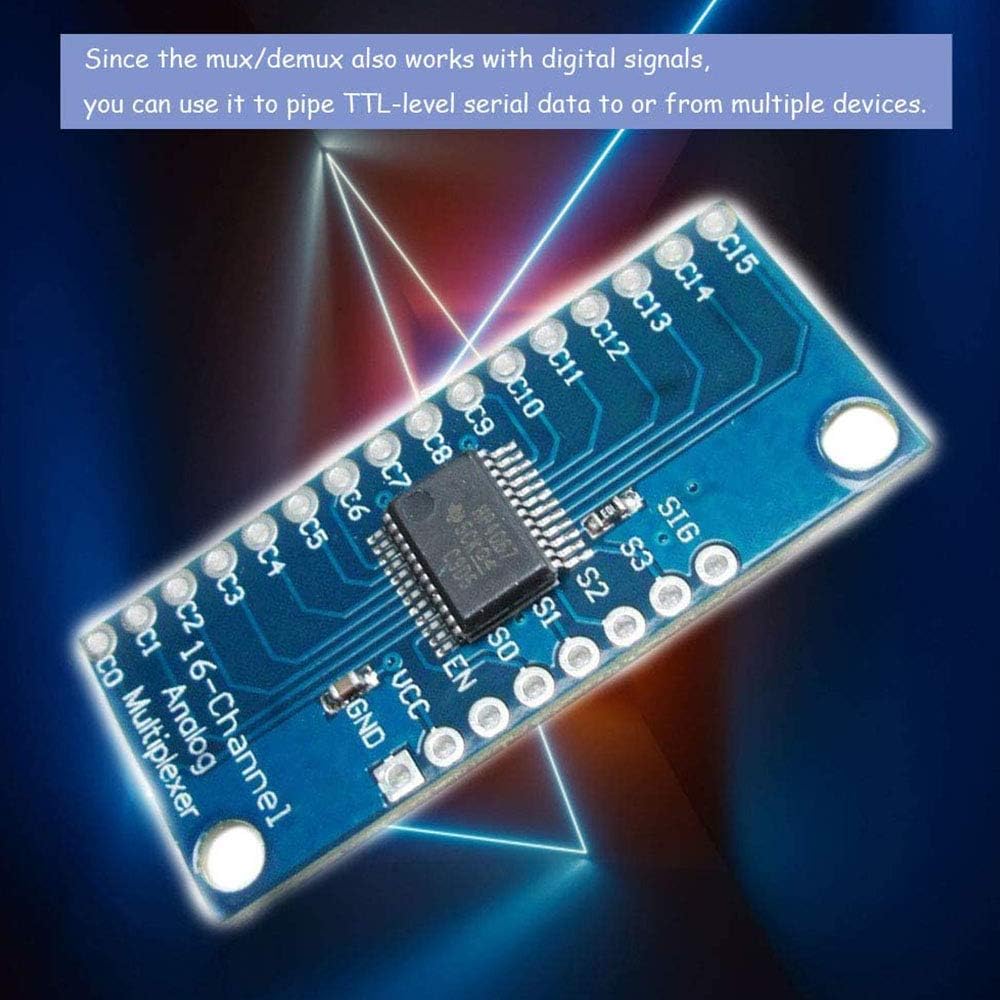

Since the mux/demux also works with digital signals, you can use it to pipe TTL level serial data to or from multiple devices. For example, you could use it to connect the TX pins of 16 devices to one RX pin on your microcontroller. You can then select any one of those 16 devices to listen to. If you want two-way communications,you can add a second board to route your microcontroller's TX line to 16 device's RX lines. By using multiple boards, you can create similar arrangements for I2C,SPI,etc.

Specifications:

2V to 6V operation
“On” resistance: 70 Ohms @ 4.5V
6ns break-before-make @ 4.5V
Wide operating temperature range: -55C to 125C
Analog signal input: C0-C15/16 channel
Analog output: DIG
Channel control: S0-S3
Note:
Light shooting and different displays may causethe color of the item in the picture a little different from the real thing.The measurement allowed error is+/-1-3cm.
We highly appreciate all custome rsopinions to improvethe selling, also if anything you unsatisfied, please contact us for probable best solution. Thank you

Package Included:

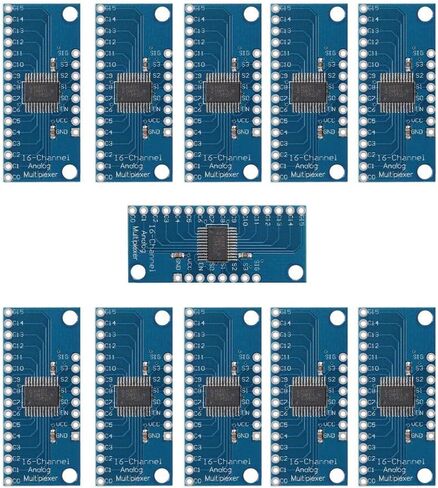

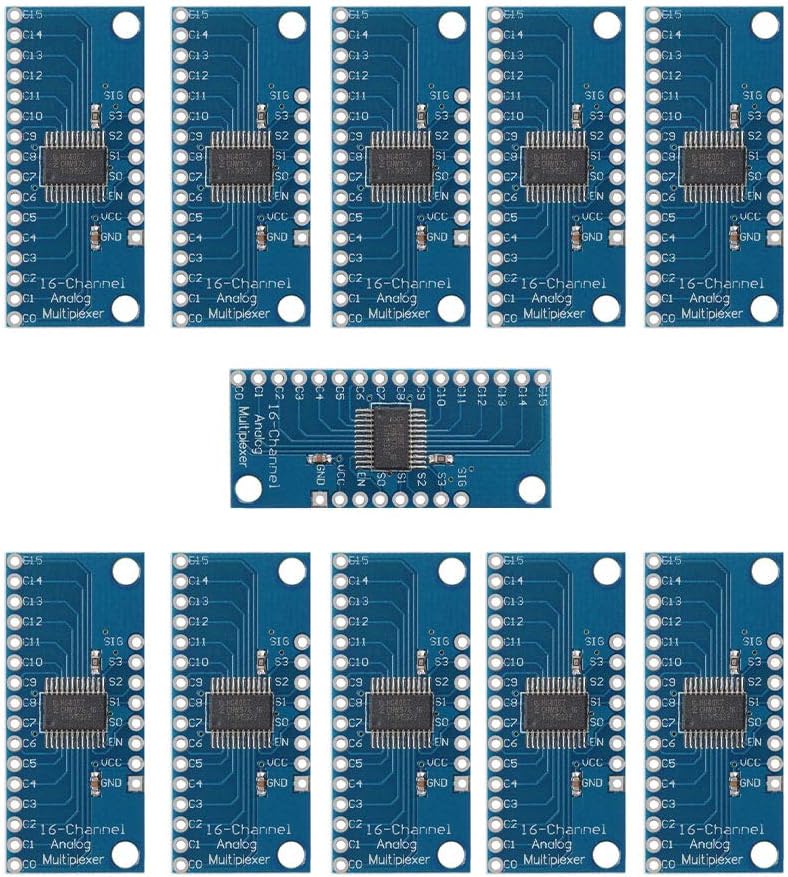

11Pcs 16CH Analog Digital Multiplexer Breakout Board Module CD74HC4067 CMOS Precise Module(If there are any problems with the product, please send us pictures.Tell us more details about this problem)
