FEATURE
-Measurement frequency up to 100kHz, continuously adjustable in 1Hz steps
-Supports measurement of electrolytic capacitors
-Automatic recognition of components during measurement
-Supports filtering and deviation measurement
-2.8” TFT display, 4½-digit display
-USB communication interface
-Powered by large-capacity lithium battery
-Supports SCPI protocol
-Basic measurement accuracy of 0.3%, adjustable measurement speed
-Manual and automatic range selection
-Open circuit and short circuit calibration

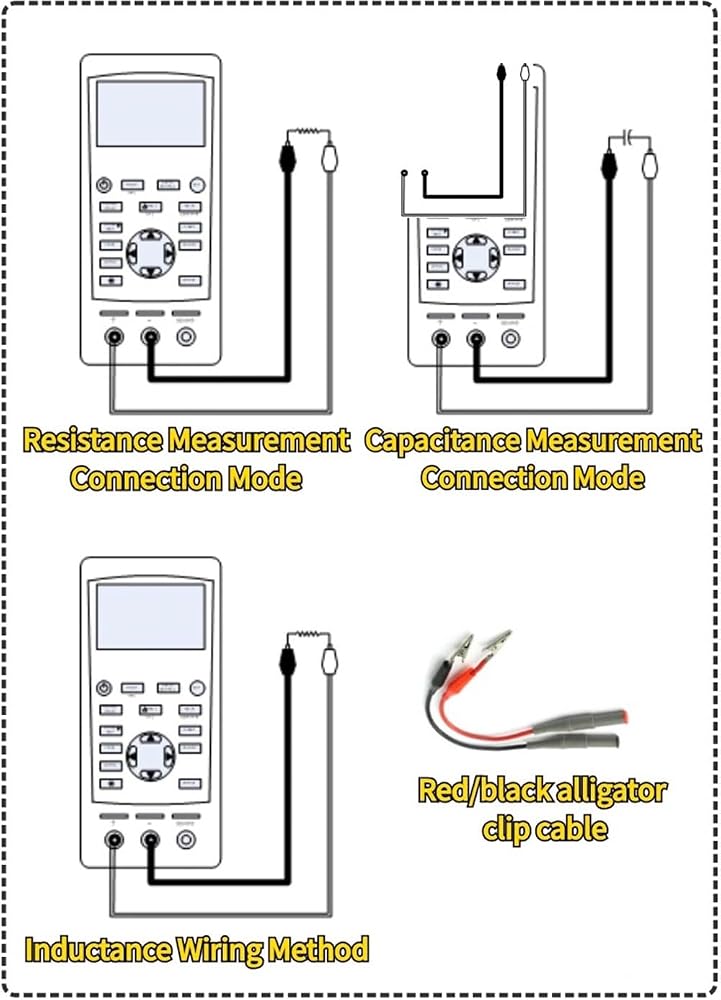

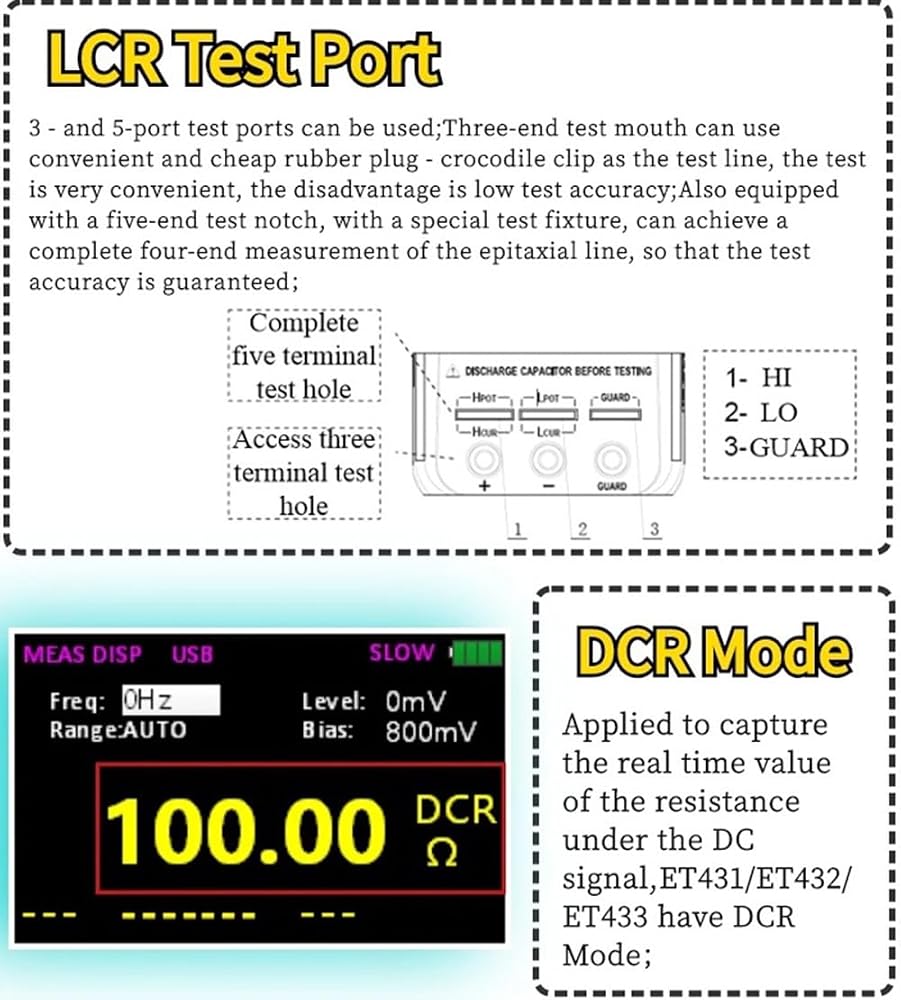

-Multiple testing ports
-Supports system settings, allowing configuration of buzzer, screen brightness, etc. according to user preferences
SPECIFICATION
-Test Frequency: 100Hz, 120Hz, 1KHz, 10K Hz,40kHz, 100KH z
-Basic Accuracy: 0.30%
-Display: 2.8” TFT LCD
-Display Digit: Main parameters: 5 bits, secondary parameters: 5 bits
-Measurement Parameters: Main parameters: L/C/R/Z, sub-parameters: X/D/Q/theta/Equivalent Series Resistance

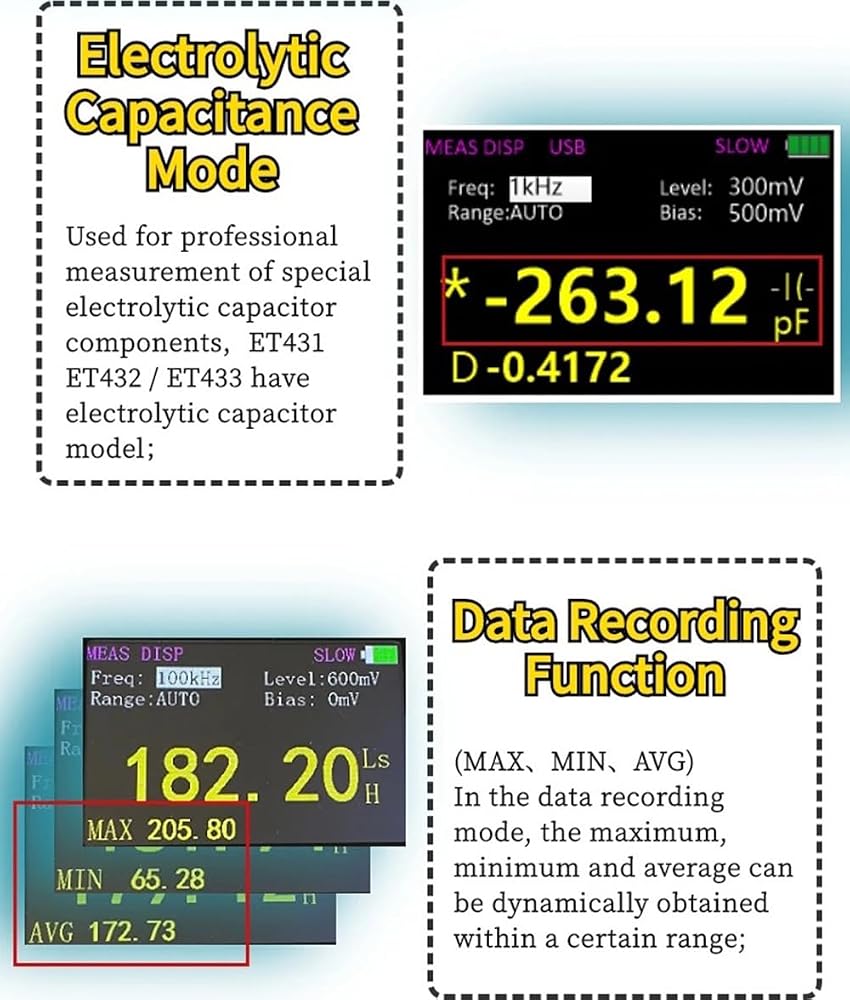

-Electrolytic Capacitor Mode: Yes
-Measurement Range: L: 0.000MH ~ 2000H, C: 0.000pF ~ 20.000mF, R: 0.000152 ~ 200.00M
-Measurement Display Speed: 1/s (slow), 2/s (medium), 4/s (fast)
-Test Level: 0.6Vrms
-Calibration Function: Open circuit calibration and short circuit calibration
Screening Function: The limit range of screening can be set to 1%-50%, of which the fixed points are 1%, 5%, 10%, 20%.
-Deviation Measurement: Used to compare the percentage of deviation between the component and the nominal value set and display
Others: Adjust backlight brightness, automatic shutdown time can be set, Chinese and English optional, USB Device communication

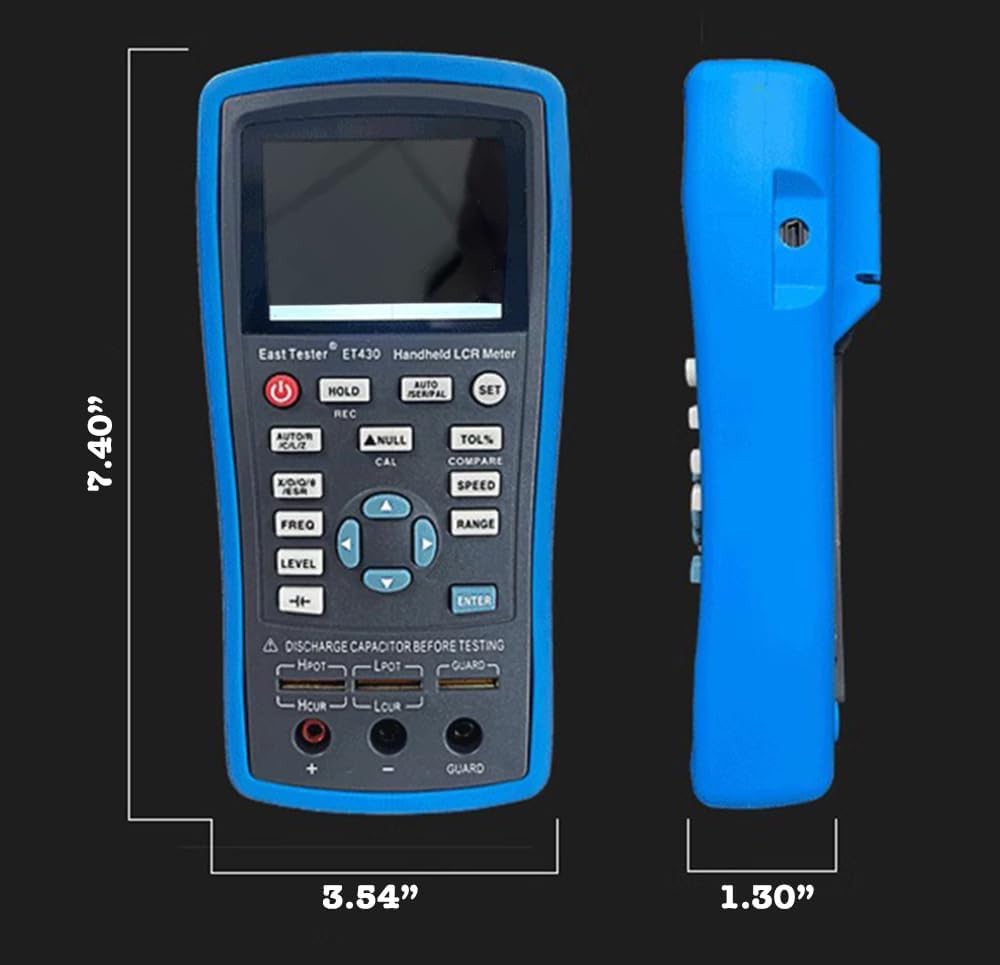

-Dimensions: 3.54*7.40*1.30in
PACKAGE

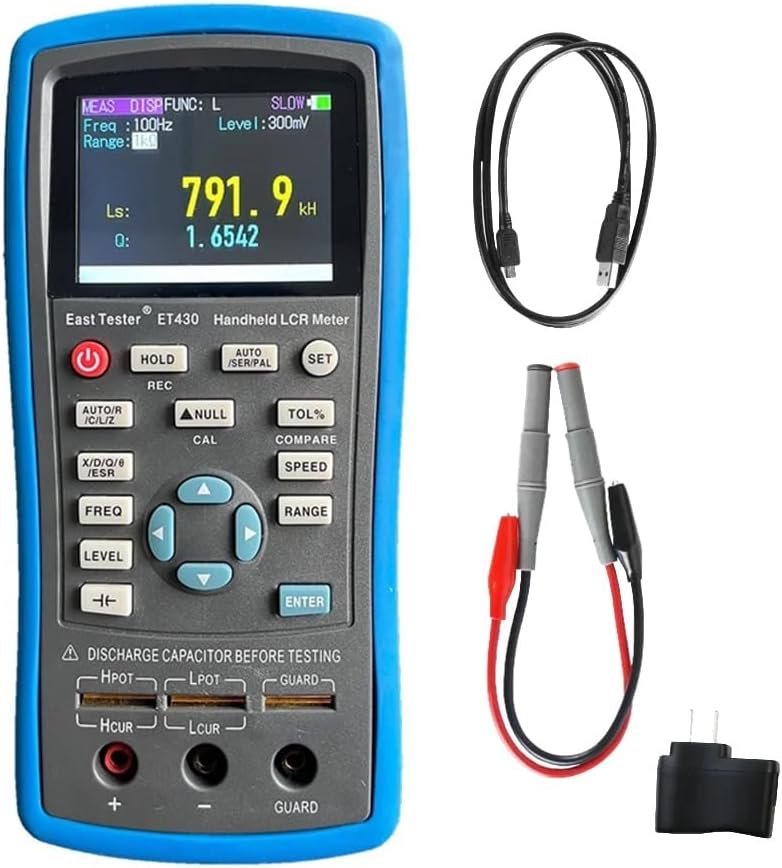

-1 x LCR Meter
-1 x USB Data Cable
-1 x Power Adapter
-1 x Short Circuit Chip
-1 x Rubber Plug
-1 x User Manual
