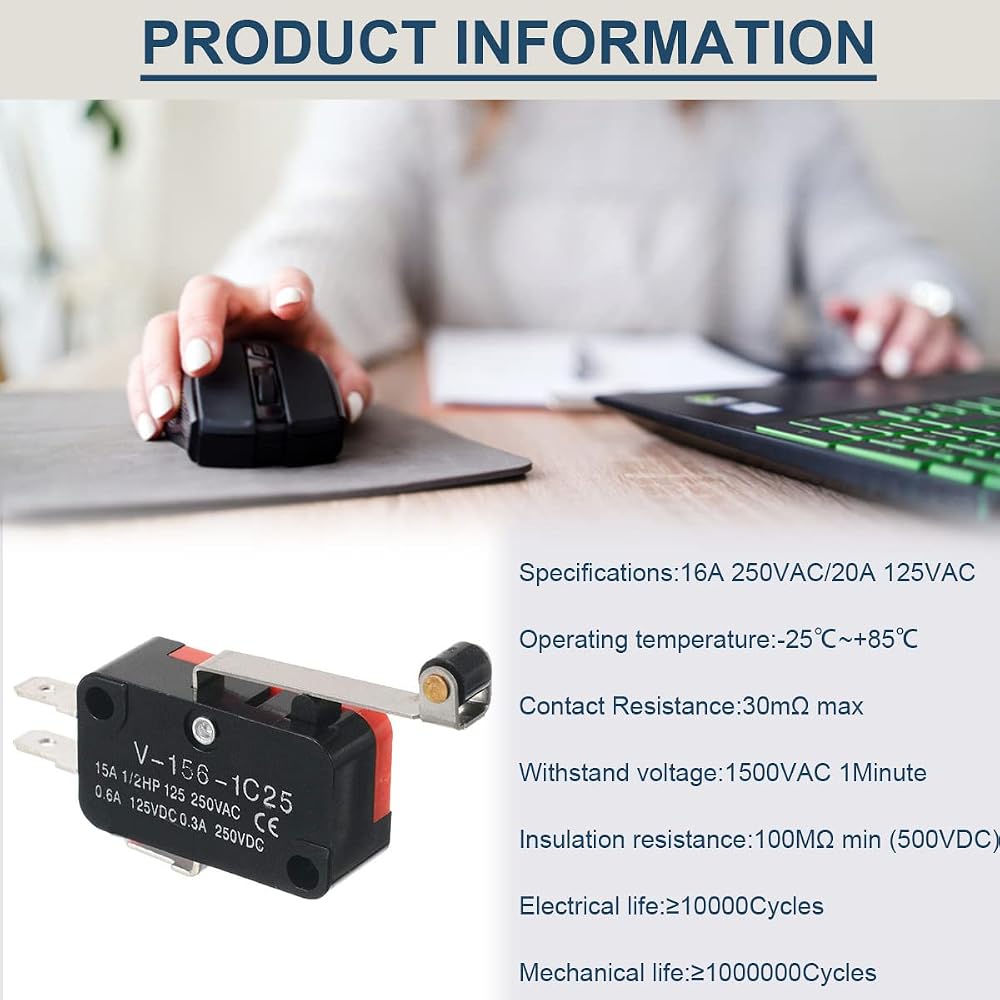

Specification：
Product name:Micro Limit Switch
Model: V-15-1C25
Working voltage: 250V
Working current: 15A
Working mode: self-reset
Contact resistance: ≤50mΩ
Insulation resistance: ≥100mΩ
Dielectric strength: pole to pole 1000VAC
Pole and Shell 1500VAC
Contact form: 1NO 1NC
Ambient temperature: T125

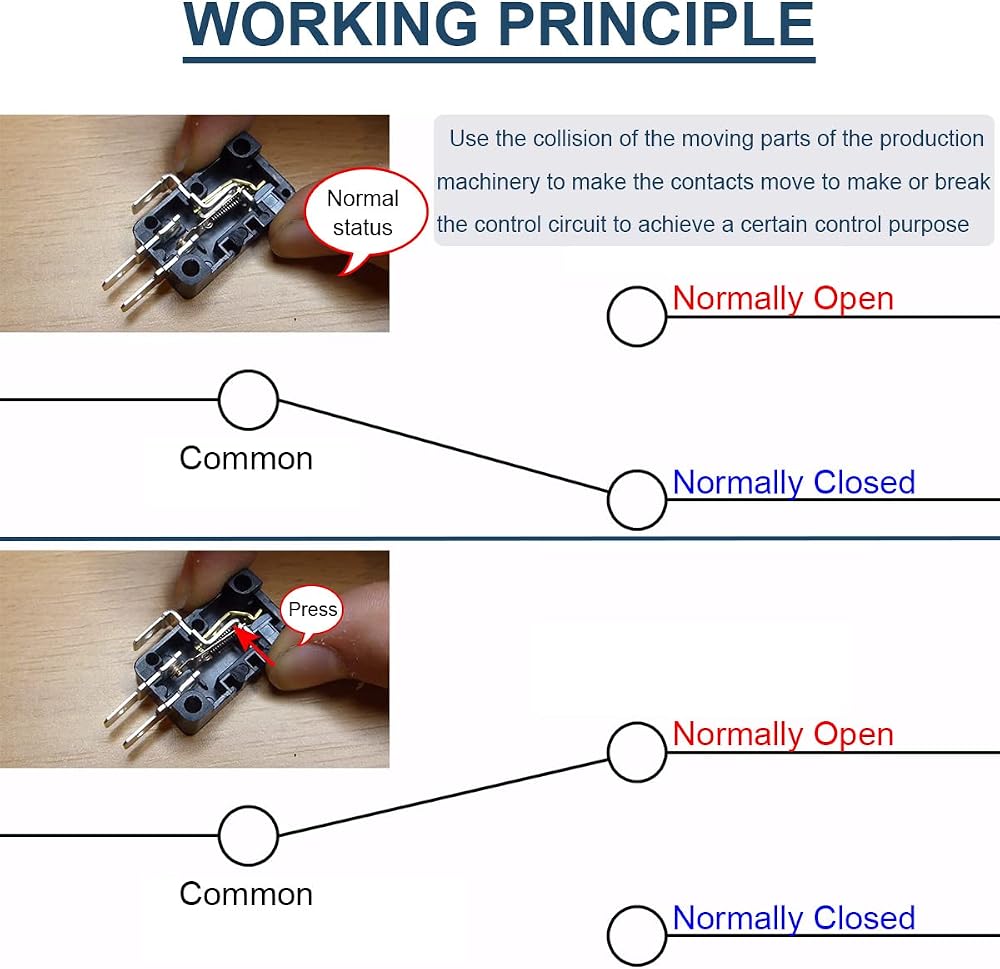

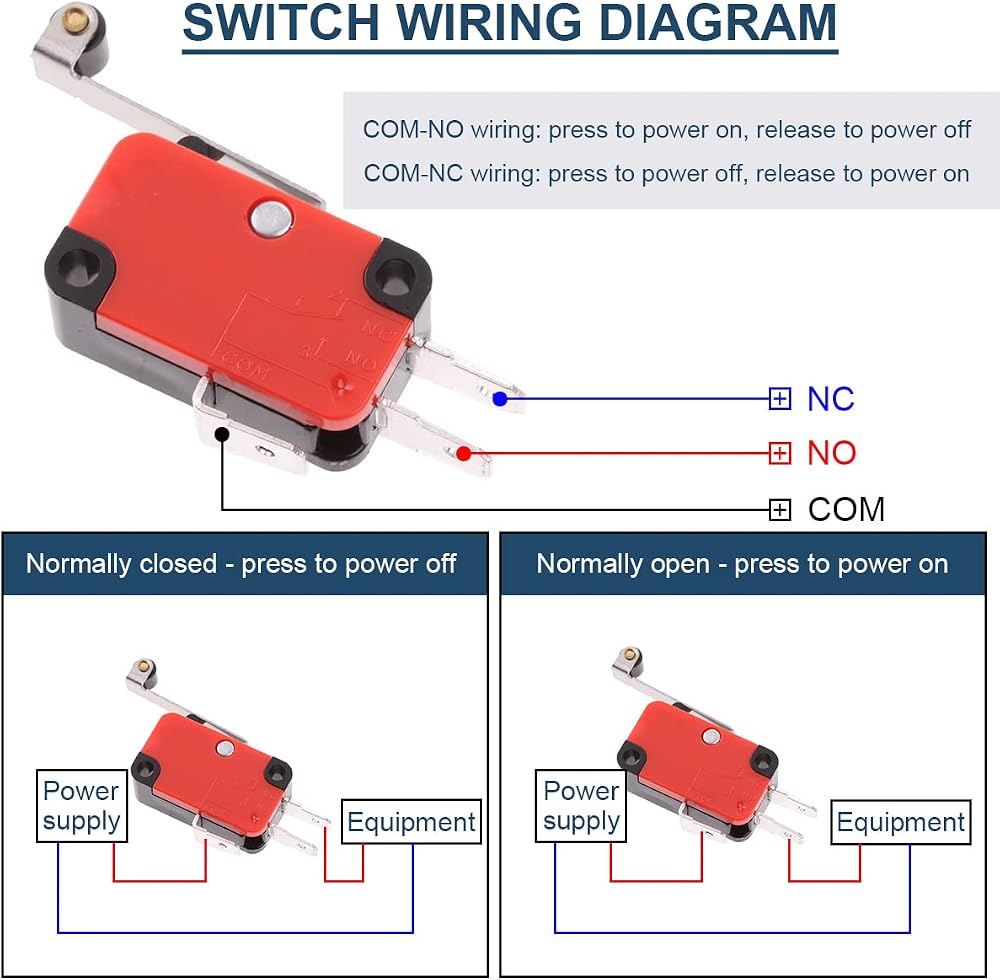

Pin definition:
NC (normally closed end): The relay is not energized, the NC and COM are connected, the contact is closed, and the switch is closed. After power up, NC and COM are disconnected
NO (Normally Open): The relay is not energized, NO and COM are disconnected and not connected. After power on, NO and COM are connected
COM (Common): refers to the common ground of all external input or output components

Application：
Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc

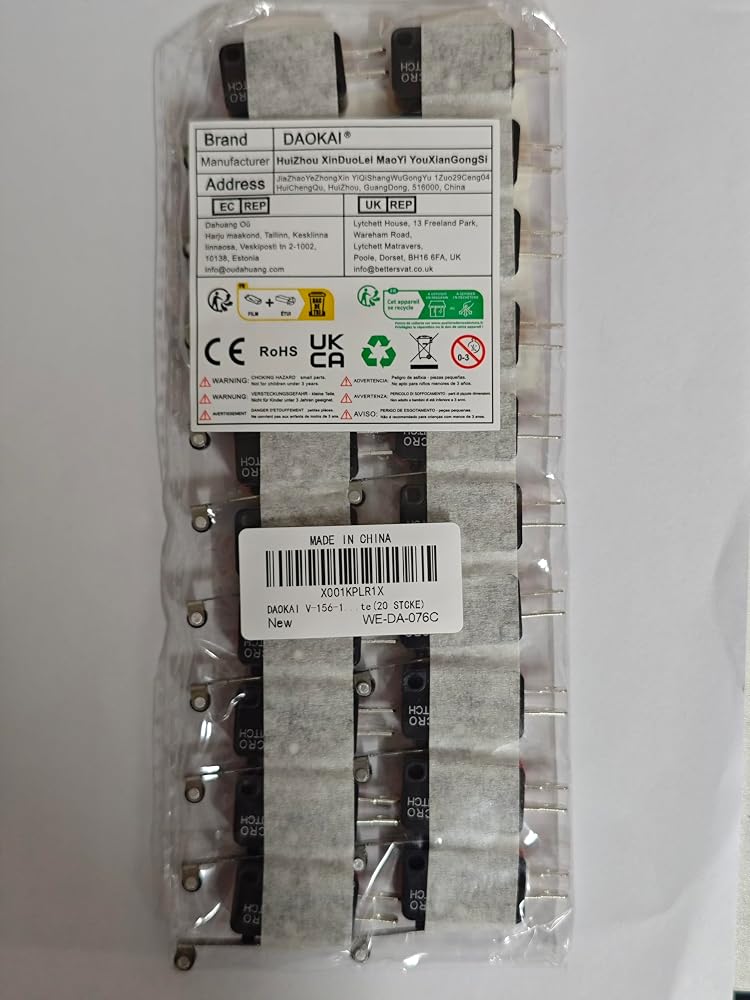

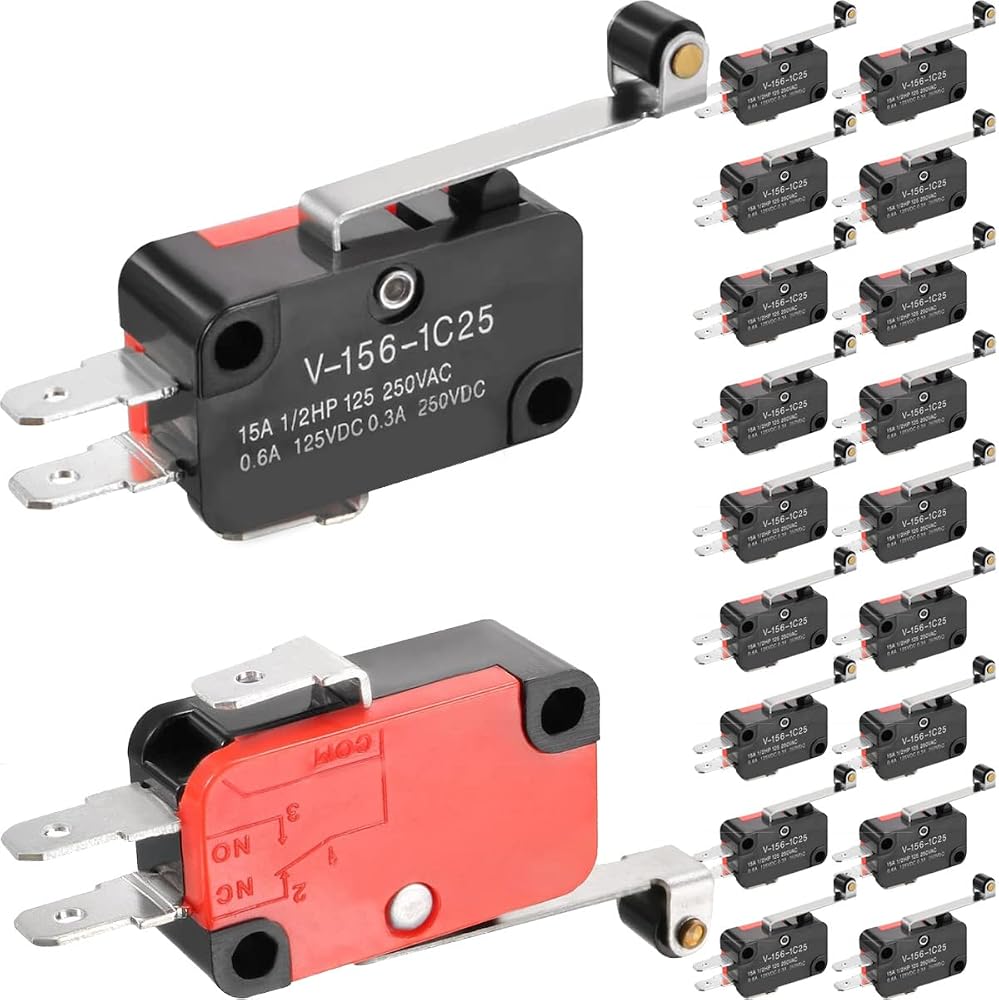

Package includes：
15 x 16A Micro Switch V-15-1C25
