موصل طاقة مقاوم للماء SD13 6PIN، قابس موصل طاقة كهربائي دائري عالي الجهد (أنثى) - مقبس (ذكر) (6 دبابيس، حامل لوحة × 3 مجموعات)
مميزات خاصة

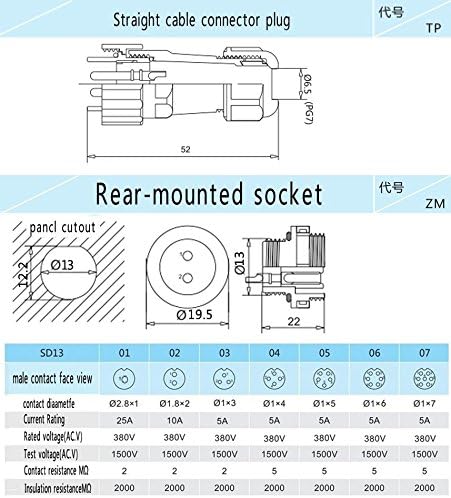

- SD13 6pin IP68 waterproof power cable connector in φ13mm panel cut.
- Pin number available: 1pin/ 2pin/ 3pin/ 4pin/ 5pin/ 6pin/ 7pin waterproof connector
- Panel mount, plug-female/ socket-male, 5A 380V industrial standard connector,
- Contact diameter: φ1mm *6, Cable diameter: φ4-7mm; Total Size: 6.5 x 1.8cm / 2.6" x 0.72" (L*φ)
- Professional and trusted waterproof power connector supplier
وصف
Specifications
Material: Nylon
Welded pinhole: beryllium gold plated style
Sealing ring: silicone
Gender: male female
Connection: screw connection
1. Operating temperature: -45 ° C ~ 85 ° C
2. Relative humidity: 90% ~ 95% (40 ± 2 ° C)
3. Salt spray: 5% NaC1 mist in 48h
4. Sealing: IP68
5. Applicable cable diameter: Φ4.0 ~ 6.5mm
6. Mechanical life: 500 times
7. Insulation resistance: 500mΩ under normal condition
8. Working current: Φ2.8 Contact: 25A, Φ1.8 Contact: 10A, Φ1 Contact: 5A
9. Contact Resistance: Φ2 Contacts 2mΩ, 1 Contact: 5mΩ
10. Working Voltage and Withstanding Voltage (Sea Level) Working Voltage: 250V (AC)/ Test Voltage: 1500V (AC)

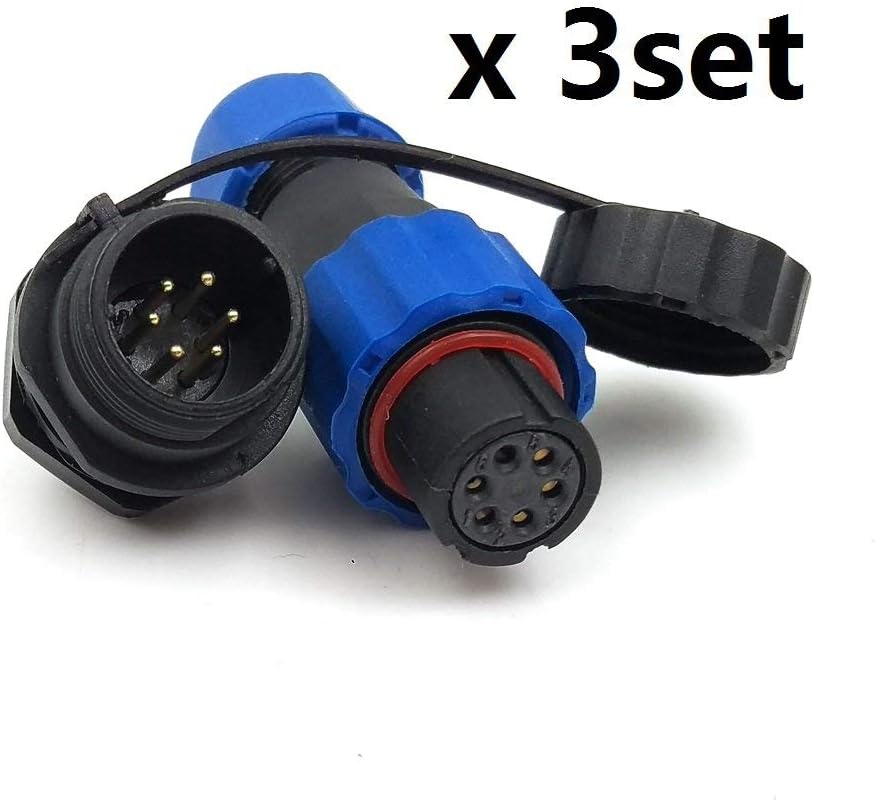

What's in the box: 3 set of connector( 3 plugs, 3 sockets)
