uxcell 5PCS OV-156-1C25 15A 125/250VAC SPDT NO NC 3 Terminals Long Roller Lever Type Action Switches in Saudi Arabia uxcell 5PCS OV-156-1C25 15A 125/250VAC SPDT NO NC 3 Terminals Long Roller Lever Type Action Switches in Saudi Arabia uxcell 5PCS OV-156-1C25 15A 125/250VAC SPDT NO NC 3 Terminals Long Roller Lever Type Action Switches in Saudi Arabia uxcell 5PCS OV-156-1C25 15A 125/250VAC SPDT NO NC 3 Terminals Long Roller Lever Type Action Switches in Saudi Arabia

uxcell 5PCS OV-156-1C25 15A 125/250VAC SPDT NO NC 3 Terminals Long Roller Lever Type Action Switches

SAR 49
Brand
uxcell
– 1 +

Special Features

  • Rating Load: 15A 1/2HP 125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...

Description

Features
Adopt thermosetting plastic or thermoplastic;
Offers long service and operations life.
Small contact gap, snap sction, high sensitivity and small operatng travel
Widly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc...

Specification
Rating Load: 15A 1/2HP 125/250VAC; 0.6A/125VDC, 0.3A/250VDC
Operation speed: 0.1mm-1m/s
Contact resistance: 15m Ohm max. (initial)
Insulation resistance: 100m Ohm min. (at DC500V)
Dielectric strength: 1,000 VAC 50/60 Hz for 1minute
Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)
Operating temperature: -25~+80°C

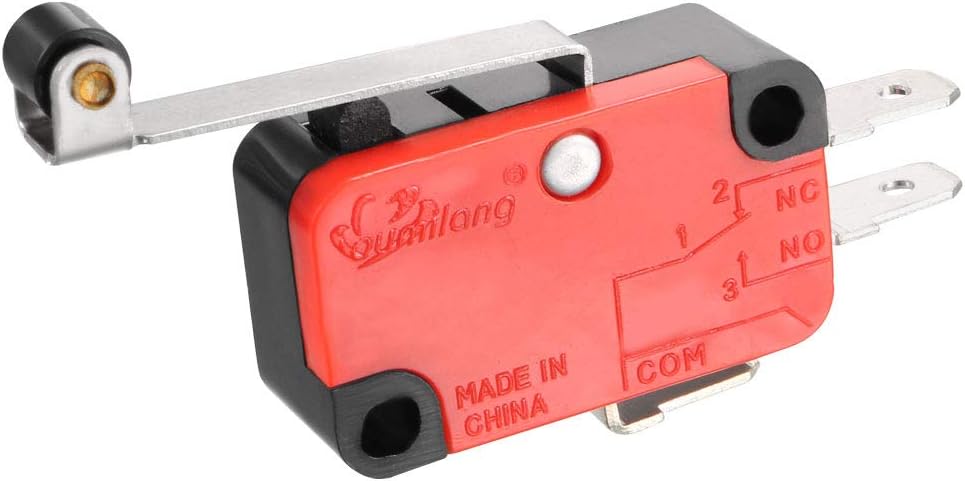

Contact Form: SPDT NO+NC
Pin number: 3

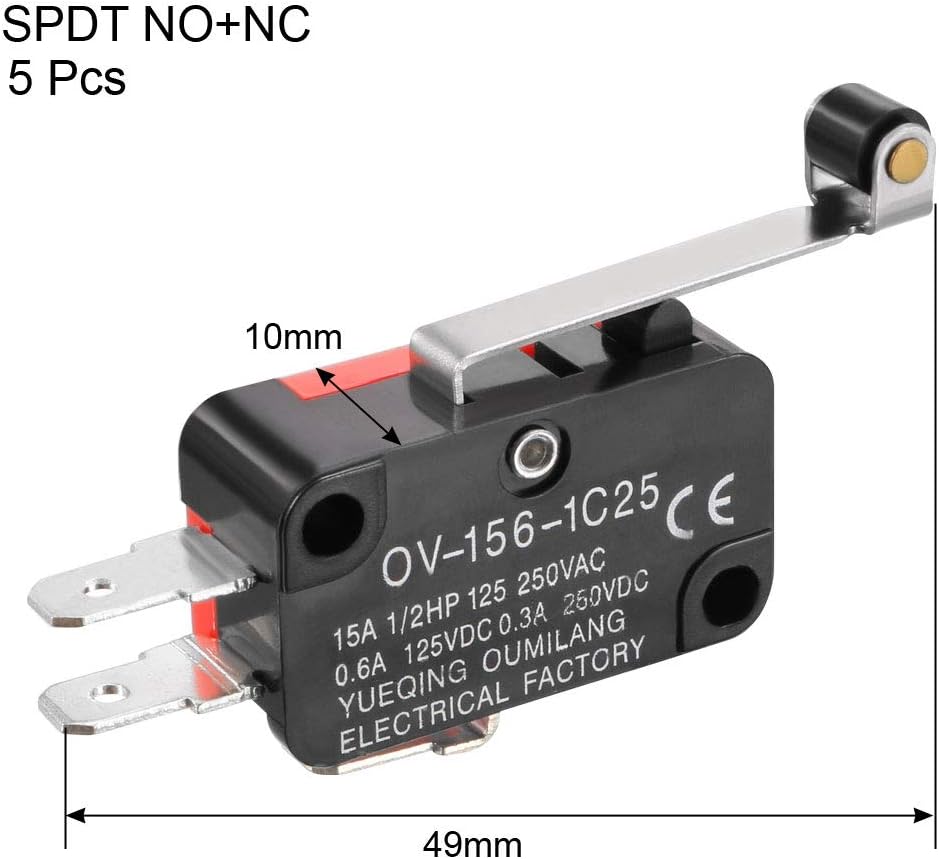

Overall size: 49x21x10mm/1.93x0.83x0.39inch(L*W*H)
Total weight: 35g

Package Content

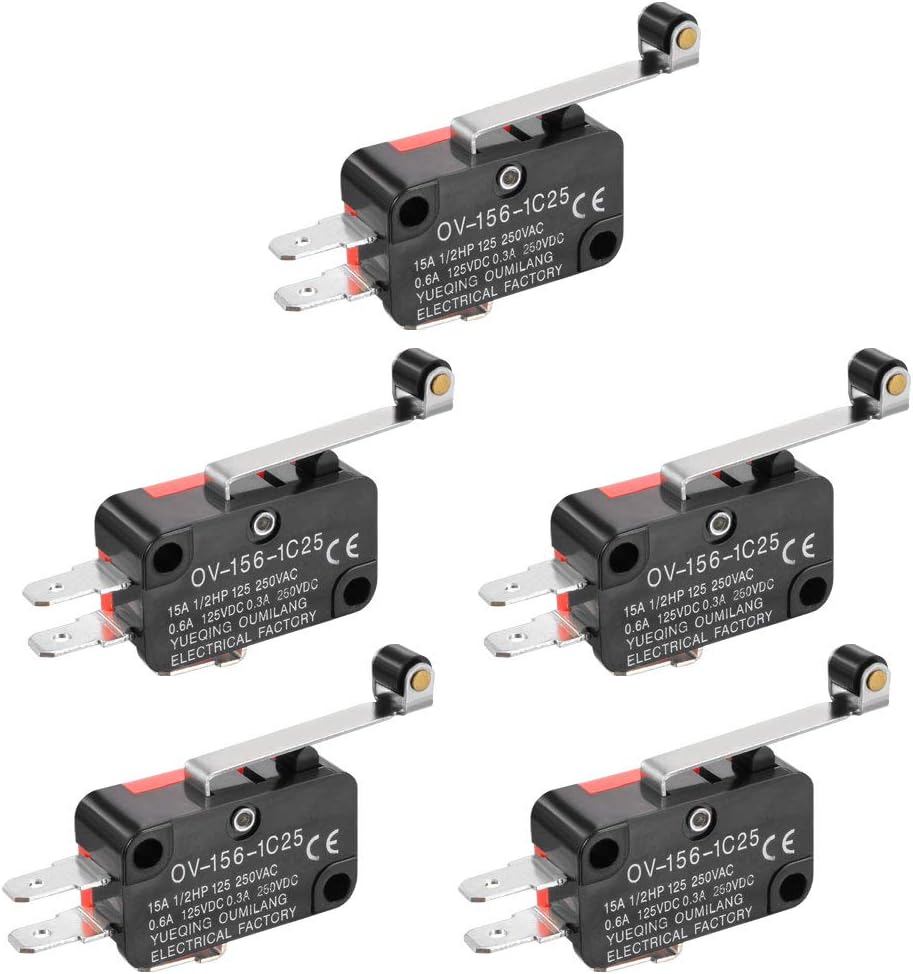

5 x Microswitch
