Stable, high temperature, low water pressure start.
Brass material, small size, easy to install.
Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, ect.
The water flow sensor is applied for water heater, and can be used as flow switch.
Maximum water pressure: 2MPa, flow range: 1-30L/min.
وصف
Specifications:

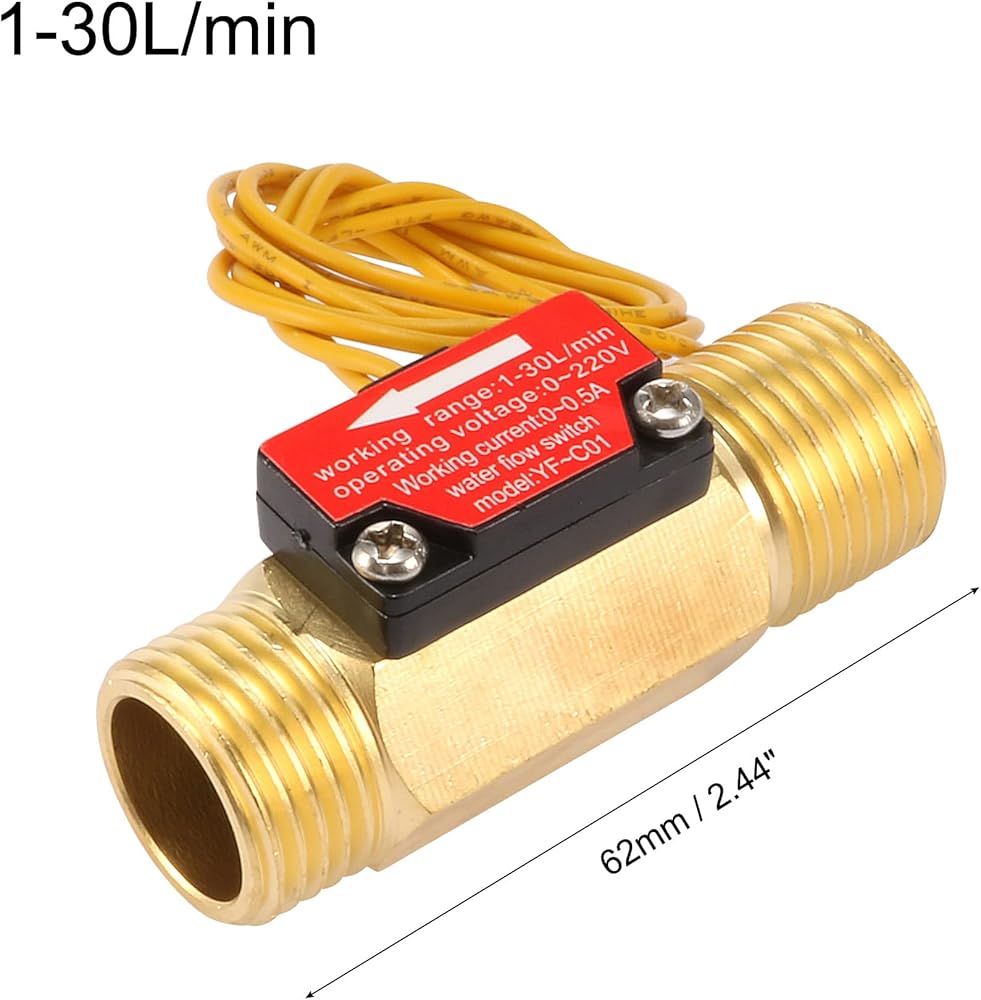

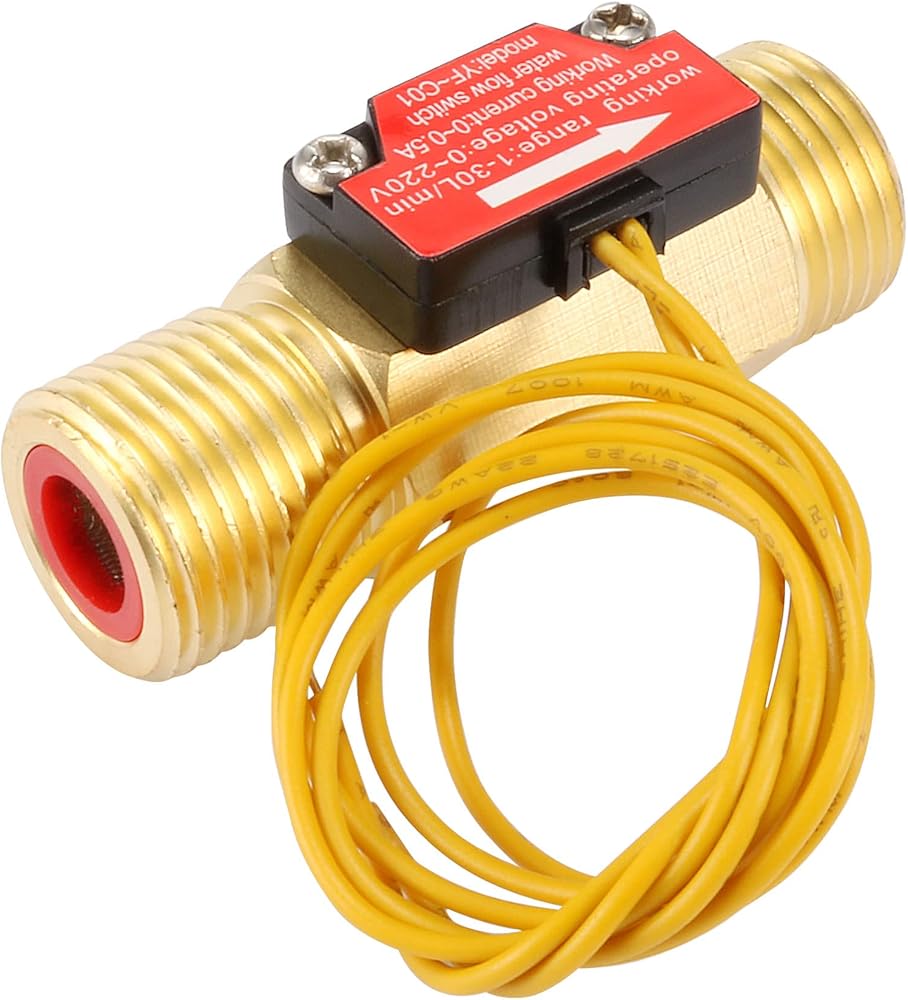

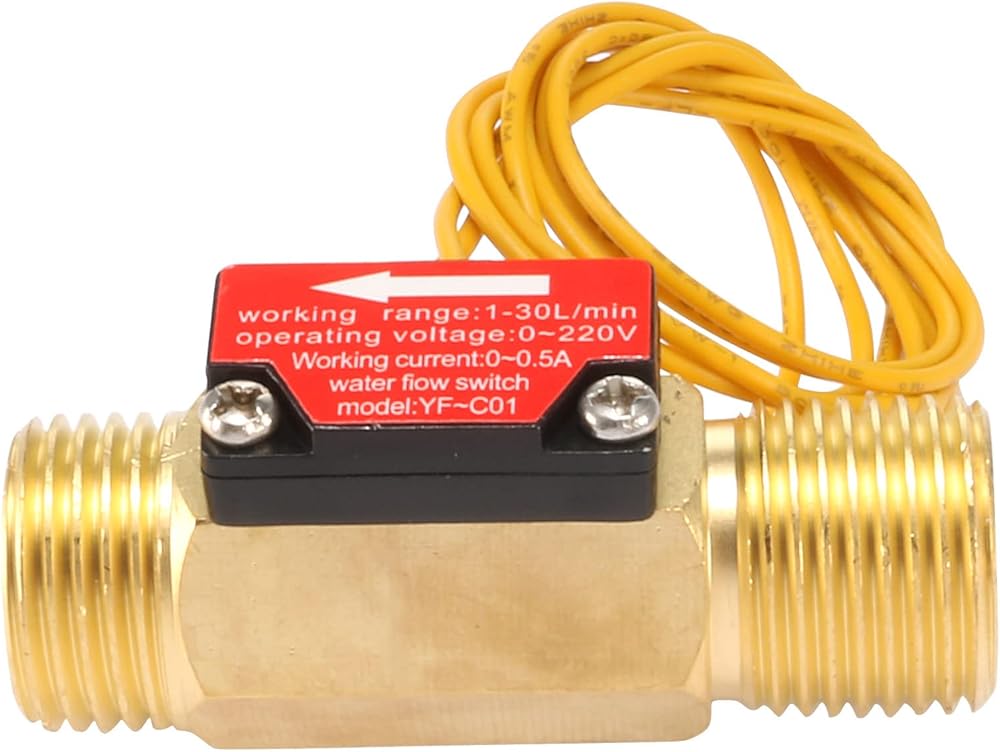

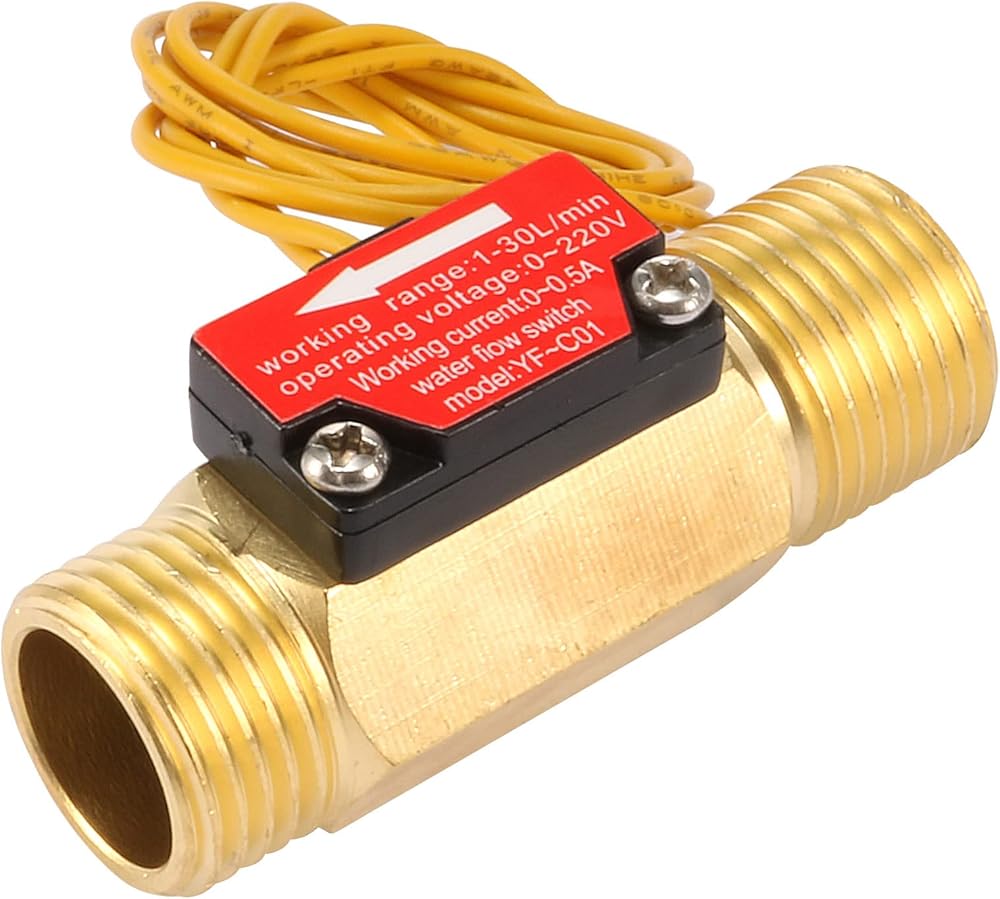

Product Name: Water Flow Switch
Material: Brass(Shell)
Size: 62mm x 24mm x 28mm / 2.44" x 0.94" x 1.1"(L*W*H)
Cable Length: 290mm / 11.42"
Working Voltage: DC 0-220V
Working Current: 0-0.5A
Rated Voltage: DC 5V
Max Current: 10mA(DC 5V)
Maximum Load Power: 10W
Maximum water pressure: 2MPa
Flow range: 1-30L/min

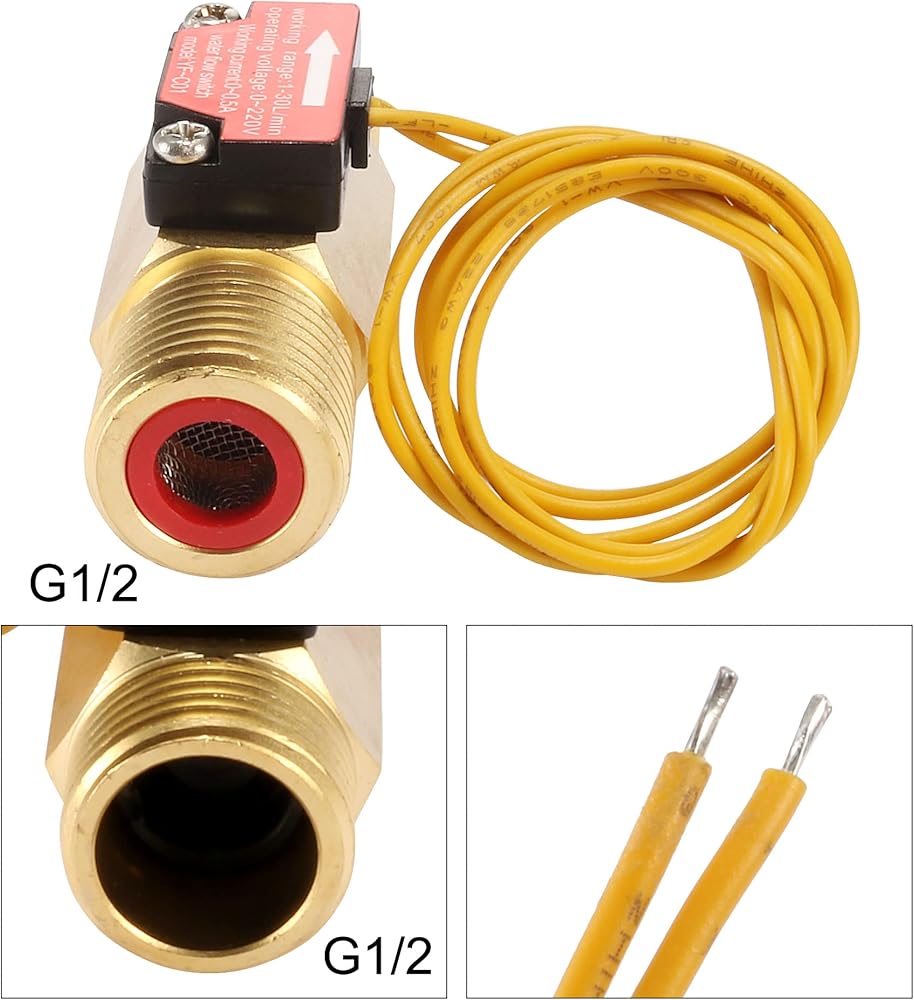

External Thread Diameter: G1/2
Color: Brass Tone
Net Weight: 117g
Package Included:
1 x Water Flow Switch
Note:
1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
