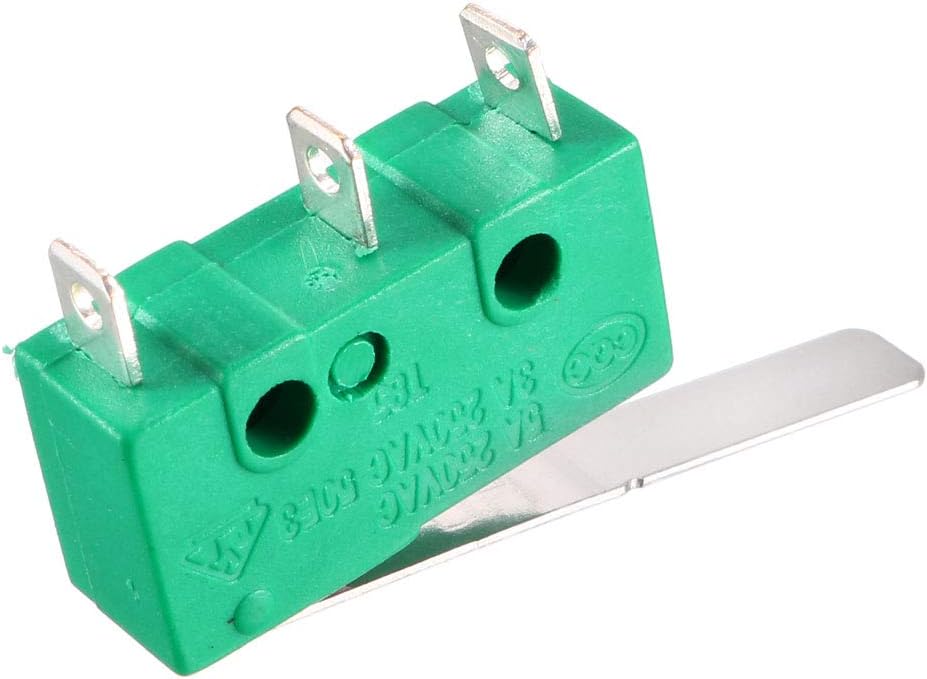

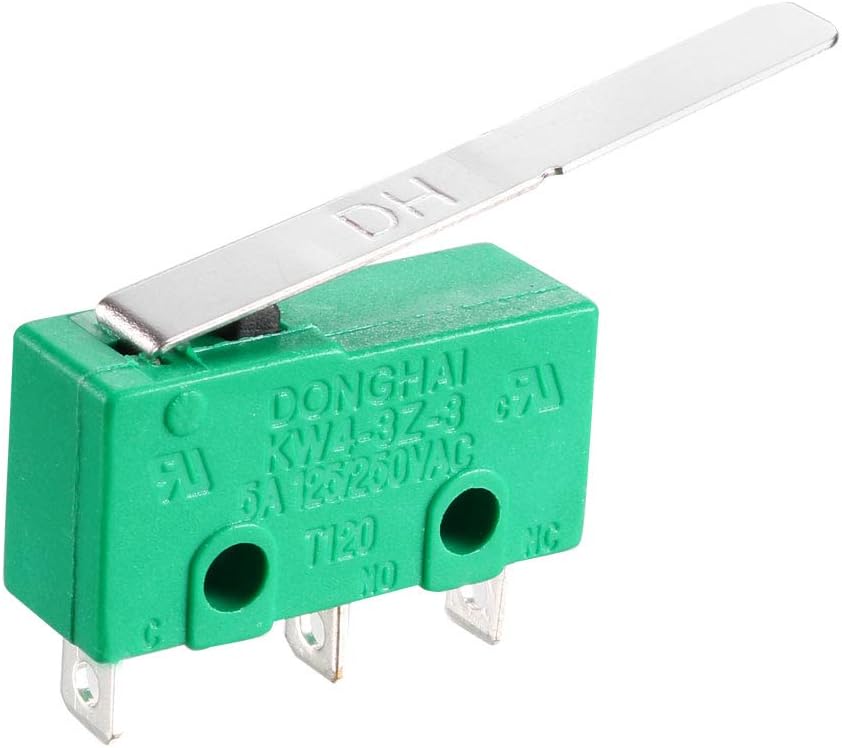

Uxcell 5 قطعة KW4-3Z-3 5A125/250VAC مفتاح الحد الصغير SPDT NO NC 3 محطات مؤقتة طويلة المفصلي رافعة أخضر in Saudi Arabia Uxcell 5 قطعة KW4-3Z-3 5A125/250VAC مفتاح الحد الصغير SPDT NO NC 3 محطات مؤقتة طويلة المفصلي رافعة أخضر in Saudi Arabia Uxcell 5 قطعة KW4-3Z-3 5A125/250VAC مفتاح الحد الصغير SPDT NO NC 3 محطات مؤقتة طويلة المفصلي رافعة أخضر in Saudi Arabia Uxcell 5 قطعة KW4-3Z-3 5A125/250VAC مفتاح الحد الصغير SPDT NO NC 3 محطات مؤقتة طويلة المفصلي رافعة أخضر in Saudi Arabia

Uxcell 5 قطعة KW4-3Z-3 5A125/250VAC مفتاح الحد الصغير SPDT NO NC 3 محطات مؤقتة طويلة المفصلي رافعة أخضر

SAR 51
ماركة
uxcell
– 1 +

مميزات خاصة

  • Rating Load: 5A125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...

وصف

Features
Adopt thermosetting plastic or thermoplastic;
Offers long service and operations life.
Small contact gap, snap sction, high sensitivity and small operatng travel
Widly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc...

Specification
Rating Load: 5A125/250VAC;
Operation speed: 0.1mm-1m/s
Contact resistance: 15m Ohm max. (initial)
Insulation resistance: 100m Ohm min. (at DC500V)
Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)
Operating temperature: -25~+80°C
Contact Form: SPDT NO+NC
Pin number: 3

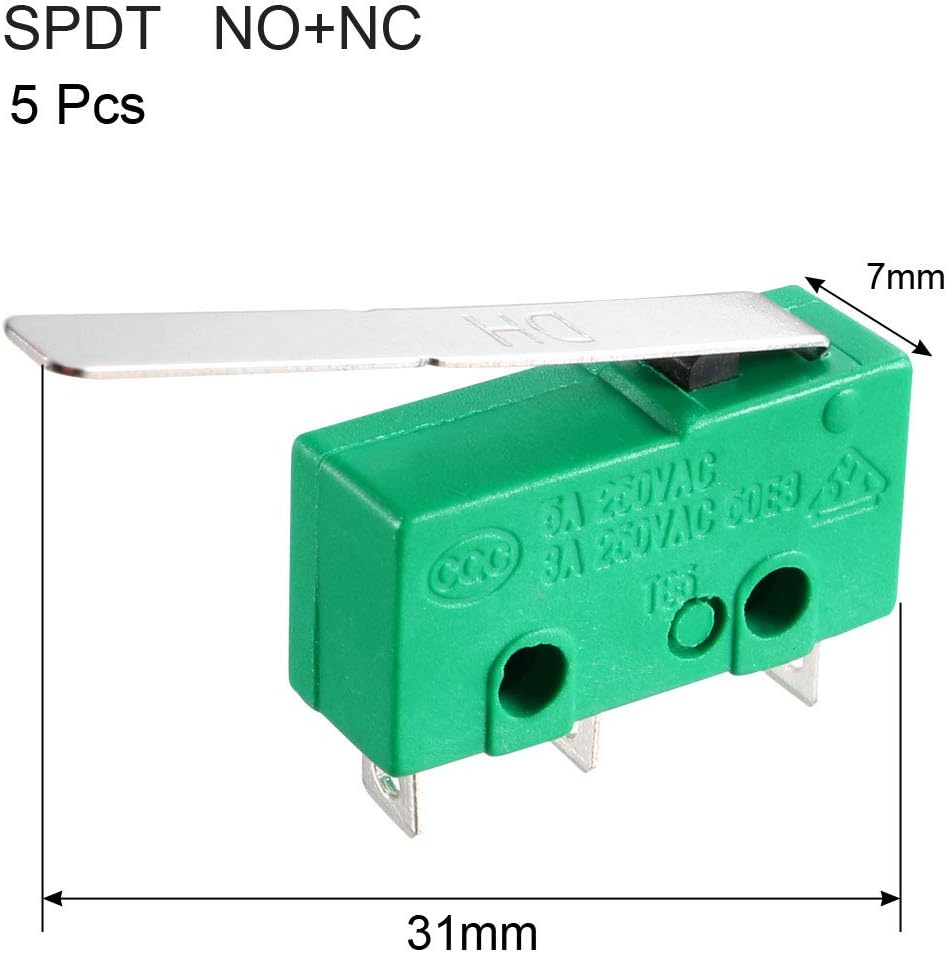

Overall size: 31x21x7mm/1.22x0.83x0.28inch(L*W*H)
Total weight: 12g

Package Content

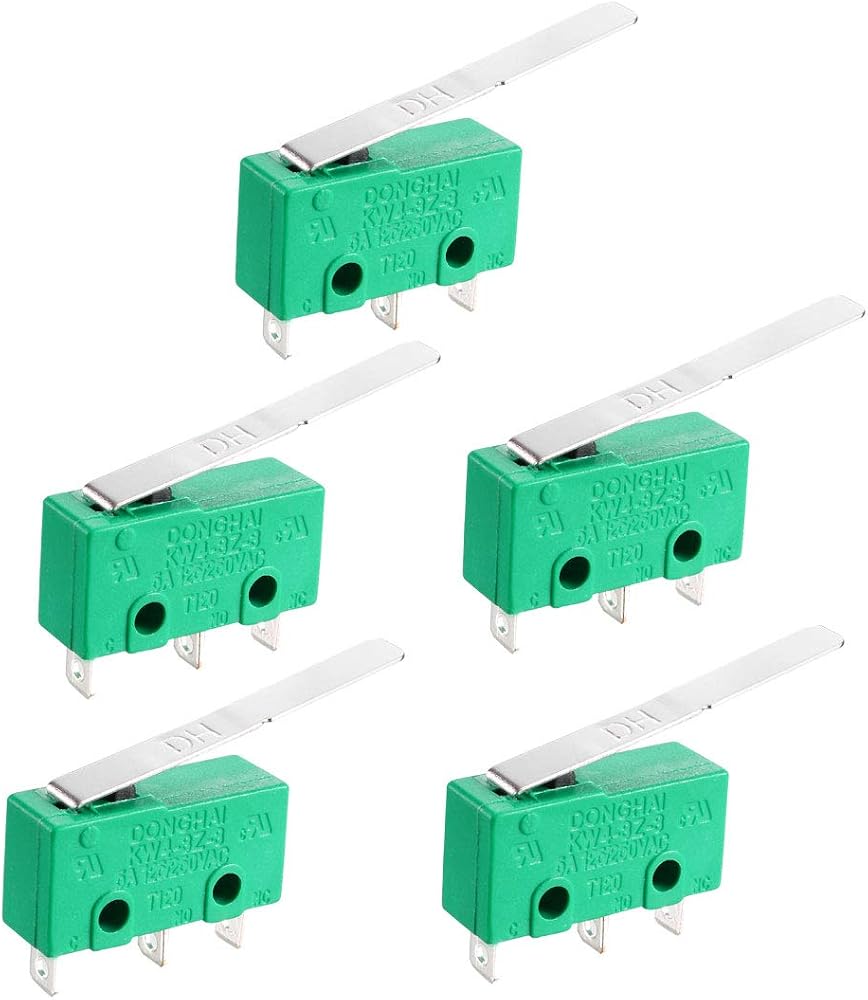

5 x Microswitch
