Product Description
This product is a voltage controller, which turns on and off the output through a relay, which only acts as a switch and cannot change the voltage.
You can freely set the charging or discharging mode and set parameters. For example, when the battery voltage reaches the set voltage, the module will automatically disconnect to avoid battery over-discharging and prolong battery life; In addition, you can also set the charging and discharging time.
Unlike other LED display modules, this protection module comes with an LCD high-definition display, which can clearly display voltage, voltage percentage and time.

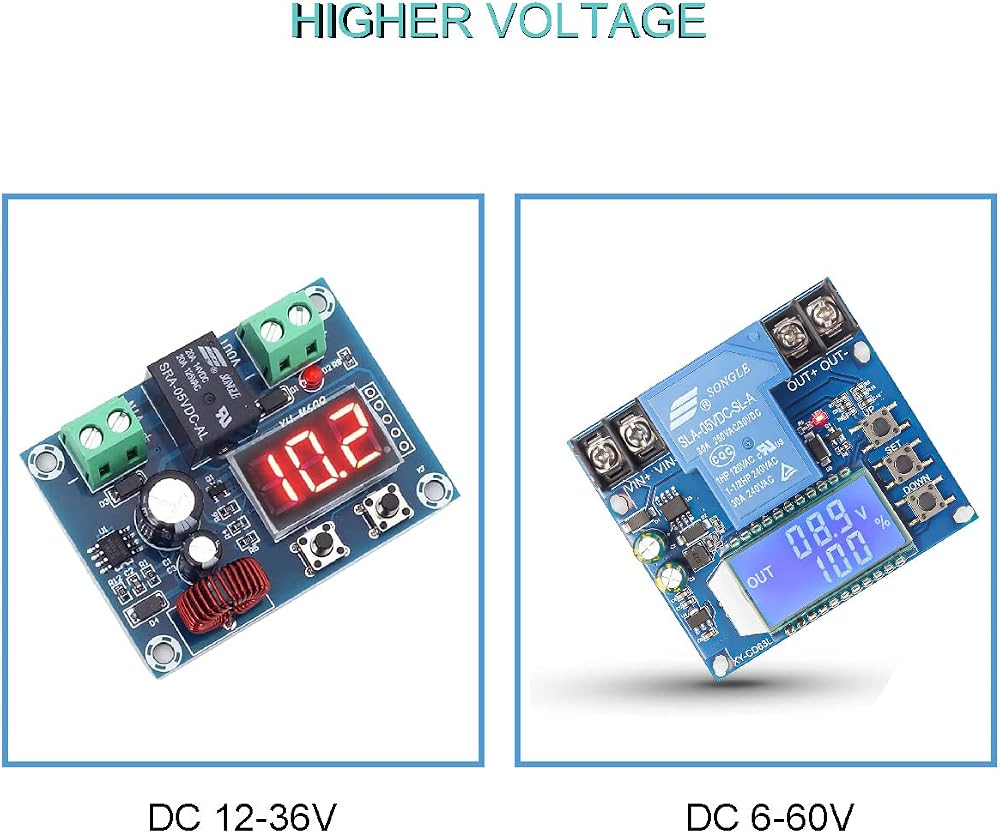

With 30A high current relay, suitable for any 6-60V variety of batteries and Lithium batteries.
That means, after a charge or discharge, the interval between turning on again. The time range that can be set is 0-999 seconds.

Colour: Blue
Material: Metal

Use Steps
Parameter
UP: Voltage upper limit
dn: Voltage lower limit
OP: Conduction time
dOP: Delayed conduction time (0-999 seconds)

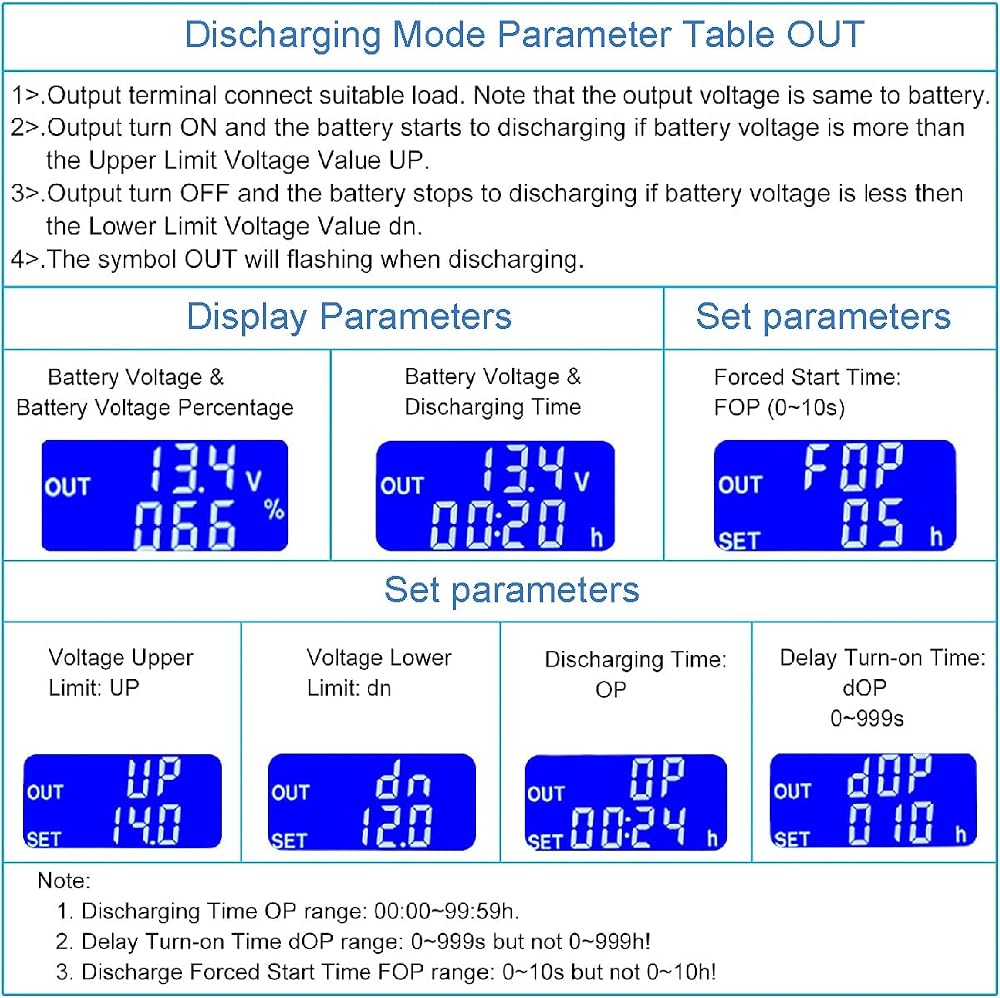

FOP in discharge mode: Forced start time (0-10 seconds)
Buttons
UP button: Short press to switch to display percentage and time, long press for 5 seconds to switch modes, charging mode: IN, discharging mode: OUT
SET button: Short press to view the currently set parameters; long press the SET button to set the parameter
DOWN button: Short press to turn off/on the relay (emergency stop function), after the LCD display is OFF, the relay is disconnected

FUNCTION

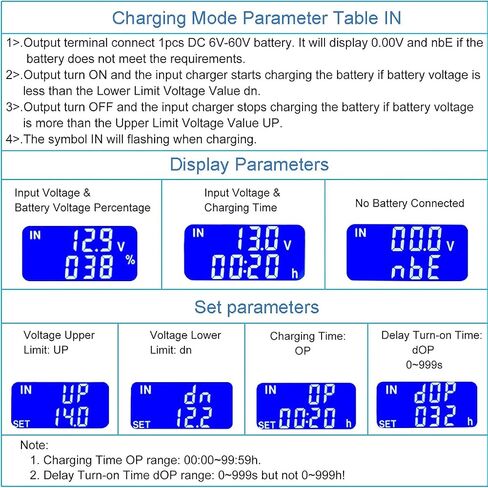

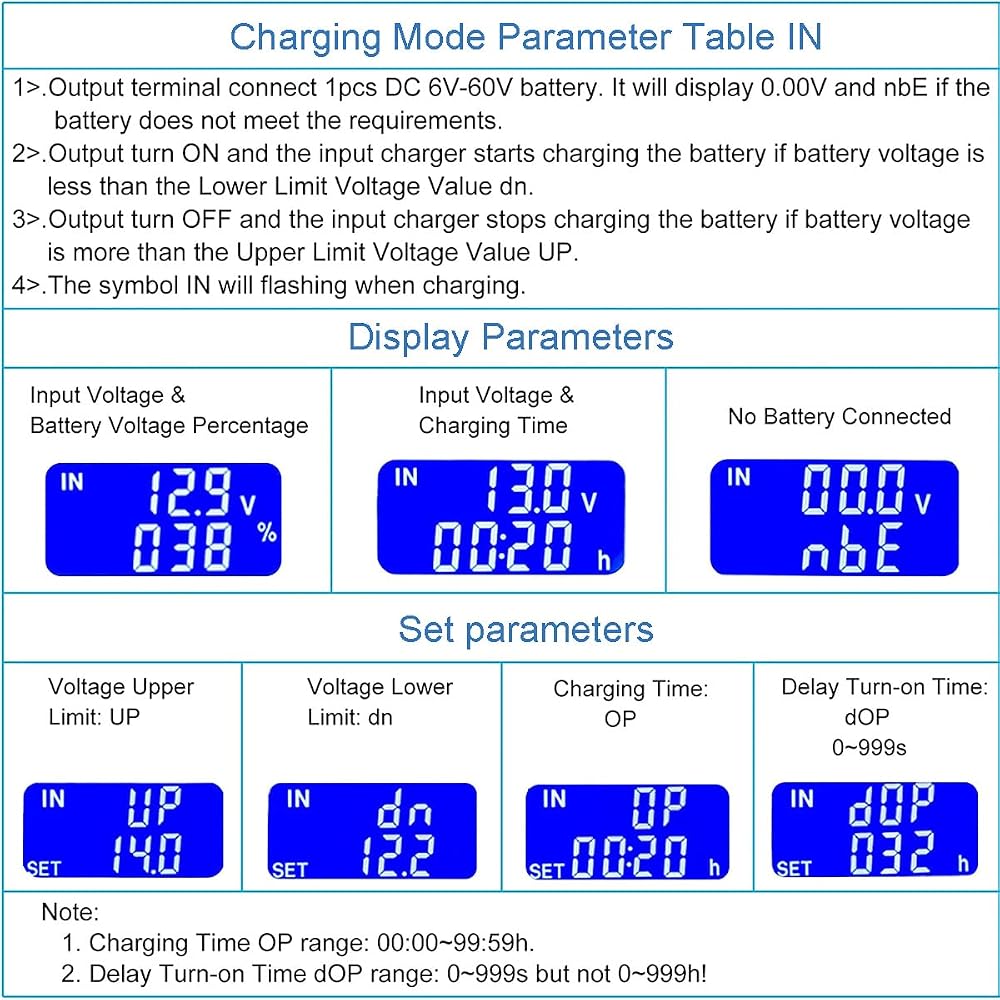

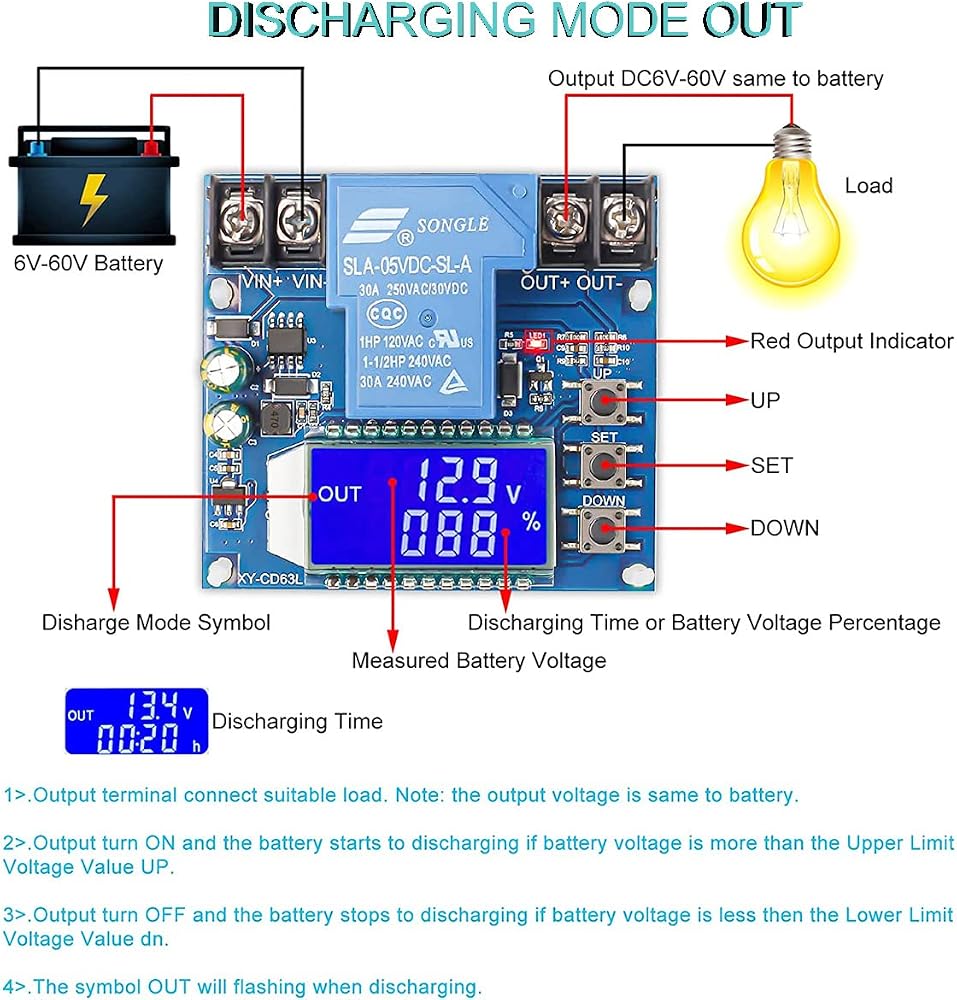

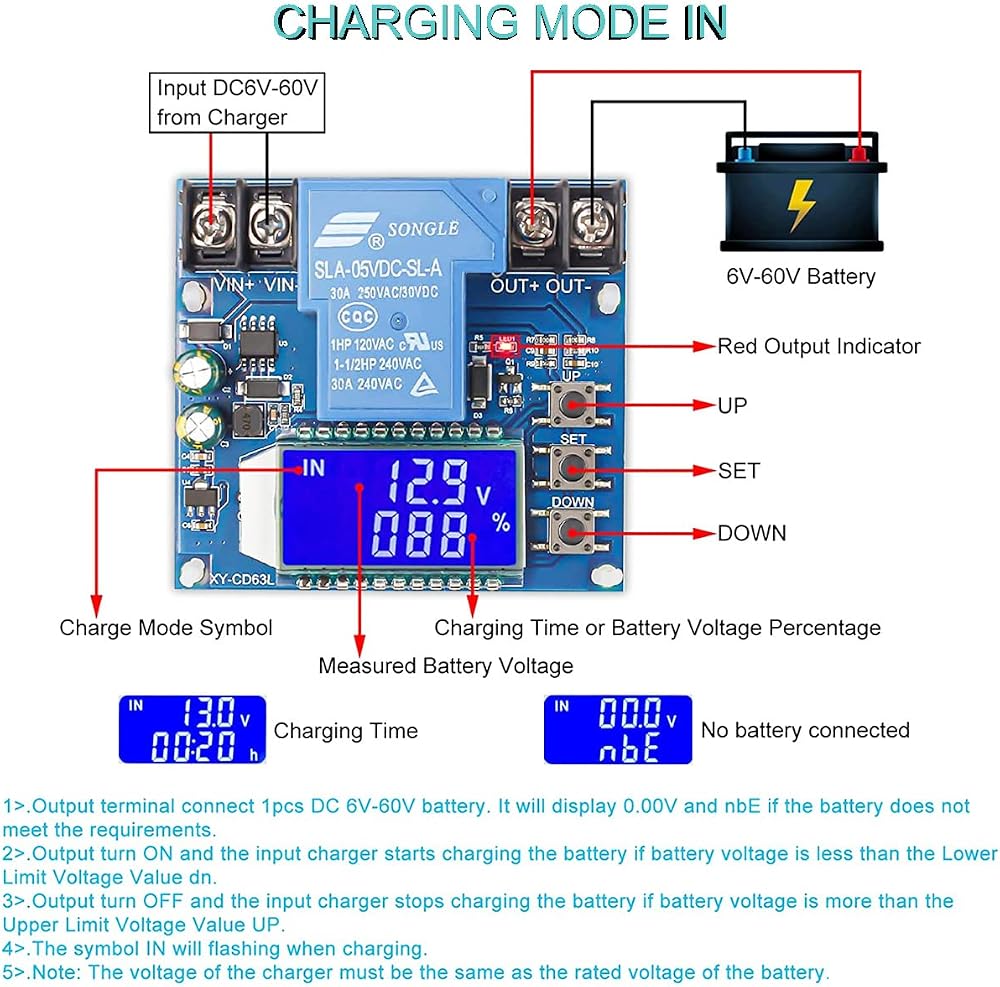

Charge/Discharge mode
Charge/Discharge time control
Delay turn-on(0-999 seconds)
Force start time(0-10 seconds)

Package Includes:

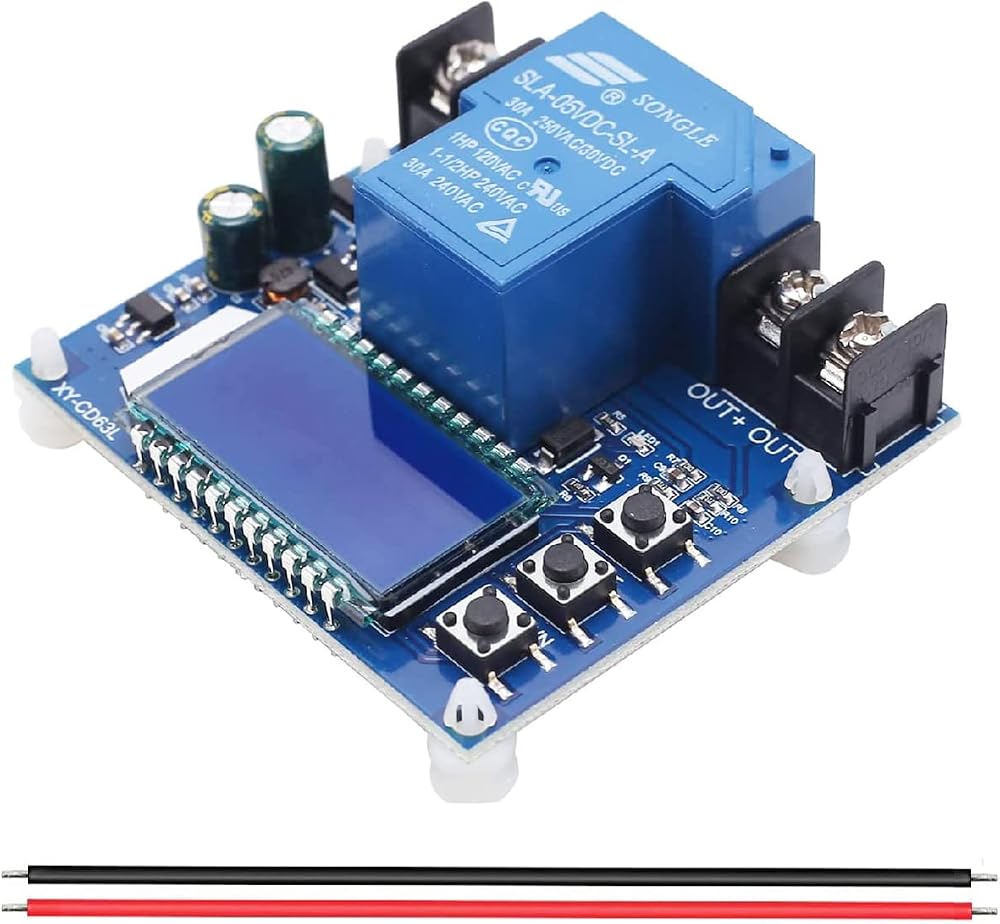

1 x Low Voltage Protector Disconnect Switch module
1 x 50cm 16awg red and black cable
