Special Features

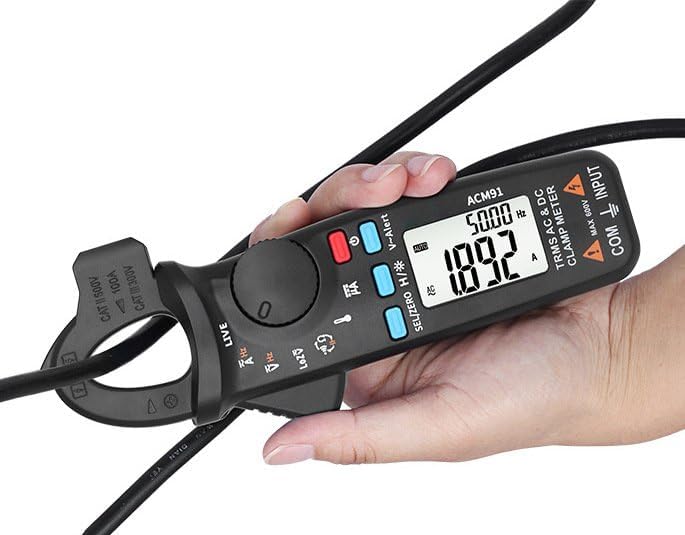

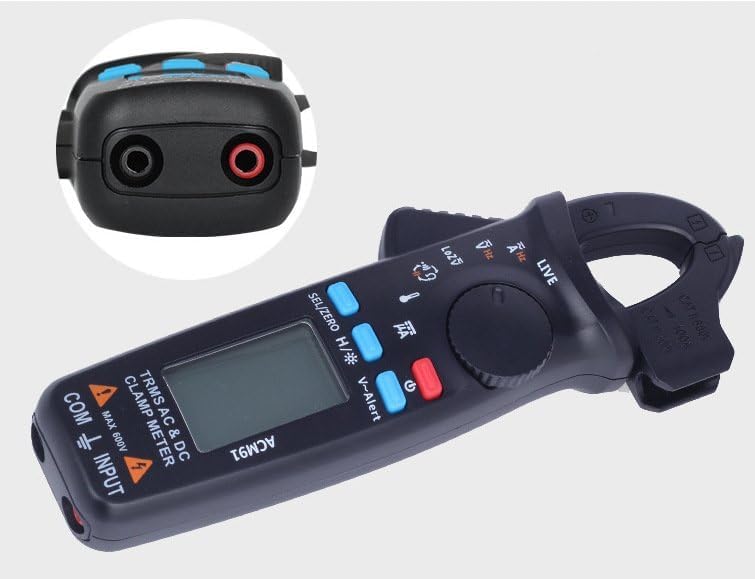

Clamp meter can test AC/DC current and voltage up to 100A and 600V, frequency, resistance, capacitance, continuity and temperature
AC/DC current meter with true RMS 6000 counts can accurately measure non-linear loads, great for troubleshooting
Multimeter tester features a low input impedance mode to identify and eliminate ghost or stray voltages
Volt meter also features non-contact voltage test, and with a clamp opening up to 20mm, it can work with cables of various diameters
AC DC Amp meter has functions of data hold, auto shutdown, on-off buzzer, etc

Description

FEATURE
-Auto ranging
-True RMS
-NCV
-Auto shutdown over 15min
-On-off buzzer
-Low input impedance
-Data hold

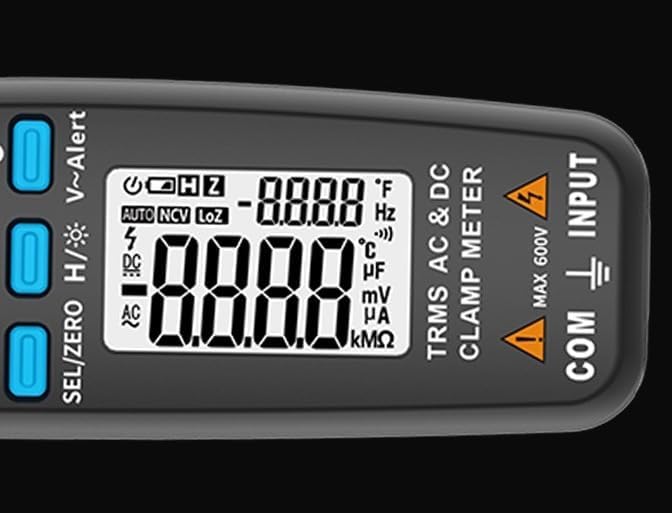

-Backlit LCD screen
-Palm size
SPECIFICATION
-Model: ACM91
-LCD Display: 6000 counts
-AC current: 6A/60A/100A
-DC current: 6A/60A/100A, 0-200uA
-AC voltage: 6V/60V/600V
-DC voltage: 6V/60V/600V
-Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
-Capacitance: 600uF/6000uF
-Frequency: 60Hz/1000Hz
-Temperature: -20℃~500℃
-Samping Rate: 3 times/sec

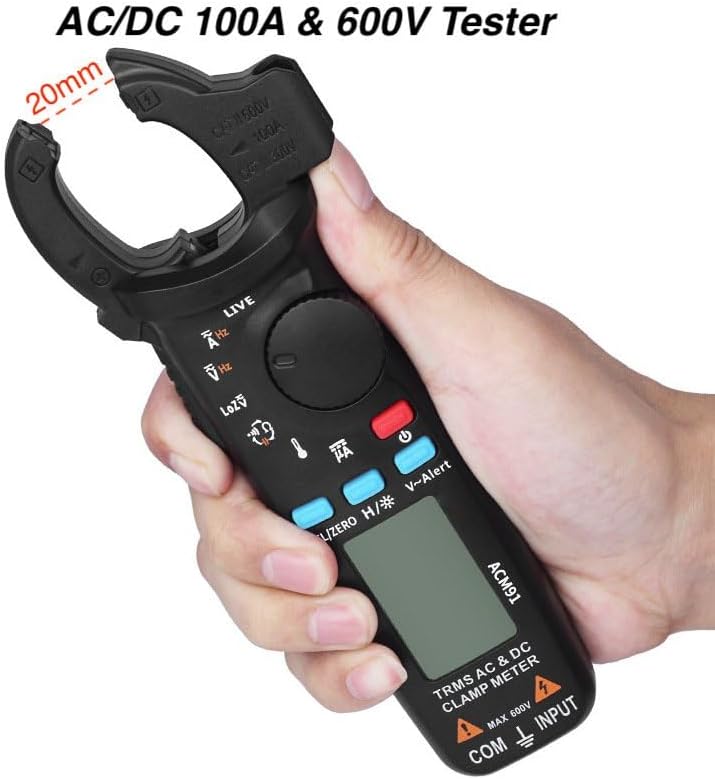

-Clamp opening: max. 20mm
-Power Supply: 3x 1.5V AAA battery (NOT included)

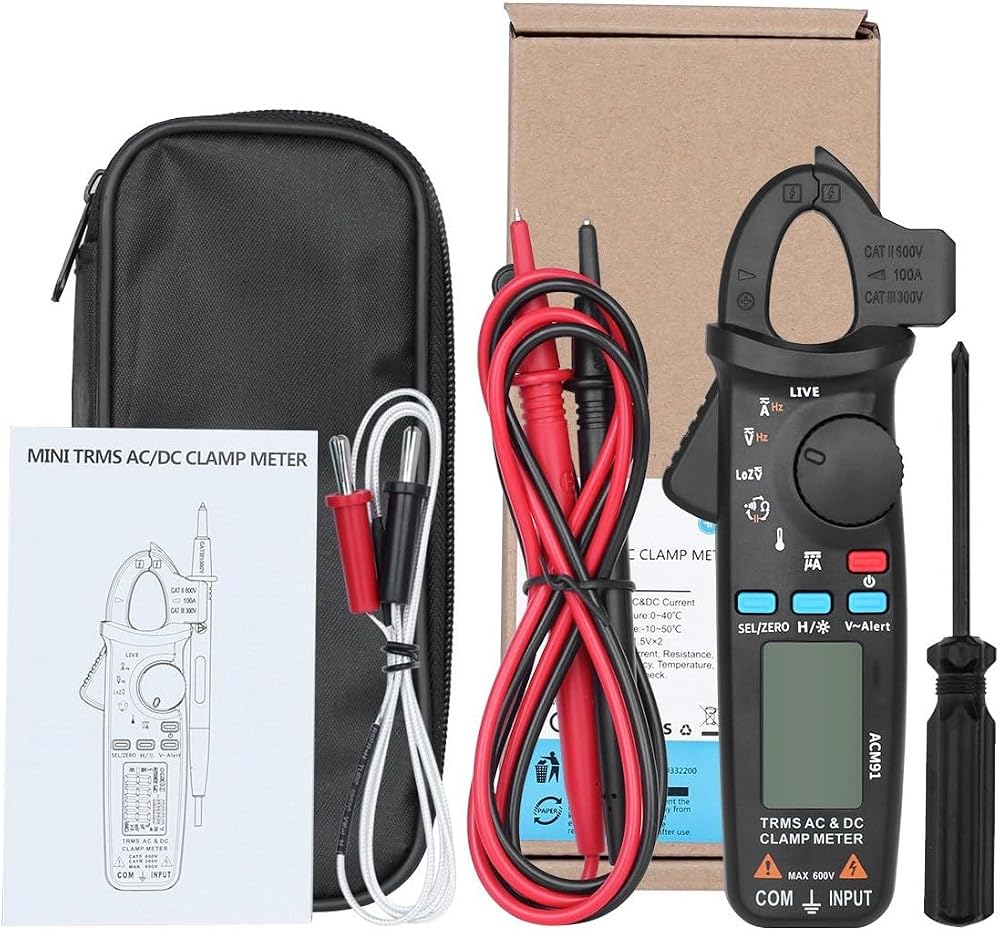

PACKAGE
-1 x Clamp Meter
-1 x Temperature Probe
-1 x Test Lead
-1 x Instructions
-1 x Storage Bag
