uxcell 5PCS OV-15-1C25 15A 125/250V AC 3 Terminals Snap Button Type Micro Limit Switch

SAR 49
Brand
uxcell
– 1 +

Special Features

  • Rating Load: 15A 1/2HP 125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 62 Protection Degree. This means this switch is available for total dust ingress protection and water spray < 15 degrees from vertical.
  • Widely used in appliances, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc.

Description

Features
Offers long service and operations life.
Small contact gap, snap action, high sensitivity, and small operating travel
Widely used in appliances, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool, etc.

Specification
Rating Load: 15A 1/2HP 125/250VAC; 0.6A/125VDC, 0.3A/250VDC
Operation speed: 0.1mm-1m/s
Contact resistance: 15m Ohm max. (initial)
Insulation resistance: 100m Ohm min. (at DC500V)
Dielectric strength: 1,000 VAC 50/60 Hz for 1minute
Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)
Operating temperature: -25~+80°C
Contact Form: SPDT NO+NC
Pin number: 3

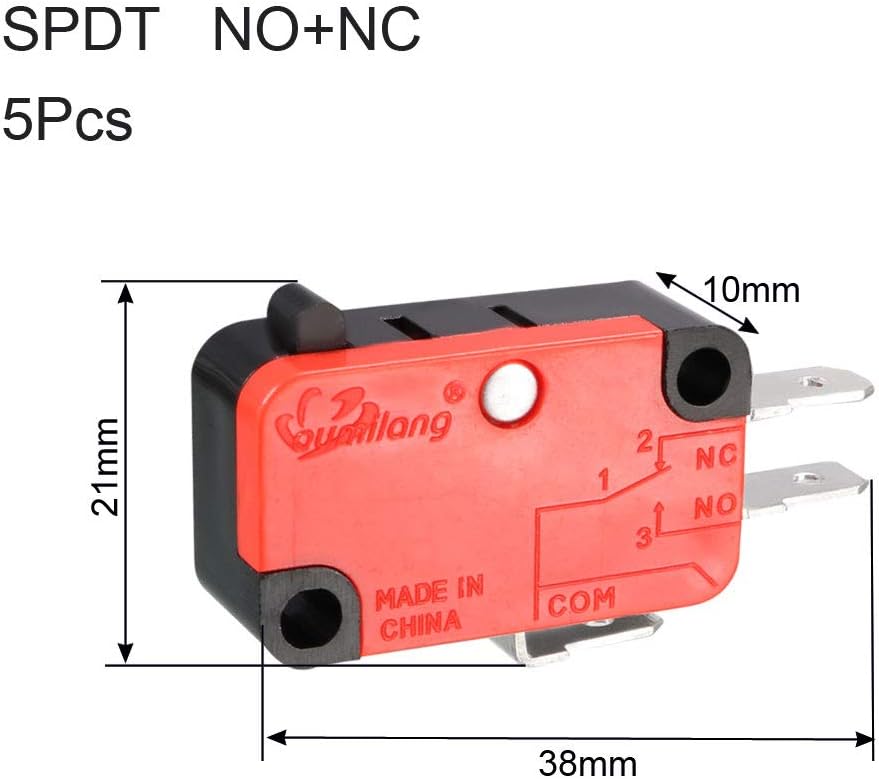

Overall size: 38x21x10mm/1.5x0.83x0.39inch(L*W*H)
Total weight: 30g

Package Content

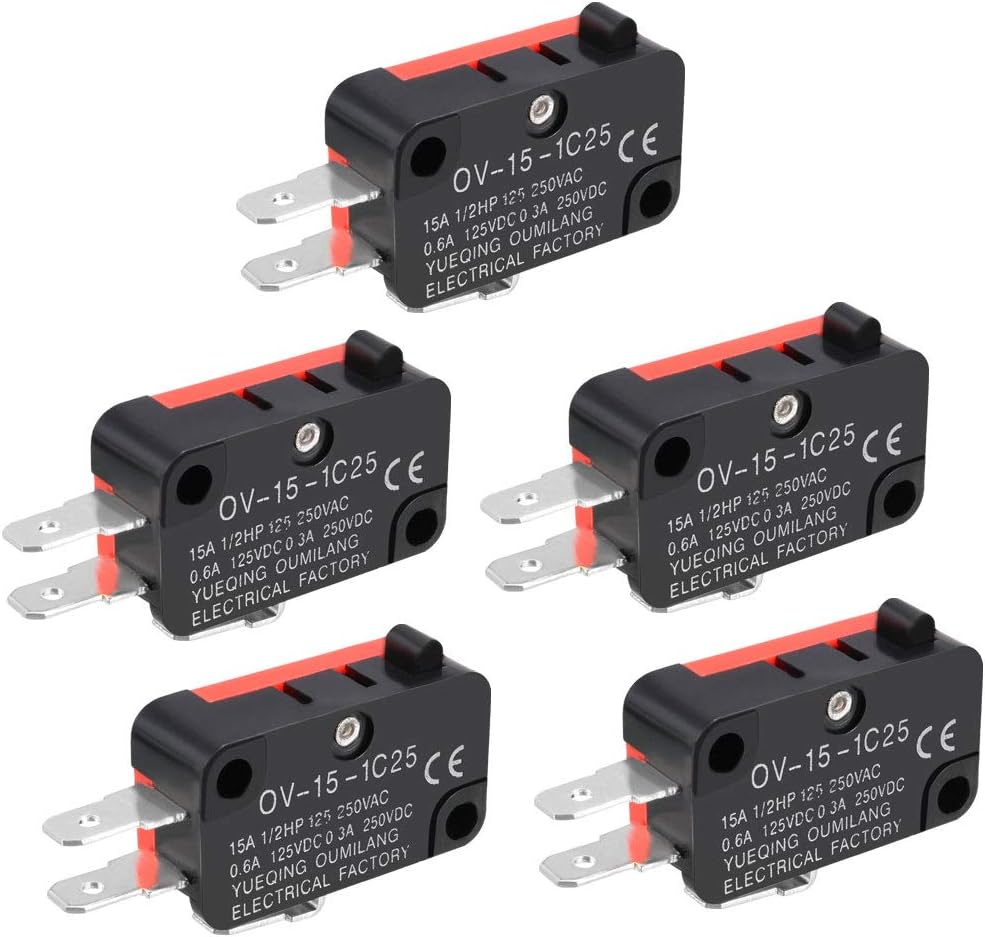

5 x Micro switch
