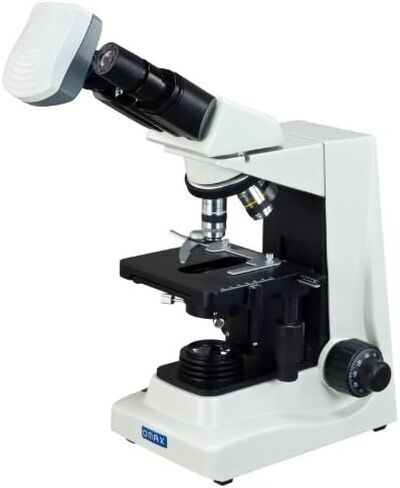

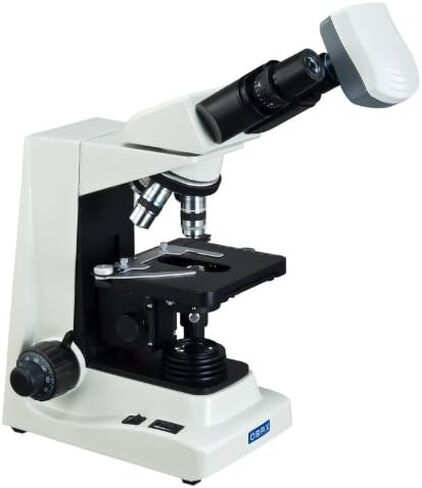

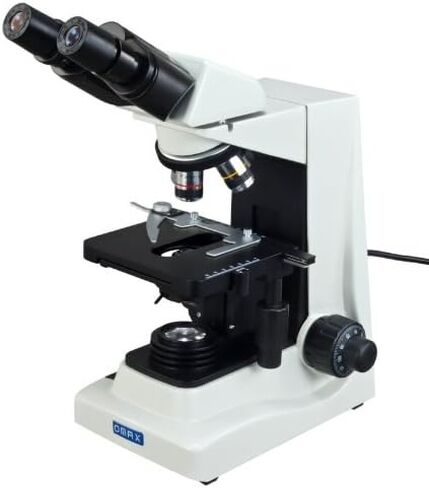

OMAX 40X-1600X Advanced Plan Darkfield Binocular Compound Microscope with 9.0MP USB Camera and Extra Bright Oil Darkfield Condenser in Saudi Arabia OMAX 40X-1600X Advanced Plan Darkfield Binocular Compound Microscope with 9.0MP USB Camera and Extra Bright Oil Darkfield Condenser in Saudi Arabia OMAX 40X-1600X Advanced Plan Darkfield Binocular Compound Microscope with 9.0MP USB Camera and Extra Bright Oil Darkfield Condenser in Saudi Arabia OMAX 40X-1600X Advanced Plan Darkfield Binocular Compound Microscope with 9.0MP USB Camera and Extra Bright Oil Darkfield Condenser in Saudi Arabia

OMAX 40X-1600X PLAN ADVANCED PLAN Darkfield المجهر المجهر مع كاميرا USB 9.0 ميجابكسل ومكثف داكن بزيت ساطع إضافي

SAR 6,968
ماركة
OMAX
– 1 +

مميزات خاصة

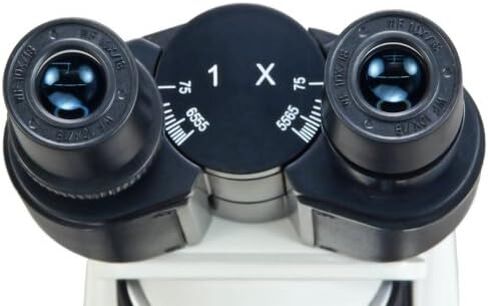

  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary distance: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece
  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary distance: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece
  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary distance: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece
  • Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying
  • ocus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper protects objective and slides; Brightfield condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment; Oil darkfield condenser: NA 1.36-1.25 plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm
  • Illumination: transmitted, 6V/20W halogen lamp, variable intensity; All metal mechanical components; Digital camera: - true color 3488 x 2616 pixels (9.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10 - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
  • 5-year warranty against manufacturing defects
