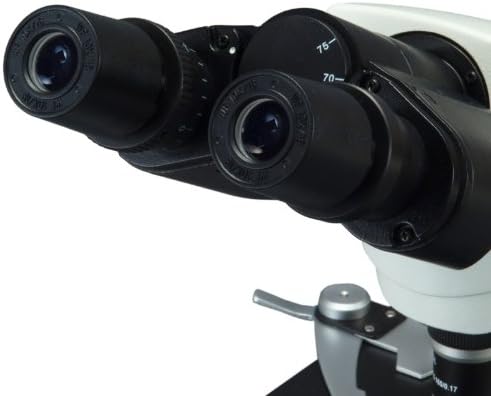

Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring,oil); Head: 30 degrees inclined 360 degreesrotatable binocular Siedentopf
Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring,oil); Head: 30 degrees inclined 360 degreesrotatable binocular Siedentopf
Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring,oil); Head: 30 degrees inclined 360 degreesrotatable binocular Siedentopf

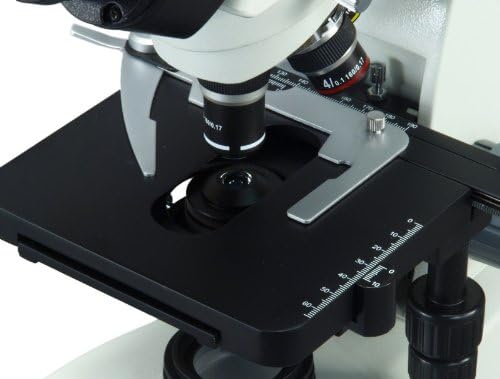

Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, translation range 78mm x 40mm, dimension 110mm x 140mm
Focus: coaxial coarse and fine focus knobs on both side, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable

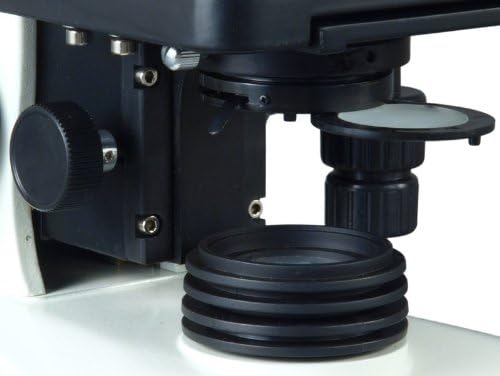

Condenser: Abbe NA1.25 with iris aperture diaphragm and swing-out filter holder, rack and pinion adjustment; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
5-year warranty against manufacturing defects
Description

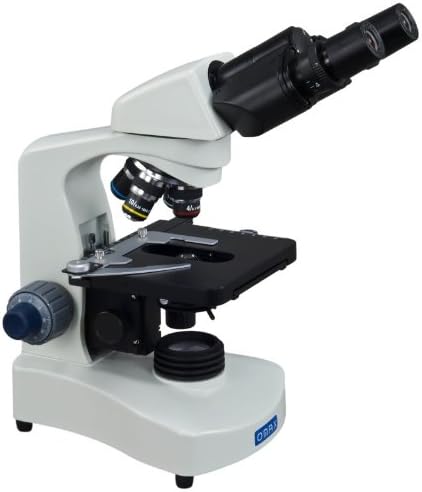

This is a professional binocular compound LED microscope 40X-2000X. It comes with Siedentopf binocular head, reversed nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage, 3W LED bright variable illumination. It's easy to replace the LED lamp by your own. You can add advanced accessories including darkfield condenser and phase contrast kit to upgrade your microscope. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This binocular microscopy is designed for clinical examinations, veterinary offices, laboratories and college.
